Detail Information

Model NO.:	BP93420-IQ	Measuring Medium:	Gas
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~35kpa...3.5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Frequency Response:	2.4kHz
Overload Capacity:	≤ 1.5 Times Of The Rated Range	Repeatability:	≤0.1%FS
Long-Term Stability:	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)	Operating Temperature:	-20ºC~80ºC
Diaphragm Material:	316L	Insulation Resistance:	100MΩ 100VDC
Weight:	~0.2kg
Highlight:	3.5MPa flush diaphragm pressure transmitter , high accuracy beverage pressure sensor , silicon pressure transmitter with warranty

Product Description

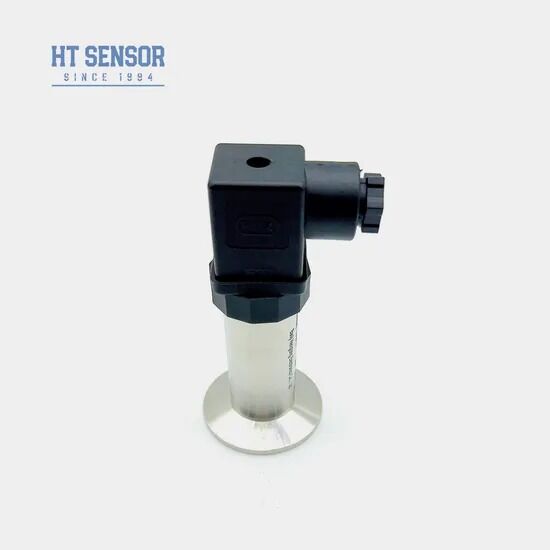

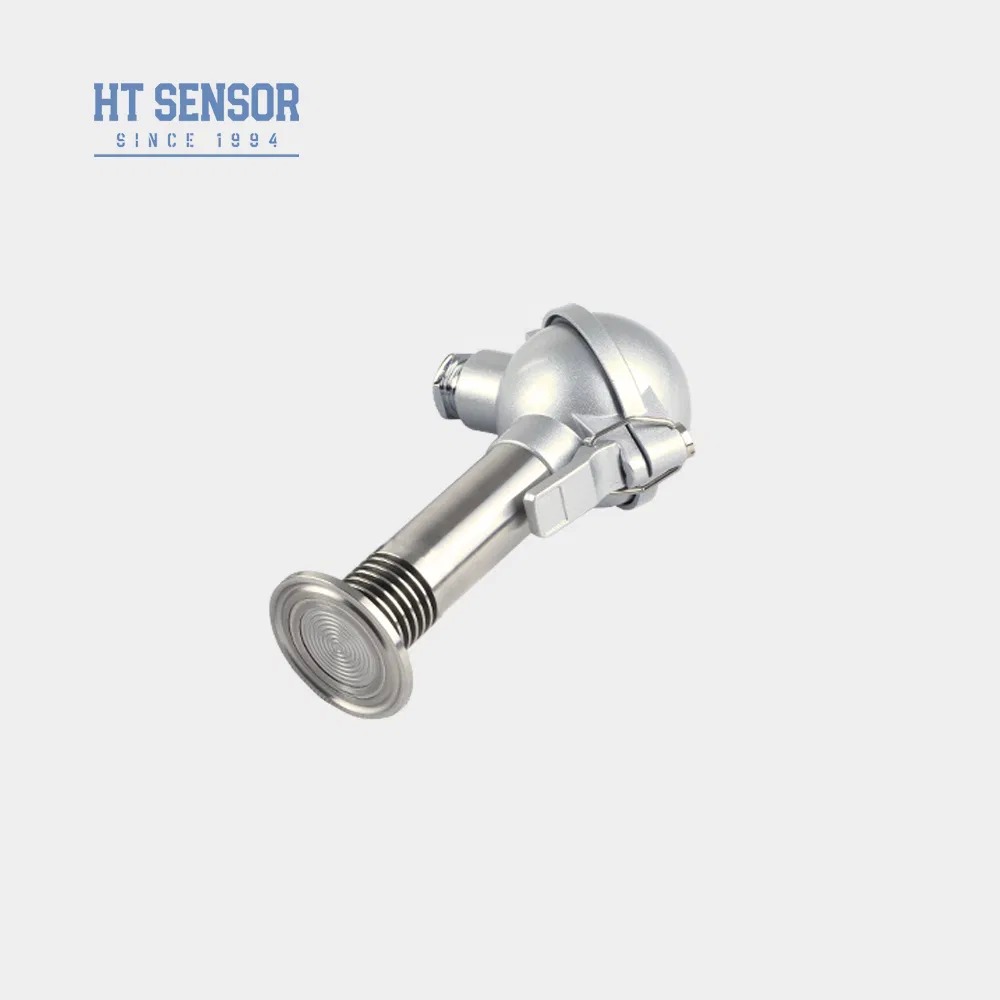

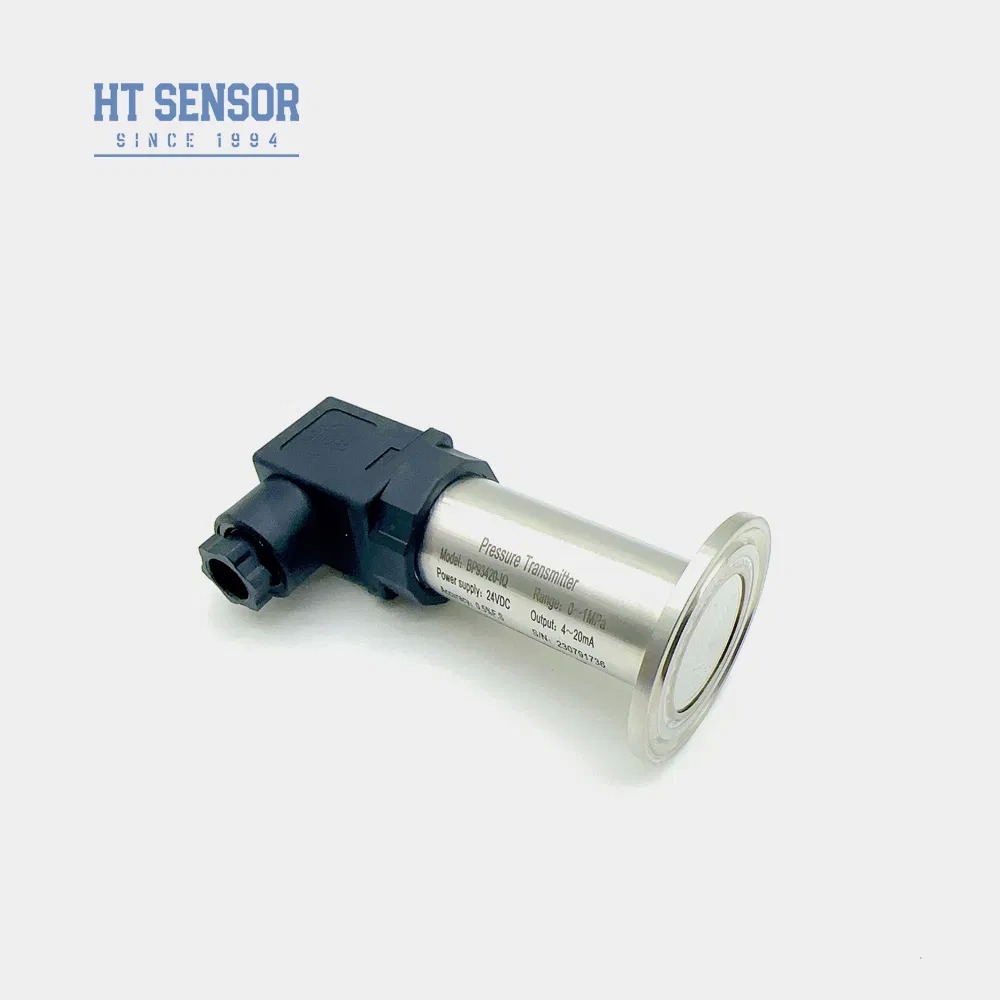

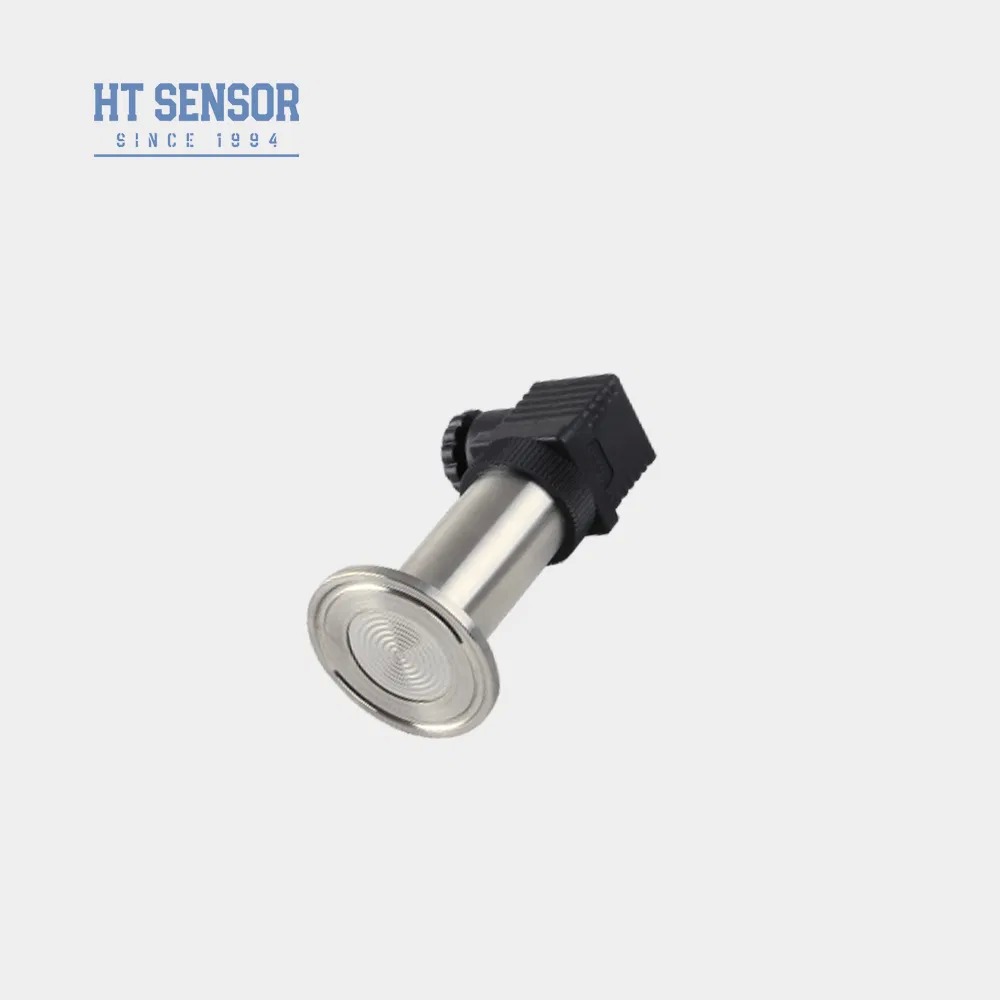

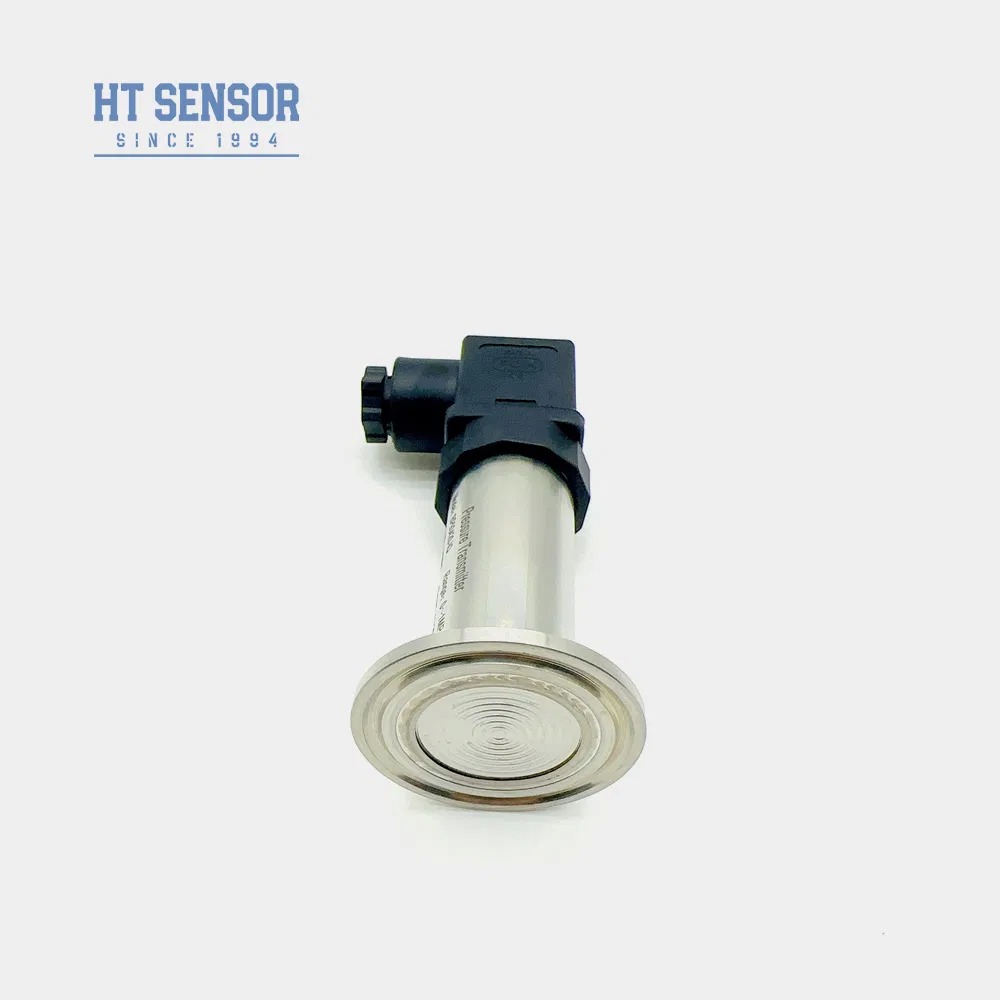

BP93420-IQ Flush Diaphragm Pressure Transmitter

The BP93420-IQ pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and the measuring diaphragm.

Key Features

Wide measurement range with various pressure interface options
Diverse output signal options
Adjustable zero and full-scale calibration
High accuracy with multiple sterile process connections

Applications

Measuring non-corrosive gases and liquids with 316L compatibility
Medical, biopharmaceutical, and food hygiene industries for sterile processing
Paper and chemical industries, sewage level, and beverage can pressure measurements
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	≤0.1%FS
Hysteresis	≤0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.2kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Ordering Guidelines

Ensure medium compatibility with product contact parts
Explosion-proof type products do not include digital display heads
Transmitters with LCD/LED display require power supply ≥20VDC
Install lightning protection devices and ensure proper grounding
For temperatures below -20ºC, select EPDM O-ring seal
Default cable length: 1.5m (polyethylene material)
Specify special requirements: vibration, impact, electromagnetic interference

Ordering Guide

BP93420XX | Pressure Transmitter

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/ Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ1/IQ2	Large Diaphragm /High-temperature Pressure Transmitter

Measurement Range: -100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Pressure Connection
J1	M20×1.5
J2	G1/2
J3	G1/4
J4	7/16-20UNF
J5	Other

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	39
