Model NO.:	HT19V	Output Signal:	Analog Type
Production Process:	Integration	Material:	Stainless Steel
Wiring Type:	Four-Wire	Measuring Medium:	Gas And Liquid
IP Rating:	IP65	Supply Current:	1.5mA
Compensation Temp.:	0~70 C	Pressure Type:	G/A/S
Output:	MV	Diameter:	19mm
Power Supply:	≤10VDC	Input Impedance:	4KΩ~20KΩ
Output Impedance:	2.5KΩ~6KΩ
Highlight:	19mm silicon pressure sensor , 10VDC powered piezoeletric sensor , air and liquid pressure sensor

Product Description

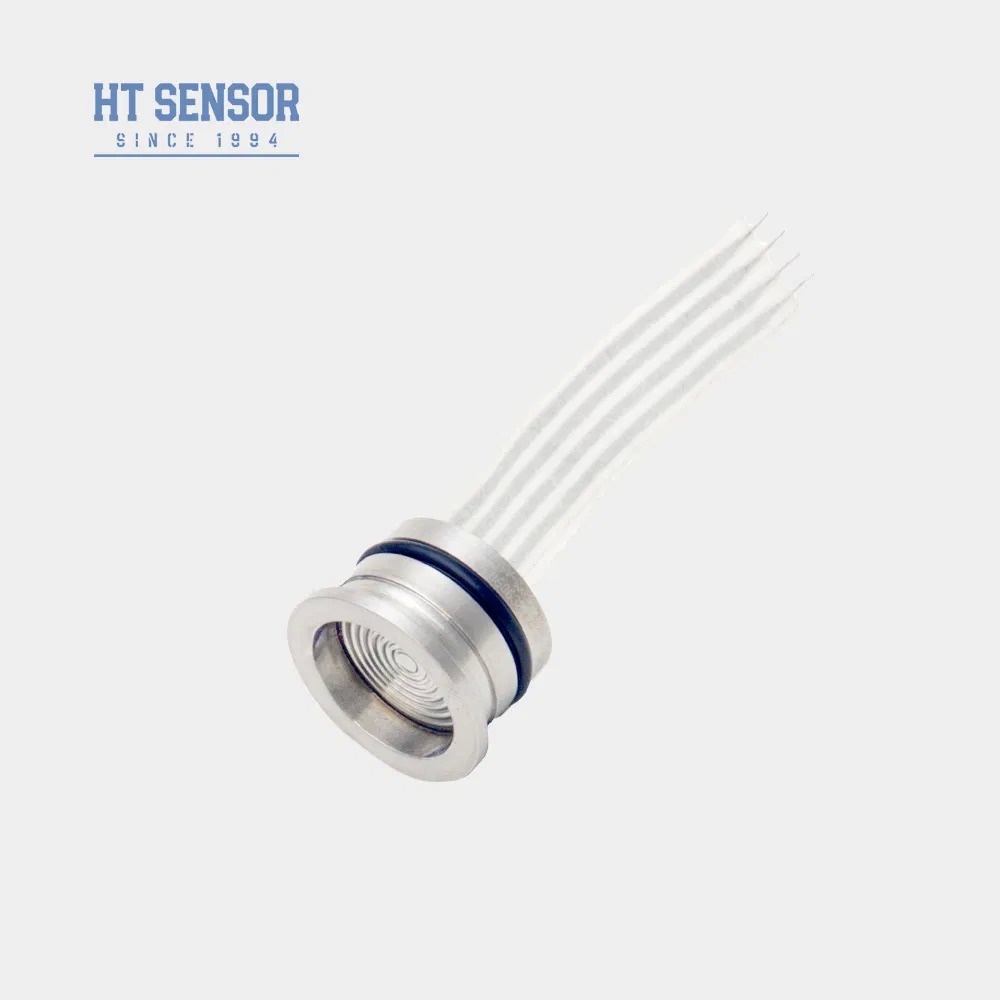

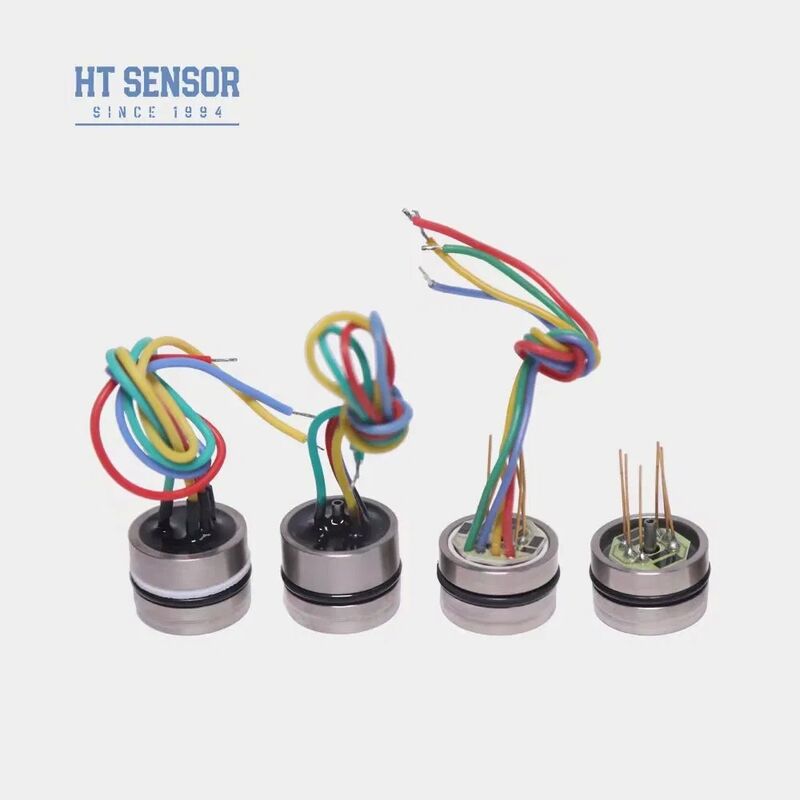

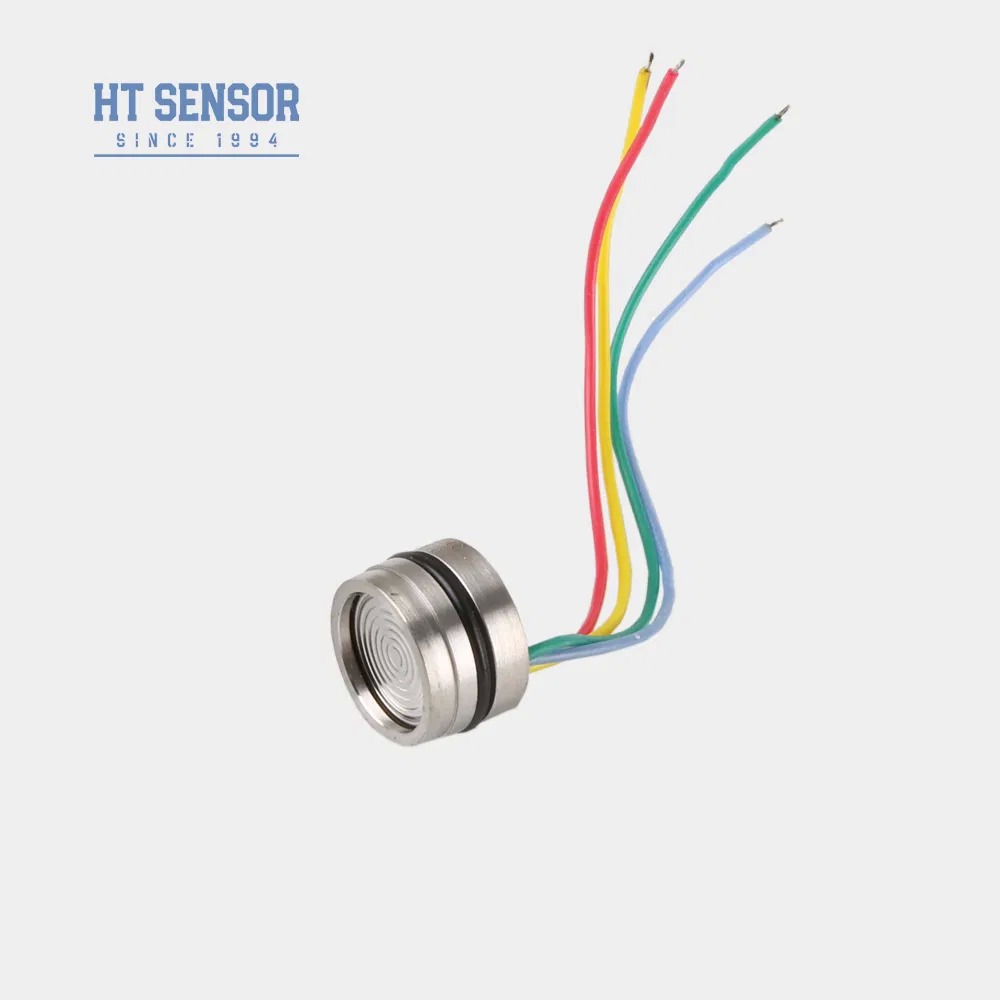

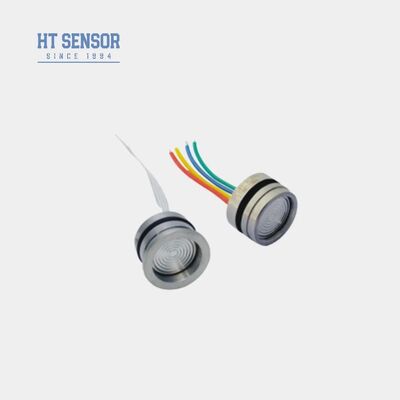

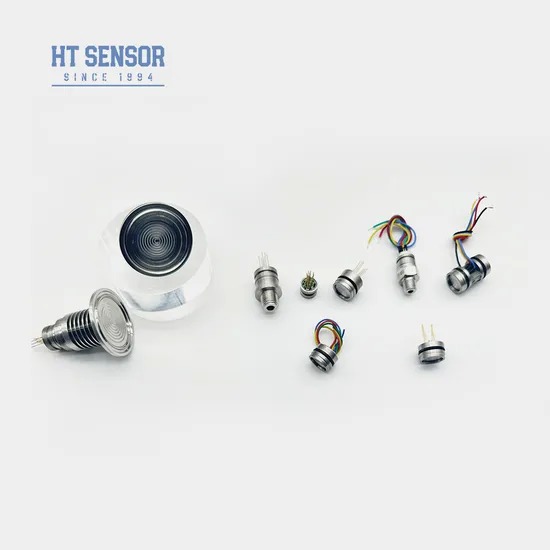

HT19V Silicon Piezoresistive Pressure Sensor

The HT19V is a 19mm 10VDC powered silicon piezoresistive pressure sensor designed for precise measurement of air and liquid pressure in industrial applications.

Product Features

Thick-film circuitry for temperature compensation and zero offset correction
High reliability and excellent stability
Constant voltage power supply with standard output

Applications

Measurement of non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Process control systems for monitoring and controlling pressure
Refrigeration systems and air compressors for pressure measurement

Electrical Performance

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance: 4KΩ~20KΩ
Output Impedance: 2.5KΩ~6KΩ
Electrical Connection: 100mm high-temperature wire, ribbon cable

Performance Parameters

Measurement Range	Gauge (G): 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000Kpa
	Absolute (A): 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA
	Sealed (S): 3500KPaS, 7MPaS, 10MPaS, 20MPaS, 40MPaS, 60MPaS, 100MPaS

Parameter	Typ	Max	Unit
NonLinearity	±0.15	±0.3	%F.S
Repeatability	0.05	0.1	%F.S
Hysteresis	0.05	0.1	%F.S
Zero Offset Output	0±1	0±2	mV
Full Scale Output (≤20KPa)	50±1	50±2	mV
Full Scale Output (≥35kPa)	100±1	100±2	mV
Zero Offset Temp. Drift (≤20KPa)	±1	±2.5	%F.S
Zero Offset Temp. Drift (≥35kPa)	±0.8	±1.5	%F.S
Full Scale Temp. Drift (≤20KPa)	±1	±2	%F.S
Full Scale Temp. Drift (≥35kPa)	±0.8	±1.5	%F.S
Compensated Temp. (≤20KPa)	0~50		ºC
Compensated Temp. (≥35kPa)	0~70		ºC
Operating Temperature	-20~80		ºC
Storage Temperature	-40~125		ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 % F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g, 11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~28g

Parameters tested under the following conditions: 10V @ 25ºC

Outline Construction

<3.5MPaS

≥3.5MPaS <40MPaS

≥40MPaS

Electrical Connection and Compensation

Selection Examples

Ordering Tips

Ensure proper fit between core size and transmitter housing for required airtightness
Align housing vertically and apply even pressure during assembly to avoid damaging compensation plate
Provide special instructions when ordering if measured medium is not compatible with 316L diaphragm material
Avoid pressing sensor diaphragm with hands or sharp objects to prevent damage
Keep gauge pressure port open to atmosphere and prevent entry of water, vapor, or corrosive media
Reference actual core label for any pin lead changes
