High Temperature Flange Sensor Easy to Clean The Pressure Sensor Flush Diaphragm Pressure Sensor
Product Details
| Model NO.: | HT-IQT | Output Signal: | Mv Signal |
|---|---|---|---|
| Material: | Stainless Steel | Wiring Type: | Four-Wire |
| Measuring Medium: | Gas And Liquid | IP Rating: | IP65 |
| Power: | 1.5mA | Diameter: | 50.4mm |
| Temperature Range: | -40~125 | Weight: | ~220g |
| Highlight |
high temperature flange pressure sensor,easy clean pressure sensor transmitter,silicon pressure sensor with flange |
||
Product Description

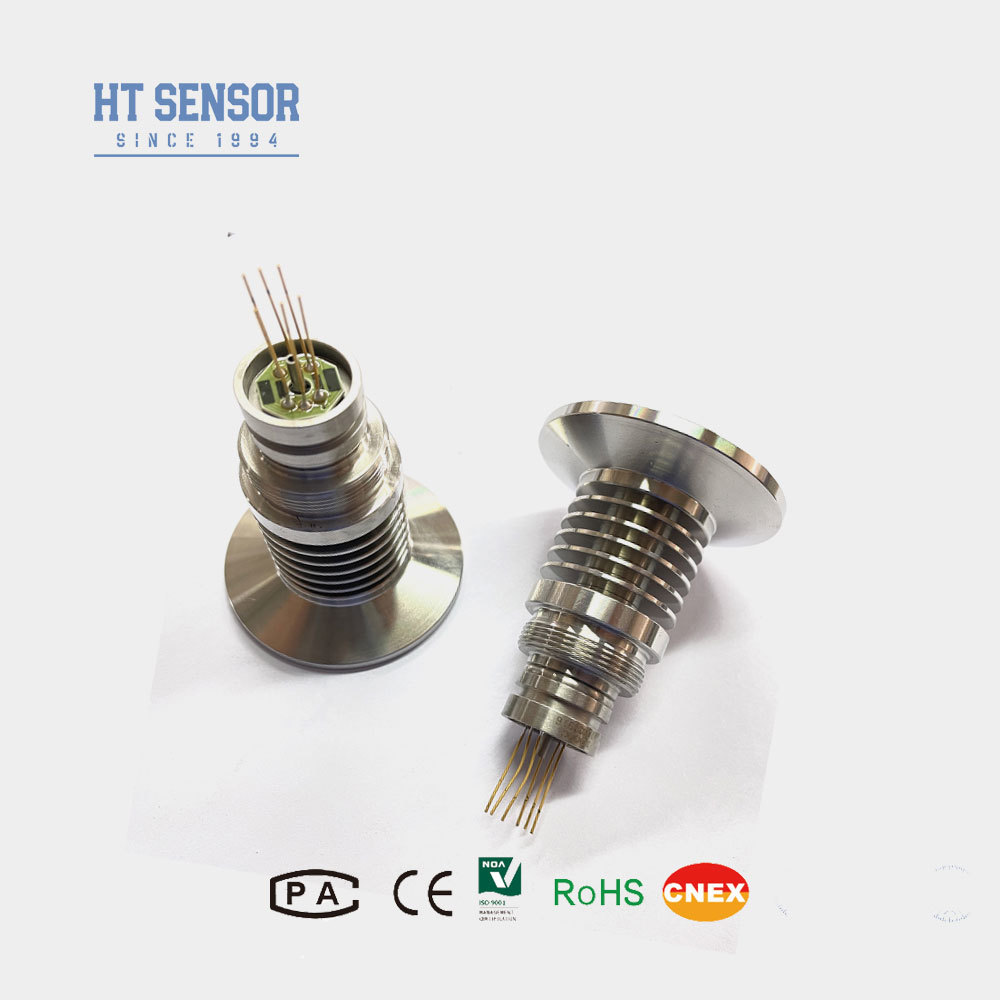

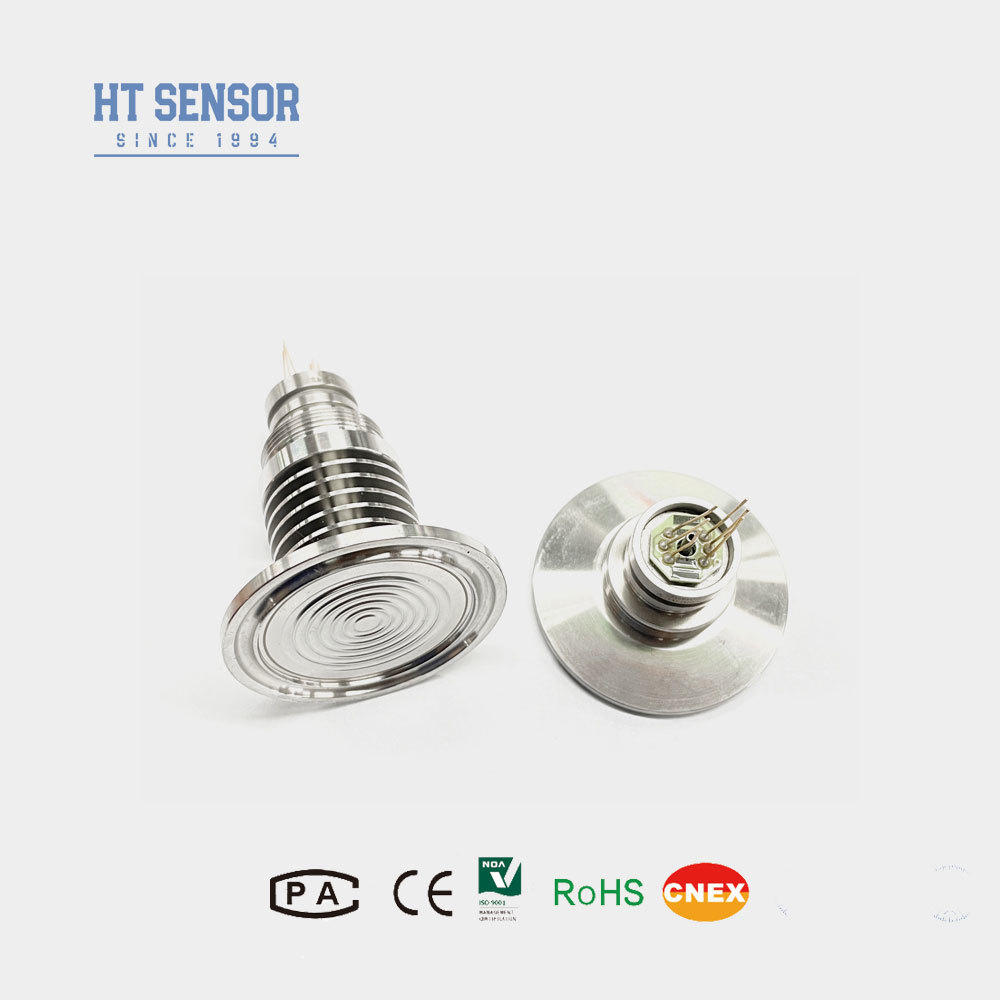

The HT-IQT is a flush diaphragm pressure sensor featuring a highly stable diffused silicon chip. Pressure is transmitted to the sensitive chip through a stainless steel diaphragm and sealed silicon oil, ensuring the sensitive chip never directly contacts the measured medium. This product's flat diaphragm structure makes it easy to clean and highly reliable, making it ideal for applications in food, beverage, pharmaceutical, and hygiene industries.
- Advanced technology with 316L stainless steel housing packaging
- Temperature compensation and zero point correction through thick film circuit
- Outstanding reliability, repeatability, and stability
- High-temperature flush diaphragm structure for easy cleaning
- Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Food and beverage industry
- Industrial process control
- Pharmaceutical industry
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance: 2.5KΩ~6KΩ
- Output Impedance: 2.5KΩ~6KΩ
- Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires
| Parameter | Type | Max | Unit |
|---|---|---|---|
| NonLinearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Offset Output | 0±1 | 0±2 | mV |
| Full Scale Output | ≤20KPa: 50±10 ≥35kPa: 100±10 |
≤20KPa: 50±30 ≥35kPa: 100±30 |
mV |
| Zero Offset Temp. Drift | ≤20KPa: ±1 ≥35kPa: ±0.5 |
≤20KPa: ±2 ≥35kPa: ±1 |
%F.S |
| Full Scale Temp. Drift | ≤20KPa: ±1 ≥35kPa: ±0.5 |
≤20KPa: ±2 ≥35kPa: ±1 |
%F.S |
| Compensated Temp. | ≤20KPa: 0~50 ≥35kPa: 0~70 |
ºC | |
| Operating Temperature | -20~80 | ºC | |
| Storage Temperature | -40~125 | ºC | |
| Long-term Stability | 0.2 | F.S/Year | |
| Insulation Resistance | ≥200MΩ 100VDC | ||
| Response Time | ≤1ms | ||
| Weight | ~220g |
- Ensure proper fit between core size and transmitter housing during assembly to achieve required airtightness
- During housing assembly, maintain vertical alignment and apply even pressure to avoid jamming or damaging the compensation plate
- Provide special instructions when ordering if the measured medium is not compatible with 316L stainless steel
- Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage
- Keep gauge pressure port open to atmosphere and prevent entry of water, water vapor, or corrosive media
- Refer to the actual core label for any pin lead changes
Product Highlights
HT-IQT flush diaphragm pressure sensor with 316L stainless steel housing. High-temperature design (-40~125°C) for easy cleaning. IP65 rated, ideal for food, pharma & industrial applications. Customizable options available.
