Detail Information

Model NO.:	BP93420-IQT	Measuring Medium:	Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~35kpa...3.5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Frequency Response:	2.4kHz
Weight:	~0.3kg	Overload:	≤ 1.5 Times Of The Rated Range
Repeatability:	≤0.1%FS	Long-Term Stability:	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Operating Temperature:	-20ºC~80ºC	Diaphragm Material:	316L
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Highlight:	4-20mA pressure sensor for food , Beverage pressure transmitter , Silicon pressure sensor with warranty

Product Description

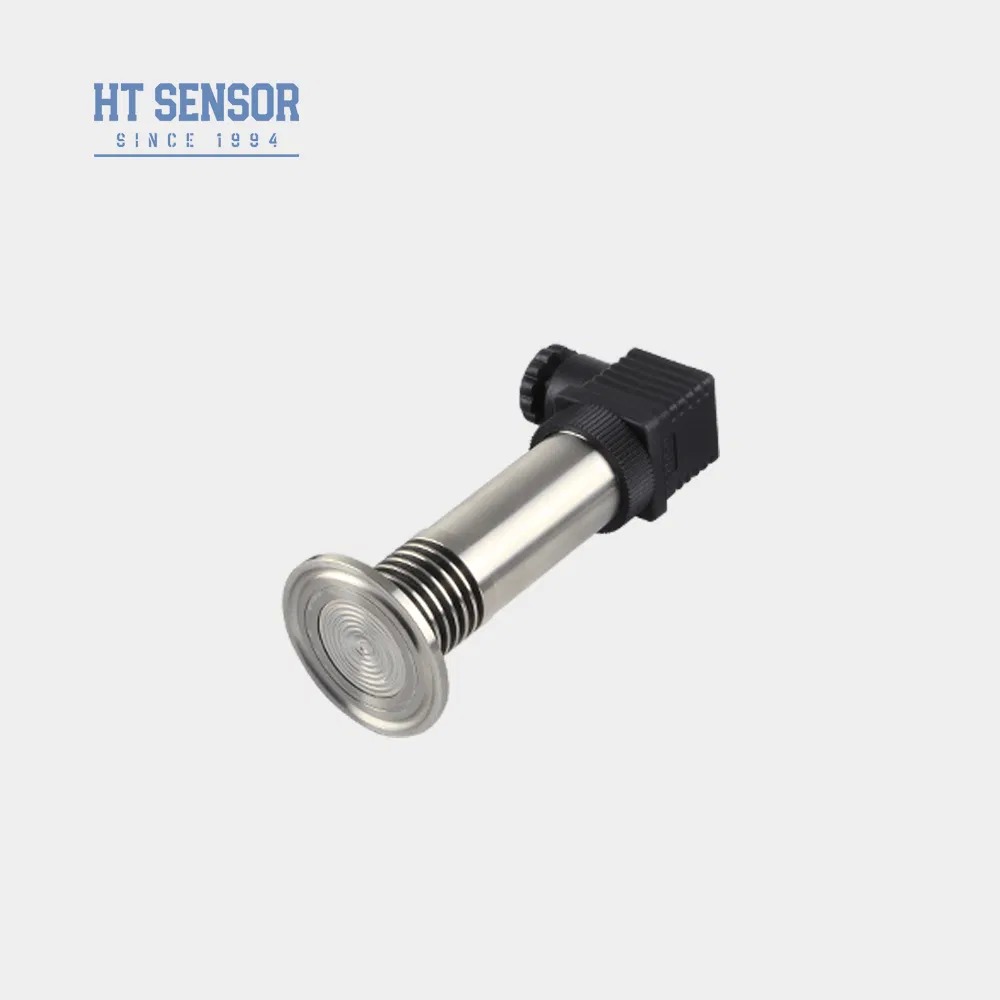

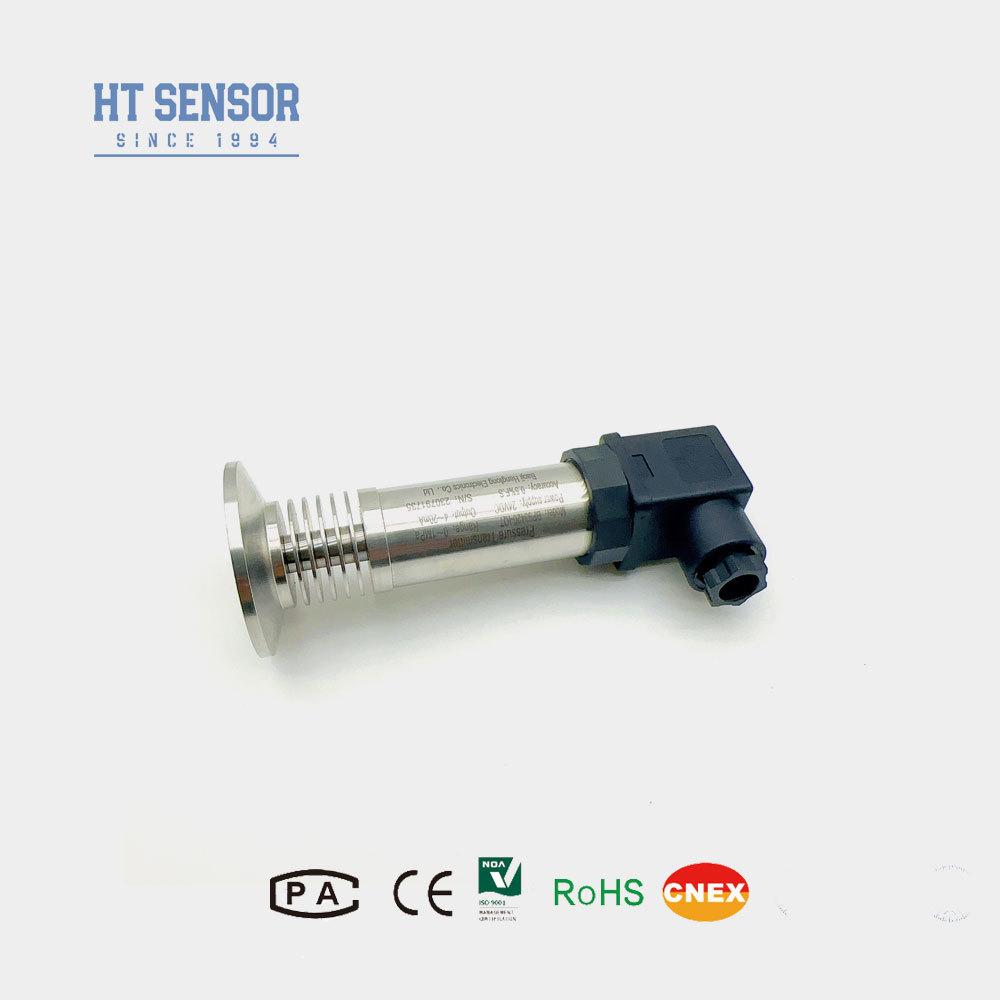

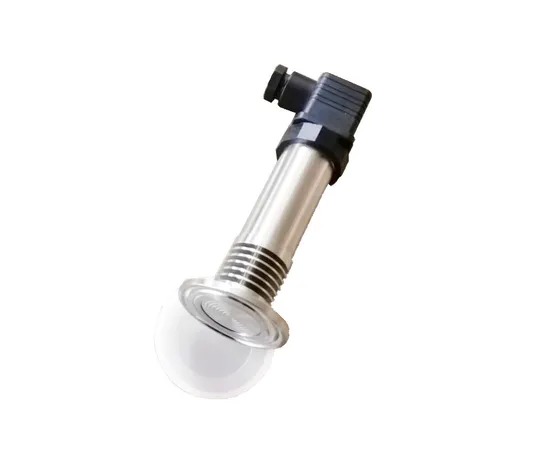

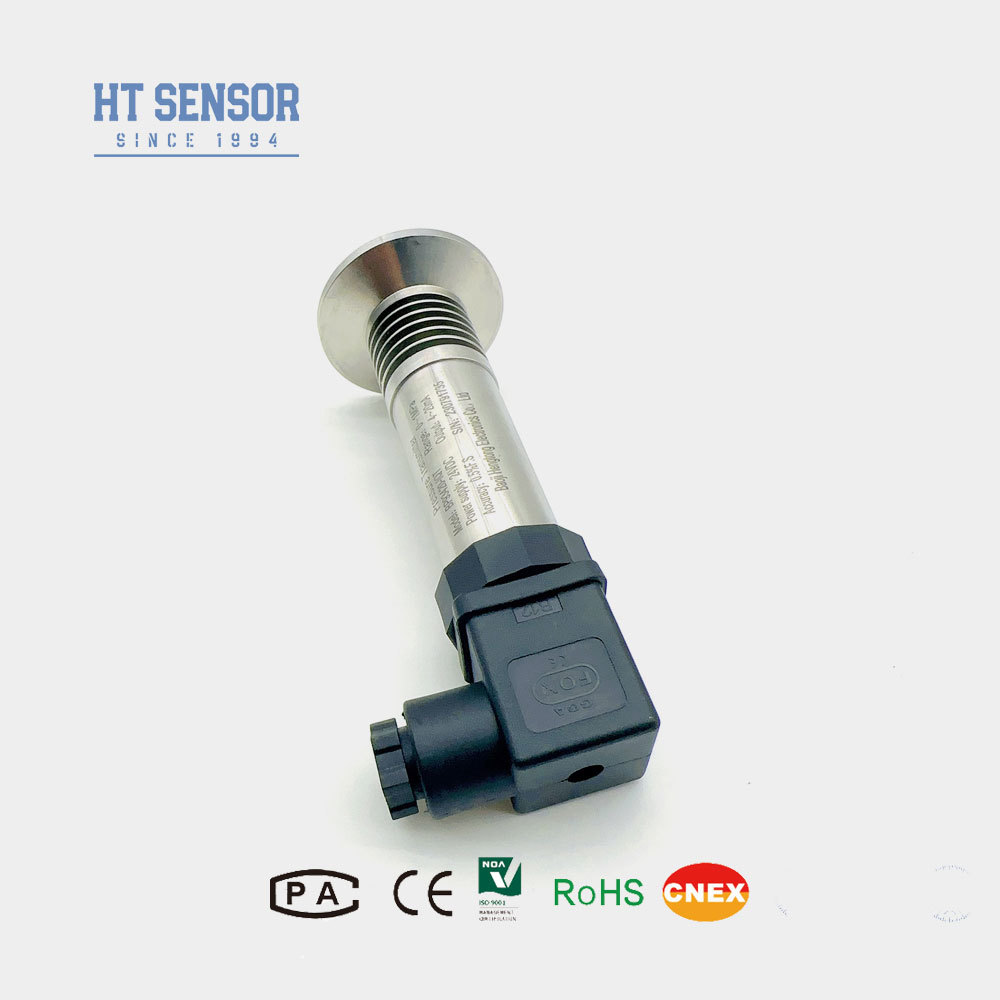

BP93420-IQT Pressure Transmitter

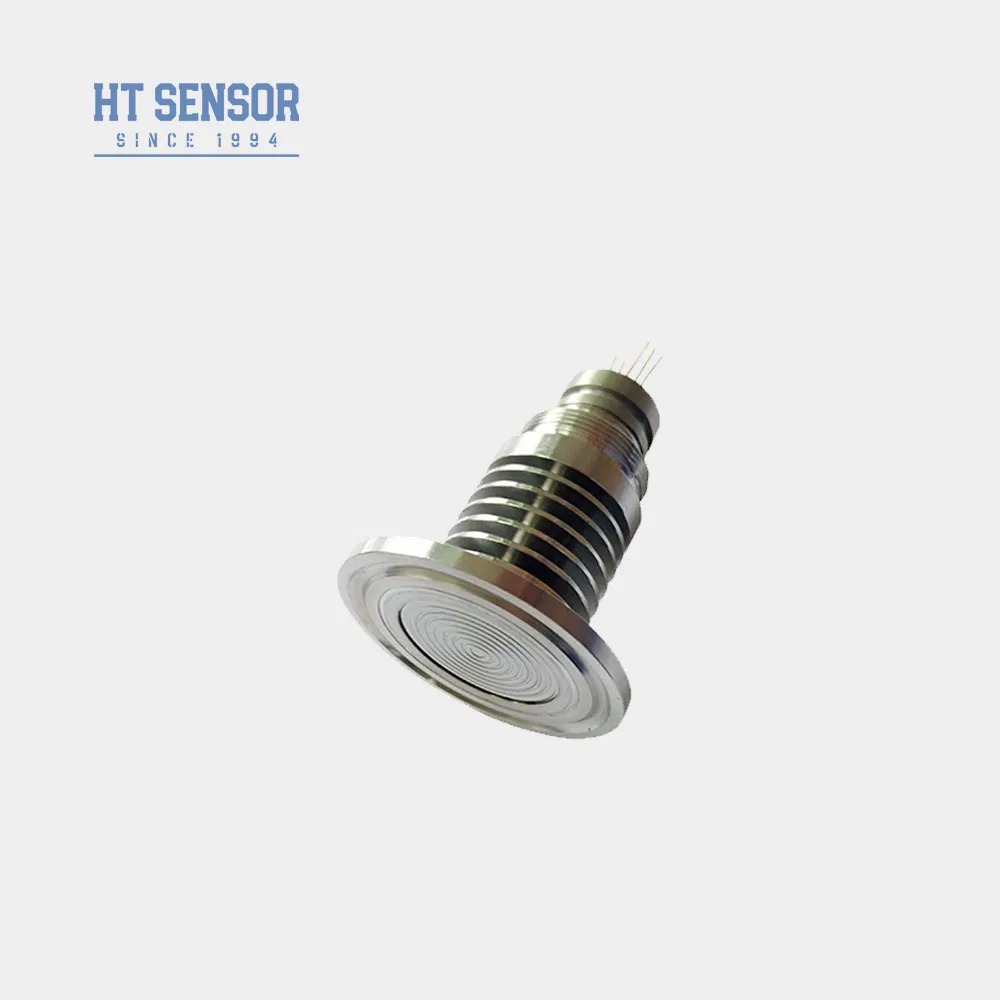

The BP93420-IQT pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and the measuring diaphragm. The entire product has undergone rigorous testing ensuring stable and reliable performance and effectively preventing the problem of pressure hole blockage caused by crystallizing media.

Product Features

Wide measurement range with various pressure interface options
Diverse output signal options
Adjustable zero and full-scale calibration
High accuracy with multiple sterile process connections

Applications

Suitable for measuring non-corrosive gases and liquids with 316L
Medical, biopharmaceutical, and food hygiene industries for sterile processing
Used in paper and chemical industries, as well as for sewage level and beverage can pressure measurements
Suitable for hydraulic and pneumatic control systems

Performance Parameters

Parameter	Specification
Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	≤0.1%FS
Hysteresis	≤0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V	5VDC
0/1~10V
0.5~4.5V
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Ordering Tips

Ensure the measured medium is compatible with the product's contact parts
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding
For temperatures below -20ºC, choose EPDM O-ring seal instead of Fluoro rubber
Default cable length is 1.5m (polyethylene material)
Specify special requirements for vibration, impact, or electromagnetic interference

Order Guide

BP93420XX | Pressure Transmitter

Outline Construction:

IB - General Pressure Transmitter
IX - Display Pressure Transmitter
IE - Shock-resistant Aviation Pressure Transmitter
IIC/III - Industrial General/Display Pressure Transmitter
IF - Moisture-proof Pressure Transmitter
IIE/IIIE - General/Display Pressure Transmitter
IN - Air Conditioning Dedicated Pressure Transmitter
IC - High-temperature Pressure Transmitter
IQ1/IQ2 - Large Diaphragm /High-temperature Pressure Transmitter

Other Configuration Options:

Measurement Range: -100kPa…0kPa ~ 35kPa…3.5MPa
Power Supply: 24VDC, 5VDC, or Other
Output Signal: Various mA and VDC options
Pressure Connection: Multiple thread options available
Electrical Connection: Various connector types
Pressure Type: Gauge, Absolute, or Sealed Reference

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

Q: What's the typical delivery period?

A: 5~8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
