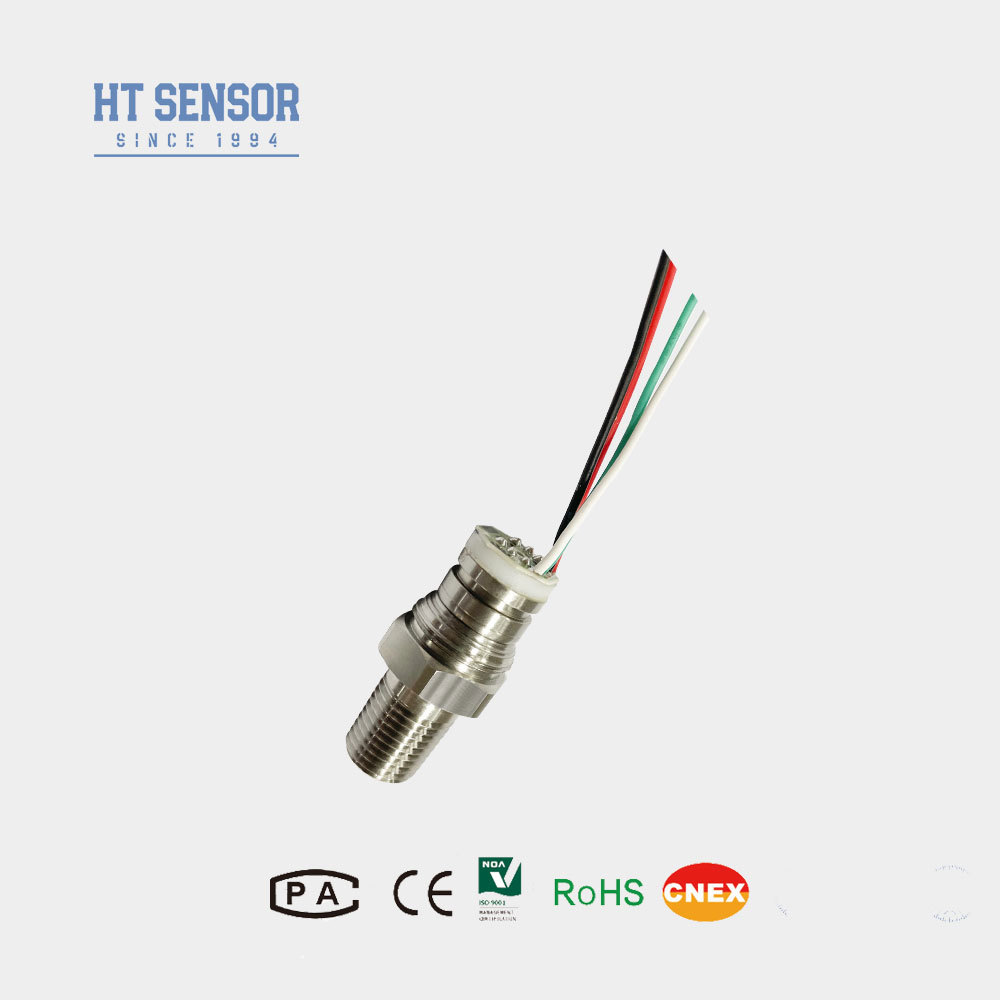

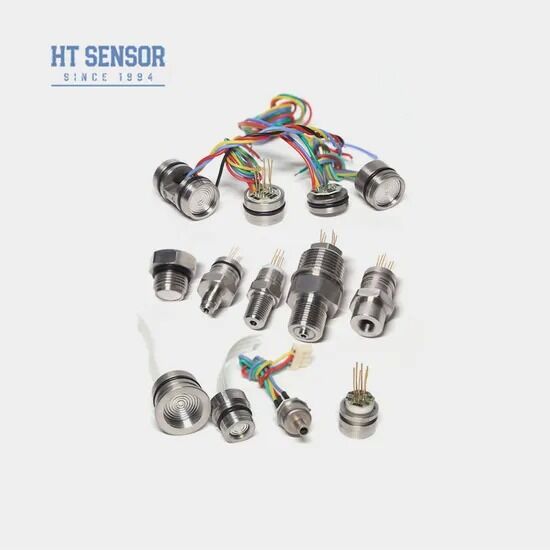

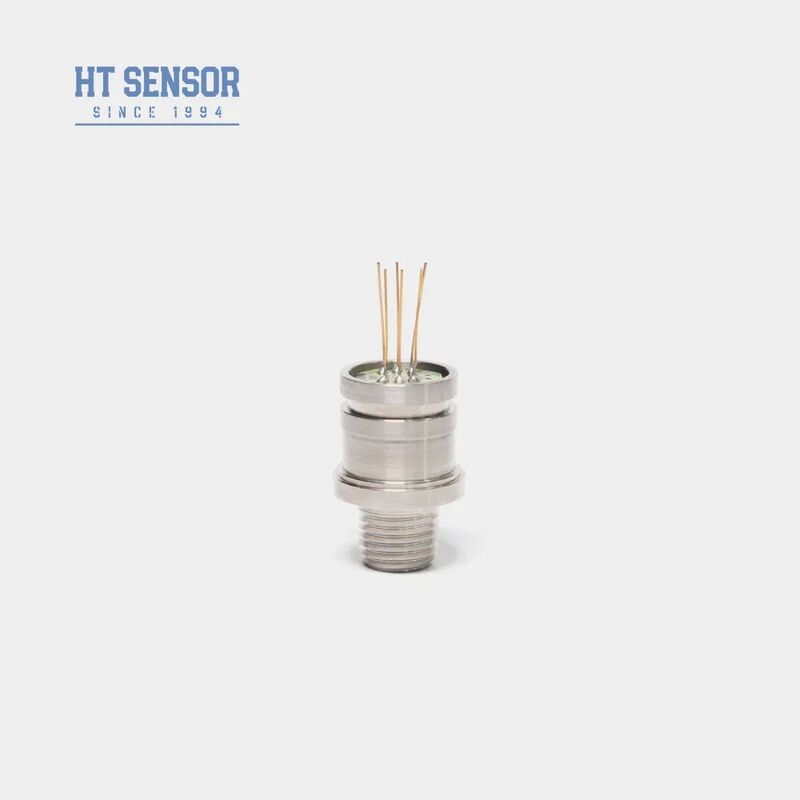

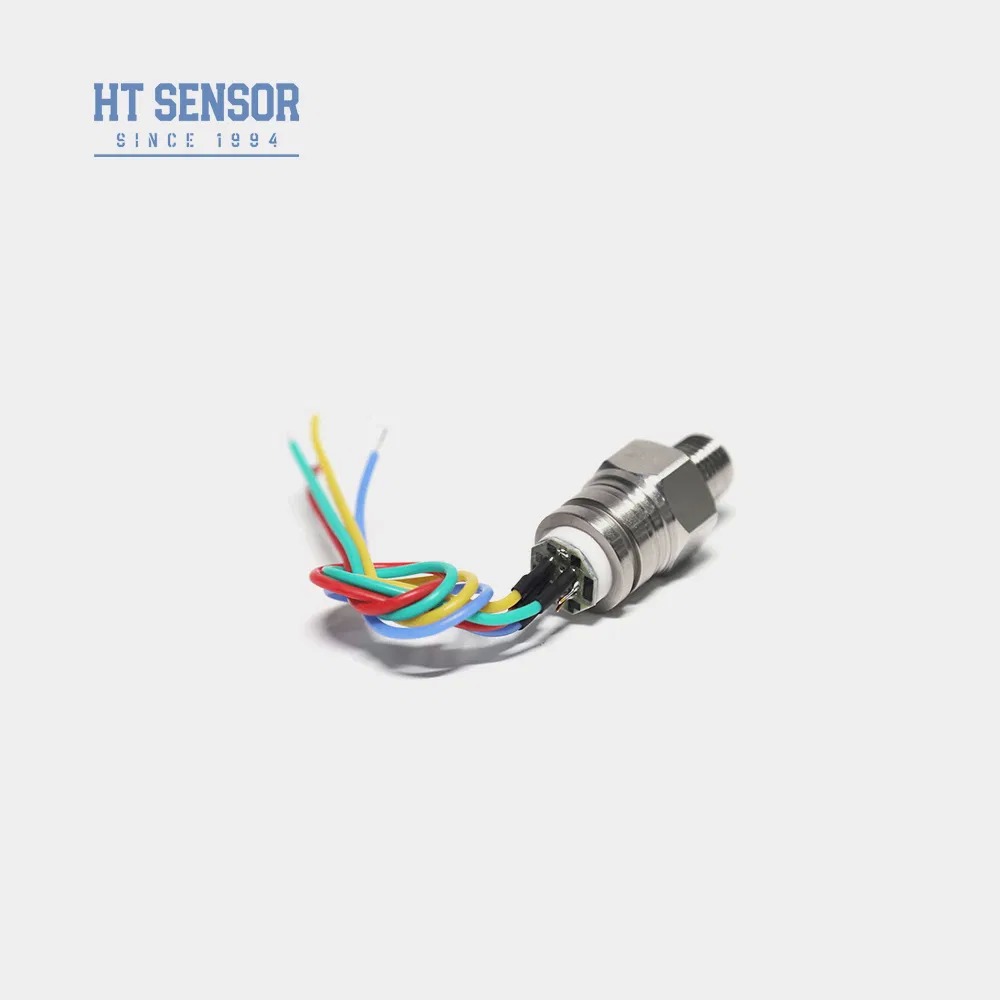

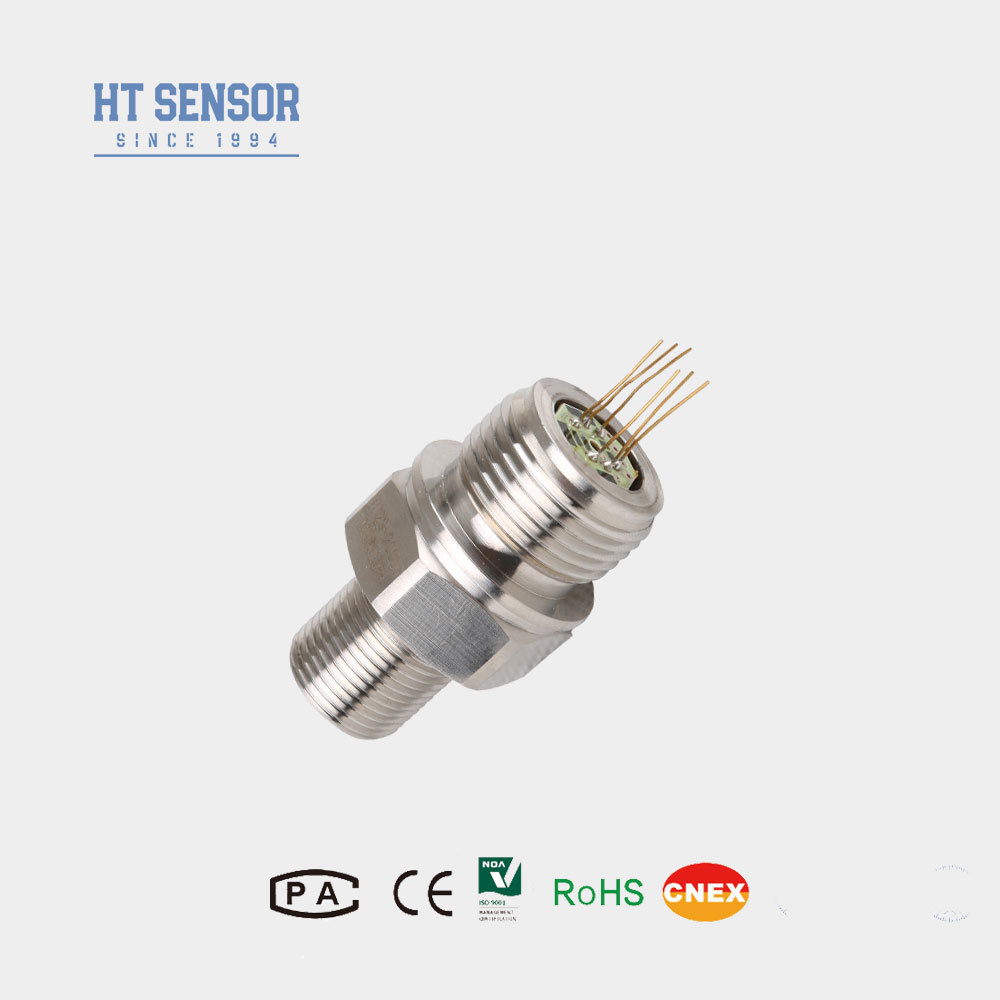

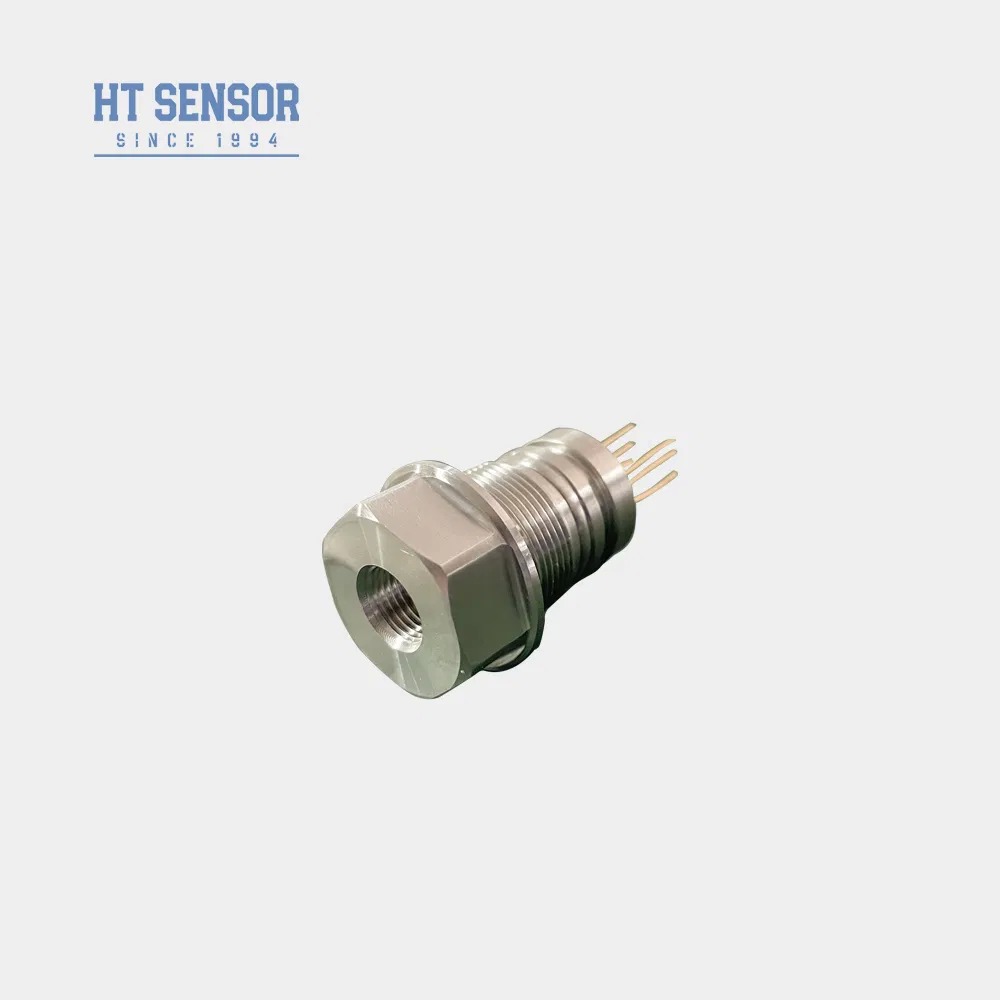

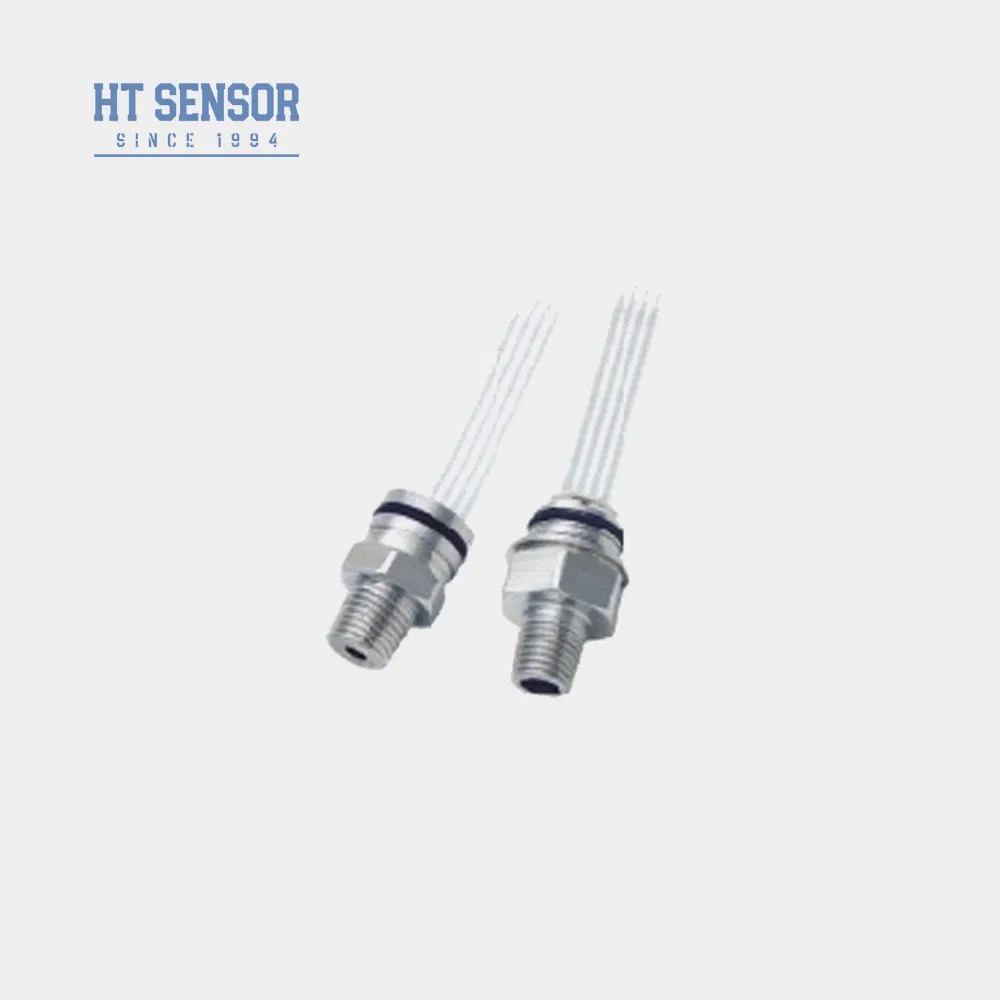

10VDC Powered Mini G1/4 Thread Liquid Pressure Sensor Transducer Level Sensor Cell
Product Details
| Model NO.: | HT30V | Output Signal: | Analog Type |
|---|---|---|---|
| Material: | Stainless Steel | Thread Type: | Customized |
| Wiring Type: | Four-Wire | Measuring Medium: | Gas And Liquid |
| IP Rating: | IP65 | Power Supply: | 5-10VDC |
| Output: | 10mv/v | Pressure Range: | 0-10kpa~20mpa |
| Input Impedance: | 4KΩ~20KΩ | Output Impedance: | 2.5KΩ~6KΩ |
| Operating Temperature: | -20~80ºC | Storage Temperature: | -40~125ºC |
| Weight: | ~63g | ||
| Highlight |
10VDC mini G1/4 liquid pressure sensor,G1/4 thread level sensor transducer,mini liquid pressure sensor with warranty |
||
Product Description
- Thick-film circuitry for temperature compensation and zero offset correction
- High reliability and excellent stability
- Constant voltage power supply with standard output
- Measurement of non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Process control systems for monitoring and controlling pressure
- Refrigeration systems and air compressors for pressure measurement
- Power Supply: ≤10VDC
- Common Mode Voltage Output: 50% of the input (typical)
- Input Impedance: 4KΩ~20KΩ
- Output Impedance: 2.5KΩ~6KΩ
- Electrical Connection: 100mm high-temperature wire, ribbon cable
| Measurement Range | Gauge(G) | 10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000Kpa | |
|---|---|---|---|
| Absolute(A) | 100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA | ||
| Sealed(S) | 3500KPaS, 7MPaS, 10MPaS, 20MPaS | ||
| Parameter | Typ | Max | Unit |
| NonLinearity | ±0.15 | ±0.3 | %F.S |
| Repeatability | 0.05 | 0.1 | %F.S |
| Hysteresis | 0.05 | 0.1 | %F.S |
| Zero Offset Output | 0±1 | 0±2 | mV |
| Full Scale Output (≤20KPa) | 50±1 | 50±2 | mV |
| Full Scale Output (≥35kPa) | 100±1 | 100±2 | mV |
| Zero Offset Temp. Drift (≤20KPa) | ±1 | ±2.5 | %F.S |
| Zero Offset Temp. Drift (≥35kPa) | ±0.8 | ±1.5 | %F.S |
| Full Scale Temp. Drift (≤20KPa) | ±1 | ±2 | %F.S |
| Full Scale Temp. Drift (≥35kPa) | ±0.8 | ±1.5 | %F.S |
| Compensated Temp. (≤20KPa) | 0~50 | ºC | |
| Compensated Temp. (≥35kPa) | 0~70 | ºC | |
| Operating Temperature | -20~80 | ºC | |
| Storage Temperature | -40~125 | ºC | |
| Allowable Overload | Take the smaller value between 3 times the full scale or 120MPa | ||
| Burst Pressure | 5X the full scale | ||
| Long-term Stability | 0.2 % | F.S/Year | |
| Diaphragm Material | 316L | ||
| Insulation Resistance | ≥200MΩ 100VDC | ||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | ||
| Shock | 100g, 11ms | ||
| Response Time | ≤1ms | ||
| O-ring Seal | Nitrile rubber or Fluoro rubber | ||
| Filling Medium | Silicon Oil | ||
| Weight | ~63g | ||
- Ensure proper fit between core size and transmitter housing for required airtightness
- Align housing vertically and apply even pressure during assembly to avoid damage
- Provide special instructions if measured medium is incompatible with 316L materials
- Avoid pressing sensor diaphragm with hands or sharp objects
- Keep gauge pressure port open to atmosphere and prevent entry of contaminants
- Refer to actual core label for pin lead configurations
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- Our warranty time is 24 months after shipment, and our after-sales team will respond to your questions within 24 hours. Remote instruction via PC network is always available.
Product Highlights
HT30V mini pressure sensor with 10VDC power. Measures gas/liquid pressure (0-10kPa~20MPa). Features high stability, IP65 rating, 316L stainless steel, and custom thread options. Ideal for industrial process control, refrigeration, and air compressors.
