10VDC Power HT24V Silicon Pressure Sensor Cell G1/2 Level Sensor
Product Overview

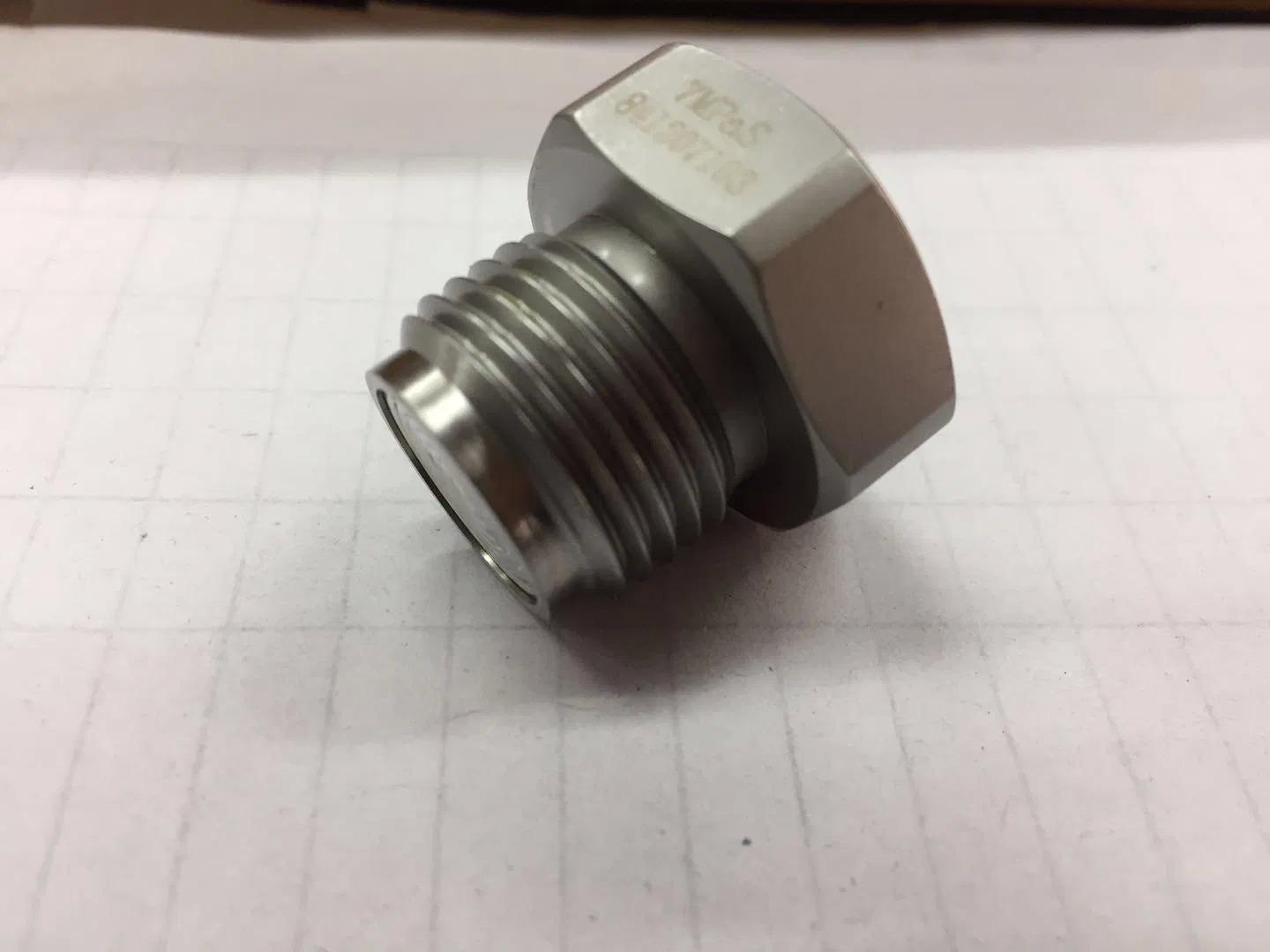

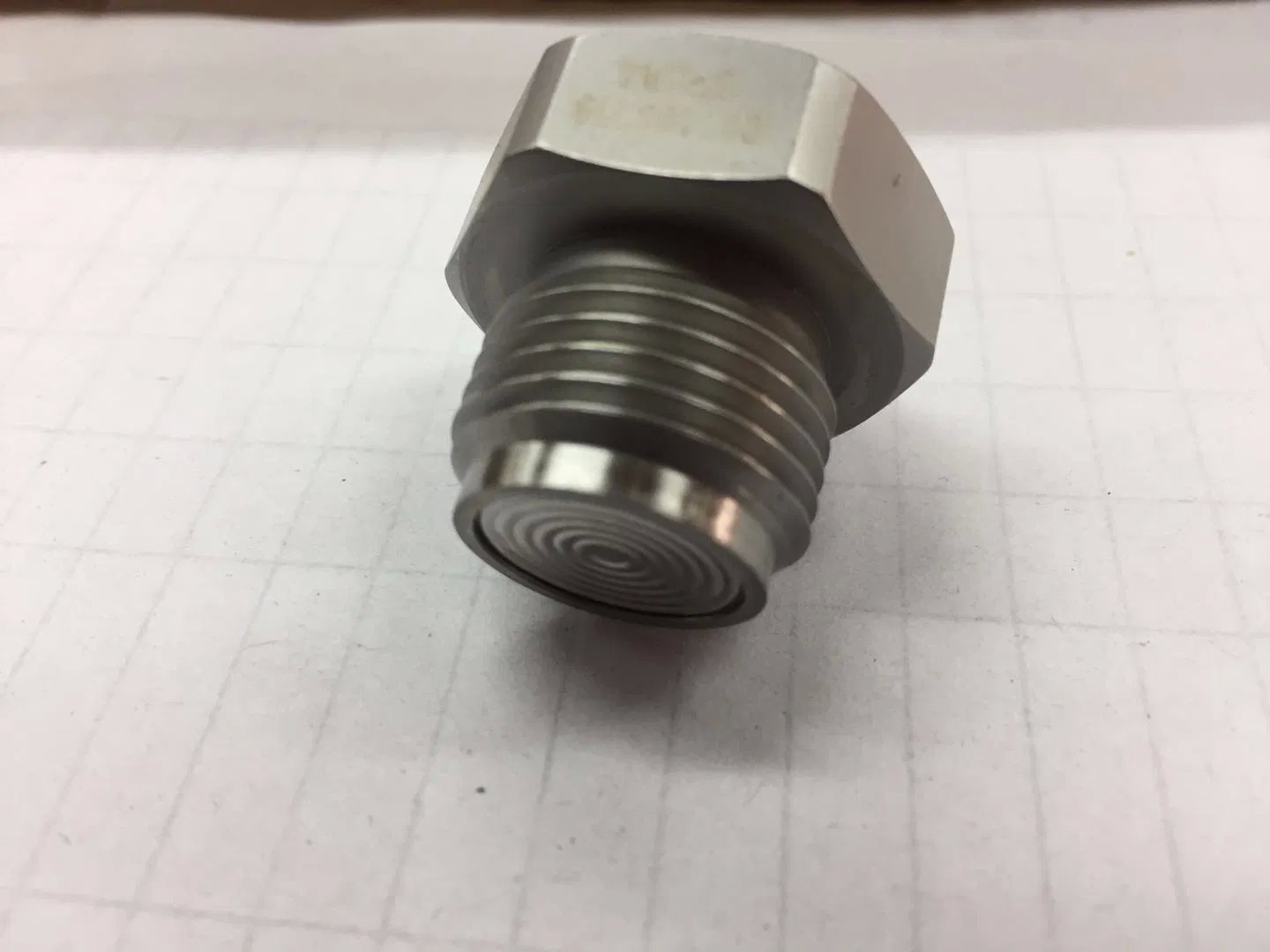

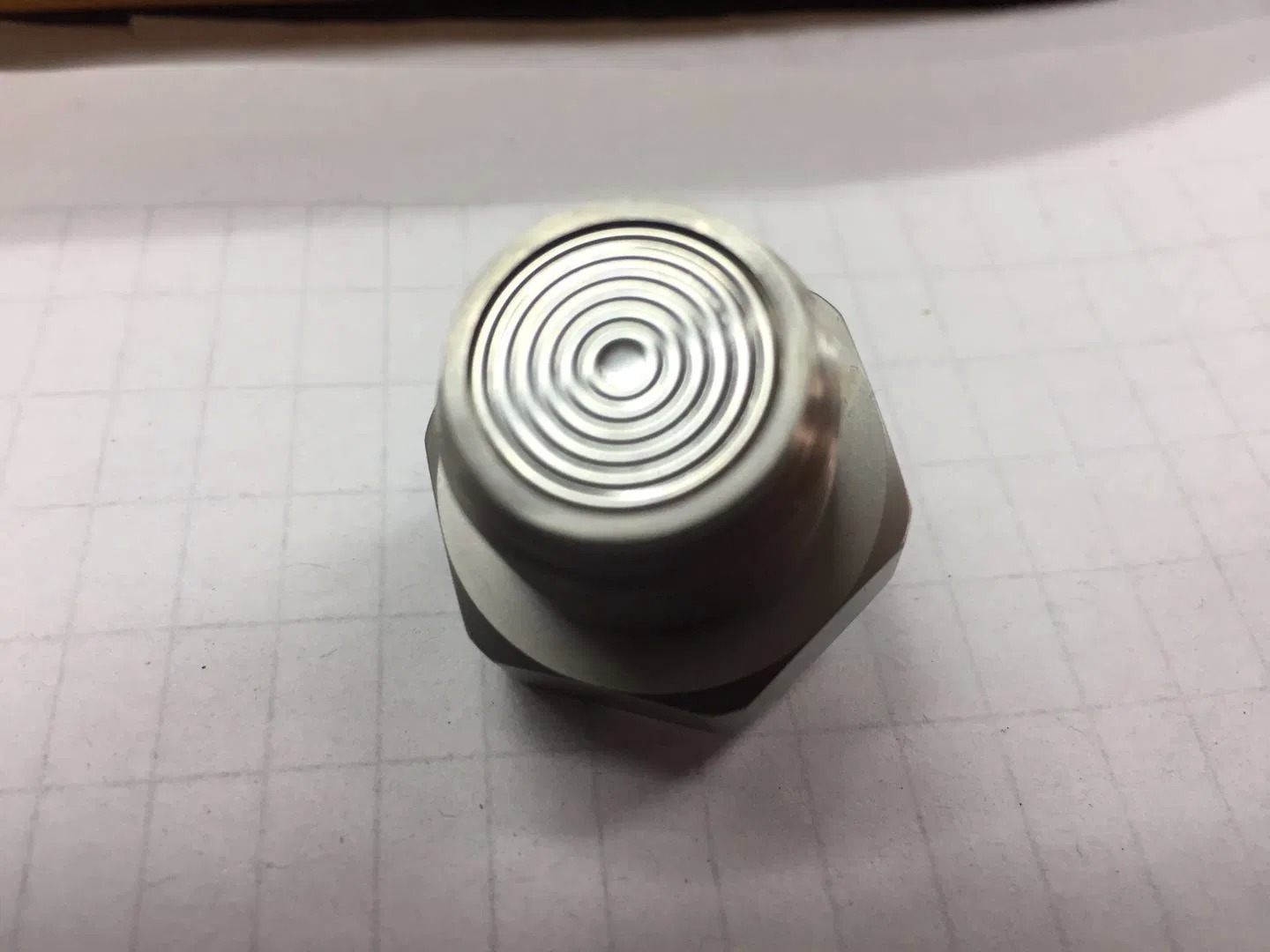

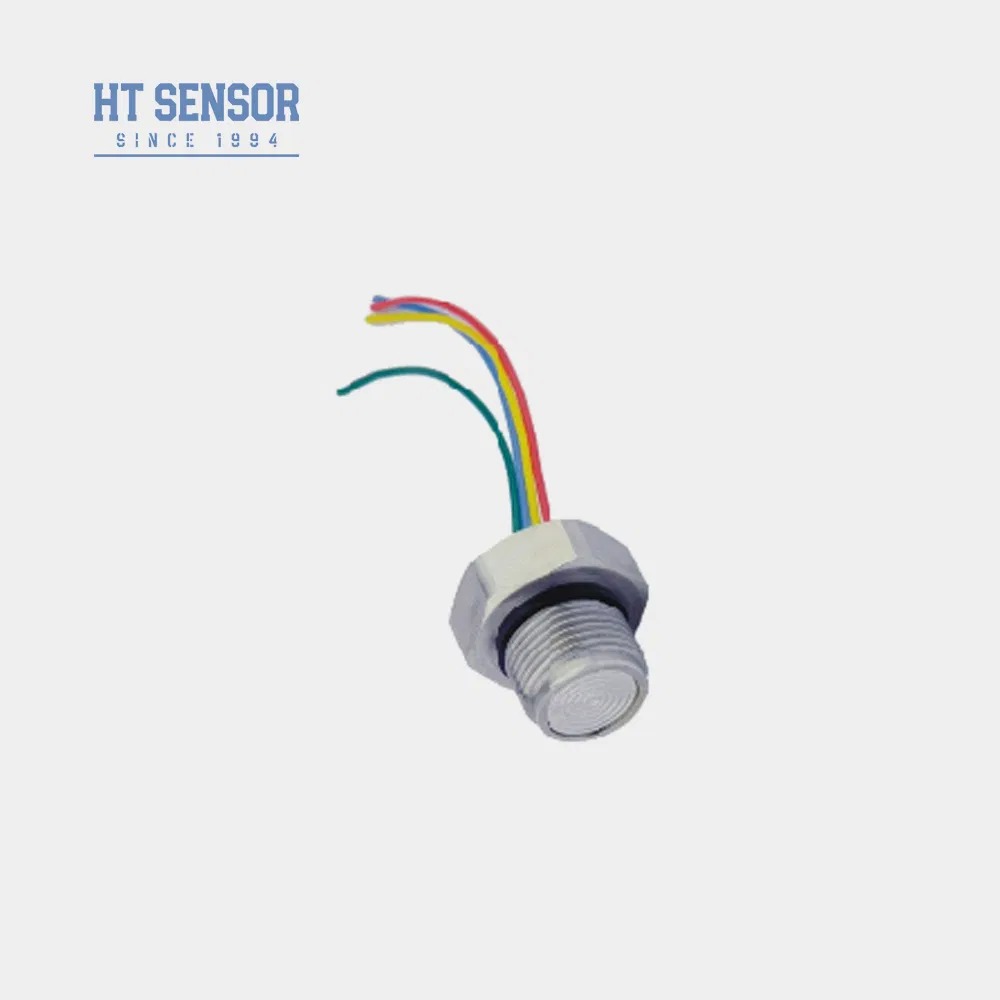

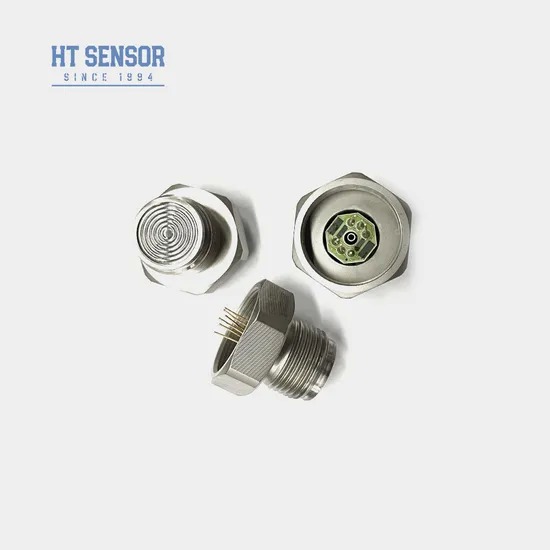

The HT24V is a flush diaphragm pressure sensor equipped with a highly stable diffused silicon chip. Its innovative design transmits pressure to the sensitive chip through a stainless steel diaphragm, protected by sealed silicon oil. The flush diaphragm structure enhances cleaning ease and contributes to exceptional reliability, making it ideal for applications in food, hygiene, and other industries requiring stringent cleanliness and accuracy standards.
Key Features
- Advanced technology with 316L stainless steel housing and premium diaphragm materials including titanium and Hastelloy
- Thick-film circuits for temperature compensation and zero-point correction
- Outstanding reliability, repeatability, and stability
- Flush diaphragm structure for easy cleaning and maintenance
Applications
- Measurement of non-corrosive gas and liquid pressure with 316L stainless steel compatibility
- Food and beverage industry processing
- Industrial process control systems
- Pharmaceutical manufacturing applications
Electrical Performance
Technical Specifications
| Measurement Range |
Gauge(G) |
10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa |
|
Absolute(A) |
100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA |
|
Sealed(S) |
3500KPaS, 7MPaS, 10MPaS, 20MPaS, 35MPaS |
| Parameter |
Typ |
Max |
Unit |
| Nonlinearity |
±0.15 |
±0.3 |
%F.S |
| Repeatability |
0.05 |
0.1 |
%F.S |
| Hysteresis |
0.05 |
0.1 |
%F.S |
| Zero Offset Output |
0±1 |
0±2 |
mV |
| Full Scale Output (≤20KPa) |
50±1 |
50±2 |
mV |
| Full Scale Output (≥35kPa) |
100±1 |
100±2 |
mV |
| Zero Offset Temp. Drift (≤20KPa) |
±1 |
±2.5 |
%F.S |
| Zero Offset Temp. Drift (≥35kPa) |
±0.8 |
±1.5 |
%F.S |
| Full Scale Temp. Drift (≤20KPa) |
±1 |
±2 |
%F.S |
| Full Scale Temp. Drift (≥35kPa) |
±0.8 |
±1.5 |
%F.S |
| Compensated Temp. (≤20KPa) |
0~50 |
|
ºC |
| Compensated Temp. (≥35kPa) |
0~70 |
|
ºC |
| Operating Temperature |
-20~80 |
|
ºC |
| Storage Temperature |
-40~125 |
|
ºC |
| Allowable Overload |
Take the smaller value between 3 times the full scale or 60MPa |
| Burst Pressure |
5X the full scale |
| Long-term Stability |
0.2 % F.S/Year |
| Diaphragm Material |
316L |
| Insulation Resistance |
≥200MΩ 100VDC |
| Vibration |
No change under conditions of 10gRMS, 20Hz to 2000Hz |
| Shock |
100g, 11ms |
| Response Time |
≤1ms |
| O-ring Seal |
Nitrile rubber or Fluoro rubber |
| Filling Medium |
Silicon Oil |
| Weight |
~55g |
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC
Outline Construction
Electrical Connection and Compensation
Selection Examples
Ordering Tips
- Ensure proper fit between core size and transmitter housing during assembly to achieve required airtightness
- During housing assembly, maintain vertical alignment and apply even pressure to avoid jamming or damaging the compensation plate
- If the measured medium is not compatible with the core diaphragm and housing material (316L), provide special instructions when ordering
- Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage from deformation or piercing
- Keep the pressure port of the gauge pressure core open to the atmosphere and prevent entry of water, water vapor, or corrosive media into the core negative pressure chamber
- If pin leads require changes, refer to the label on the actual core for proper configuration
