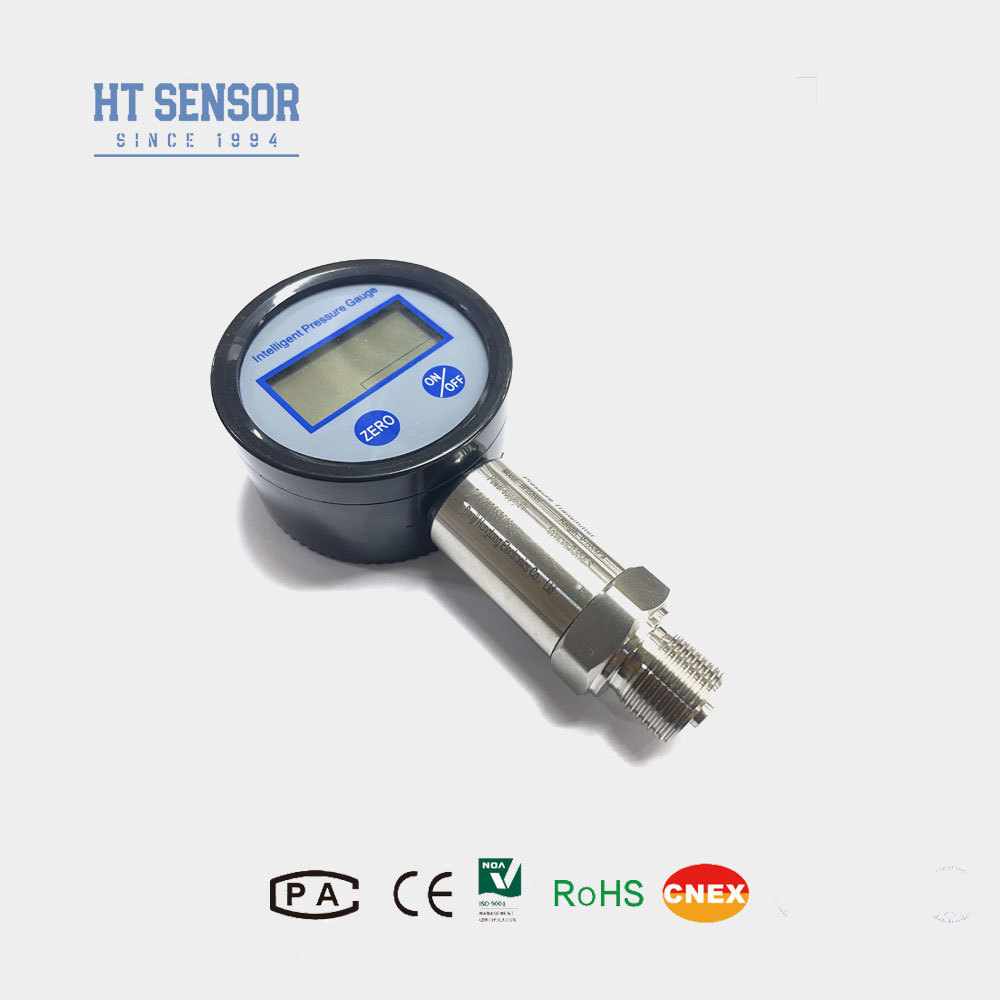

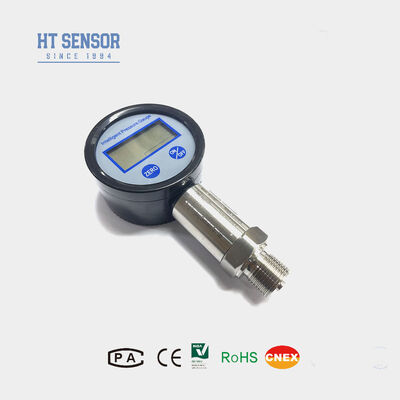

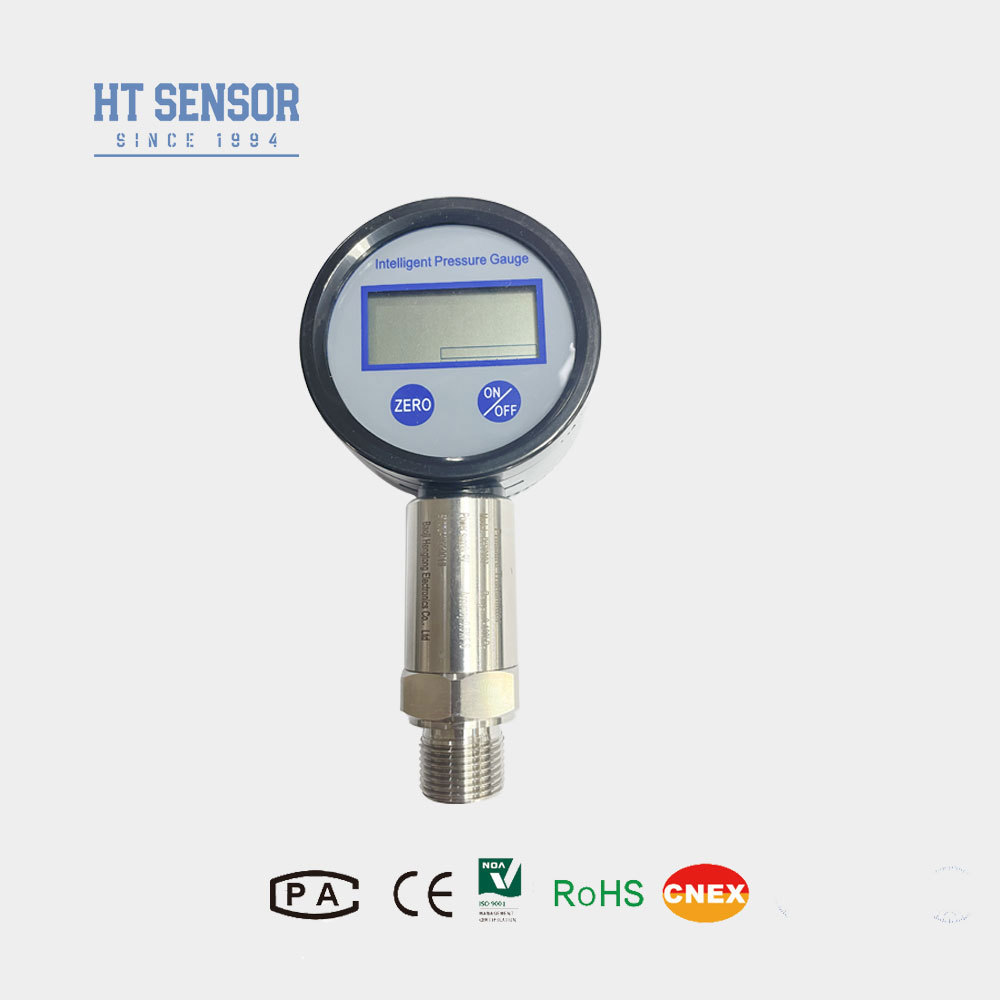

Battery powered Pressure Sensor Transmitter Display Pressure Gauge With Stainless Steel Digital Pressure Gauges
Product Details
| Model NO.: | BPZ2007 | Measuring Range: | -100kpa~0kpa...100MPa |
|---|---|---|---|
| Accuracy: | 0.5 | Display Type: | Digital |
| Sensor Type: | Silicon Piezoresistive | Connection Type: | Thread |
| Protection Rating: | IP65 | Weight: | 0.45kg |
| Power Supply: | 9V Alkaline Battery | Operating Temperature: | -1ºC~49ºC |
| Insulation Resistance: | 100MΩ 100VDC | Pressure Type: | Differential Pressure Or Pressure |
| Highlight |
battery powered pressure sensor transmitter,stainless steel pressure gauge,silicon pressure sensor with display |
||
Product Description
- High-visibility 5-digit LCD display
- 9V battery power supply for portable operation
- Multiple selectable measurement units: bar, psi, kg/cm², KPa, MPa
- Peak hold and continuous reading functions
- Measurement of non-corrosive gases and liquids using 316L stainless steel
- Environmental protection and chemical industry applications
- Differential pressure measurement for petroleum, chemical, power, and hydrology industries
- Pipeline pressure monitoring and control systems
| Measurement Range | 0-10KPa...~100MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static Pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g, 55Hz ~ 2kHz |
| Housing Material | ABS, 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
- Ensure measured medium compatibility with product contacting parts
- Install a three-valve manifold for reliable operation and uniform pressure application
- Position pressure interfaces horizontally to minimize installation impact
- 9V alkaline battery not included - purchase separately
- Specify special requirements for vibration, impact, or electromagnetic interference
Product Highlights
BPZ2007 Battery Powered Pressure Display Meter The BPZ2007 digital pressure gauge is a moisture-proof instrument with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes advanced piezoresistive diffused silicon sensor technology and integrated circuit design, housed ...
