Detail Information

Model NO.:	BPZ2007	Measuring Range:	-100kpa~0kpa...100MPa
Accuracy:	0.25	Display Type:	Digital
Sensor Type:	Silicon Piezoresistive	Connection Type:	Thread
Housing Material:	316L	Protection Rating:	IP65
Weight:	0.45kg	Power Supply:	9V Alkaline Battery
Operating Temperature:	-1ºC~49ºC	Storage Temperature:	-40ºC~100ºC
Diaphragm Material:	316L	Insulation Resistance:	100MΩ 100VDC
Pressure Type:	Differential Pressure
Highlight:	battery powered pressure sensor transmitter , stainless steel pressure gauge , silicon pressure sensor with display

Product Description

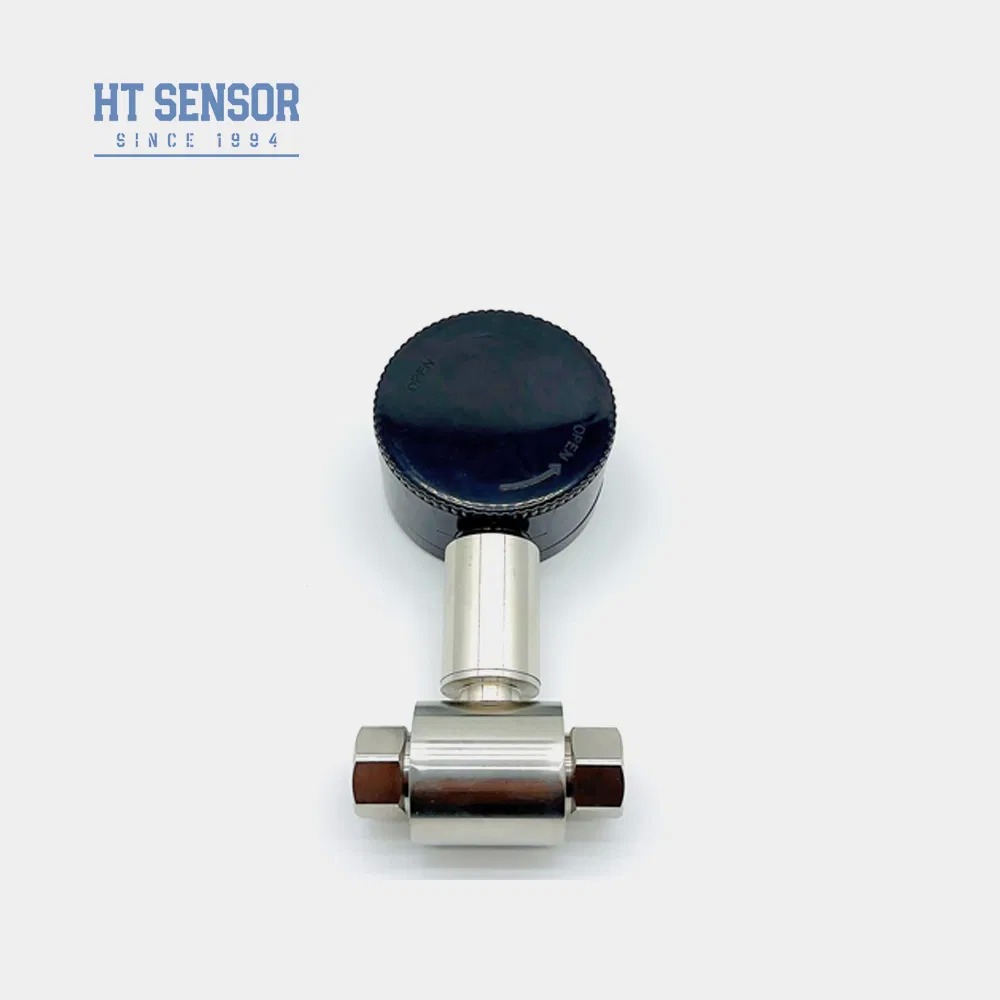

BPZ2007 Battery Powered Pressure Display Meter

The BPZ2007 digital pressure gauge is a moisture-proof instrument with media isolation, designed for measuring non-corrosive gases and liquids. It utilizes advanced piezoresistive diffused silicon sensor technology and integrated circuit design, housed in a rust-resistant iron casing. The gauge features a clear 5-digit LCD display and delivers exceptional reliability and stability for industrial applications.

Key Features

High-visibility 5-digit LCD display
9V battery power supply for portable operation
Multiple selectable measurement units: bar, psi, kg/cm², KPa, MPa
Peak hold and continuous reading functions

Industrial Applications

Measurement of non-corrosive gases and liquids using 316L stainless steel
Environmental protection and chemical industry applications
Differential pressure measurement for petroleum, chemical, power, and hydrology industries
Pipeline pressure monitoring and control systems

Technical Specifications

Measurement Range	0-10KPa...~4MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static Pressure	The minimum value between 5 times the rated range or 7 MPa
Power Supply	9V alkaline battery
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Point Temperature Drift	±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature	-1ºC~49ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g, 55Hz ~ 2kHz
Housing Material	ABS, 1Cr18Ni9Ti
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Protection Rating	IP65
Weight	~0.45kg

Ordering Information

Ensure measured medium compatibility with product contacting parts
Install a three-valve manifold for reliable operation and uniform pressure application
Position pressure interfaces horizontally to minimize installation impact
9V alkaline battery not included - purchase separately
Specify special requirements for vibration, impact, or electromagnetic interference

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

Our pressure sensors offer high precision, exceptional durability, and reliable performance. Customization options are available to meet specific application requirements.

Can I customize special specifications?

Yes, our engineering team can tailor products to meet your specific needs. We provide comprehensive OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters monthly, ensuring we can handle large-scale orders. We recommend contacting our sales team in advance for optimal production and delivery scheduling.

What's the typical delivery period?

Standard models typically ship within 5-8 working days. Customized products may require additional time based on specifications.

How are the products priced? Any discounts?

We offer competitive pricing with attractive discounts available for bulk orders and long-term partnership agreements.

What is the warranty of your products? And after-sales service?

Our products include a 24-month warranty from shipment date. Our after-sales team responds to inquiries within 24 hours, with remote PC network instruction always available.
