Black Plastic Material Pressure Temperature Displays The Instruments With Controlle Gauge Display Instrument
Product Details
| Model NO.: | BPK-IIIN | Measuring Range: | Medium-pressure Gauge |
|---|---|---|---|
| Type: | Digital Display | Function: | Local Indication Type, Electric Signal-controlled |
| Control Point: | 2 Point | Input: | Pressure /temperature /PT100 And So On |
| Supply Voltage: | 220VAC /24VDC(±10%) | Ambient Temperature: | 0~50ºC |
| Relay Life: | >100000 Times | Max. Current: | 3A (Resistive Load), 0.3A (Inductive Load) |
| Highlight |
black plastic pressure gauge,temperature control gauge instrument,silicon pressure sensor display |
||
Product Description
Black Plastic Material Pressure Temperature Displays The Instruments With Controlle Gauge Display Instrument
- Multiple input signal options including RTD, Thermocouple, and standard signals
- Display scope calibration for nonlinear signals and linear signal setting capability
- Isolated transmitting output with 12-bit resolution and adjustable scope
- Two relay outputs configurable for high/low, high/high-high, or low/low-low alarm actions
| Input Signal Code | Input Signal | Display Scope | Resolution | Precision | Input Impedance |
|---|---|---|---|---|---|
| 00 | T TC | 0~400°C | 1°C | 0.2% | 100K |
| 01 | R TC | 0~1600°C | 1°C | 0.2% | 100K |
| 02 | J TC | 0~1200°C | 1°C | 0.2% | 100K |
| 03 | WRe3-WRe25 TC | 0~2300°C | 1°C | 0.2% | 100K |
| 04 | B TC | 350~1800°C | 1°C | 0.2% | 100K |
| 05 | S TC | 0~1600°C | 1°C | 0.2% | 100K |
| 06 | K TC | 0~1300°C | 1°C | 0.2% | 100K |
| 07 | E TC | 0~900°C | 1°C | 0.2% | 100K |
| 08 | Pt100 RTD | -200.~600.0°C | 0.1°C | 0.2% | (0.2mA) |
| 09 | Cu50 RTD | -50.0~150.0°C | 0.1°C | 0.2% | (0.2mA) |
| 10 | 0~375Ω remote pressure | Customizable from -1999 to 9999 | 16bit A/D sample | 0.2% | (0.2mA) |
| 11 | 0~75mV current divider | 0.1% | 100K | ||
| 12 | 0~30mV | 0.1% | 100K | ||
| 13 | 0~5V standard signal | 0.1% | 100K | ||
| 14 | 1~5V standard signal | 0.1% | 100K | ||
| 15 | 0~10V standard signal | 0.1% | 100K | ||
| 16 | 0~10 mA standard signal | 0.1% | 20Ω | ||
| 17 | 0~20 mA standard signal | 0.1% | 20Ω | ||
| 18 | 4~20 mA standard signal | 0.1% | 20Ω |
| Transmitting Output Signal | Current Output | Transmitting Scope | Isolated Voltage | Max Resolution | Precision | Load Capacity | Open-Circuit Voltage |
|---|---|---|---|---|---|---|---|
| 00 | 4~20 mA | Transmit data within scope to standard current signal | 1500V | 12bits | 0.3% | ≤500Ω | 15V |
| 01 | 0~20mA |
| Voltage | Max Current (Resistive Load) | Max Current (Inductive Load) | Relay Life |
|---|---|---|---|
| 250V/120V | 3A AC / 2A DC | 0.3A AC / 0.2A DC | >100,000 cycles |
| 120V/48V | 4A AC / 3A DC | 0.4A AC / 0.3A DC | |
| <48V | 5A AC / 4A DC | 0.5A AC / 0.4A DC |
- External DC24V/30mA power supply for transmitter operation
- Automatic temperature compensation for thermocouple sensors
- Disconnection protection functionality
| Model | Outline Dimension | Panel Output Dimension (mm) | Notes |
|---|---|---|---|
| BPK-IIIS | 160×80×80 (Horizontal) | 152+0.8×76+0.7 | |

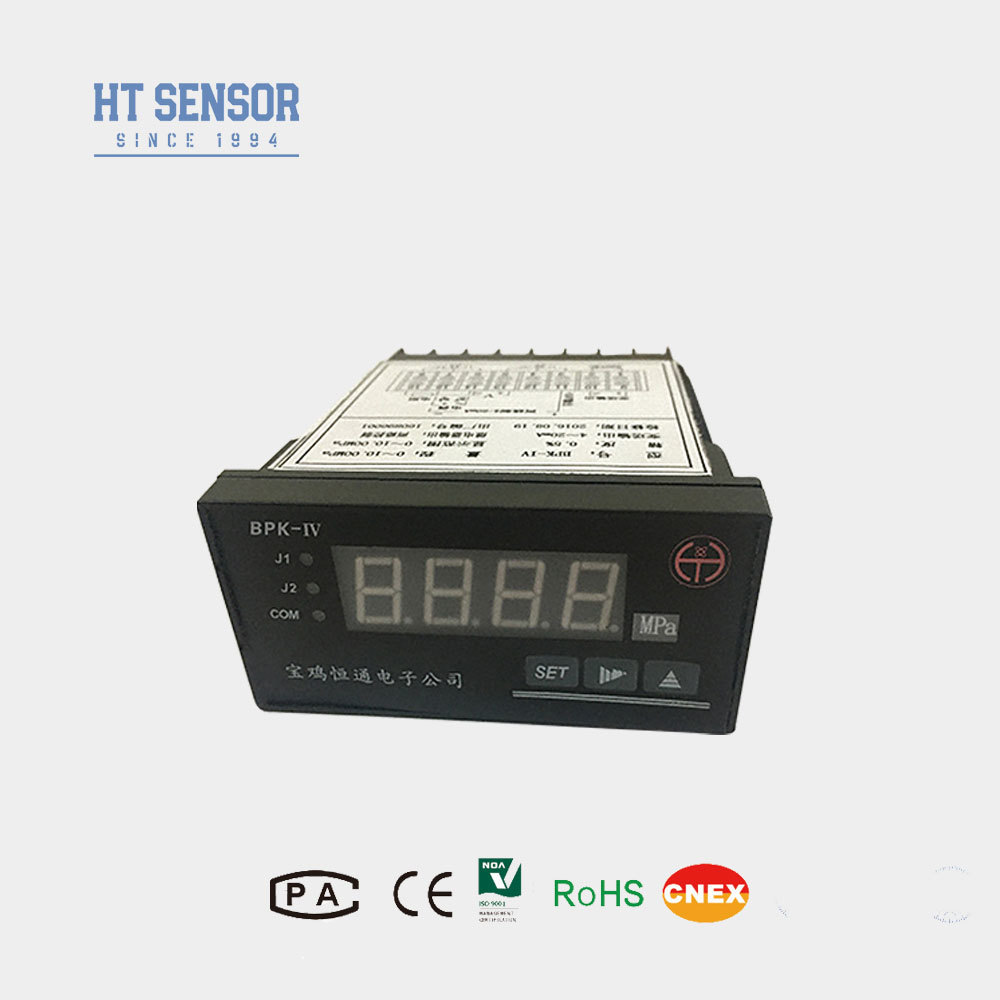

| BPK-IV | 96×48×112 (Horizontal) | 92+0.7×44+0.5 | |

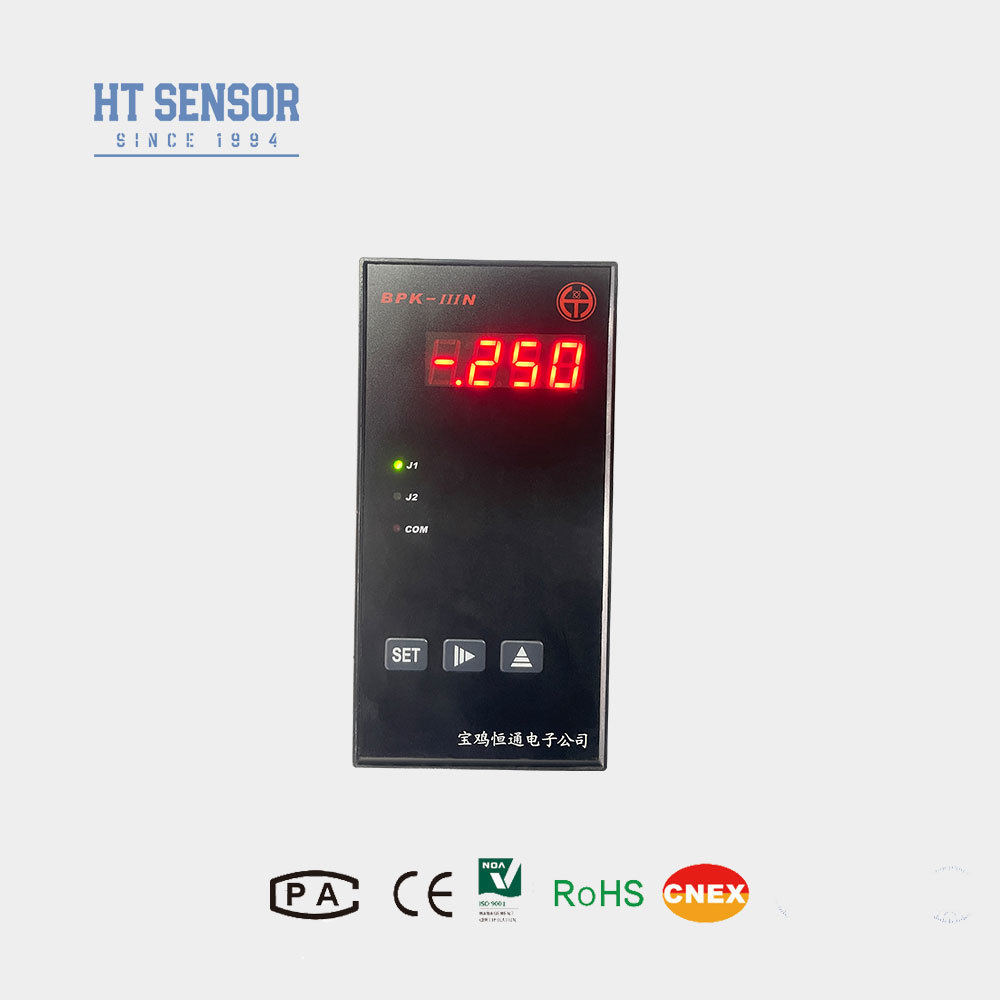

| BPK-IIIN | 80×160×80 (Vertical) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112 (Vertical) | 44+0.5×92+0.7 |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, ensuring we can meet large-scale order requirements. We recommend contacting our sales team in advance for production and delivery scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts available for bulk orders or long-term partnerships.
- What is the warranty of your products? And after-sales service?
- 24-month warranty from shipment date. Our after-sales team responds to inquiries within 24 hours, with remote PC network support always available.
