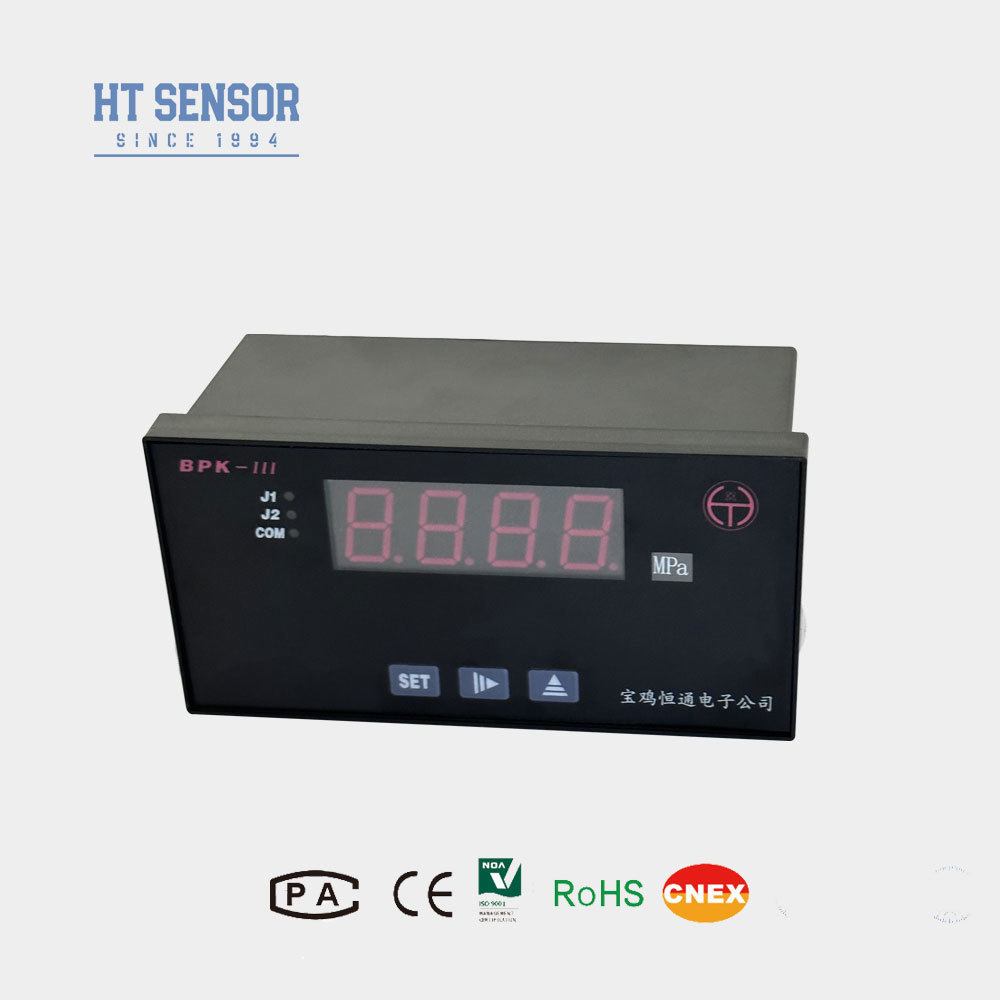

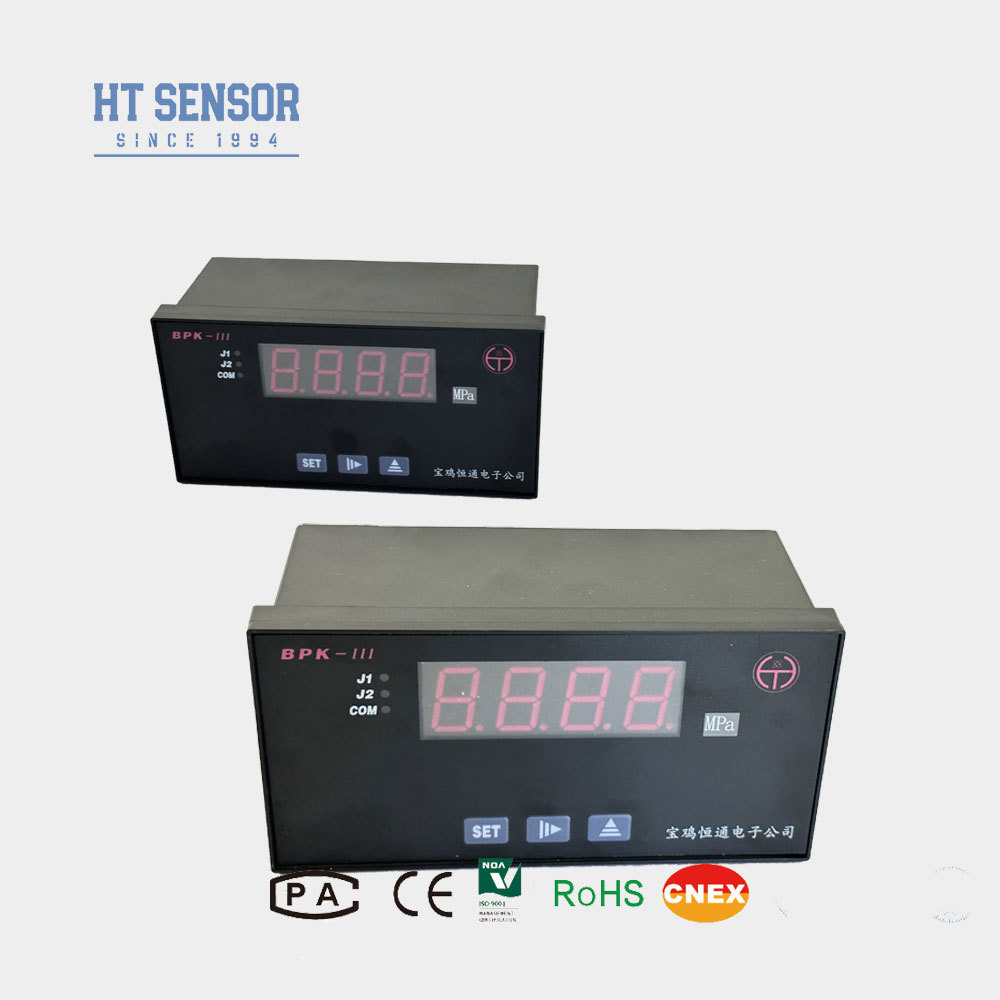

BPK-III Multiple Type Input Pressure Display Gauge Temperature Gauge Switch Display instrument
Product Details
| Model NO.: | BPK-IIIN | Measuring Range: | Medium-pressure Gauge |
|---|---|---|---|
| Output: | 4-20mA /0-20mA | Switch: | 2 PIONT SWITCH |
| Input: | PT100. 4-20mA AND SO ON | Supply Voltage: | 220VAC /24VDC(±10%) |
| Max Current: | 3A (Resistive Load), 0.3A (Inductive Load) | Panel Dimension: | 152+0.8×76+0.7 (BPK-IIIS) |
| Highlight |
BPK-III pressure display gauge,temperature gauge switch with warranty,silicon pressure sensor input |
||
Product Description
- Multiple RTD, thermocouple, or standard input signal options available
- Display scope calibration for nonlinear signals and setting capability for linear signals
- Isolated transmitting output with 12-bit resolution and adjustable scope
- Two relay outputs configurable for high/low, high/high-high, or low/low-low alarm action types
- Supply voltage: 220VAC / 24VDC (±10%)
- Ambient temperature: 0~50°C
- Relative humidity: ≤85% non-corrosive gas environment
| Input Signal Code | Input Signal | Display Scope | Resolution | Precision | Input Impedance |
|---|---|---|---|---|---|
| 00 | T TC | 0~400°C | 1°C | 0.2% | 100K |
| 01 | R TC | 0~1600°C | 1°C | 0.2% | 100K |
| 02 | J TC | 0~1200°C | 1°C | 0.2% | 100K |
| 03 | WRe3-WRe25 TC | 0~2300°C | 1°C | 0.2% | 100K |
| 04 | B TC | 350~1800°C | 1°C | 0.2% | 100K |
| 05 | S TC | 0~1600°C | 1°C | 0.2% | 100K |
| 06 | K TC | 0~1300°C | 1°C | 0.2% | 100K |
| 07 | E TC | 0~900°C | 1°C | 0.2% | 100K |
| 08 | Pt100 RTD | -200.~600.0°C | 0.1°C | 0.2% | (0.2mA) |
| 09 | Cu50 RTD | -50.0~150.0°C | 0.1°C | 0.2% | (0.2mA) |
| 10 | 0~375Ω remote pressure | Low and high limit of scope can be set from -1999 to 9999 | Display scope is continuous from -1999 to 9999 using 16bit A/D sample | 0.2% | (0.2mA) |
| 11 | 0~75mV current divider | 0.1% | 100K | ||
| 12 | 0~30mV | 0.1% | 100K | ||
| 13 | 0~5V standard signal | 0.1% | 100K | ||
| 14 | 1~5V standard signal | 0.1% | 100K | ||
| 15 | 0~10V standard signal | 0.1% | 100K | ||
| 16 | 0~10 mA standard signal | 0.1% | 20Ω | ||
| 17 | 0~20 mA standard signal | 0.1% | 20Ω | ||
| 18 | 4~20 mA standard signal | 0.1% | 20Ω |
| Transmitting Output Signal | Current Output | Transmitting Scope | Isolated Voltage | Max. Resolution | Precision | Load Capacity | Open-circuit Voltage |
|---|---|---|---|---|---|---|---|
| 00 | 4~20 mA | Transmit data within scope to standard current signal | 1500V | 12bits | 0.3% | ≤500Ω | 15V |
| 01 | 0~20mA |
| Voltage | AC | DC | AC | DC | AC | DC | Relay Life |
|---|---|---|---|---|---|---|---|
| 250V/120V | 120V/48V | <48V | >100000 times | ||||
| Max. current (Resistive load) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Max. current (Inductive load) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A |
- External DC24V/30mA power supply capability for transmitters
- Automatic temperature compensation function for thermocouple sensors
- Disconnection protection function
| Model | Outline Dimension | Panel Output Dimension (mm) | Note |
|---|---|---|---|
| BPK-IIIS1 | 160×80×80 (Horizontal) | 152+0.8×76+0.7 | |
| BPK-IIIS2 | 96×48×112 (Horizontal) | 92+0.7×44+0.5 | |
| BPK-IIIN1 | 80×160×80 (Vertical) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112 (Vertical) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112 (Square) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108 (Square) | 44+0.5×44+0.5 | With J2 alarm lamp without J2 relay |
| BPK-IIIF3 | 72×72×112 | 67+0.7×67+0.7 |
Product Highlights
BPK-III Multiple Type Input Pressure Display Gauge Temperature Gauge Switch Display instrumentBPK-IIIN Pressure Gauge/SwitchProduct OverviewBPK-IIIN series controllers feature display, control, and transmission functions, and have been widely applied in various automatic control applications.Key ...
