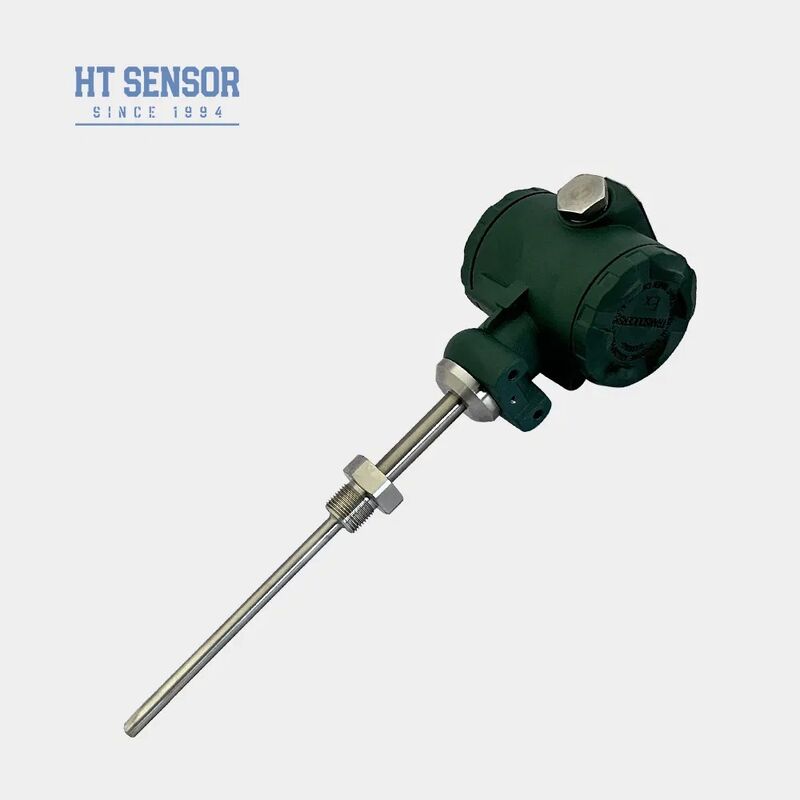

HTsensor China Factory OEM Temperature Sensor with 4–20mA Output Mini Temperature Indicator Transmitter
Product Details
| Model NO.: | BT93420-I | Output Signal: | Analog Type |
|---|---|---|---|
| Material: | Stainless Steel | Measuring Medium: | Temperature |
| IP Rating: | IP65 | Accuracy: | ±1ºC |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Hysteresis: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability: | ±0.2%F.S/year (Max.) | Operating Temperature: | -30~80ºC |
| Storage Temperature: | -40~100ºC | Insulation Resistance: | >=100MΩ@100VDC |
| Weight: | ~0.5Kg | ||
| Highlight |
silicon pressure sensor with warranty,high accuracy silicon pressure sensor,industrial silicon pressure sensor |
||
Product Description
- Full stainless steel structure with excellent corrosion resistance
- Available with analog output or digital output options
- Multiple display options: terminal box, 2088 LCD, or LED display
- Temperature monitoring for generators, transformers, cables, and other critical equipment
- Industrial automation systems
- Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries
| Measurement Range | -55~1200ºC |
|---|---|
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum Temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |

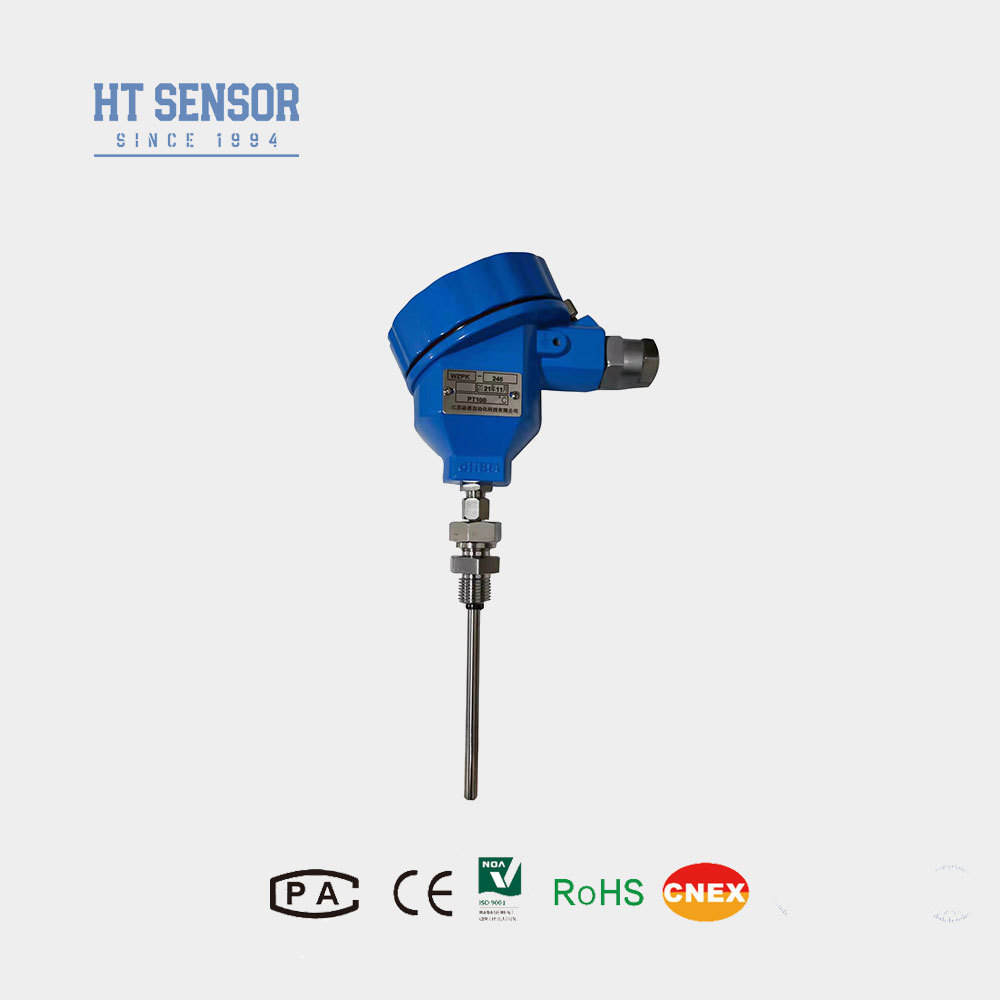

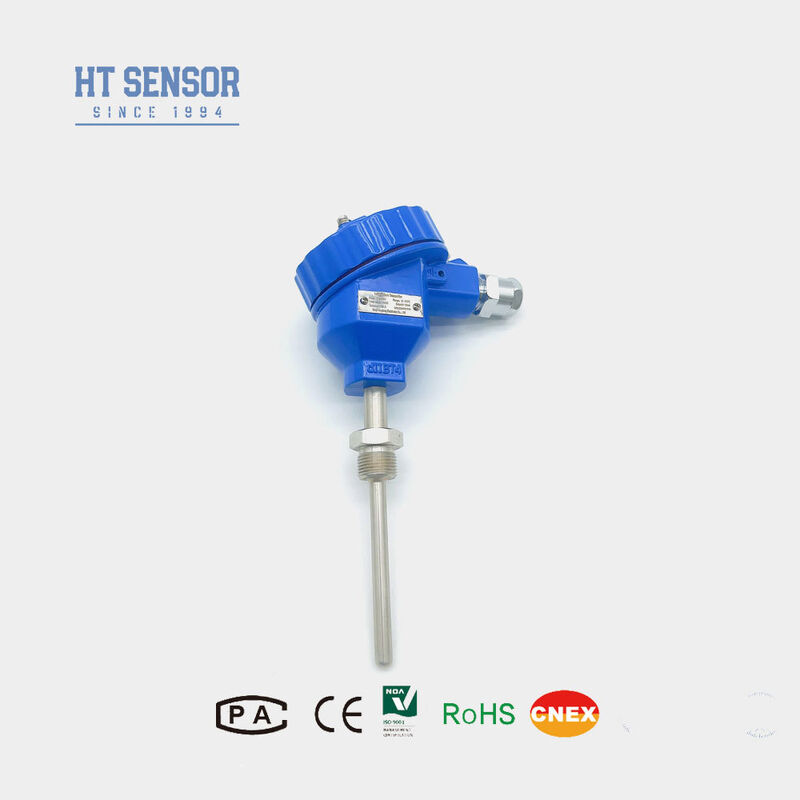

| I | Blue Terminal Box |
| II | 2088 housing |
| III | 2088+LED |
| IIIA | 3051+LED |
| D1 | 24VDC |
| D2 | Other |
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| J1 | M27X2 Male |
| J2 | Other |
| L | Actual insertion depth |
Product Highlights
BT93420 Temperature Indicator Transmitter The BT93420 temperature indicator transmitter utilizes a dedicated temperature module that performs linear correction on various thermocouples and resistance temperature detectors (RTDs), outputting standard analog signals. This device offers high accuracy, ...
