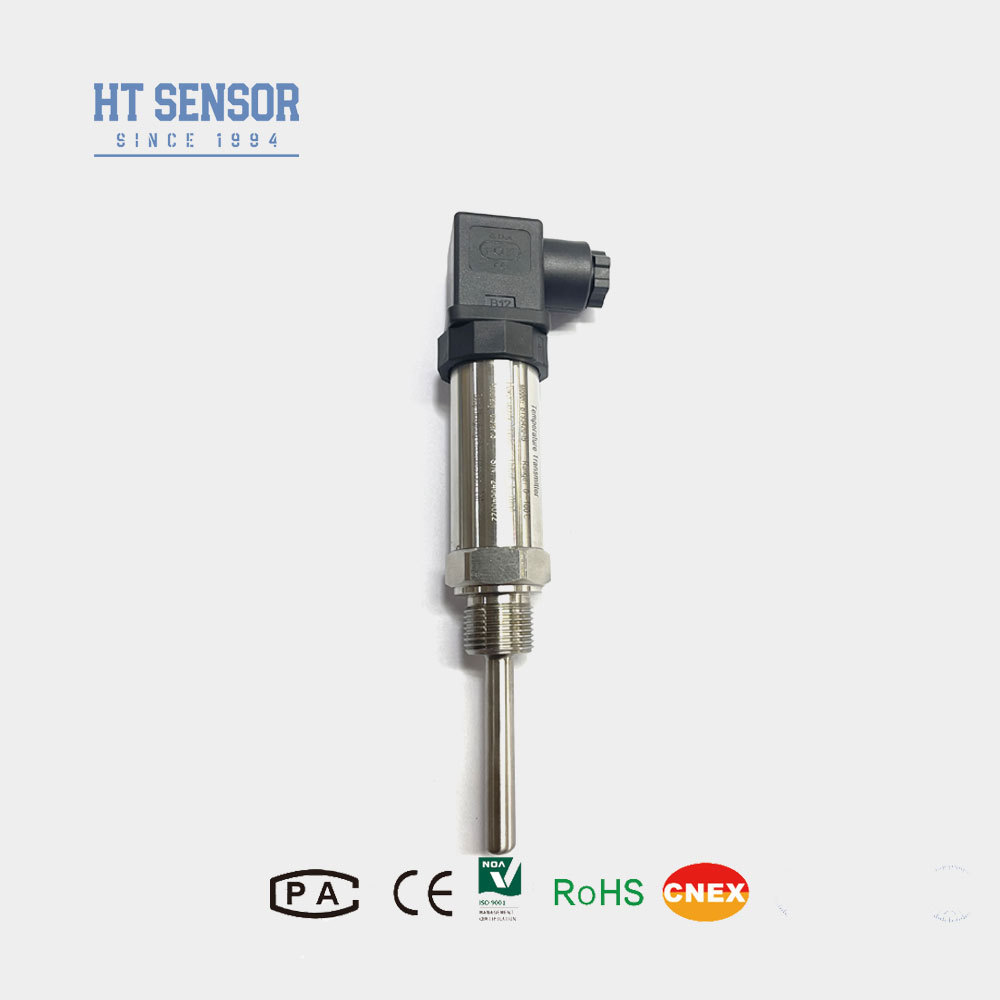

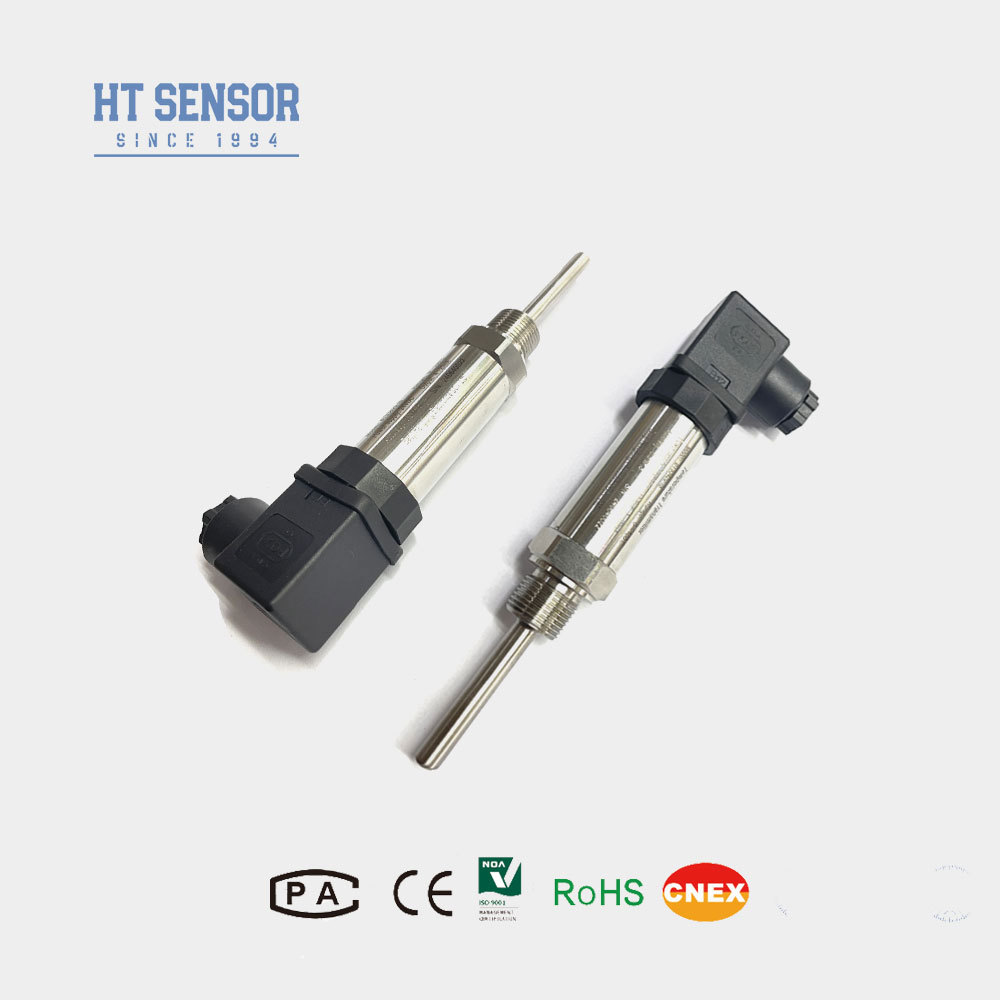

PT100 PT1000 Temperature Test Transmitter 4-20mA Temperature Sensor Temperature Indicator Transmitter
Product Details
| Model NO.: | BT93420-IB | Output Signal: | 4-20mA /0-10vdc |
|---|---|---|---|
| Material: | 304 Stainless Steel | Measuring Medium: | Temperature |
| Measurement Range: | -50~200ºC | Accuracy: | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Hysteresis: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability: | ±0.2%F.S/year (Max.) | Insulation Resistance: | >=100MΩ@100VDC |
| Protection Rating: | IP65 | ||
| Highlight |
PT100 temperature transmitter 4-20mA,PT1000 temperature sensor with warranty,4-20mA temperature test transmitter |
||
Product Description
- Full stainless steel structure with excellent corrosion resistance
- Available with analog output or digital output options
- Multiple housing options: Terminal box, 2088 LCD, or LED display
- Monitoring temperature of generators, transformers, cables, and other critical equipment
- Industrial automation systems
- Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries
| Measurement Range | -55~1200ºC |
|---|---|
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum Temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |
| Code | Outline Construction |
|---|---|
| I | Blue Terminal Box |
| II | 2088 housing |
| III | 2088+LED |
| IIIA | 3051+LED |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M27X2 Male |
| J2 | Other |
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services. - Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling. - Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary. - Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners. - Q: What is the warranty of your products? And after-sales service?
A: Our warranty period is 24 months after shipment, and our after-sales team will respond to your questions within 24 hours. Remote instruction via PC network is always available.
