Detail Information

Model NO.:	BT93420-I	Output Signal:	4-20mA /0-10vdc
Production Process:	Normal Wirewound	Material:	Stainless Steel
Measuring Medium:	Temperature	IP Rating:	IP65
Measurement Range:	-55~1200ºC	Accuracy:	±0.5% (Typ.) ±1% (Max.)
Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)	Hysteresis:	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability:	±0.2%F.S/year (Max.)	Operating Temperature:	-30~80ºC
Storage Temperature:	-40~100ºC	Housing Material:	1Cr18Ni9Ti
Diaphragm Material:	316L Stainless Steel	Insulation Resistance:	>=100MΩ@100VDC
Protection Rating:	IP65	Weight:	~0.5Kg
Highlight:	PT100 temperature transmitter 4-20mA , PT1000 temperature sensor with warranty , 4-20mA temperature test transmitter

Product Description

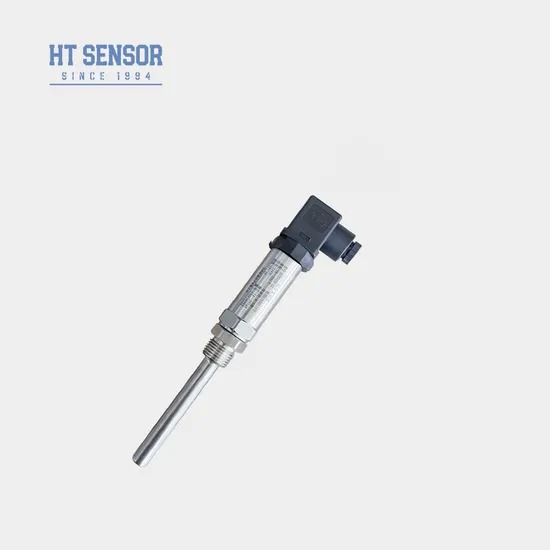

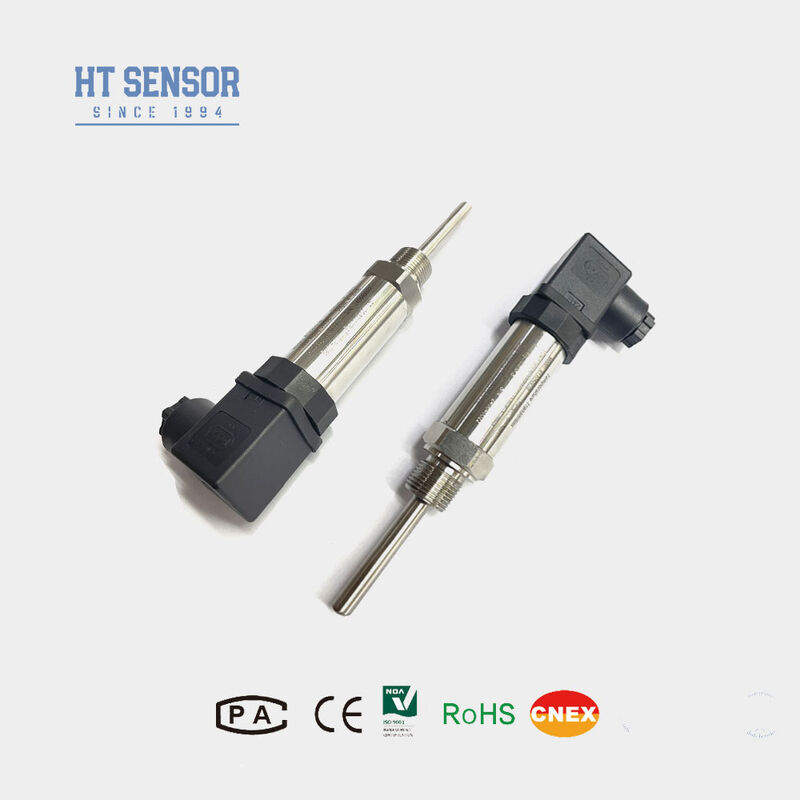

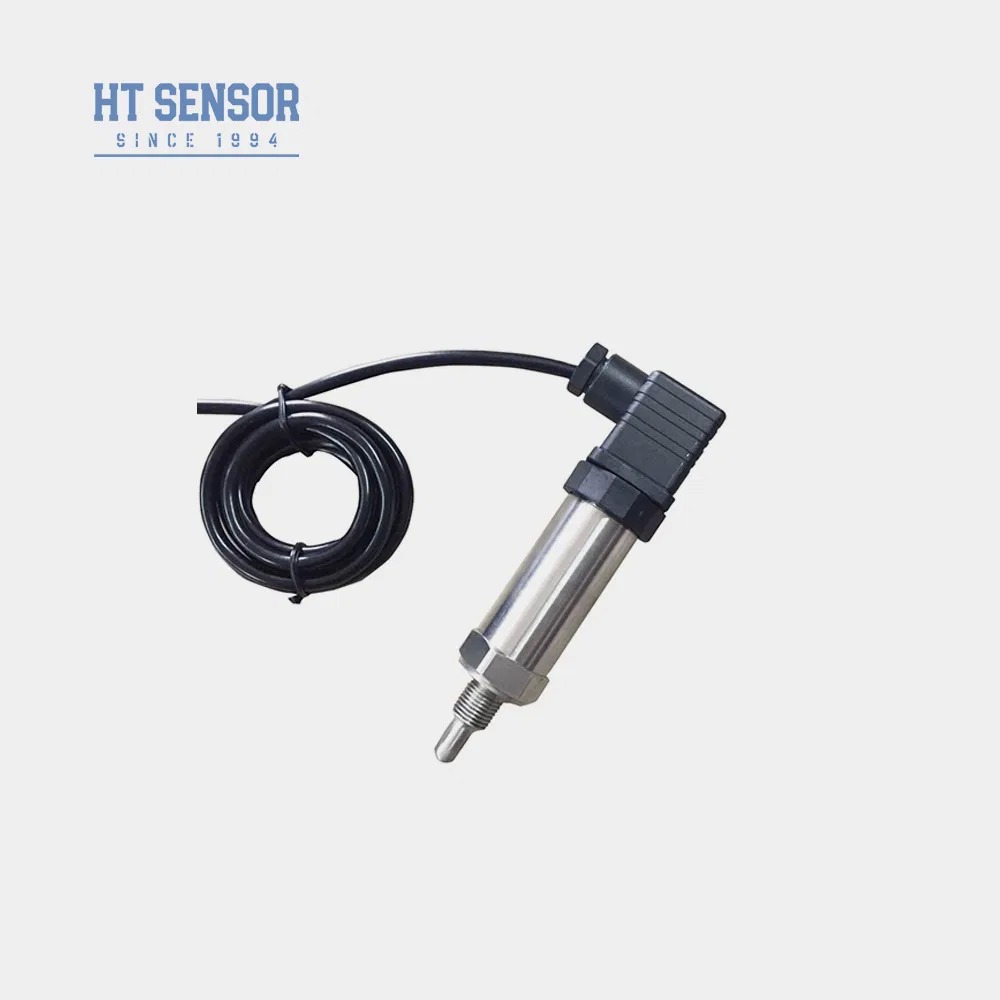

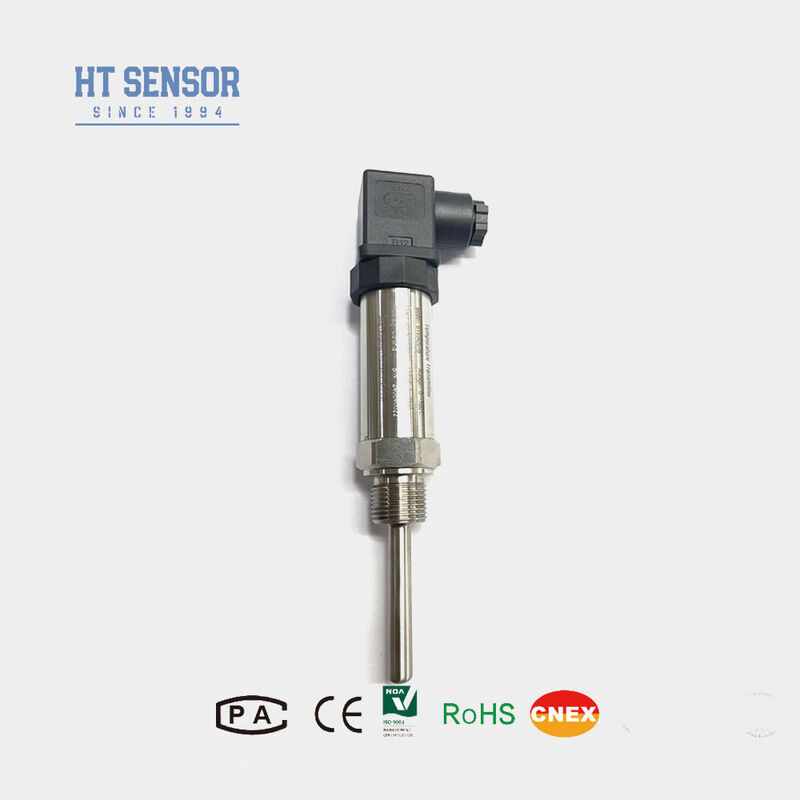

PT100 PT1000 Temperature Test Transmitter 4-20mA Temperature Sensor

BT93420 Temperature Indicator Transmitter

Product Introduction

The BT93420 temperature indicator transmitter utilizes a dedicated temperature module that performs linear correction for various thermocouples and resistance temperature detectors (RTDs), outputting standard analog signals. This device offers high accuracy, excellent stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It seamlessly integrates with control systems to enable automated temperature control and monitoring.

Product Features

Full stainless steel structure with excellent corrosion resistance
Available with analog output or digital output options

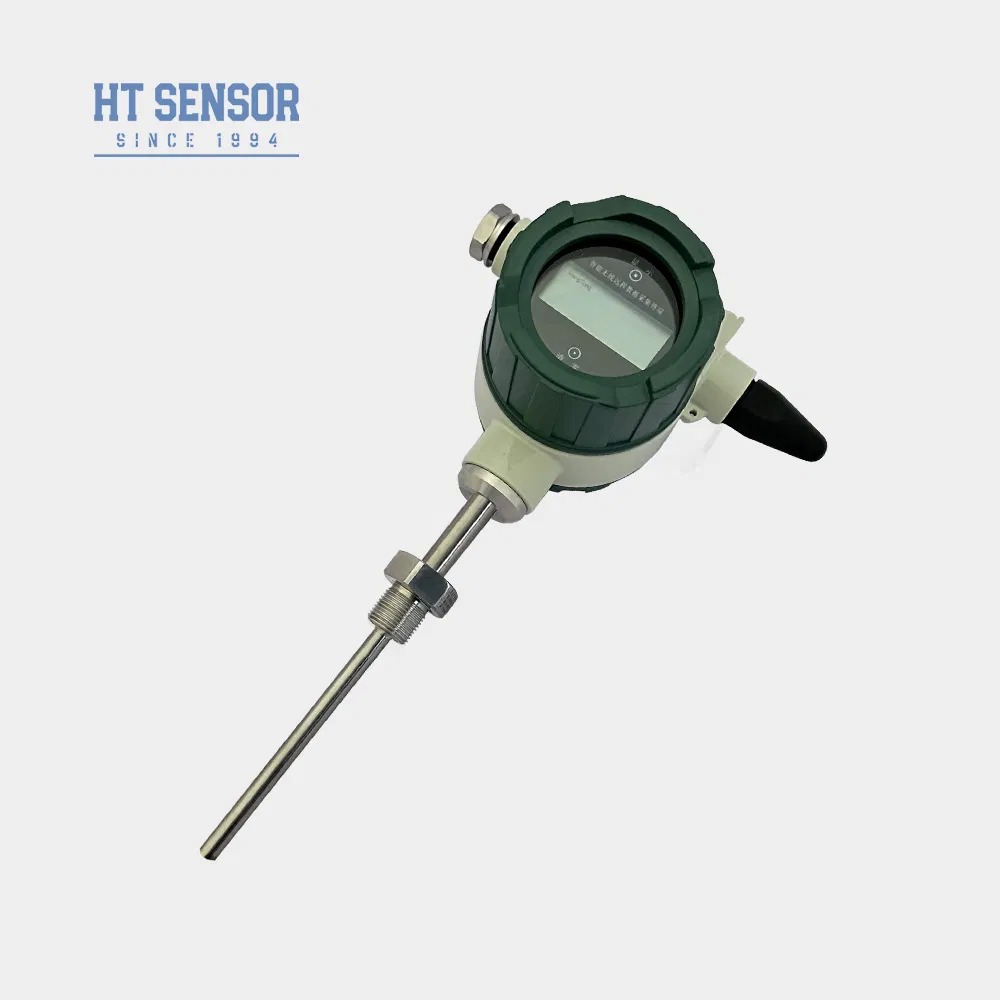

Multiple housing options: Terminal box, 2088 LCD, or LED display

Applications

Monitoring temperature of generators, transformers, cables, and other critical equipment
Industrial automation systems
Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries

Performance Parameters

Measurement Range	-55~1200ºC
Accuracy @ 25ºC	±0.5% (Typ.) ±1% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Operating Temperature	-30~80ºC
Storage Temperature	-40~100ºC
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Maximum Temperature	120% of the rated temperature range
Protection Rating	IP65
Weight	~0.5Kg

Outline Construction

Terminal Box

Order Guide

BT93420 Temperature Indicator Transmitter

Outline Construction Options

Code	Outline Construction
I	Blue Terminal Box

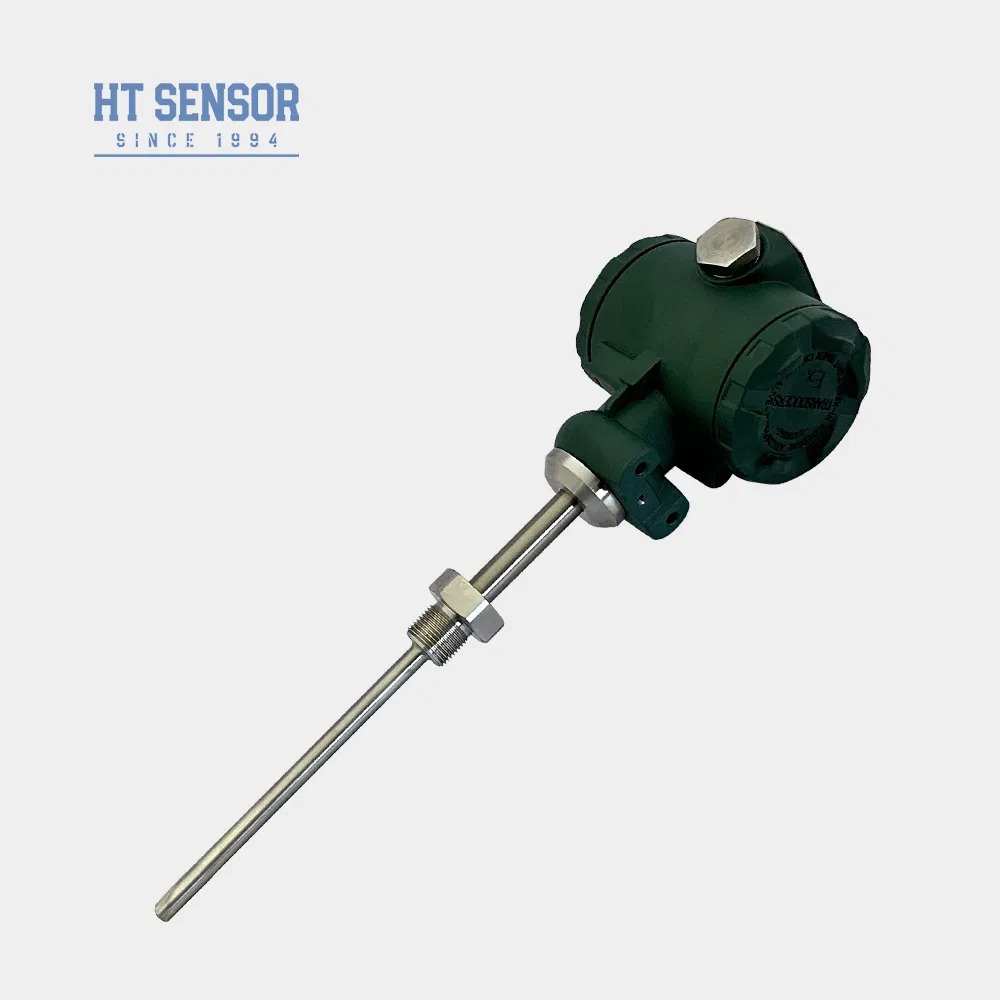

II	2088 housing

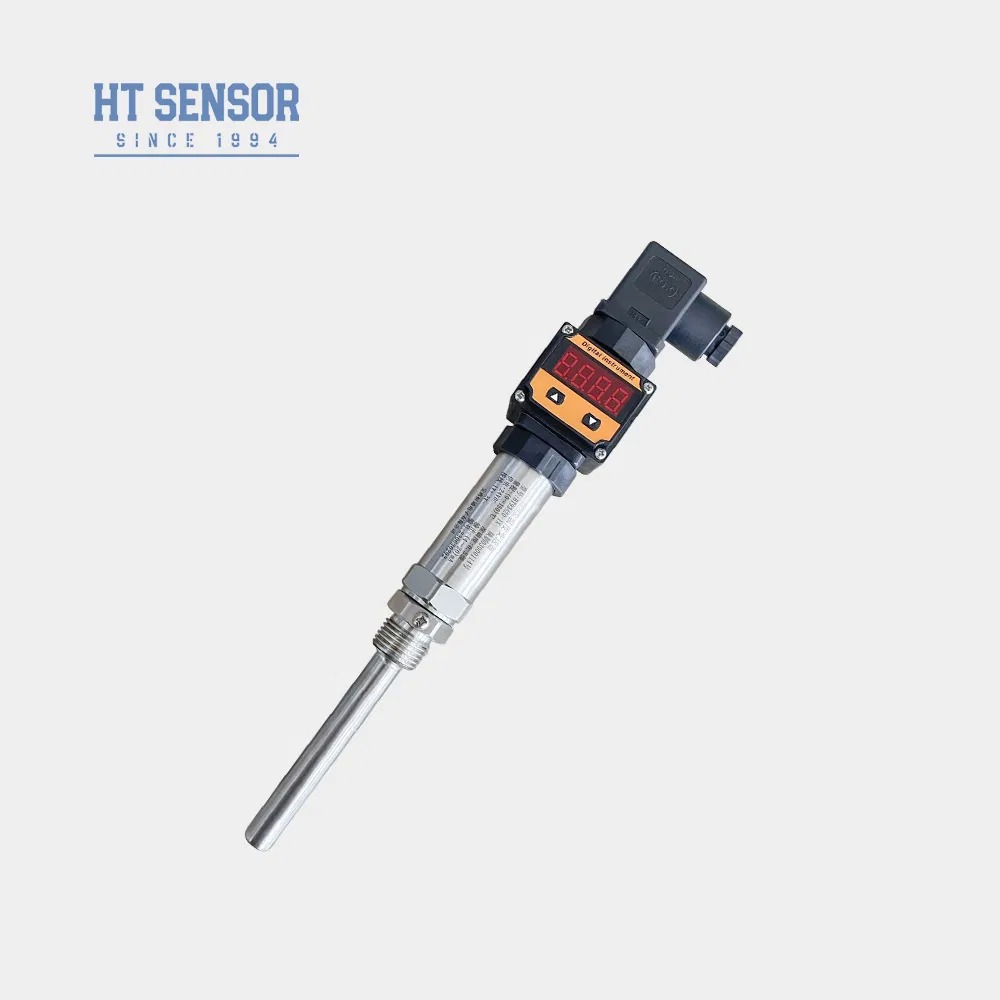

III	2088+LED
IIIA	3051+LED

Measurement Range

-55~1200ºC

Power Supply Options

Code	Power Supply
D1	24VDC
D2	Other

Output Signal Options

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC

Pressure Connection Options

Code	Pressure Connection
J1	M27X2 Male
J2	Other

Insertion Depth

Code L: Actual insertion depth

Company Information

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty period is 24 months after shipment, and our after-sales team will respond to your questions within 24 hours. Remote instruction via PC network is always available.
