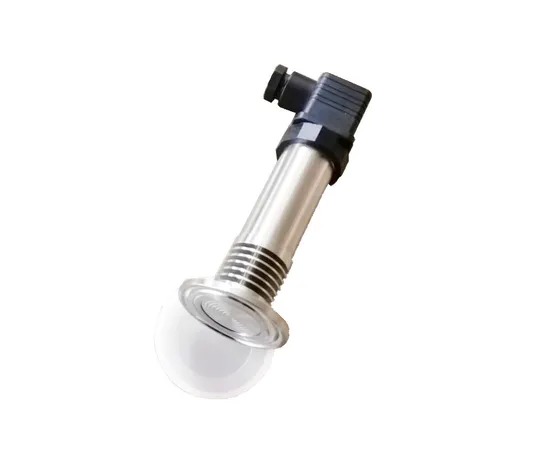

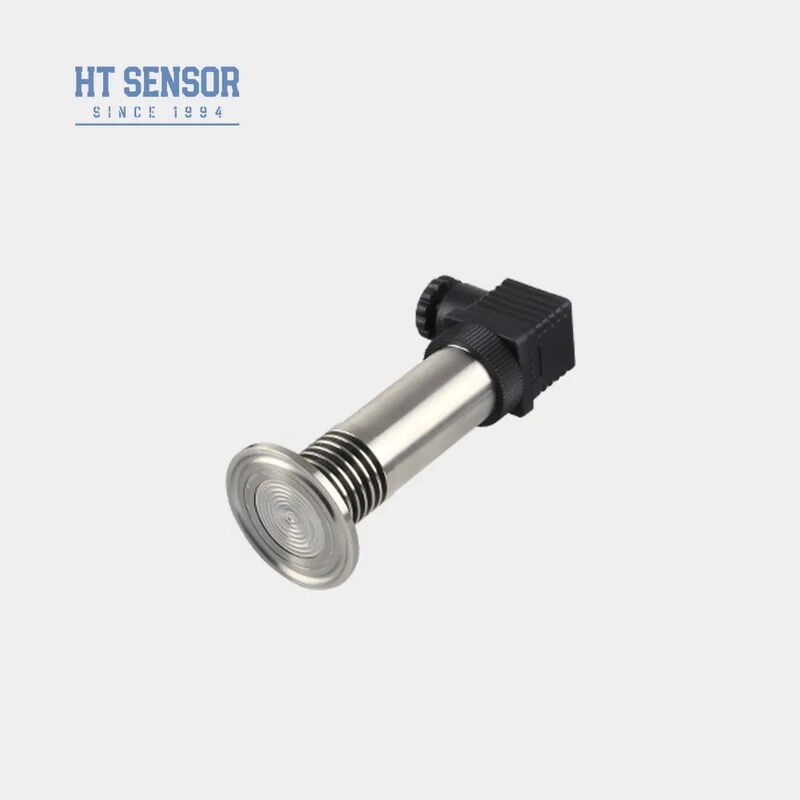

1.5" Clamp to Install Large Diaphragm High Temperature Level Pressure Transmitter Pressure Sensor
BP93420-IQ Pressure Transmitter
Product Introduction
BP93420-IQT 1.5mm clamp to install large diaphragm high temperature transmitter. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.
Product Features
- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean
Applications
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries
Performance Parameters
| Measurement Range |
0~35Kpa…~3.5MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
-20-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex db IIC T6 Gb |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.55kg |
Output Signal Specifications
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
|
3 wire |
0/1~5V
0/1~10V
0.5~4.5V |
5VDC |
|
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
Selection Examples
Order Guide
BP93420XX Pressure Transmitter

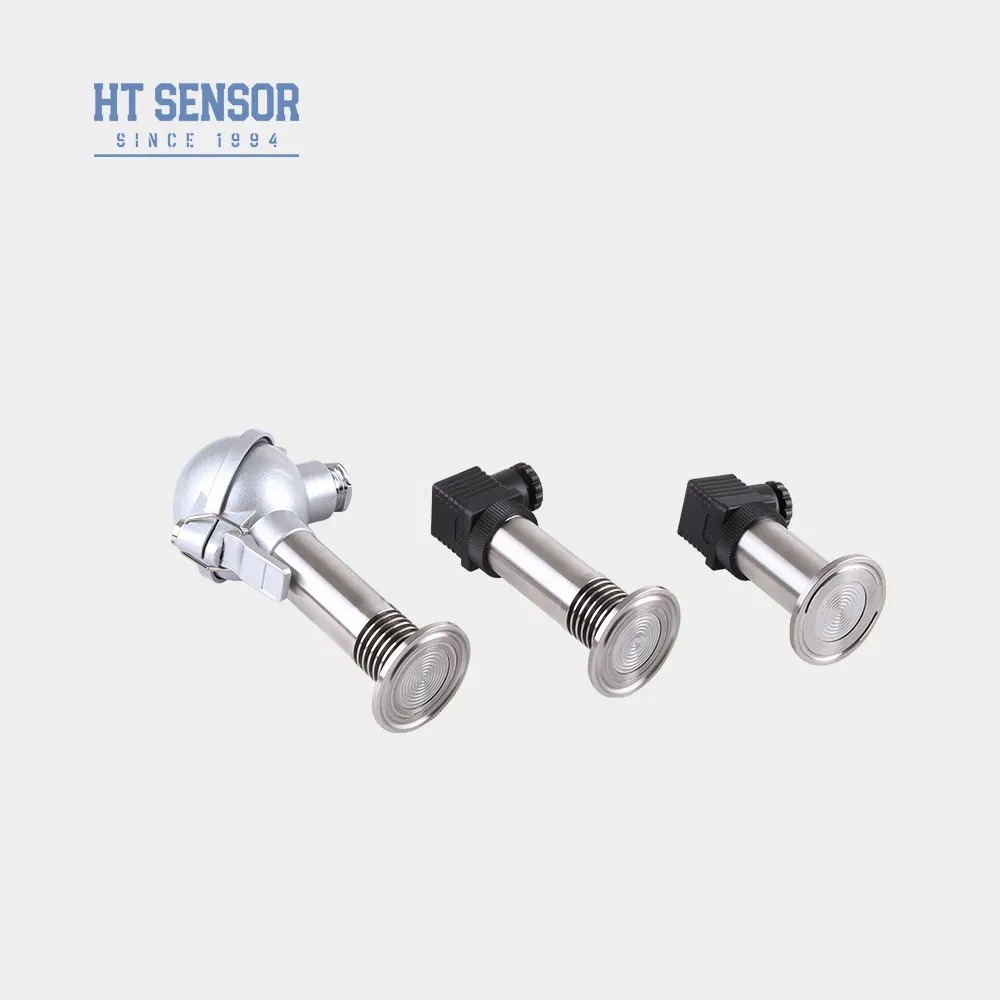

Outline Construction
| IB |
General Pressure Transmitter |
| IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
| IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
| IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
| IC |
High-temperature Pressure Transmitter |
| IQ/IQT |
Large Diaphragm /High-temperature Pressure Transmitter |
Measurement Range
-100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
Power Supply
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
Output Signal
| S1 |
4~20mADC |
| S2 |
1~5VDC |
| S3 |
0~5VDC |
| S4 |
0~10mADC |
| S5 |
0~20mADC |
| S6 |
0~10VDC |
| S7 |
0.5~4.5VDC |
Electrical Connection
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
Pressure Type
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
Ordering Tips
- When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
- When placing an order, please note that explosion-proof type products do not include digital display heads.
- When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
- To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
- The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
- The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
- For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
