Detail Information

Model NO.:	BP93420-IIIQT	Measuring Medium:	Air And Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~10kpa...100MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Long-Term Stability:	+-0.1%F.S/Year(Typ.)	Output Signal:	4-20mA/Hart/485
Measurement Range:	-100kPa…0kPa ~ 35kPa…3.5MPa	Overload:	≤ 1.5 Times Of The Rated Range
Accuracy @ 25ºC:	±0.25% (Typical) ±0.5% (Maximum)	Repeatability & Hysteresis:	0.02%F.S(Typ.) 0.05%F.S(Max.)
Zero Point Temperature Drift:	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)	Full Scale Temperature Drift:	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response:	2.4Khz
Highlight:	Easy to clean digital pressure sensor , 4-20ma+Hart flush pressure transmitter , Silicon pressure sensor with warranty

Product Description

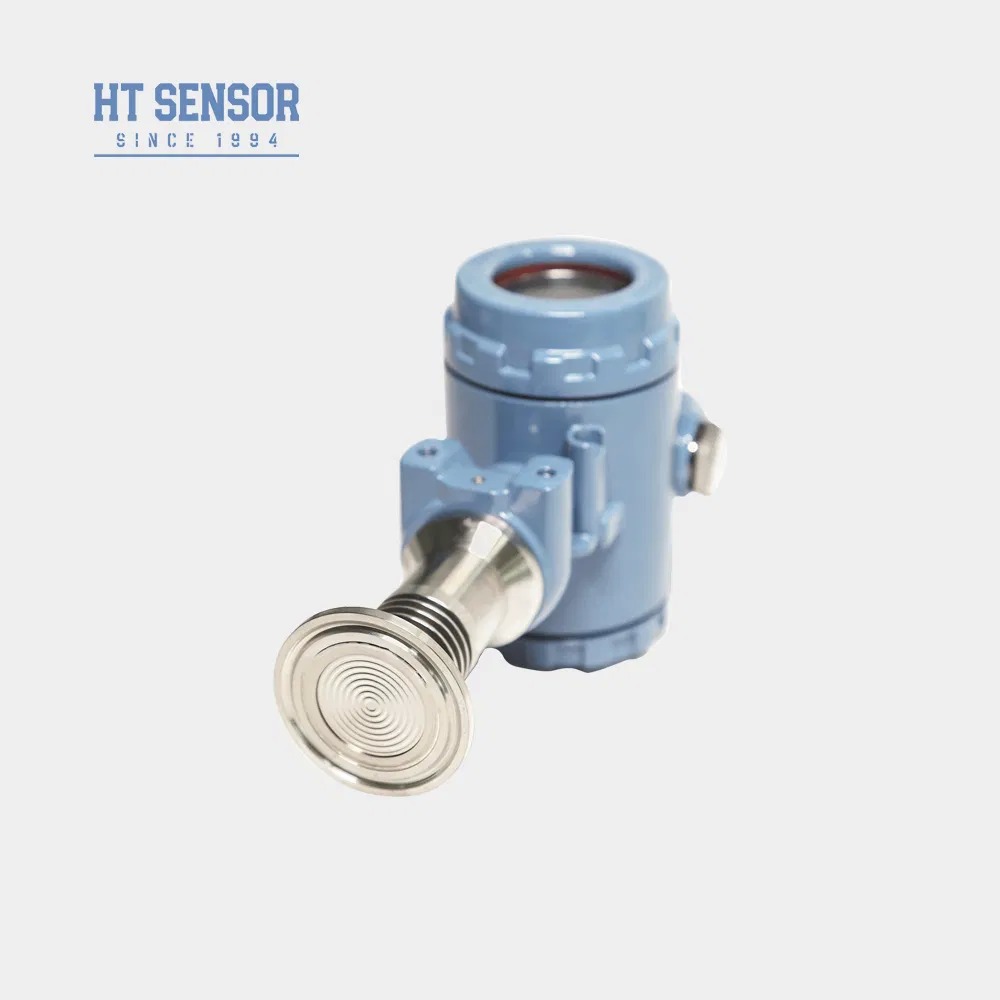

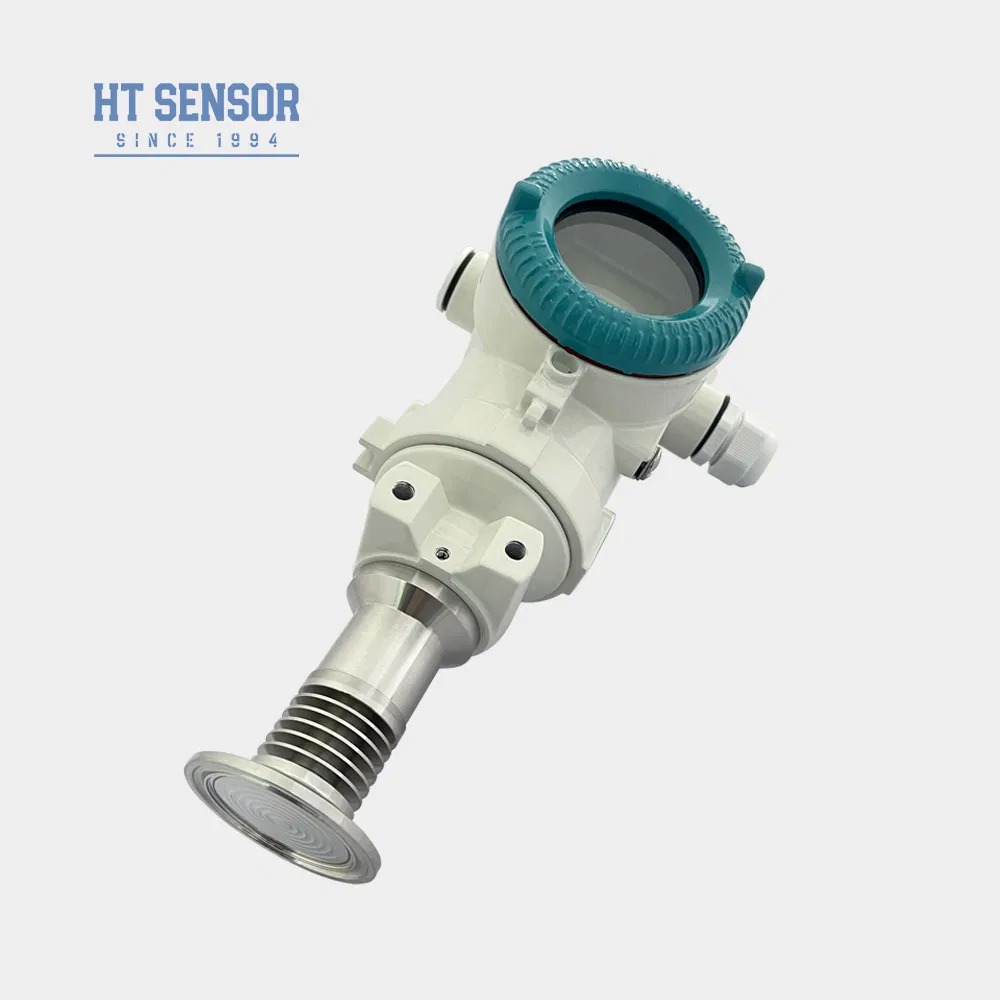

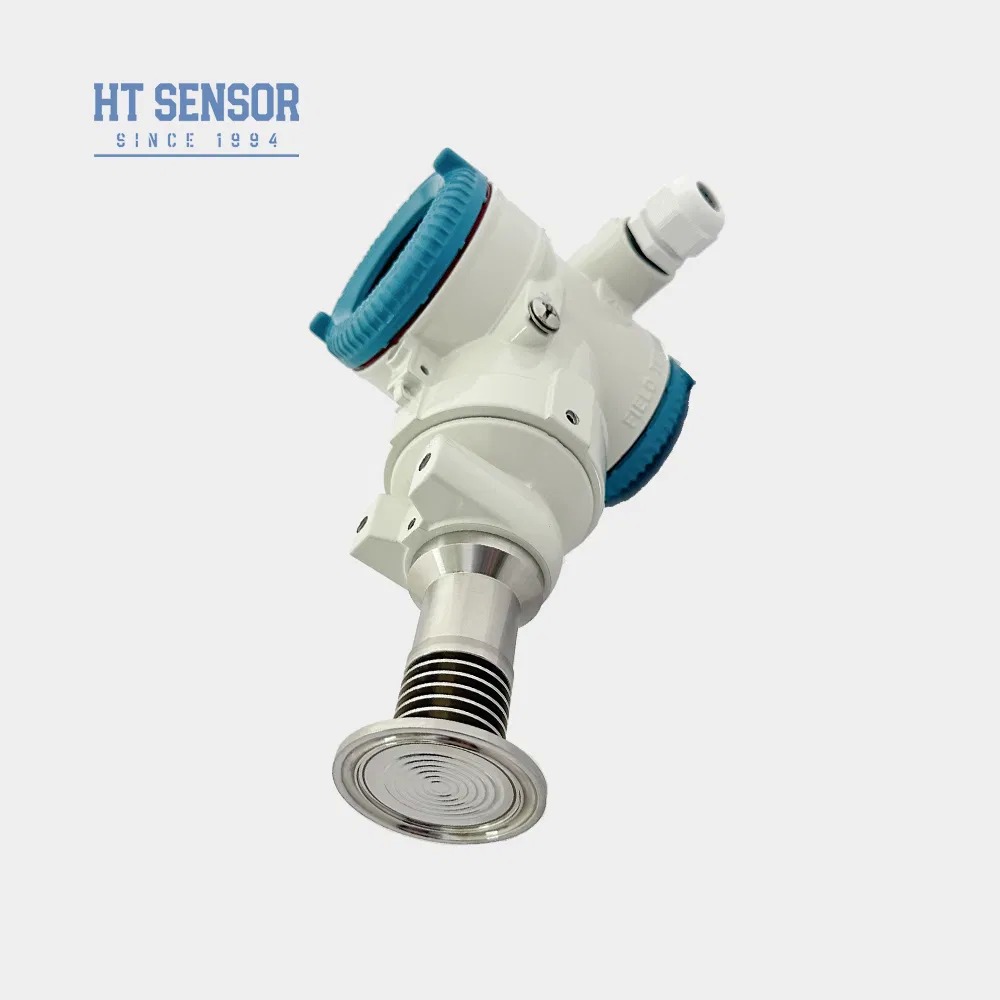

BP93420-IIIQT High Temperature Flush Pressure Transmitter

Baoji Hengtong high temperature flush pressure sensor for liquid testing applications requiring high sanitary conditions.

Product Introduction

BP93420-IIIQT 1.5mm clamp to install large diaphragm high temperature transmitter with signal processing circuit located inside a stainless steel housing, converting sensor signals into standard output signals. This pressure transmitter is primarily used in applications where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

Product Features

Various pressure interface options
Designed for hygienic applications to prevent medium scaling
High accuracy with fully stainless steel structure
Easy to clean design

Applications

Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in marine and aviation industries
Well-suited for medical, biopharmaceutical, and food hygiene industries

Performance Parameters

Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~1kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Order Guide

BP93420XX | Pressure Transmitter

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/ Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter

Measurement Range: -100kPa…0kPa ~ 35kPa…3.5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Ordering Tips

When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
When placing an order, please note that explosion-proof type products do not include digital display heads.
When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
To ensure reliable operation, install lightning protection devices on-site and ensure proper grounding.
The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. For temperatures below -20ºC, choose an EPDM O-ring seal.
The default cable length is 1.5m, available in three materials. If not specified, polyethylene cable material will be supplied.
For special requirements such as strong vibration, instantaneous impact force, or strong electromagnetic interference, please specify in your order.

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	48

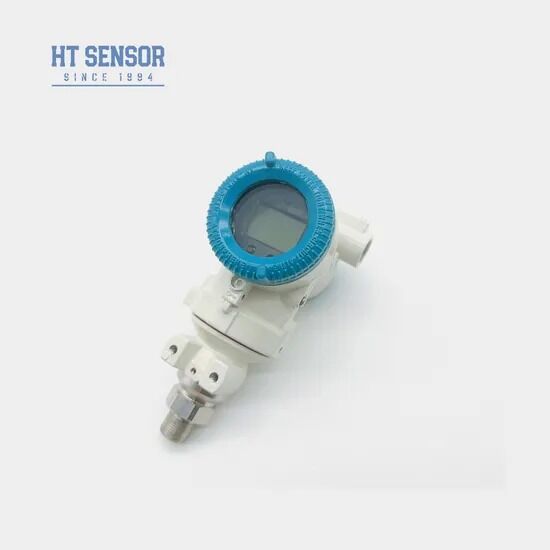

HTsensor Easy to Clean Digital Transducer 4-20ma+Hart Flush Pressure Sensor Transmitter
