Detail Information

Model NO.:	BP156	Measuring Medium:	Gas
Accuracy Grade:	0.2G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	304	Compensation Temp.:	0-70℃
Operating Temperature:	-20ºC~80ºC	Storage Temperature:	-40ºC~120ºC
Diaphragm Material:	316L	Insulation Resistance:	100MΩ 100VDC
Explosion-proof Rating:	Ex Db IIC T6 Gb	Weight:	~0.05kg
Frequency Response:	2.4Khz
Highlight:	small size air conditioner pressure transmitter , BP156 pressure transmitter with HT sensor , silicon pressure sensor for air conditioner

Product Description

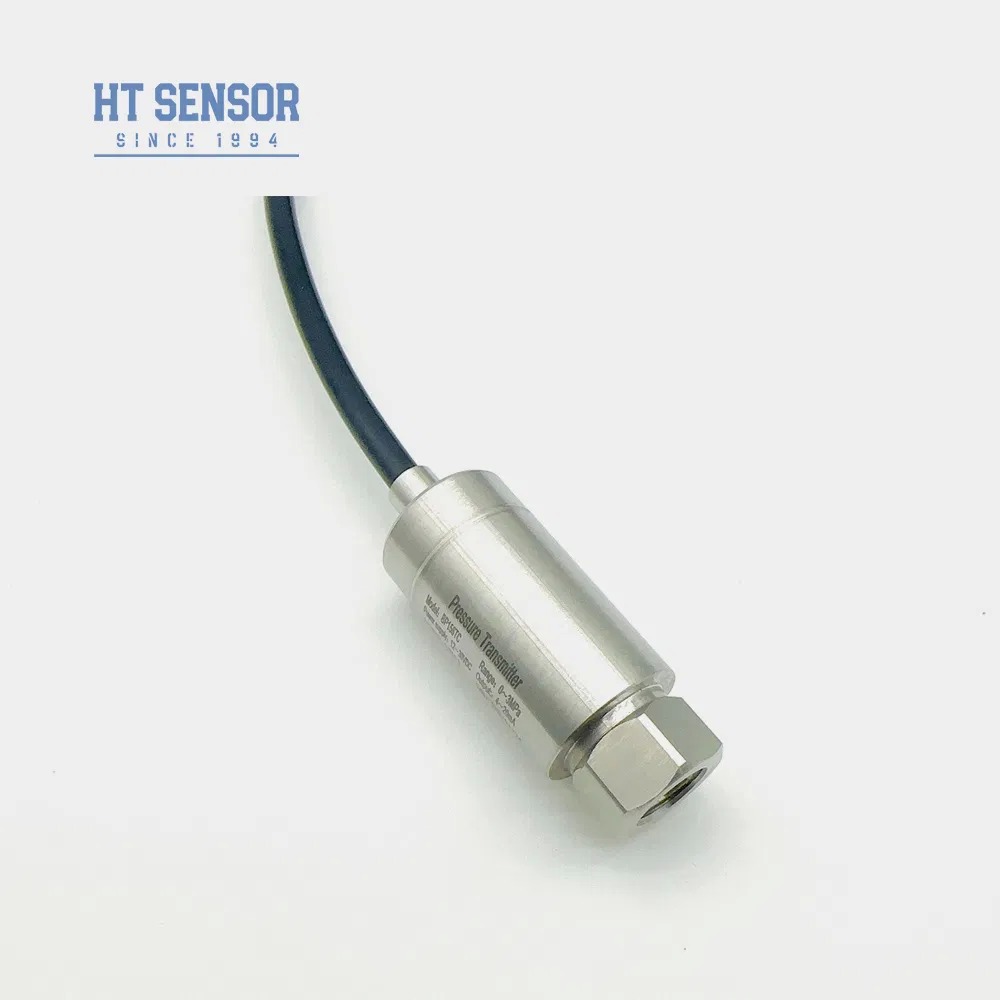

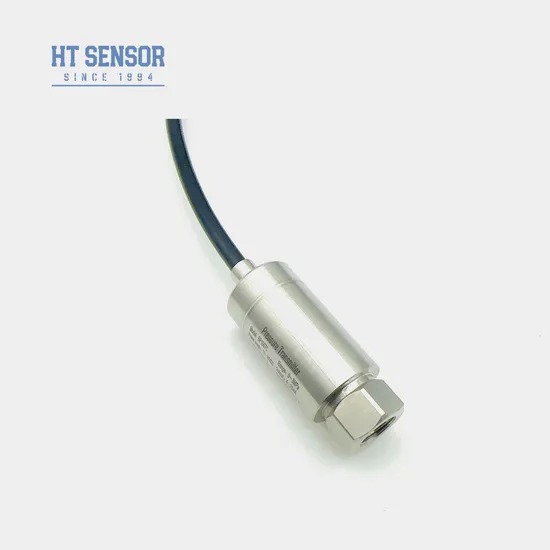

BP156 Pressure Transmitter for Air Conditioners

The BP156 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and electromagnetic interference protection.

Product Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
Compact and lightweight design for easy installation
Adjustable zero and full-scale calibration
High precision performance with all-stainless steel structure

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.05kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Selection Examples

Ordering Information

Important Tips

Ensure compatibility between the measured medium and product contact parts
Explosion-proof models do not include digital display heads
Transmitters with LCD/LED display require power supply ≥20VDC
Install lightning protection devices and ensure proper grounding
For temperatures below -20ºC, specify EPDM O-ring seal

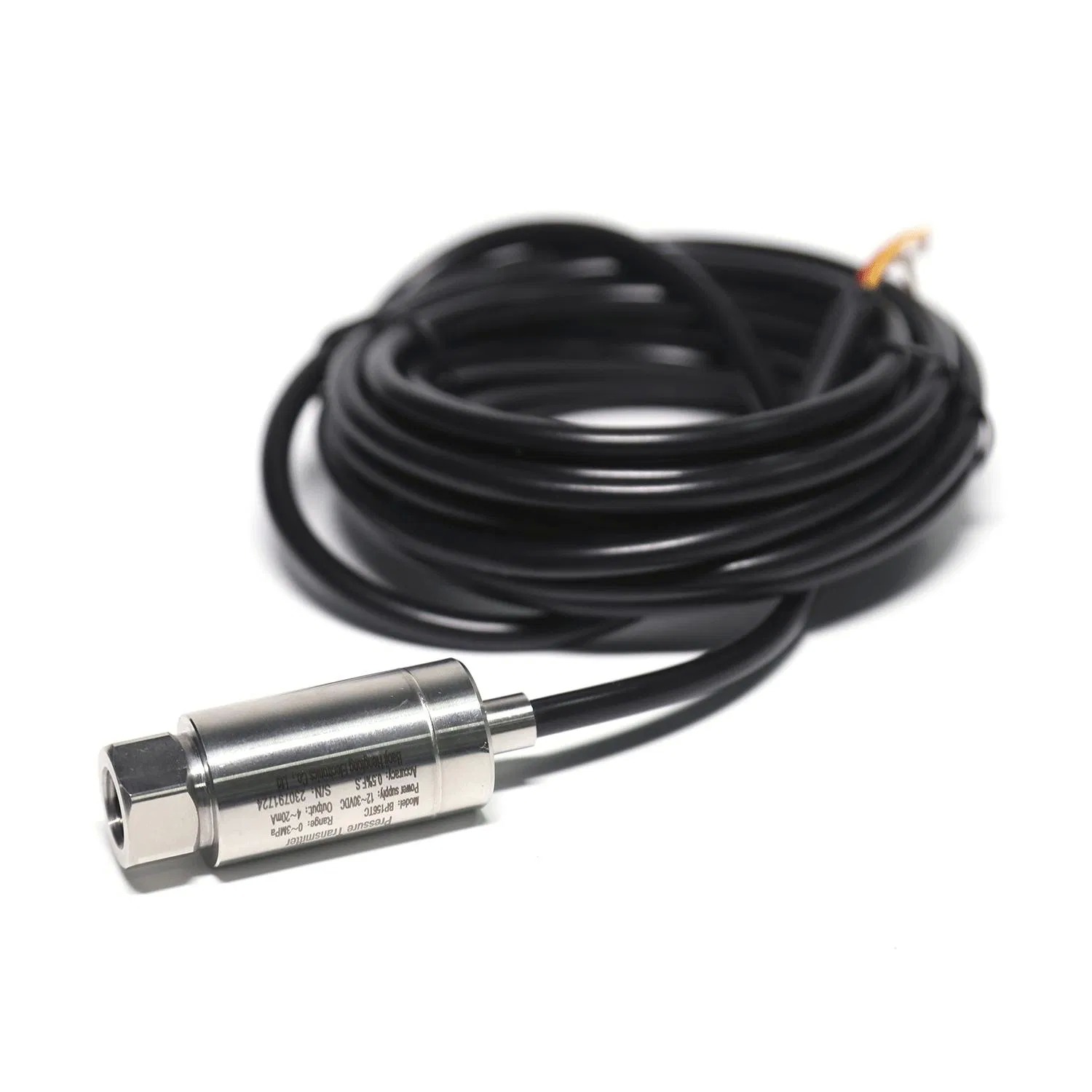

Default cable length is 1.5m (polyethylene material)
Specify special requirements for vibration, impact, or electromagnetic interference

Order Guide

BP15X	Analog Pressure Transmitter

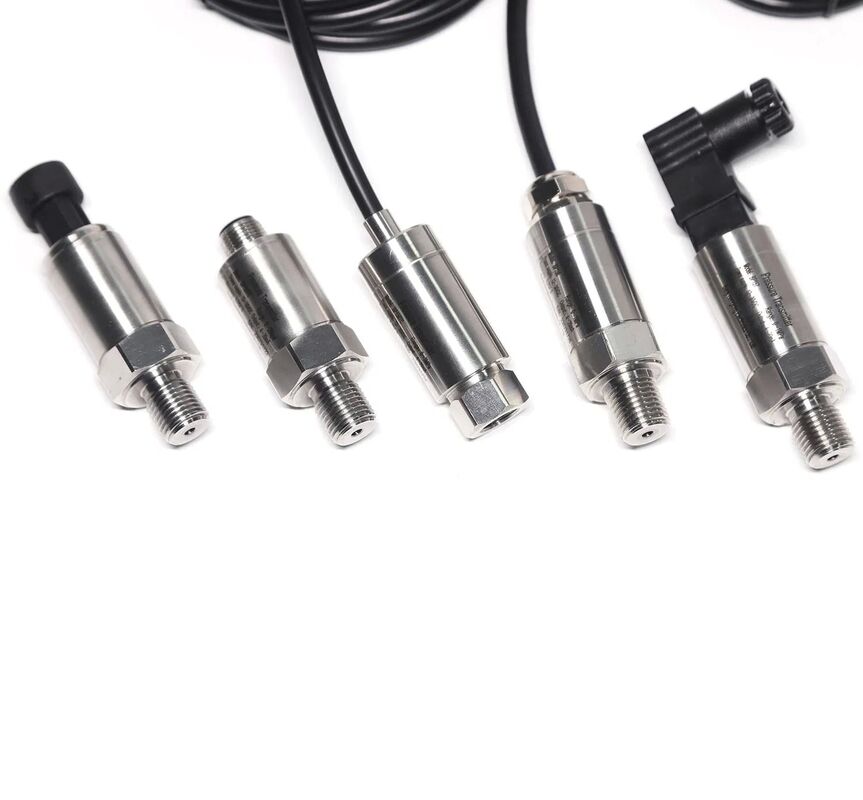

Outline Construction	5: Packard plug \| 6: Sealed Direct Output Cable 1.5m \| 7: Mini Hirschmann Connector \| 8: Large Hirschmann Connector
Measurement Range	0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa
Power Supply	D1: 24VDC \| D2: 5VDC \| D3: Other
Output Signal	S1: 4~20mADC \| S2: 1~5VDC \| S3: 0~5VDC \| S4: 0~10mADC \| S5: 0~20mADC \| S6: 0~10VDC \| S7: 0.5~4.5VDC
Pressure Connection	J1: M20×1.5 \| J2: G1/2 \| J3: G1/4 \| J4: 7/16-20UNF \| J5: Others(¢50.4 Flange)
Electrical Connection	B1: Hirschmann \| B2: PG7 \| B3: Cable Sealed Outlet 1.5m \| B4: Other
Pressure Type	G: Gauge Pressure \| A: Absolute Pressure \| S: Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network assistance available.

Certifications

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	15
