Detail Information

Model NO.:	BP156	Measuring Medium:	Liquid,air
Accuracy Grade:	0.5G	Pressure Range:	0kpa~10kpa...40MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Compensation Temperature:	-10℃~70℃	Overload:	≤ 1.5 Times Of The Rated Range
Accuracy @ 25ºC:	±0.25% (Typ.) ±0.5% (Max.)	Long-Term Stability:	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Operating Temperature:	-20ºC~80ºC	Diaphragm Material:	316L
Weight:	~0.25kg	Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V
Highlight:	small size pressure sensor , OEM level pressure transmitter , silicon pressure sensor with warranty

Product Description

Hengtong BP156 Small Size Pressure Sensor

OEM level transmitter with competitive pricing

Product Overview

The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening of components, semi-finished products, and finished products ensure stable and reliable performance.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
IP65 protection rating with stainless steel housing
Zero and full-scale calibration adjustment
High precision measurement capabilities

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…40MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times of rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex ia IIC T6 Ga
Protection Rating	IP65
Weight	~0.25kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA 0~10/20mA	12~30VDC	2/3/4 wire 3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

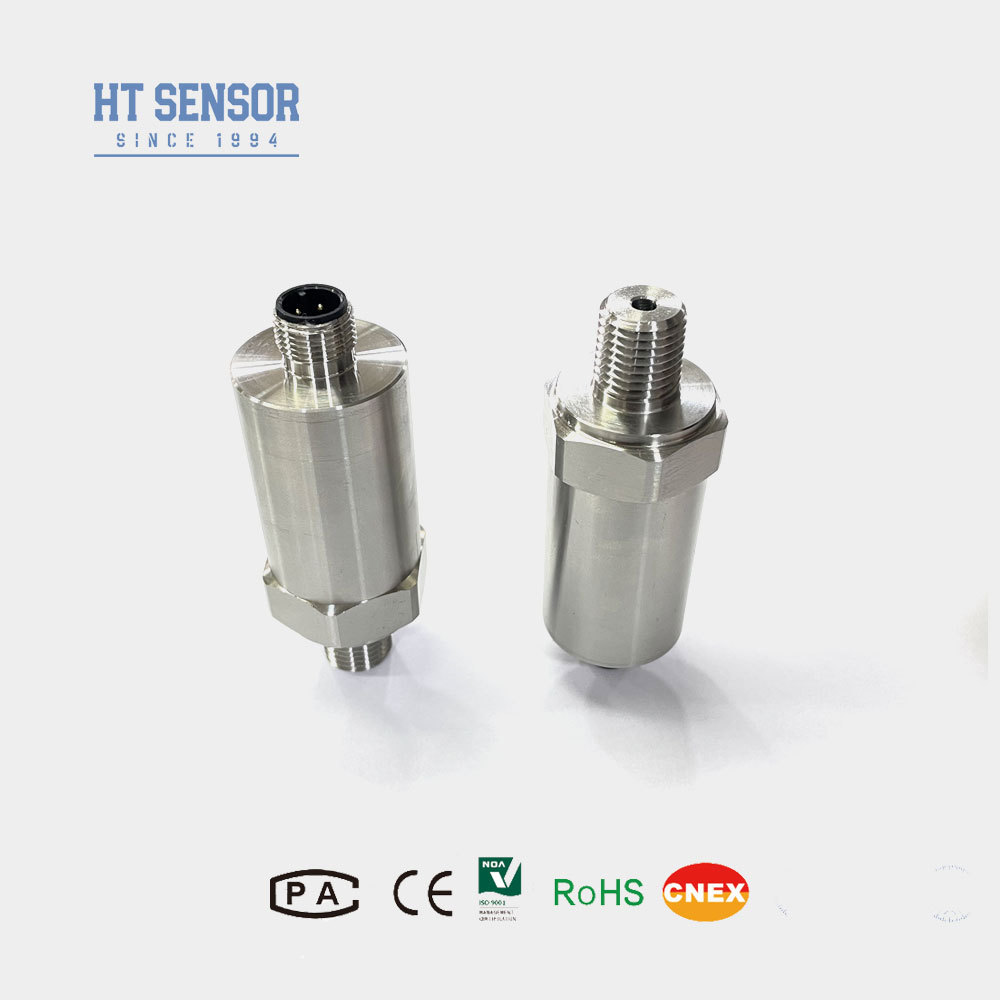

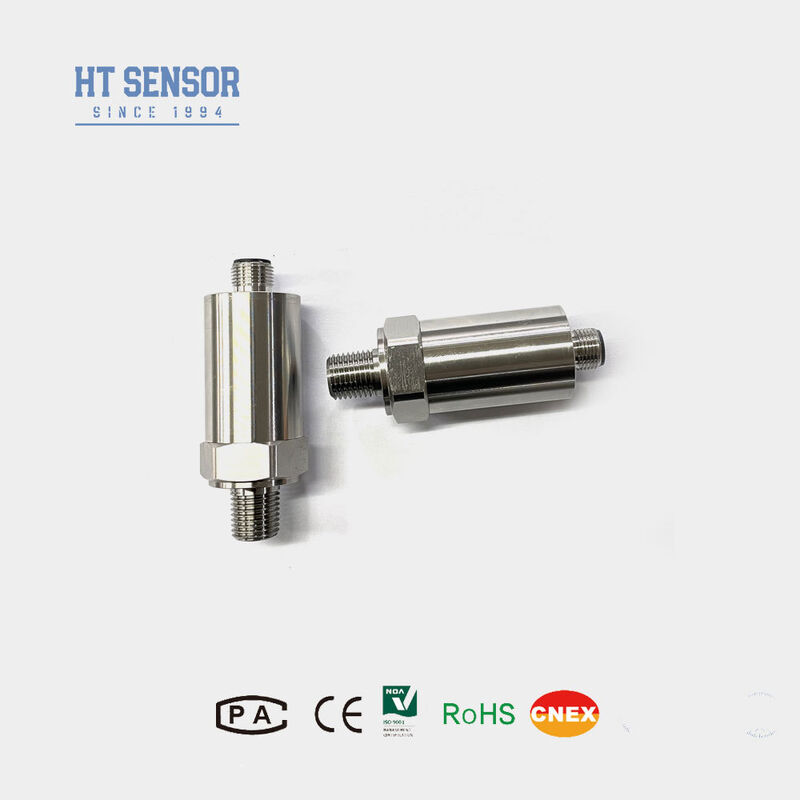

Product Images

Selection Examples

Ordering Guidelines

Ensure the measured medium is compatible with product contact materials
Explosion-proof models do not include digital display heads
Transmitters with LCD or LED display require minimum 20VDC power supply
Install lightning protection devices and ensure proper grounding for reliable operation
For operating temperatures below -20ºC, specify EPDM O-ring seal
Default cable length is 1.5m with polyethylene material; specify alternatives if needed
Notify us of special requirements including vibration, impact force, or electromagnetic interference

Order Guide

BP15X | Analog Pressure Transmitter

Code	Outline Construction
5	Packard plug
6	Sealed Direct Output Cable 1.5 meters
7	Mini Hirschmann Connector
8	Large Hirschmann Connector

Frequently Asked Questions

What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

Tag:

Place of Origin:	Baoji, China
Brand Name:	HT SENSOR
Certification:	ISO9001
Model Number:	BP156-M

Minimum Order Quantity:	1
Price:	15
