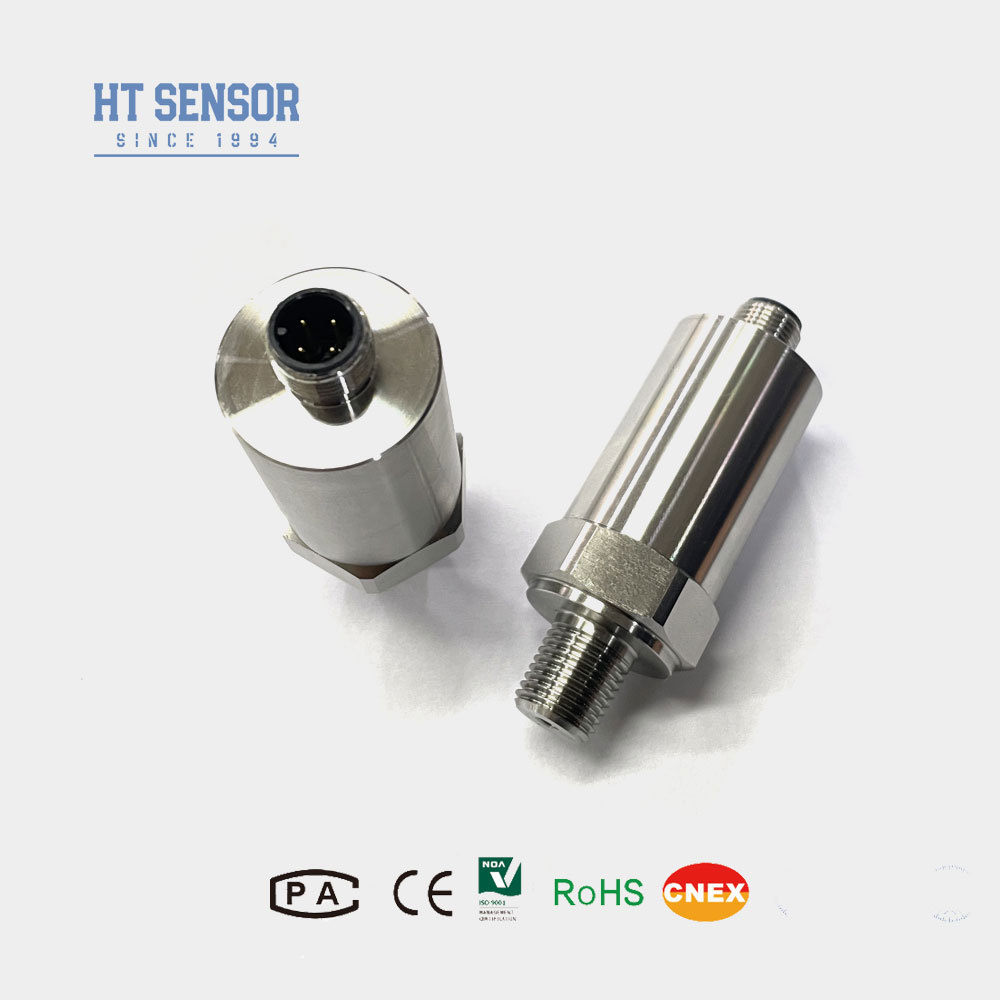

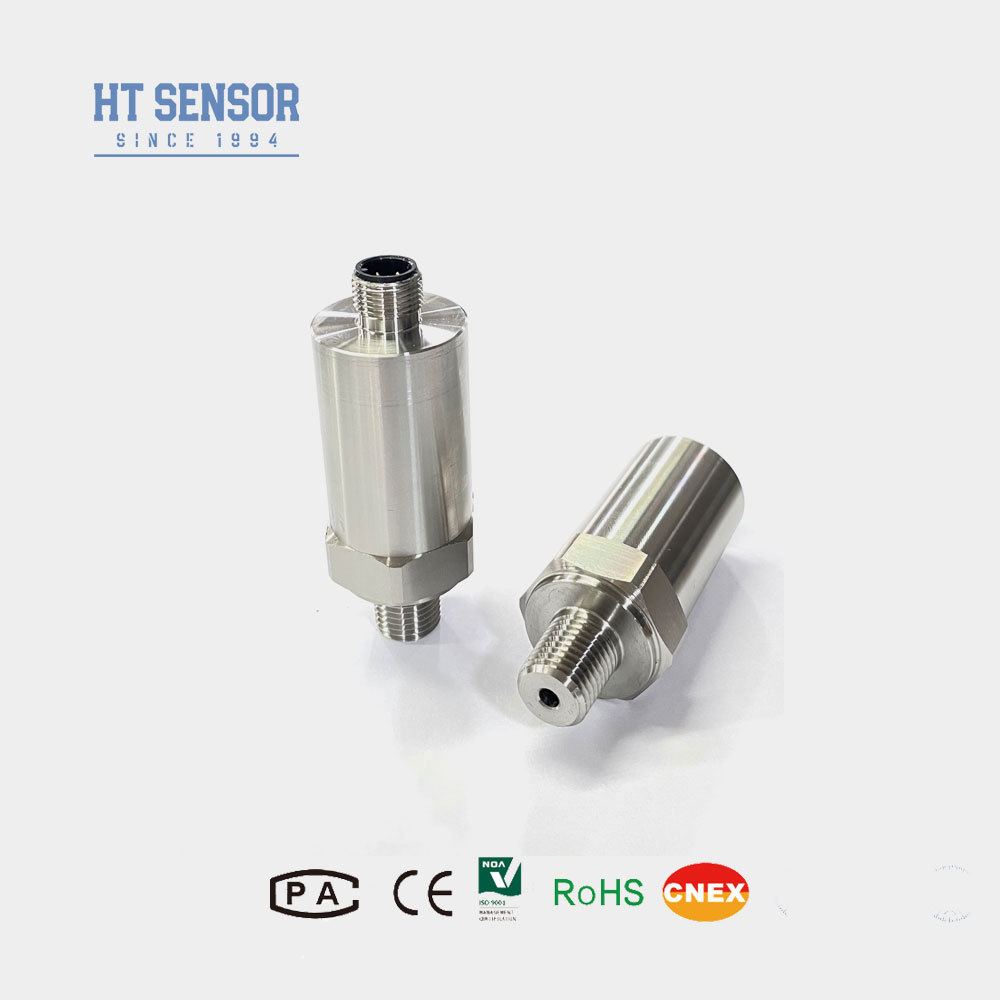

Industrial Pressure Sensor BP156 Pressure Transmitter with M12*1 G1/4 Level Sensor
Product Details
| Model NO.: | BP156 | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa..……40MPa |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Compensation Temperature: | -10℃~70℃ |
| Overload: | ≤ 1.5 Times Of The Rated Range | Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability: | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Diaphragm Material: | 316L |
| Weight: | ~0.25kg | ||
| Highlight |
silicon pressure sensor with warranty,high accuracy silicon pressure sensor,industrial silicon pressure sensor |
||
Product Description
- Wide measuring range with stainless steel structure and diverse pressure interface forms
- IP65 protection rating stainless steel construction
- Zero and full-scale adjustable calibration
- High precision with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA 0~10/20mA | 12~30VDC | 2/3/4 wire |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | 3 wire |
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seal instead of Fluoro rubber
- Default cable length is 1.5m (polyethylene material) - specify alternatives in order
- Notify us of special requirements including strong vibration, impact force, or electromagnetic interference
| Code | Outline Construction |
|---|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
