Detail Information

Model NO.:	BP156	Measuring Medium:	Liquid And Gas OR Air
Pressure Range:	0kpa~10kpa...40MPa	IP Rating:	IP65
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Compensation Temperature:	-10℃~70℃
Overload:	≤ 1.5 Times Of The Rated Range	Accuracy @ 25ºC:	±0.25% (Typ.) ±0.5% (Max.)
Long-Term Stability:	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)	Operating Temperature:	-20ºC~80ºC
Storage Temperature:	-40ºC~120ºC	Weight:	~0.25kg
Highlight:	Hengtong Bp156 pressure transmitter , OEM analog pressure sensor , air pressure sensor with warranty

Product Description

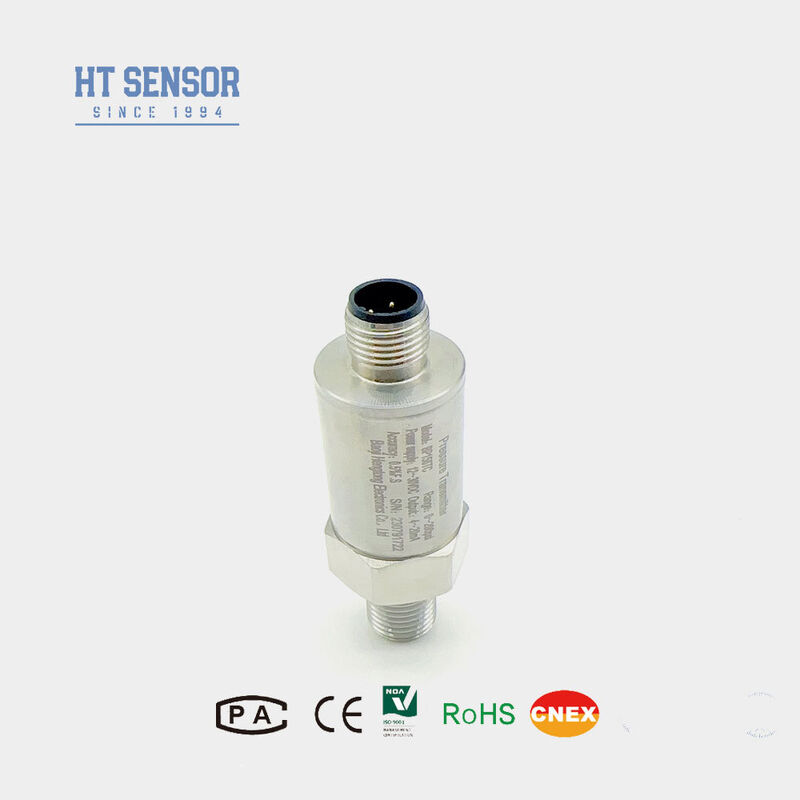

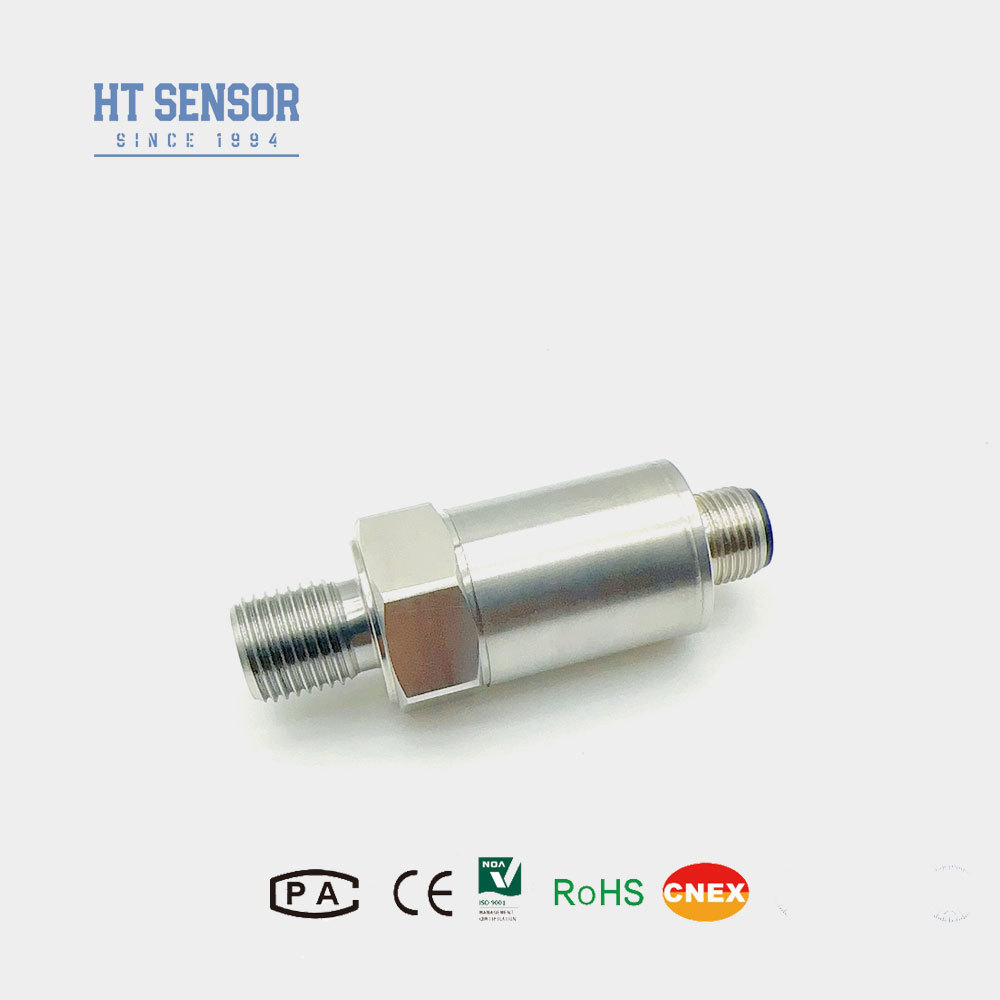

BP156 Pressure Transmitter

The BP156 pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.

Product Features

Wide measuring range with stainless steel structure and diverse pressure interface forms
IP65 protection rating with stainless steel construction
Zero and full-scale adjustable calibration
High precision with all stainless steel structure

Applications

Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
Applied in marine and aviation industries
Used in industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
Utilized in hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…40MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex ia IIC T6 Ga
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.25kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Selection Examples

Ordering Tips

Ensure the measured medium is compatible with the product's contact parts
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
For operating temperatures below -20ºC, select EPDM O-ring seal instead of Fluoro rubber
Default cable length is 1.5m with polyethylene material; specify alternatives in order
Inform us of special requirements including strong vibration, impact force, or electromagnetic interference

Order Guide

BP15X | Analog Pressure Transmitter

Code	Outline Construction
5	Packard plug
6	Sealed Direct Output Cable 1.5 meters
7	Mini Hirschmann Connector
8	Large Hirschmann Connector

Measurement Range: 0kPa ~ 10kPa…5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Pressure Connection
J1	M20×1.5
J2	G1/2
J3	G1/4
J4	7/16-20UNF
J5	Others(¢50.4 Flange)

Code	Electrical Connection
B1	Hirschmann
B2	PG7
B3	Cable Sealed Outlet 1.5 meters
B4	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.

Tag:

Place of Origin:	Baoji,China
Brand Name:	HT SENSOR
Certification:	CE, RoHS
Model Number:	BP156-M

Minimum Order Quantity:	1
Price:	15
