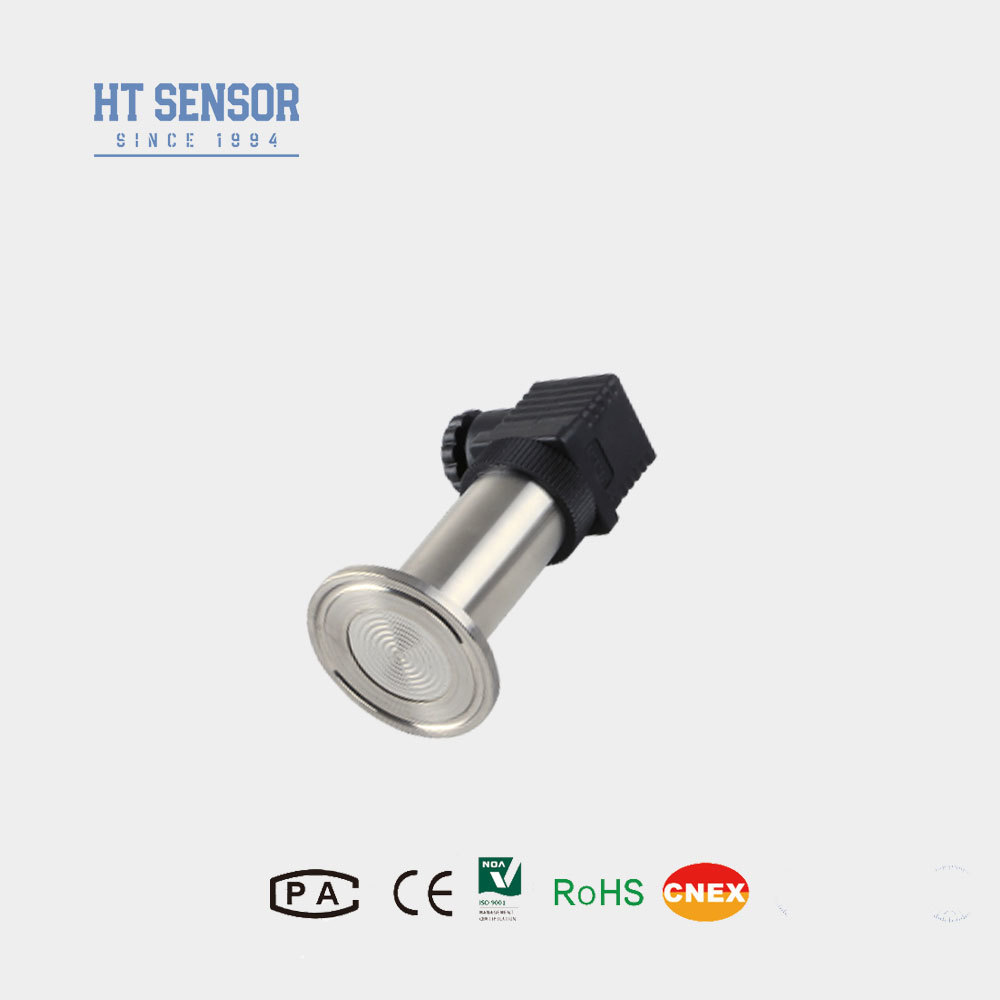

The 1.5-Inch Clamp Quickly Connects to The Flat Film Sensor Pressure Transmitter Industrial Pressure Sensor
Product Details
| Model NO.: | BP93420-IQ | Measuring Medium: | Air And Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5% | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 304s.S | Measurement Range: | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Overload Capacity: | ≤ 1.5 Times Of The Rated Range | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Diaphragm Material: | 316L |
| Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 | Supply Voltage: | 12~30VDC, 5VDC, 3.6~30V / Battery |
| Highlight |
1.5-inch clamp pressure sensor,flat film pressure transmitter,silicon pressure sensor with warranty |
||
Product Description
- Multiple pressure interface options
- Hygienic design prevents medium scaling
- High accuracy with fully stainless steel construction
- Easy to clean and maintain
- Measurement of non-corrosive gases and liquids with 316L compatibility
- Environmental protection and chemical industries
- Marine and aviation industries
- Medical, biopharmaceutical, and food hygiene industries
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | SS304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.5kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure the measured medium is compatible with product contact parts
- Explosion-proof models do not include digital display heads
- Transmitters with LCD/LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding
- For temperatures below -20ºC, select EPDM O-ring seal
- Default cable length: 1.5m (polyethylene). Specify alternative materials if required
- Notify us of special requirements: strong vibration, impact force, electromagnetic interference
| Code | Outline Construction |
|---|---|
| IX | Display Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| Measurement Range | 0~35Kpa…~20MPa (0-X)Kpa or MPa |
| X: Indicates the Actual Measuring Range | |
| Code | Power Supply |
| D1 | 24VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S6 | 0~10VDC |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | 1/2NPT |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of handling large-scale orders. Contact our sales team in advance for scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- 24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.
