High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement

High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement
High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement
Basic Information
Certification: CE, RoHS
Minimum Order Quantity: 1
Price: 18
Get Best Price Contact Now
Detail Information
Model NO.: BP93420-IC Measuring Medium: Liquid
Accuracy Grade: 0.5% Pressure Range: -100kpa...0kpa ~10kpa...100MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 316L Long-Term Stability: +-0.1%F.S/Year(Typ.)
Overload: ≤ 1.5 Times Of The Rated Range Operating Temperature: -20ºC~150ºC
Storage Temperature: -40ºC~120ºC Output Signal: 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Supply Voltage: 12~30VDC, 5VDC, 3.6~30V / Battery Weight: ~0.3kg
Diaphragm Material: 316L
Highlight:

0.5% Accuracy Pressure Transmitter

,

316L Stainless Steel Pressure Sensor

,

4-20mA Output Water Level Transmitter

Product Description

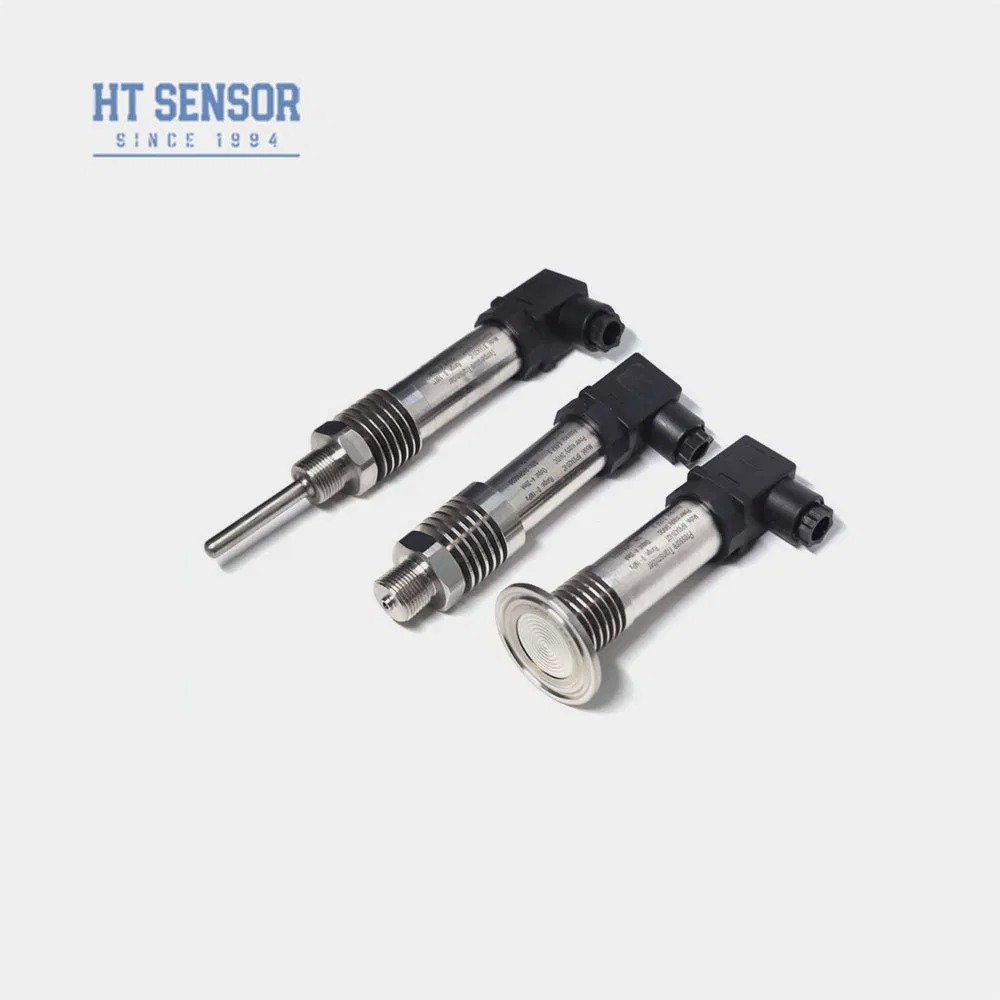

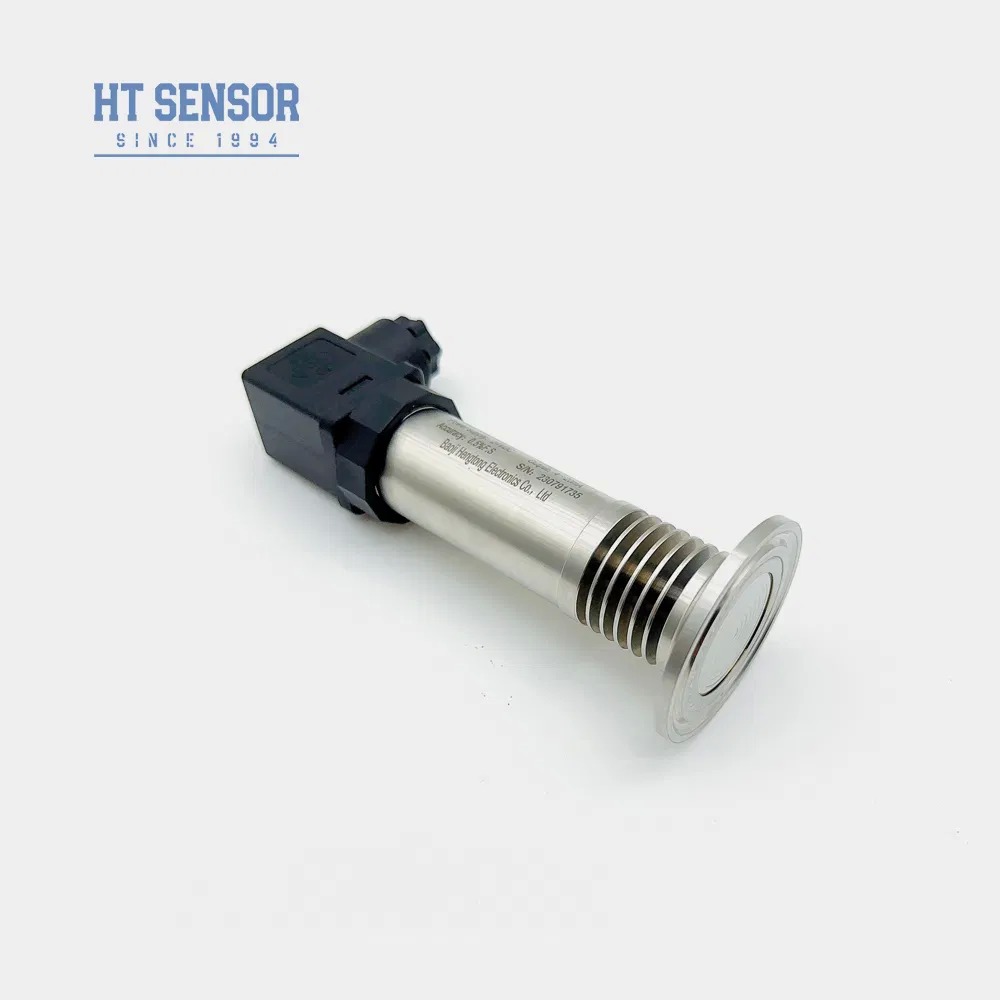

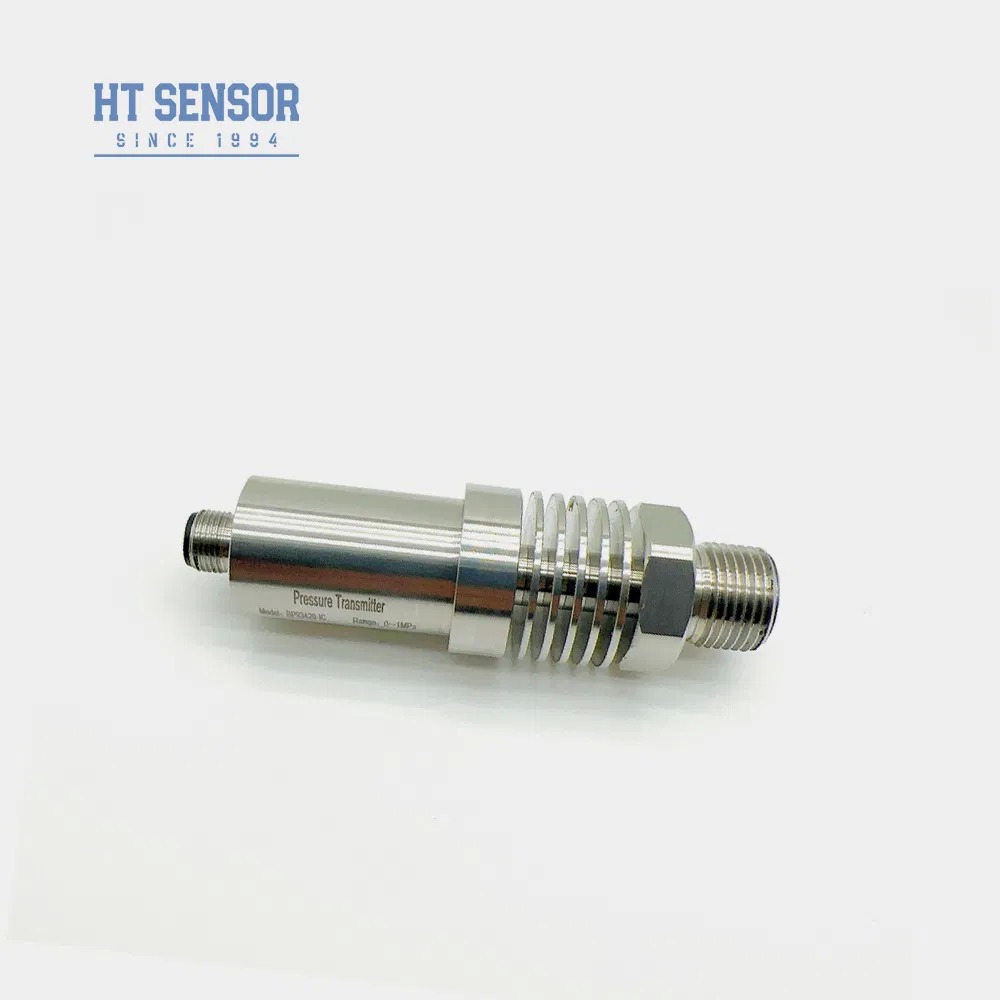

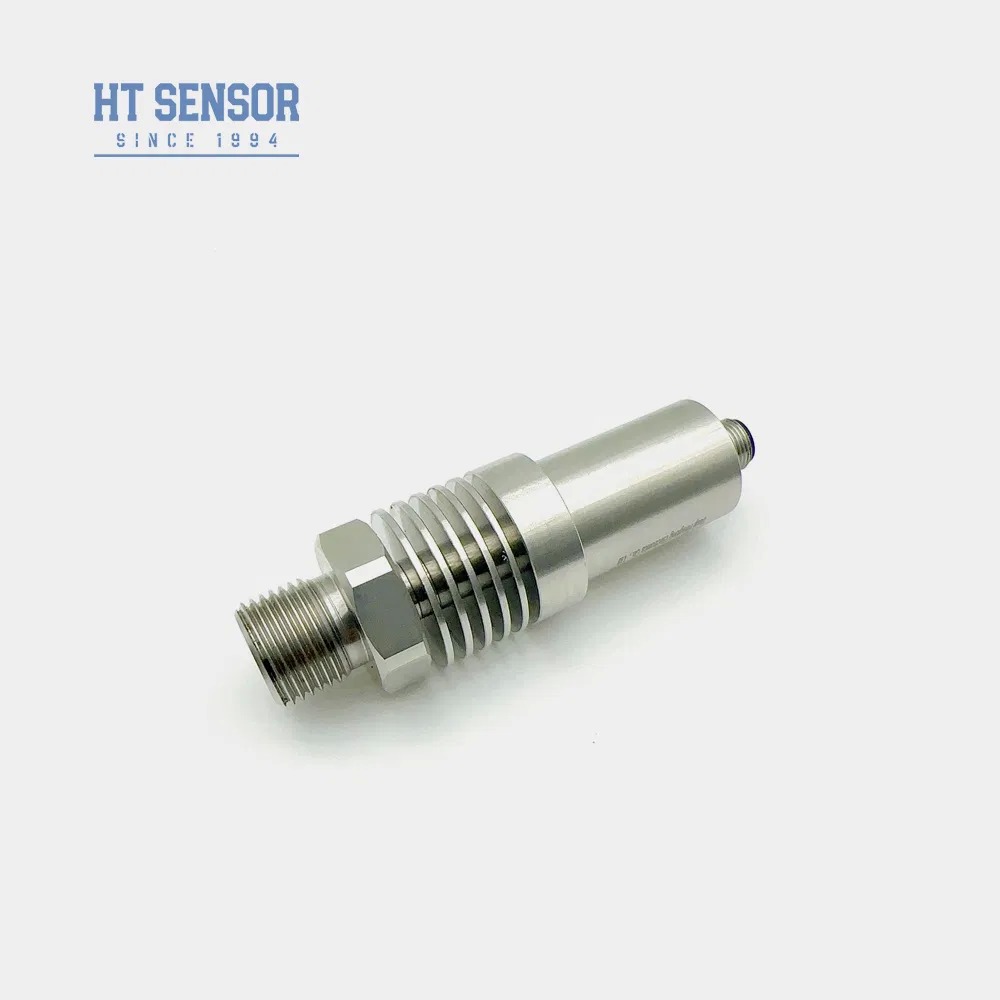

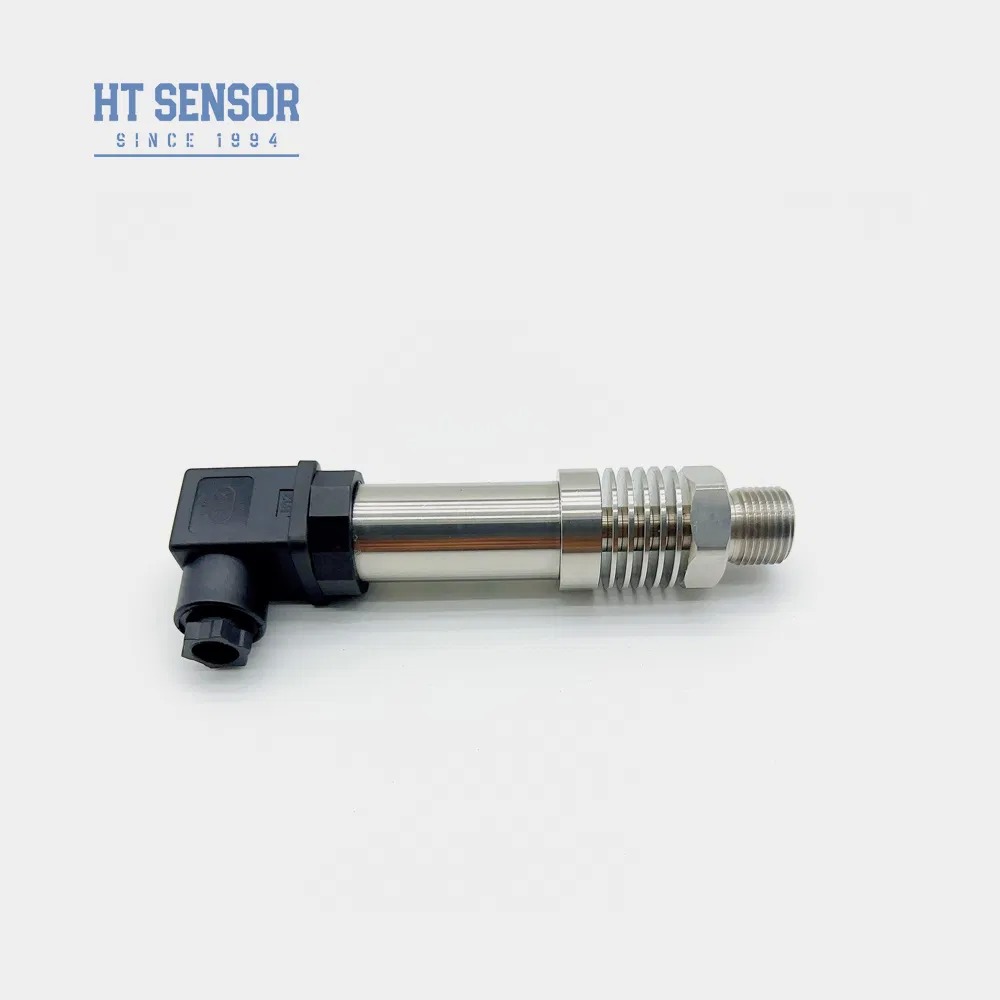

BP93420IC High-Temperature Pressure Transmitter
High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 0
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
Key Features
  • Wide measuring range with stainless steel structure
  • Diverse pressure interface forms available
  • IP65 protection rating stainless steel construction
  • Zero and full-scale adjustable calibration
  • High precision performance with all stainless steel structure
Applications
  • Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
  • Marine and aviation industries
  • Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range-100kPa…0kPa ~ 10kPa…100MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability0.1%FS
Hysteresis0.1%FS
Long-Term Stability±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum)
Zero Point Temperature Drift±0.02%F.S/ºC (≤100KPa) ±0.01%F.S/ºC (>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC (≤100KPa) ±0.01%F.S/ºC (>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC (≤10mpa, customizable)
Operating Temperature-20ºC~150ºC
Storage Temperature-40ºC~120ºC
Vibration10g, 55Hz ~ 2kHz
Housing Material304, 316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
Weight~0.3kg
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire0/1~5V, 0/1~10V, 0.5~4.5V
RS485 Communication Protocol3.6~30V / Battery4 wire
High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 1High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 2High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 3High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 4High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 5
Ordering Information
Ordering Tips
  • Ensure medium compatibility with product contact parts
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD/LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding
  • Fluoro rubber O-ring rated for -20ºC to 250ºC
  • Default cable length: 1.5m (polyethylene material)
  • Specify special requirements for vibration, impact, or interference
High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 6
Order Guide
CodeOutline Construction
IBGeneral Pressure Transmitter
IXDisplay Pressure Transmitter
IEShock-resistant Aviation Pressure Transmitter
IIC/IIIIndustrial General/Display Pressure Transmitter
IFMoisture-proof Pressure Transmitter
IIE/IIIEGeneral/Display Pressure Transmitter
INAir Conditioning Dedicated Pressure Transmitter
ICHigh-temperature Pressure Transmitter
IQ/IQTLarge Diaphragm /High-temperature Pressure Transmitter
CodePower Supply
D124VDC
D25VDC
D3Other
CodeOutput Signal
S14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 7High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 8High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 9High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 10High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 11High Precision 0.5% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Water Level Measurement 12
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
