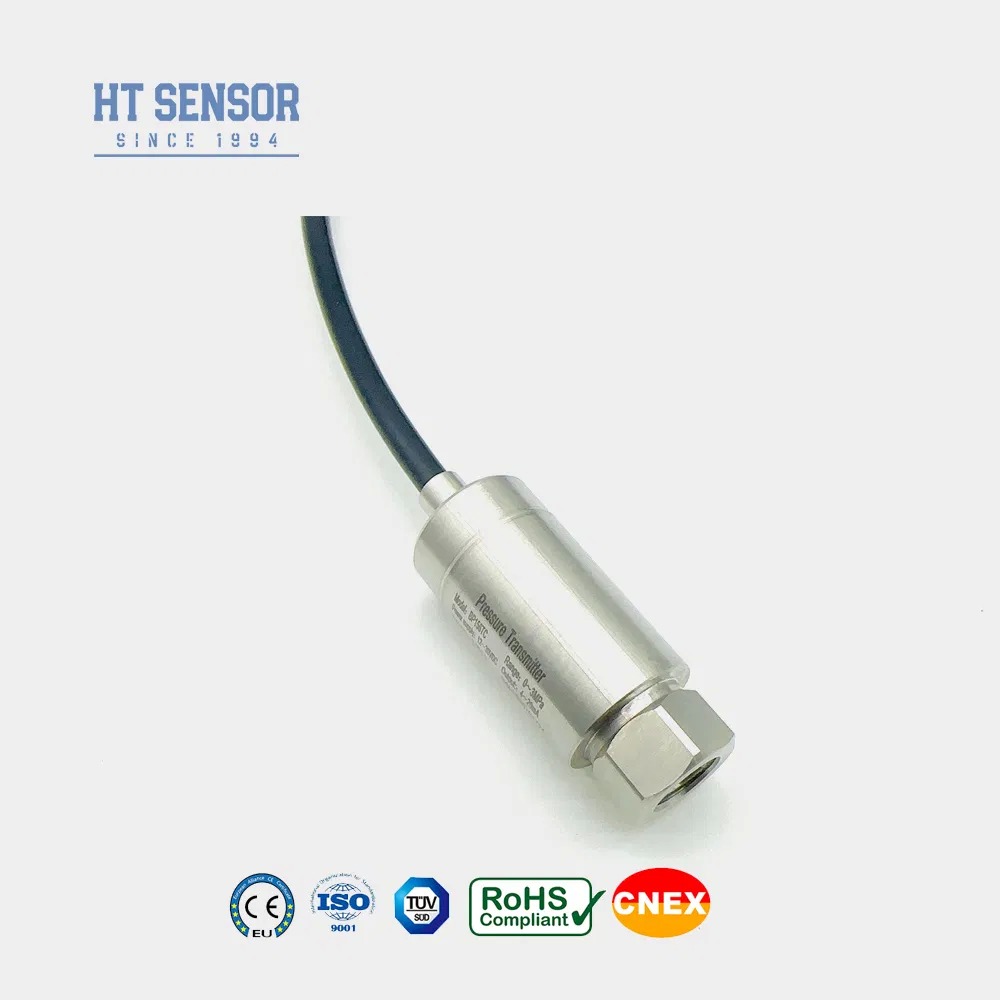

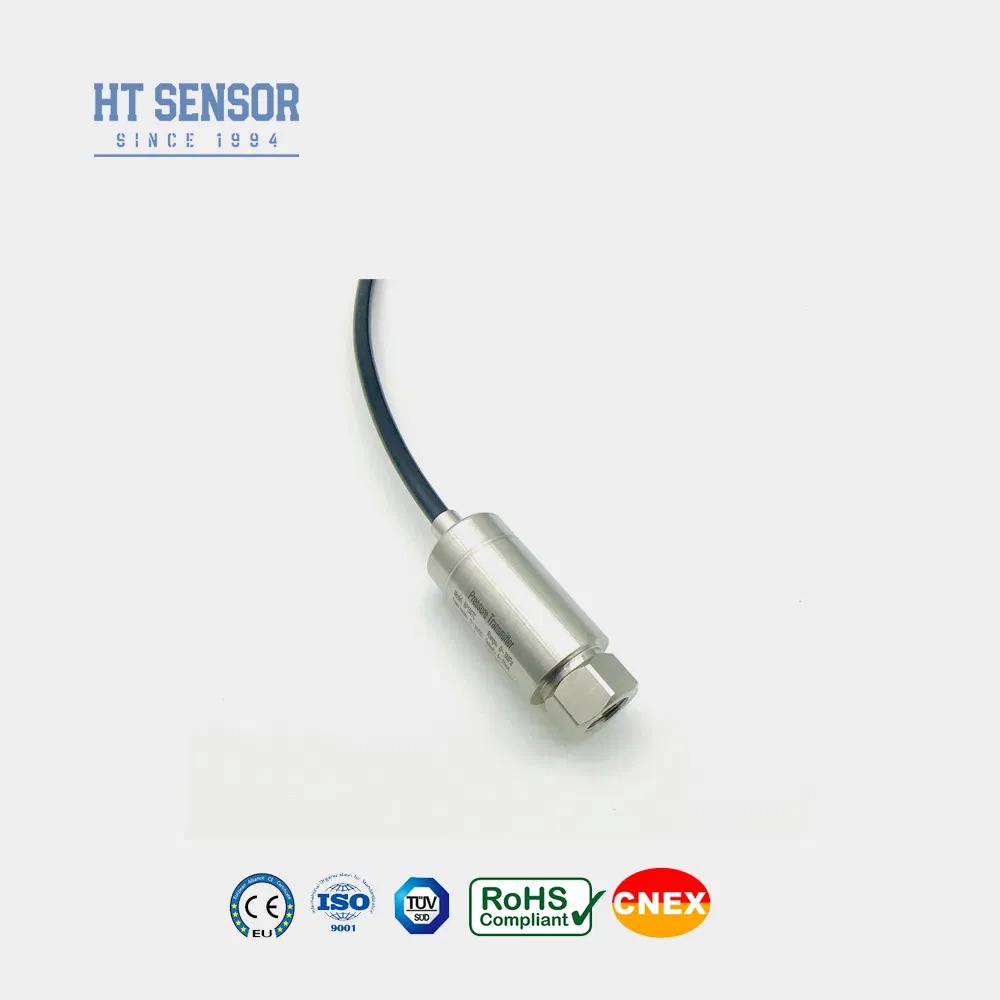

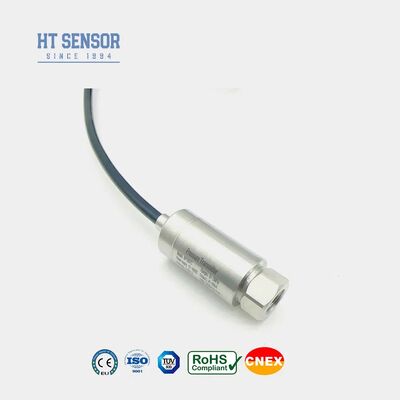

BP155TC Ceramic Sensor Pressure Transmitter with 0.5% Accuracy for Hydraulic Oil and Water Pressure Transmitter Sensor
Product Details
| Model NO.: | BP155TC | Measuring Medium: | Air Or Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~200kpa...10MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure |
| Housing Material: | 304 SS | Long-Term Stability: | 0.1%F.S/Year |
| Operating Temperature: | -20ºC~80ºC | Storage Temperature: | -40ºC~120ºC |
| Insulation Resistance: | 100MΩ 100VDC | Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V |
| Highlight |
Ceramic Sensor Pressure Transmitter,0.5% Accuracy Pressure Sensor,IP65 Protection Pressure Transducer |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- Compact and lightweight design
- High precision measurement capabilities
- All stainless steel structure for durability
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 100kPa…10MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304 |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM O-ring for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene material); specify alternative materials when ordering
- Notify us of special requirements including strong vibration, impact force, or electromagnetic interference
| BP15X | Analog Pressure Transmitter |
|---|---|
| Code | Outline Construction |

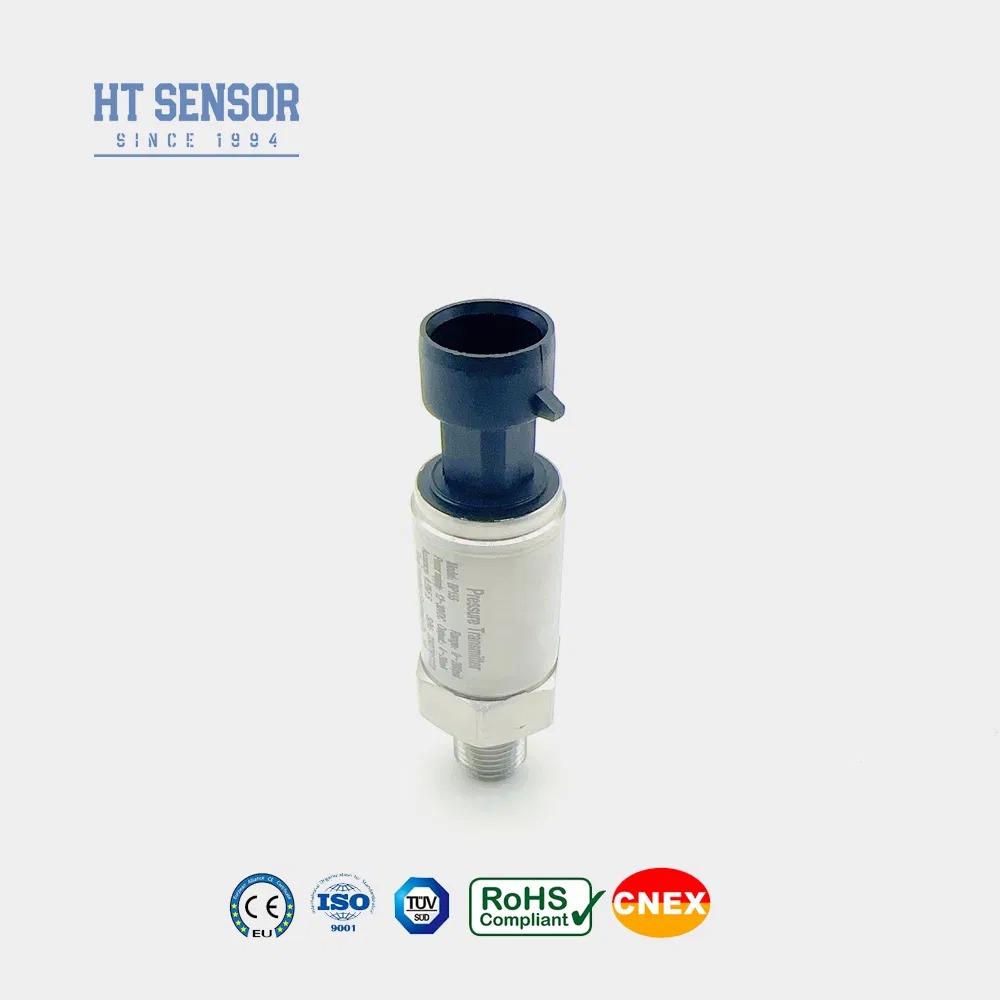

| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
- What's the typical delivery period?
- 5~8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
Product Highlights
BP155TC ceramic pressure transmitter offers 0.5% accuracy, IP65 protection, and 0.1%F.S/year stability. Customizable for air/liquid measurement in industrial applications. 2000pcs/month capacity with 24-month warranty.
