Detail Information

Model NO.:	BP156TC	Measuring Medium:	Air Or Liquid
Accuracy Grade:	0.5G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure
Housing Material:	304 SS	Long-Term Stability:	0.1%F.S/Year
Diaphragm Material:	316L	Operating Temperature:	-20ºC~80ºC
Storage Temperature:	-40ºC~120ºC	Insulation Resistance:	100MΩ 100VDC
Explosion-proof Rating:	Ex Db IIC T6 Gb	Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V
Supply Voltage:	12~30VDC, 5VDC
Highlight:	4-20mA Pressure Transmitter , Stainless Steel 304 Pressure Sensor , IP65 Gauge Pressure Sensor

Product Description

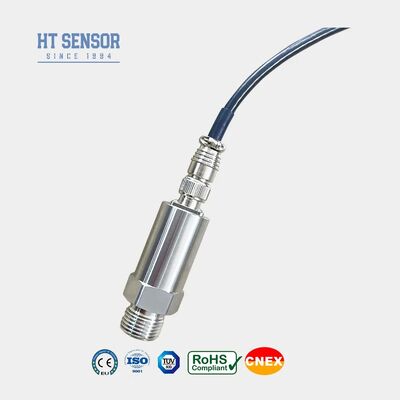

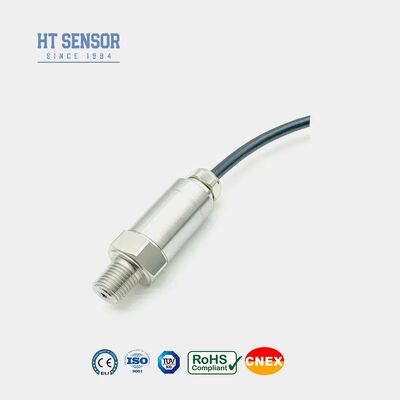

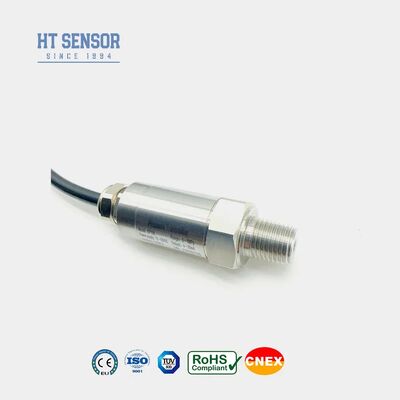

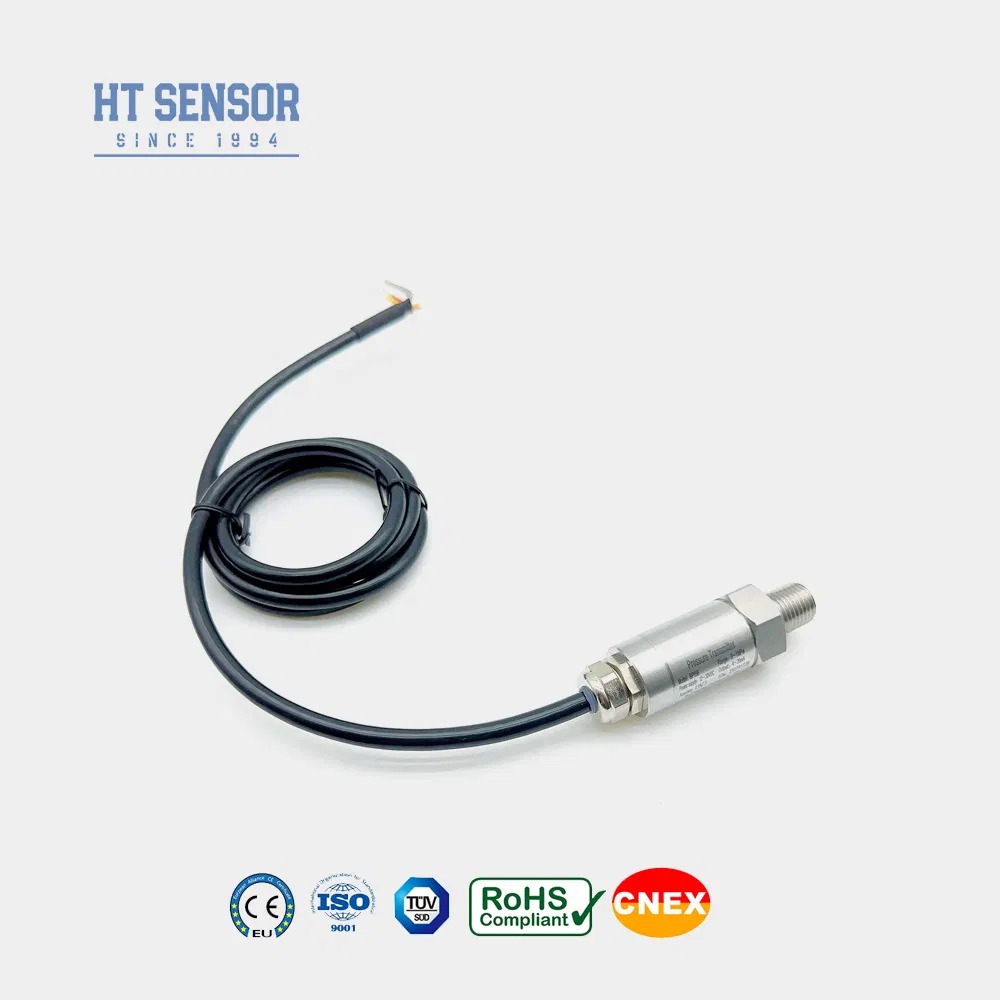

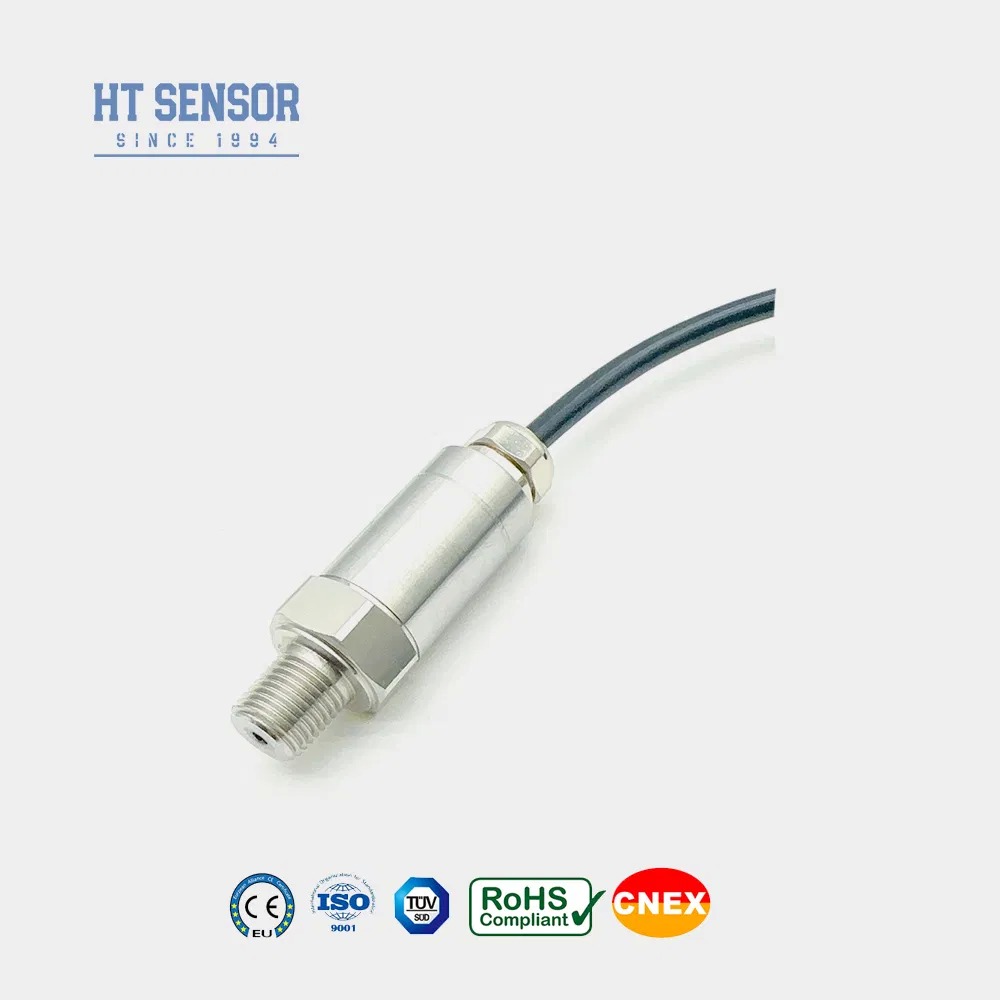

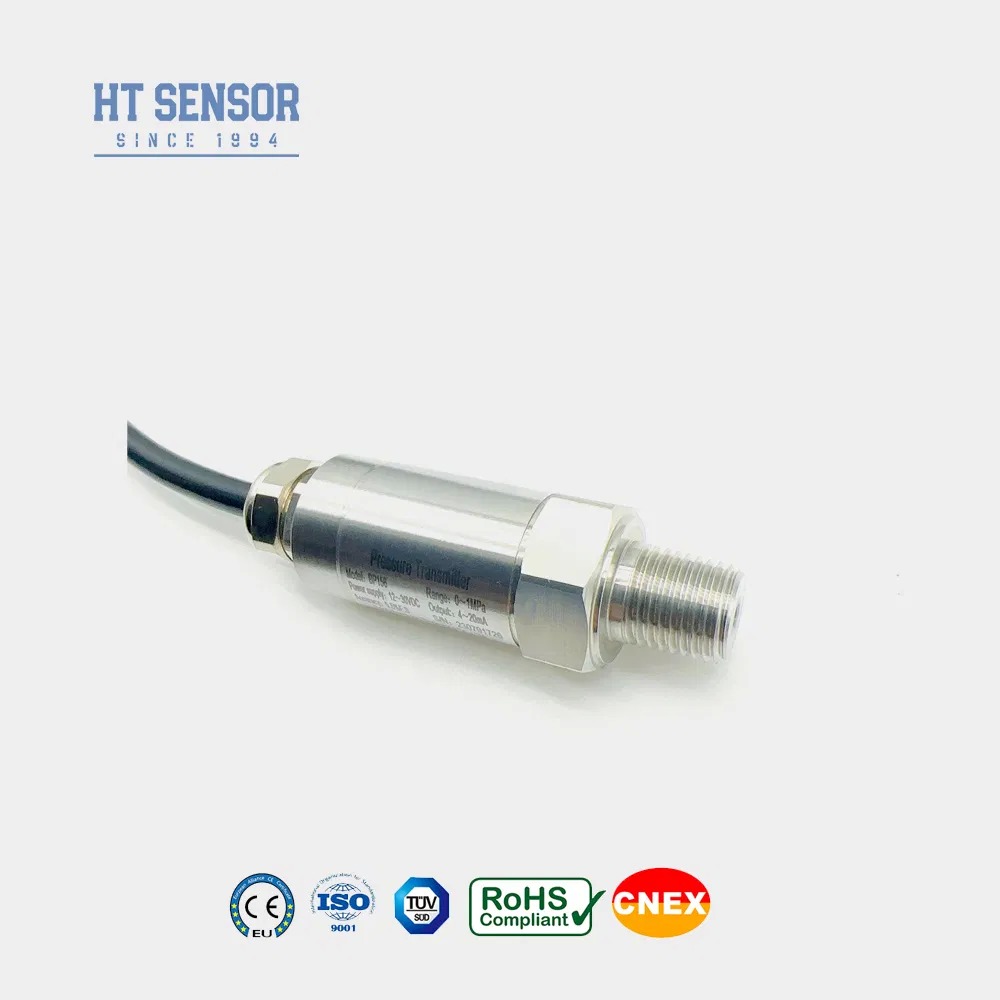

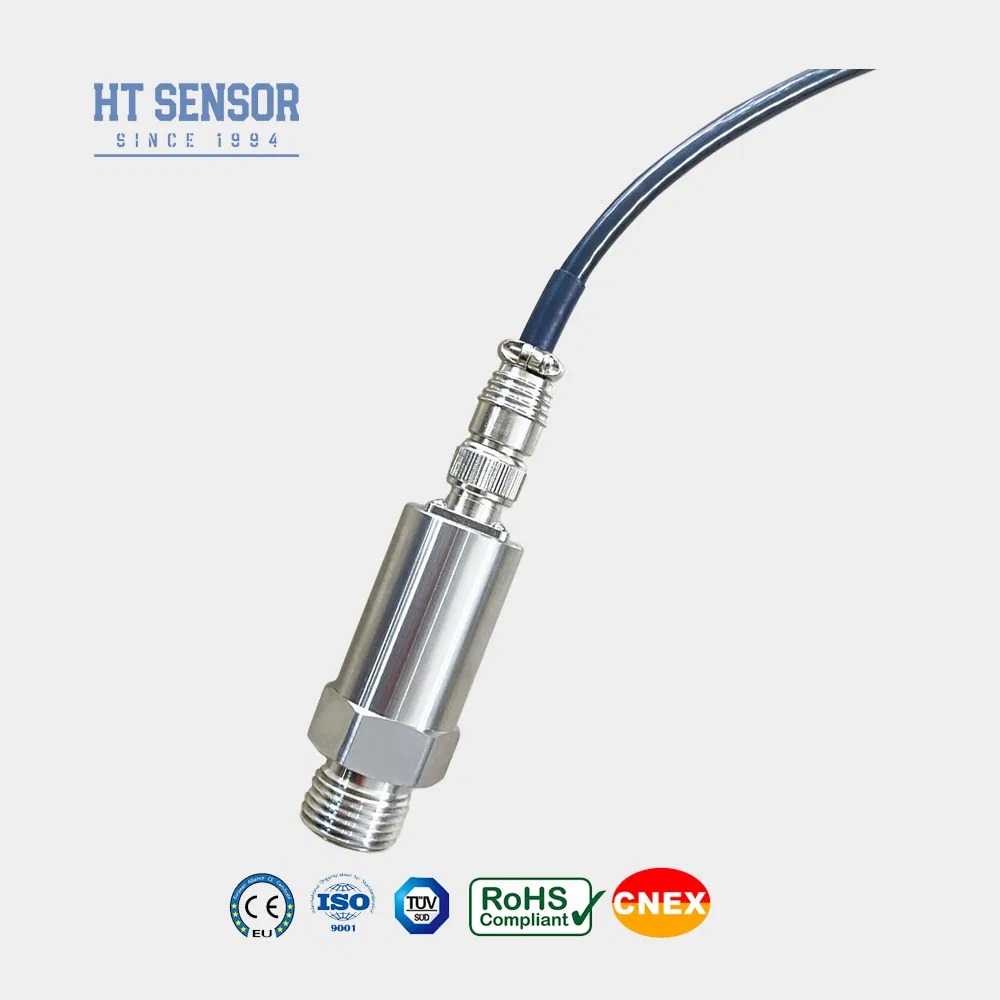

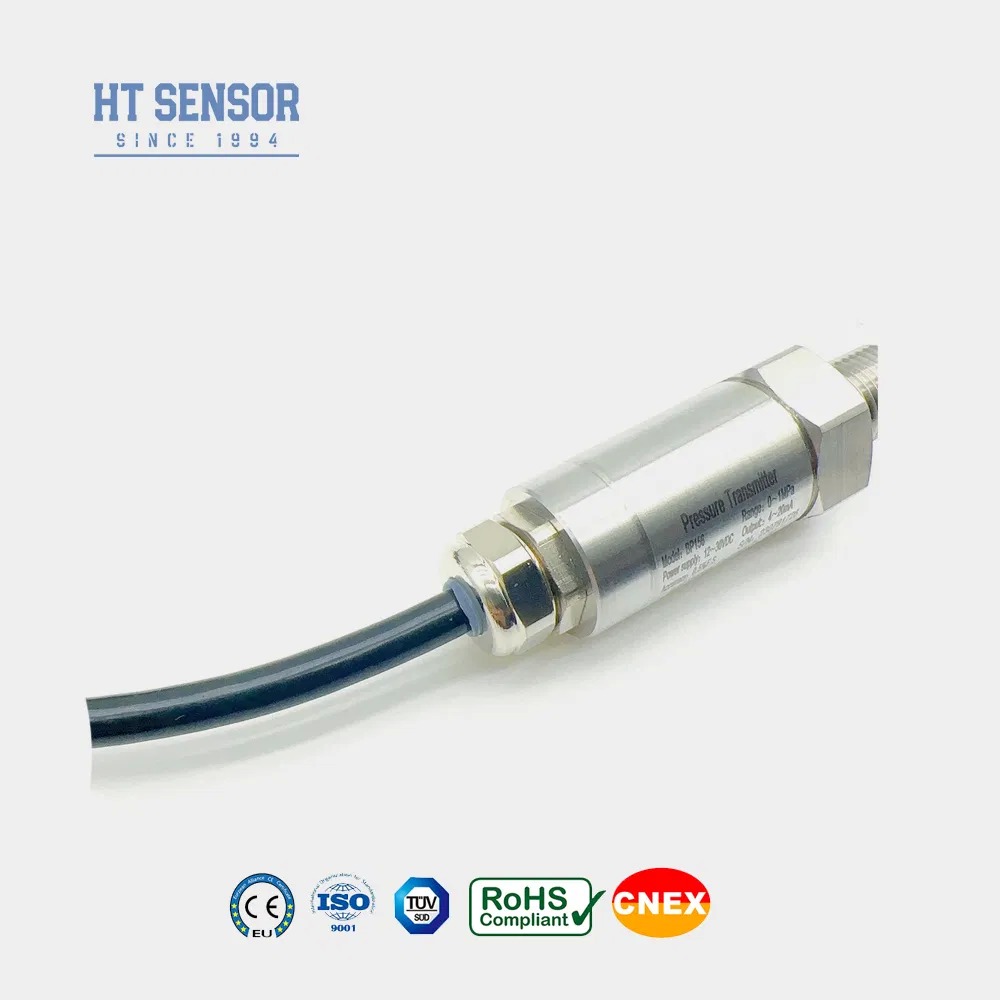

BP156TC 4-20mA 0-5V Gauge Air Fuel Oil Water Pressure Sensor Transmitter

The BP156TC pressure transmitter is a cost-effective solution specifically engineered for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this compact device offers exceptional moisture resistance and superior anti-electromagnetic interference capabilities. Rigorous testing and aging selection processes ensure stable, reliable performance across all operating conditions.

Product Features

Wide measuring range with diverse pressure interface options
Compact, lightweight stainless steel construction
High precision measurement capabilities
Robust all-stainless steel structure

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	0kPa ~ 10kPa…20MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.5% (Maximum)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Selection Examples

Ordering Information

Ordering Tips

Ensure the measured medium is compatible with the product's contact materials
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
Default cable length is 1.5m (polyethylene); specify alternative materials when ordering
Notify us of special requirements including vibration, impact force, or electromagnetic interference

Order Guide

BP15X	Analog Pressure Transmitter
Code	Outline Construction
5	Packard plug
6	Sealed Direct Output Cable 1.5 meters
7	Mini Hirschmann Connector
8	Large Hirschmann Connector

Additional ordering codes available for measurement range, power supply, output signal, pressure connection, electrical connection, and pressure type configurations.

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	20

BP156TC 4-20mA Stainless Steel 304 IP65 Gauge Pressure Transmitter for Air and Liquid Measurement
