Detail Information

Model NO.:	BP93420-IC	Measuring Medium:	Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~10kpa...100MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Long-Term Stability:	+-0.1%F.S/Year(Typ.)
Overload:	≤ 1.5 Times Of The Rated Range	Repeatability:	0.1%FS
Hysteresis:	0.1%FS	Operating Temperature:	-20ºC~150ºC
Storage Temperature:	-40ºC~120ºC	Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Weight:	~0.3kg
Highlight:	4-20mA Output Pressure Transmitter , 316L Stainless Steel Pressure Sensor , 0.5% Accuracy Liquid Level Transmitter

Product Description

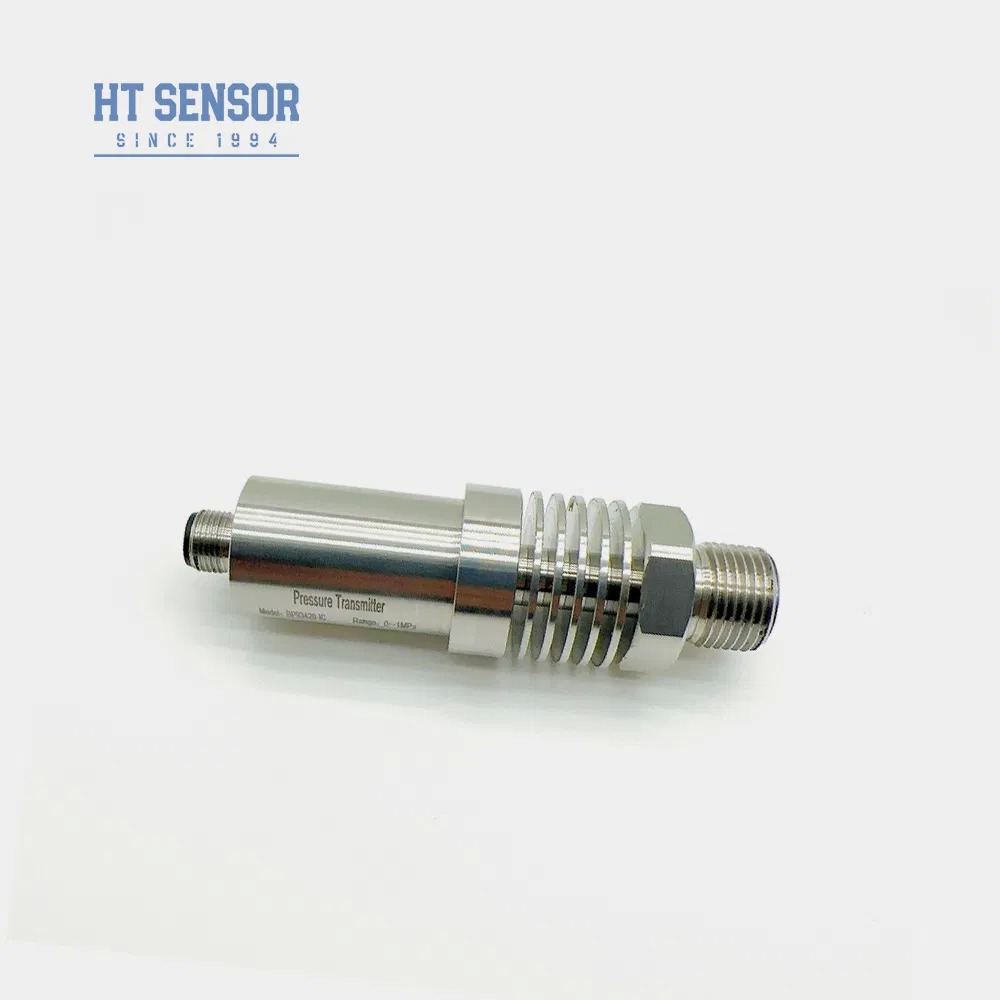

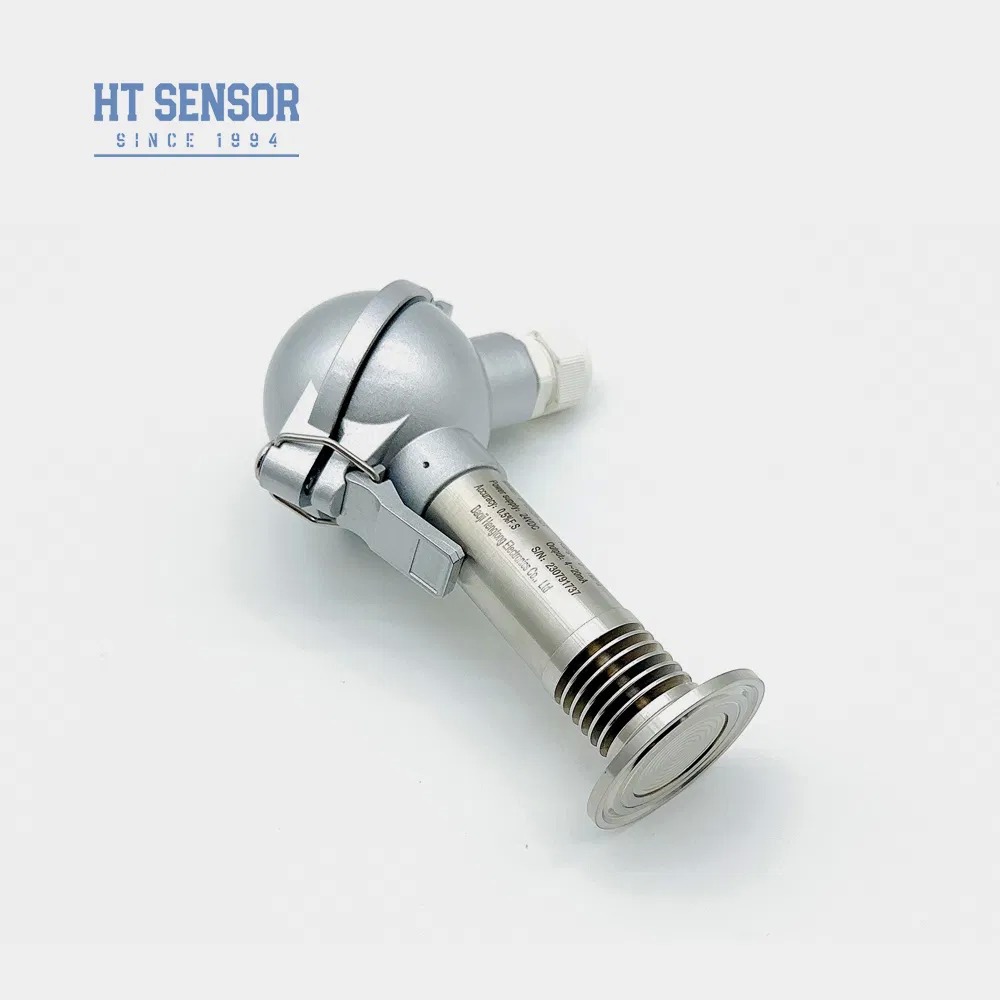

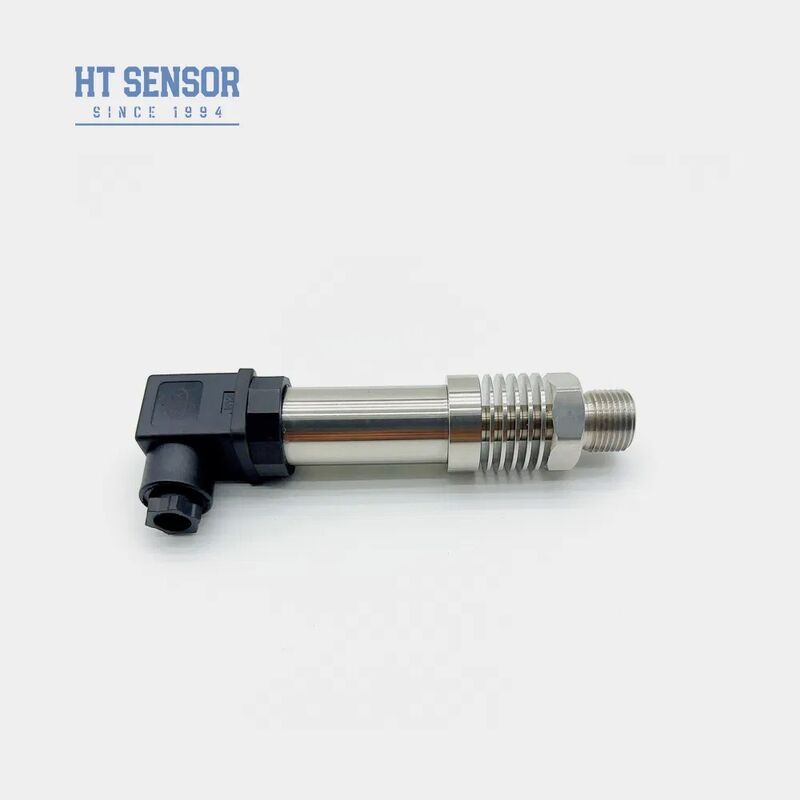

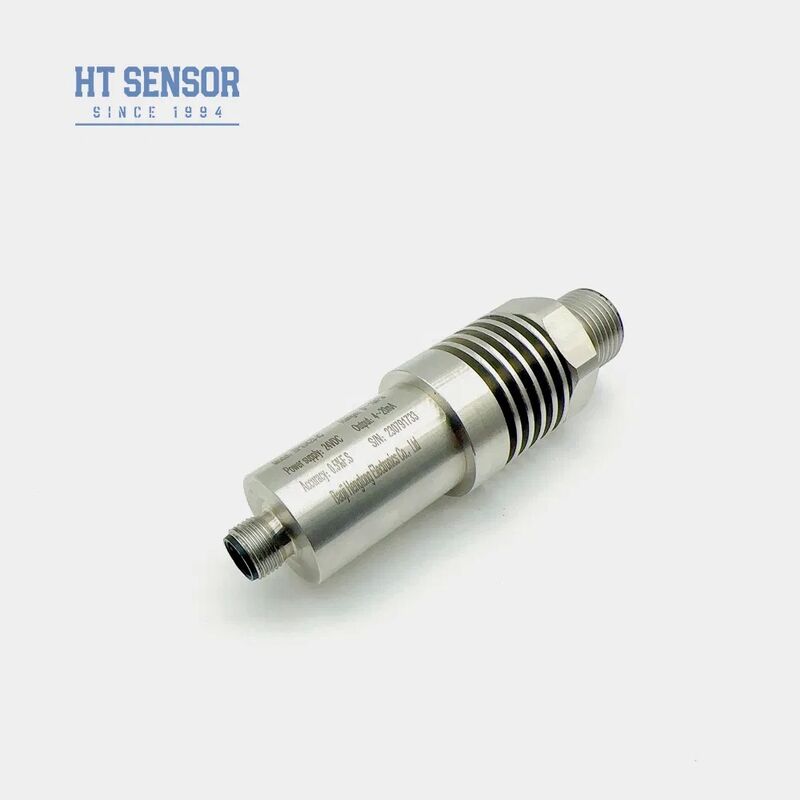

BP93420IC High-Temperature Pressure Transmitter

The BP93420-IC is a high-temperature pressure transmitter that utilizes advanced HT series silicon pressure-resistance isolation oil-filled core technology. This sensor efficiently captures pressure measurements through a specialized heat dissipation structure, making it ideal for demanding environments with high temperatures and temperature fluctuations. Perfect for industrial processes requiring accurate and reliable pressure measurements in challenging conditions.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
IP65 protection rating stainless steel housing
Zero and full-scale adjustment capability
High precision measurement accuracy
All stainless steel construction for durability

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Specifications

Measurement Range	-100kPa…0kPa ~ 10kPa…100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times of rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa, customizable)
Operating Temperature	-20ºC~150ºC
Storage Temperature	-40ºC~120ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Important Ordering Tips

Ensure medium compatibility with product contact parts
Explosion-proof models do not include digital display heads
Transmitters with LCD/LED display require ≥20VDC power supply
Install lightning protection devices and ensure proper grounding
Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
Default cable length: 1.5m polyethylene (other materials available)
Specify special requirements for vibration, impact, or EMI/RFI environments

Order Guide Reference

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	18
