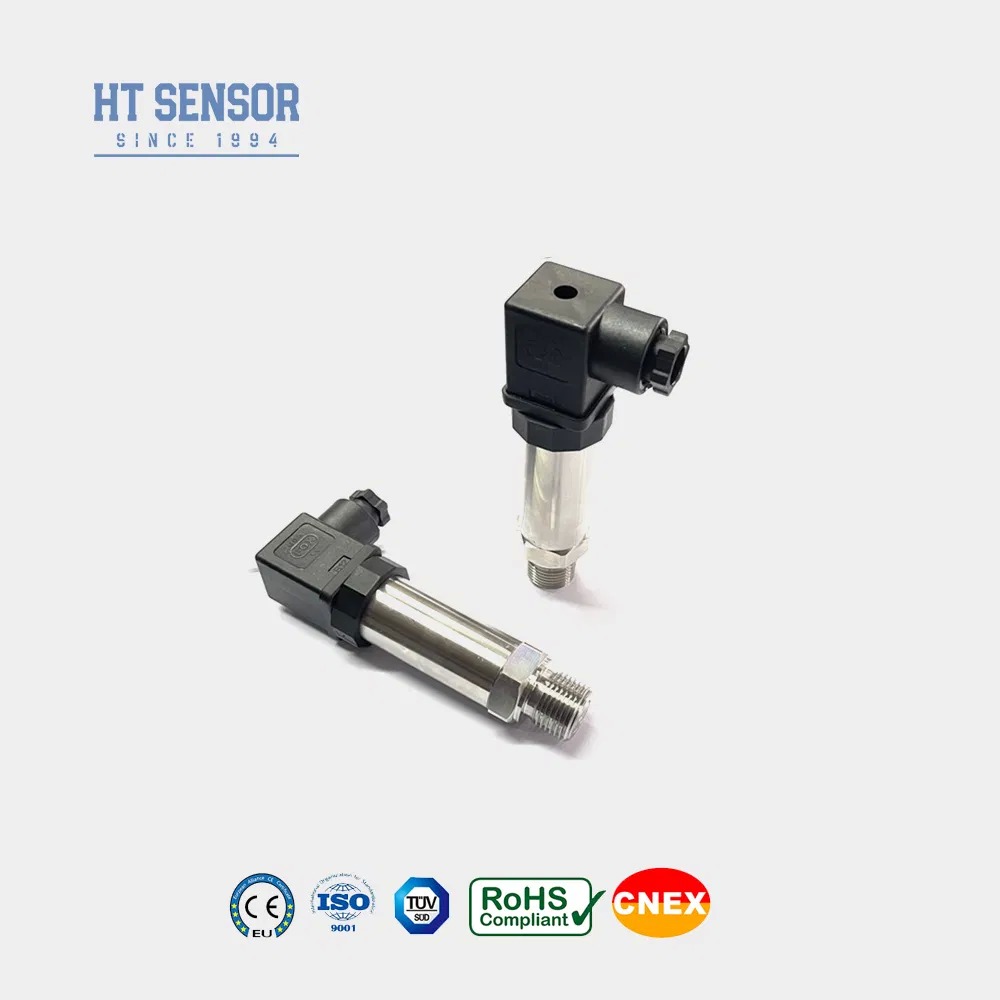

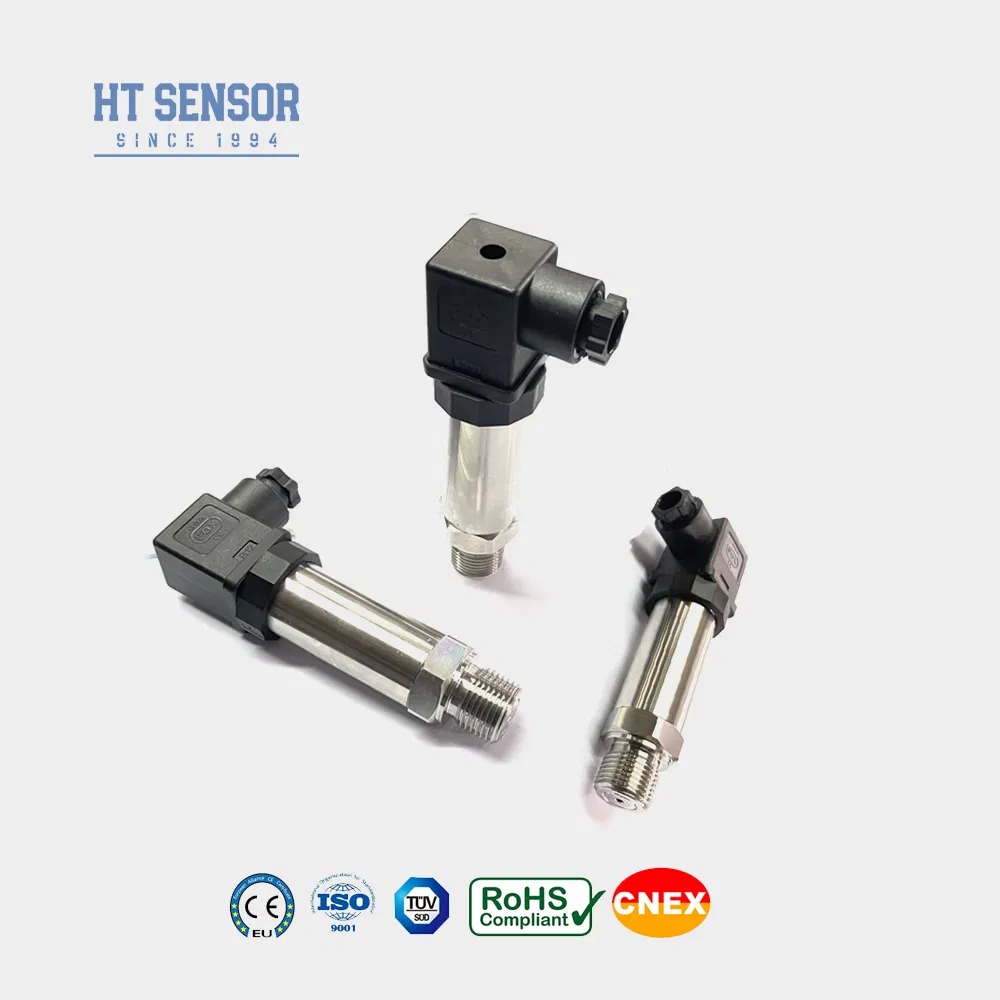

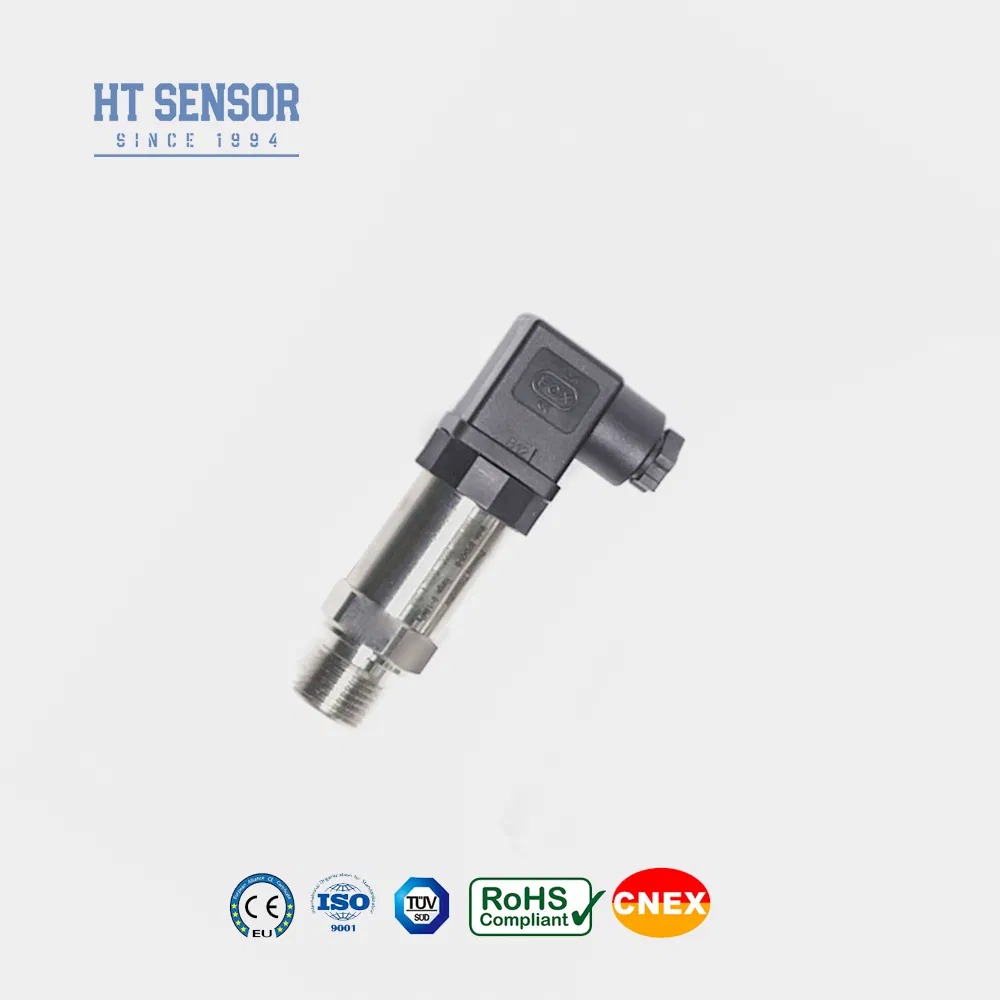

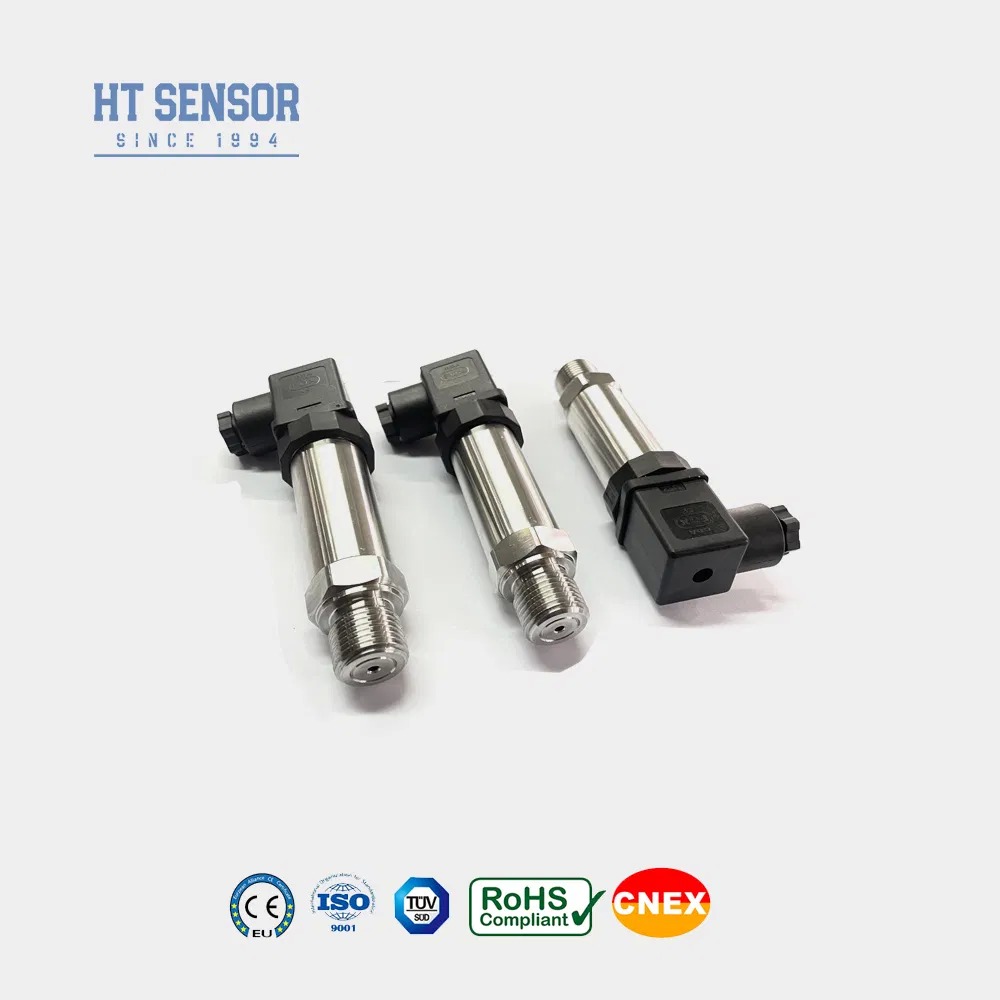

0-10VDC G1/2 Level Transmitter with 316L Stainless Steel Pressure Sensor for Liquid Measurement
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V | Supply Voltage: | 12~30VDC, 5VDC |
| Operating Temperature: | -20ºC~80ºC | Storage Temperature: | -40ºC~120ºC |
| Diaphragm Material: | 316L | Insulation Resistance: | 100MΩ 100VDC |
| Weight: | ~0.15kg | ||
| Highlight |
0-10VDC Level Transmitter,G1/2 Pressure Transmitter,316L Stainless Steel Water Level Sensor |
||
Product Description
- Wide measuring range with stainless steel construction and diverse pressure interface options
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement with all stainless steel structure
- Customizable zero and full-scale settings
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 12~30VDC | 3 wire |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | 2/3 wire |
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof models do not include digital display heads
- Transmitters with LCD or LED displays require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, specify EPDM O-ring seals (default is Fluoro rubber, rated -20ºC to 250ºC)
- Default cable length is 1.5m polyethylene - specify alternative materials if required
- Notify us of special requirements: strong vibration, impact forces, electromagnetic/RF interference
| Code | Outline Construction |
|---|---|
| BP93420XX | Pressure Transmitter |
| IB | General Pressure Transmitter |

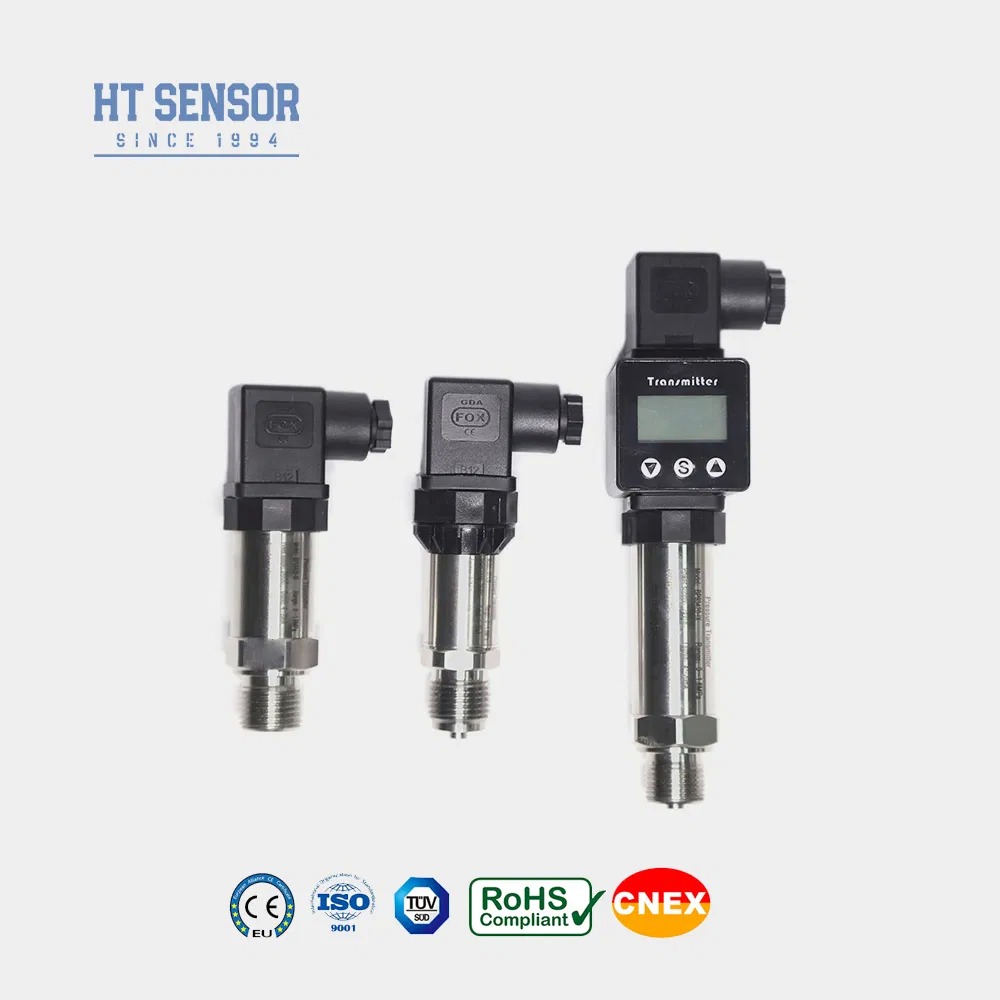

| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter |
| Code | Measurement Range |
|---|---|
| (0-X)Kpa or MPa | -0.1...0~0.01...100MPa (X indicates actual measuring range) |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Other |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
Product Highlights
BP93420-IB pressure transmitter offers high 0.5% accuracy, 316L stainless steel construction, and IP65 protection. Features 0-10VDC output, wide pressure range (0kPa-100MPa), and excellent long-term stability (±0.2%F.S/year). Customizable for industrial applications with explosion-proof options.
