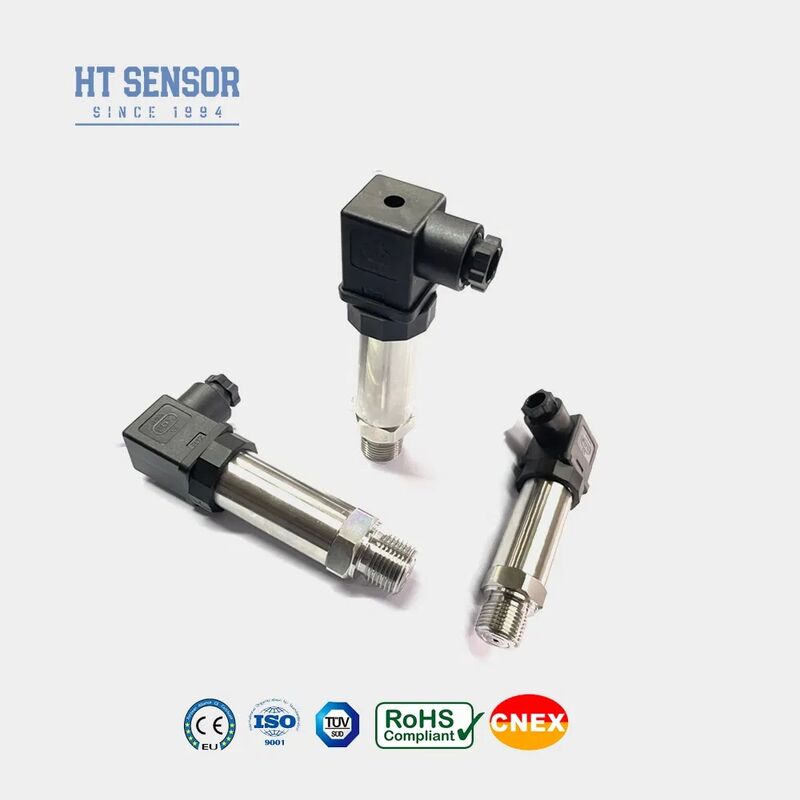

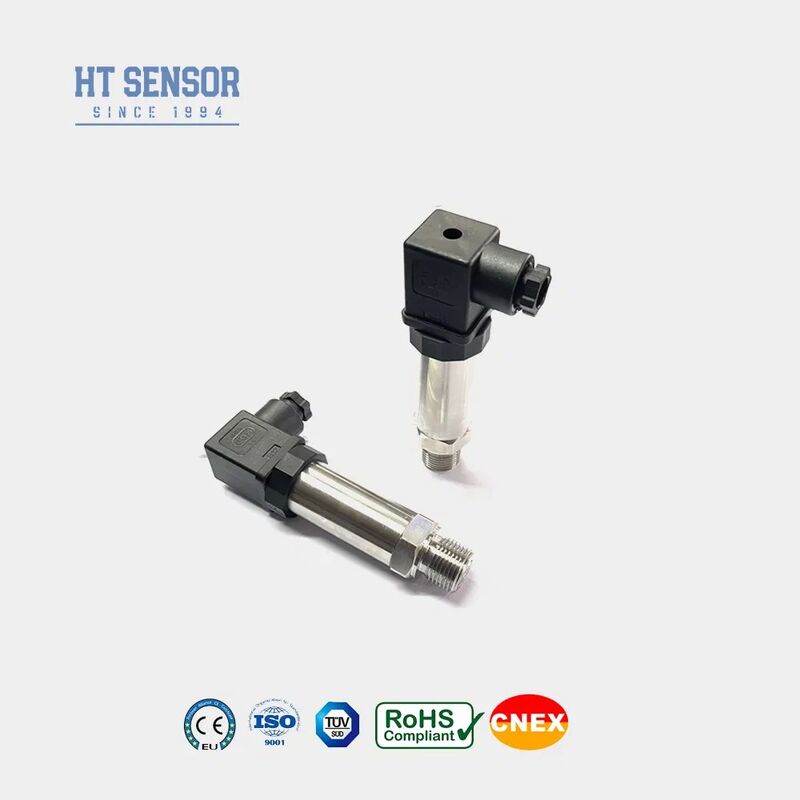

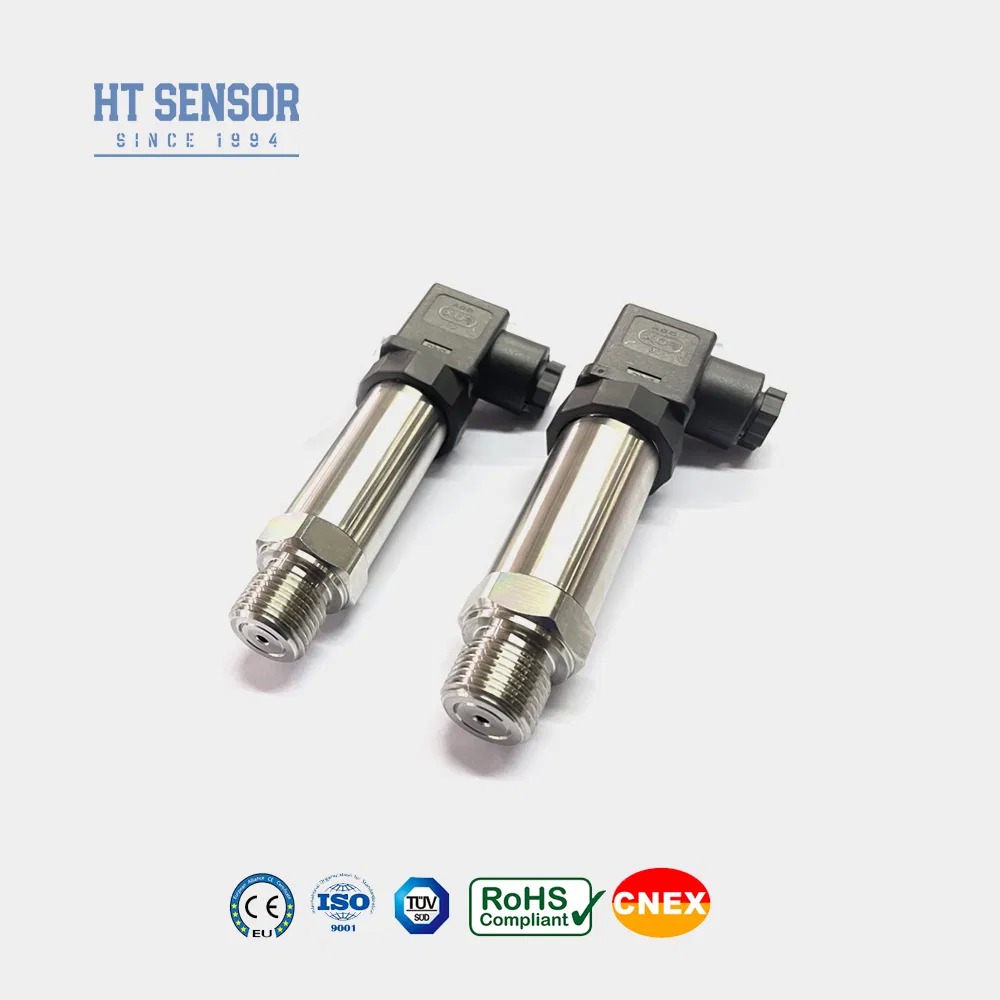

Baoji Hengtong 4-20mA Output Pressure Transmitter with 316L Stainless Steel and IP65 Protection Level Transducer
Certification:
CE, RoHS
Minimum Order Quantity:
1
Price:
26
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Diaphragm Material: | 316L | Operating Temperature: | -20ºC~80ºC |
| Storage Temperature: | -40ºC~120ºC | Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V |
| Supply Voltage: | 12~30VDC, 5VDC | Weight: | ~0.15kg |
| Insulation Resistance: | 100MΩ 100VDC | ||
| Highlight |
4-20mA Output Pressure Transmitter,316L Stainless Steel Level Transducer,IP65 Protection Pressure Sensor |
||
Product Description
BP93420IB Pressure Transmitter
The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a durable stainless steel enclosure, converting sensor signals into standardized output signals. Each unit undergoes comprehensive testing and aging screening at component, semi-finished, and finished product stages to ensure exceptional performance stability and reliability.
Key Product Features
- Comprehensive measurement range with stainless steel construction
- Multiple pressure interface configurations available
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement capabilities
- Complete stainless steel structural integrity
Industrial Applications
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgical, power generation, and hydrological sectors
- Hydraulic and pneumatic control systems integration
Performance Specifications
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
Output Signal Configuration
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
Ordering Guidelines
Important Ordering Considerations
- Verify medium compatibility with product contact materials before selection
- Explosion-proof models do not include digital display heads
- Transmitters with LCD or LED displays require minimum 20VDC power supply
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, specify EPDM O-ring seals (default is Fluoro rubber, rated -20ºC to 250ºC)
- Default cable length is 1.5m polyethylene - specify alternative materials if required
- Notify our company for special requirements including strong vibration, impact forces, or electromagnetic interference
Product Ordering Guide
| Product Code | Description |
|---|---|
| BP93420IB | General Pressure Transmitter |

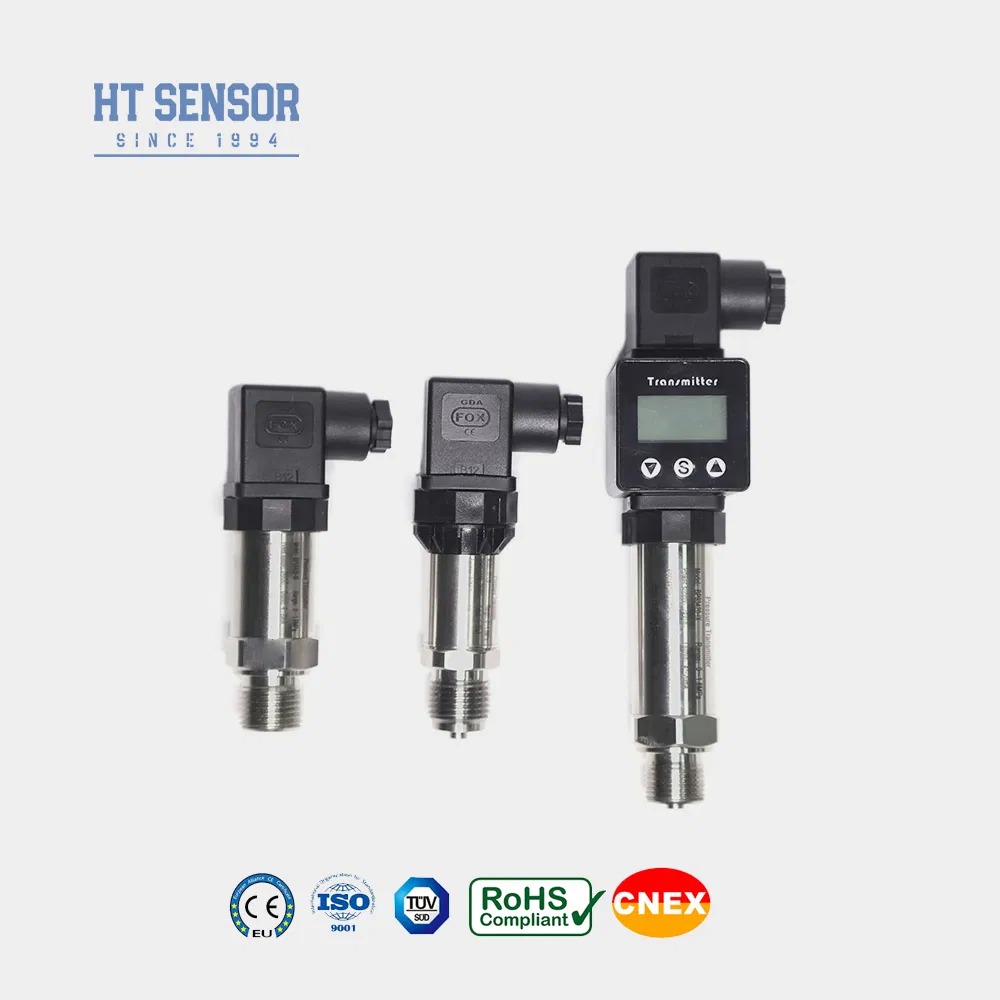

| BP93420IX | Display Pressure Transmitter |
| BP93420IE | Shock-resistant Aviation Pressure Transmitter |
| BP93420IIC/III | Industrial General/Display Pressure Transmitter |
| BP93420IF | Moisture-proof Pressure Transmitter |
| BP93420IIE/IIIE | General/Display Pressure Transmitter |
| BP93420IN | Air Conditioning Dedicated Pressure Transmitter |
| BP93420IC | High-temperature Pressure Transmitter |
| BP93420IQ1/IQ2 | Large Diaphragm/High-temperature Pressure Transmitter |
Configuration Options
| Code | Power Supply | Code | Output Signal |
|---|---|---|---|
| D1 | 24VDC | S1 | 4~20mADC |
| D2 | 5VDC | S2 | 1~5VDC |
| D3 | Other | S3 | 0~5VDC |
| S4 | 0~10mADC | ||
| S5 | 0~20mADC | ||
| S6 | 0~10VDC | ||
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection | Code | Electrical Connection | Code | Pressure Type |
|---|---|---|---|---|---|
| J1 | M20×1.5 | B1 | Hirschmann | G | Gauge Pressure |
| J2 | G1/2 | B2 | PG7 Plug | A | Absolute Pressure |

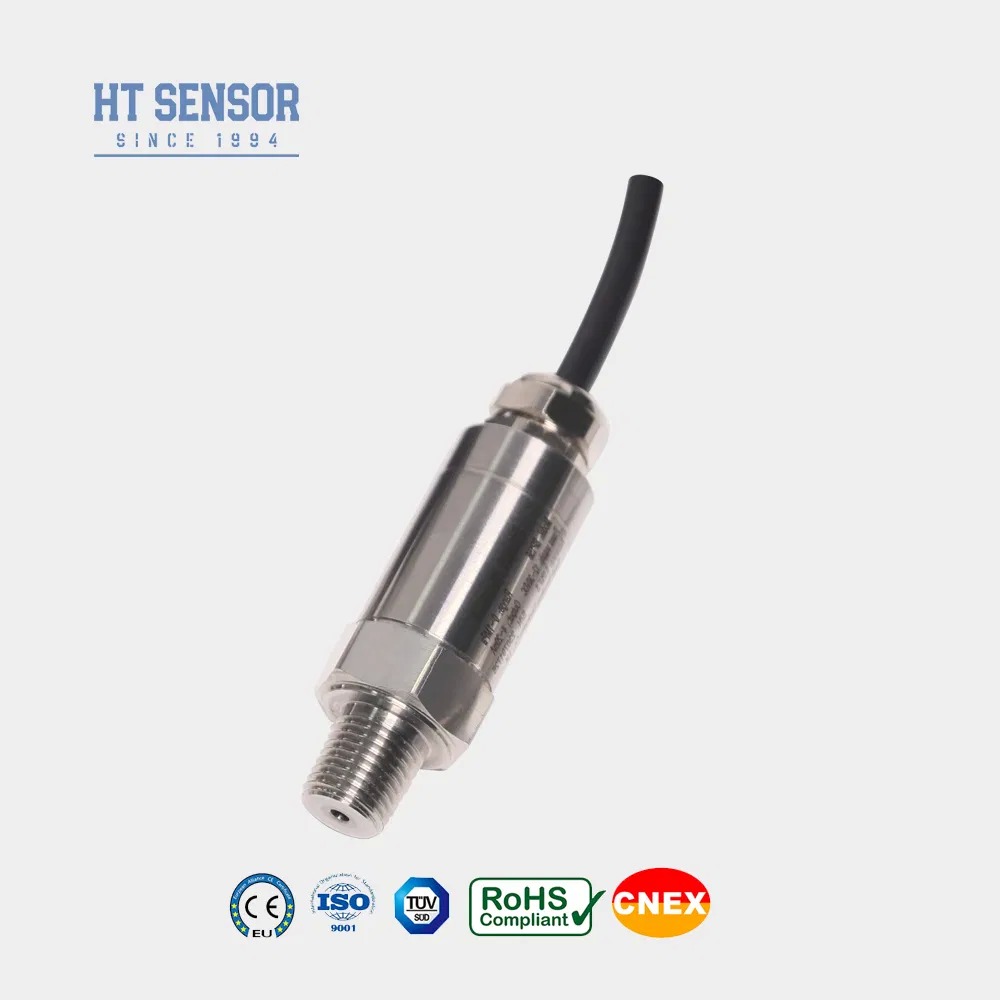

| J3 | G1/4 | B3 | Sealed Cable Output | S | Sealed Reference Pressure |
| J4 | 7/16-20UNF | B4 | 2088 Industrial Casing | ||
| J5 | Other | B5 | 2088 Industrial Casing with Display | ||
| B6 | Other |
Frequently Asked Questions
What are the key features of your pressure sensor transmitters?
Our pressure transmitters offer high precision, exceptional durability, and reliable performance across various industrial applications. Customization options are available to meet specific requirements.
Can I request custom specifications?
Yes, our engineering team can develop tailored solutions to meet your specific application needs. We provide comprehensive OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters monthly, ensuring we can accommodate large-scale orders. We recommend contacting our sales team in advance to coordinate production and delivery schedules.
What is the typical delivery timeframe?
Standard models typically ship within 5-8 working days. Customized products may require additional time depending on specifications.
How are products priced? Are discounts available?
We offer competitive pricing with volume discounts available for bulk orders and established long-term partnerships.
What warranty and after-sales support do you provide?
All products include a 24-month warranty from shipment date. Our after-sales team responds to inquiries within 24 hours and provides remote technical support via PC network connectivity.
Product Highlights
High-precision 4-20mA pressure transmitter with 316L stainless steel construction, IP65 rating, and 0.5% accuracy. Customizable for various pressure types and industrial applications. Export-ready with competitive pricing and bulk order capacity.
