Detail Information

Model NO.:	BPZ93420-IB	Measuring Medium:	Liquid
Accuracy Grade:	0.5G	Pressure Range:	0kpa~10kpa...100MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Long-Term Stability:	+-0.2%F.S/Year(Typ.)
Overload:	≤ 1.5 Times Of The Rated Range	Accuracy @ 25ºC:	±0.25% (Typical) ±0.5% (Maximum)
Repeatability:	0.1%FS	Hysteresis:	0.1%FS
Zero Point Temperature Drift:	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)	Full Scale Temperature Drift:	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Operating Temperature:	-20ºC~80ºC
Highlight:	4-20mA Output Pressure Transmitter , 316L Stainless Steel Pressure Sensor , IP65 Protection Water Level Transmitter

Product Description

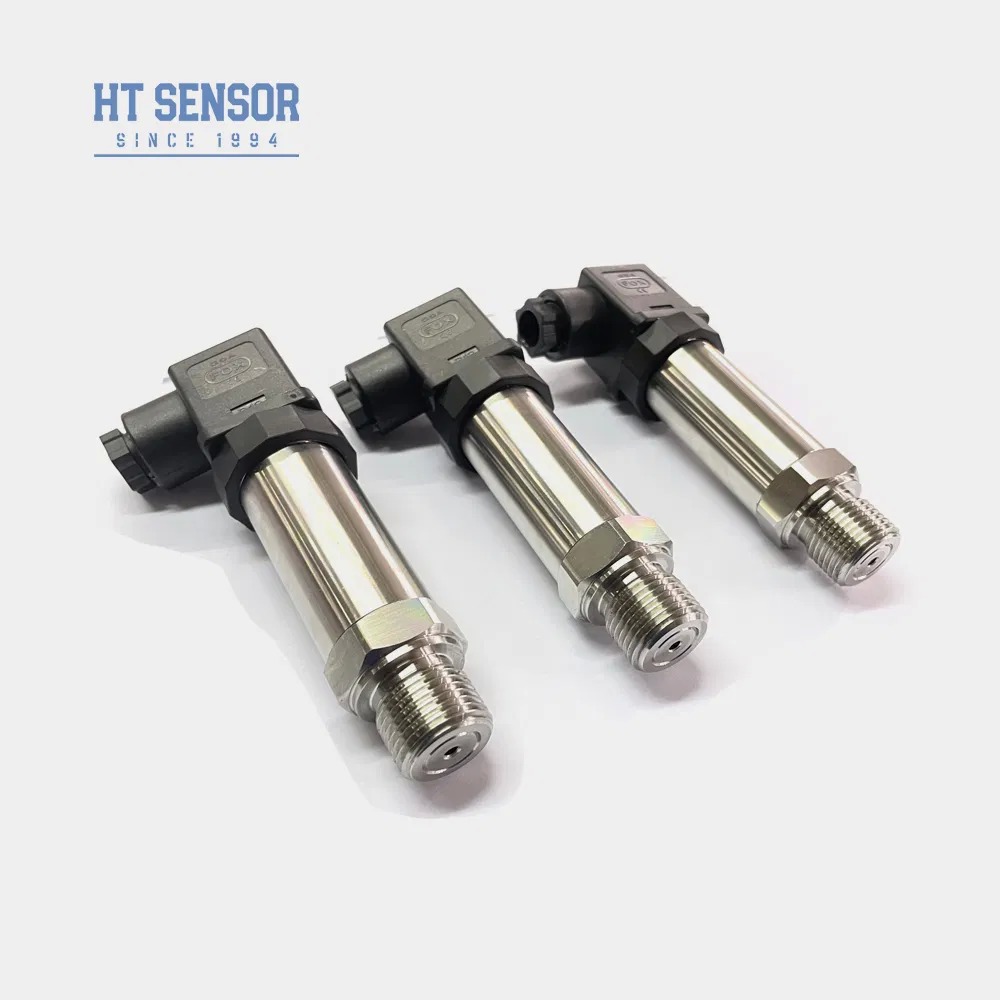

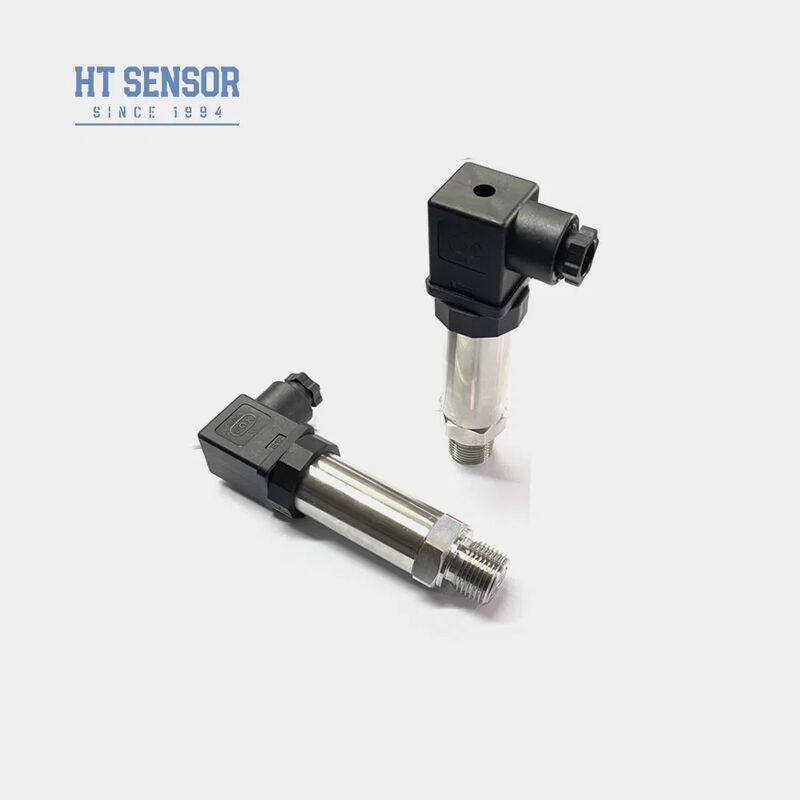

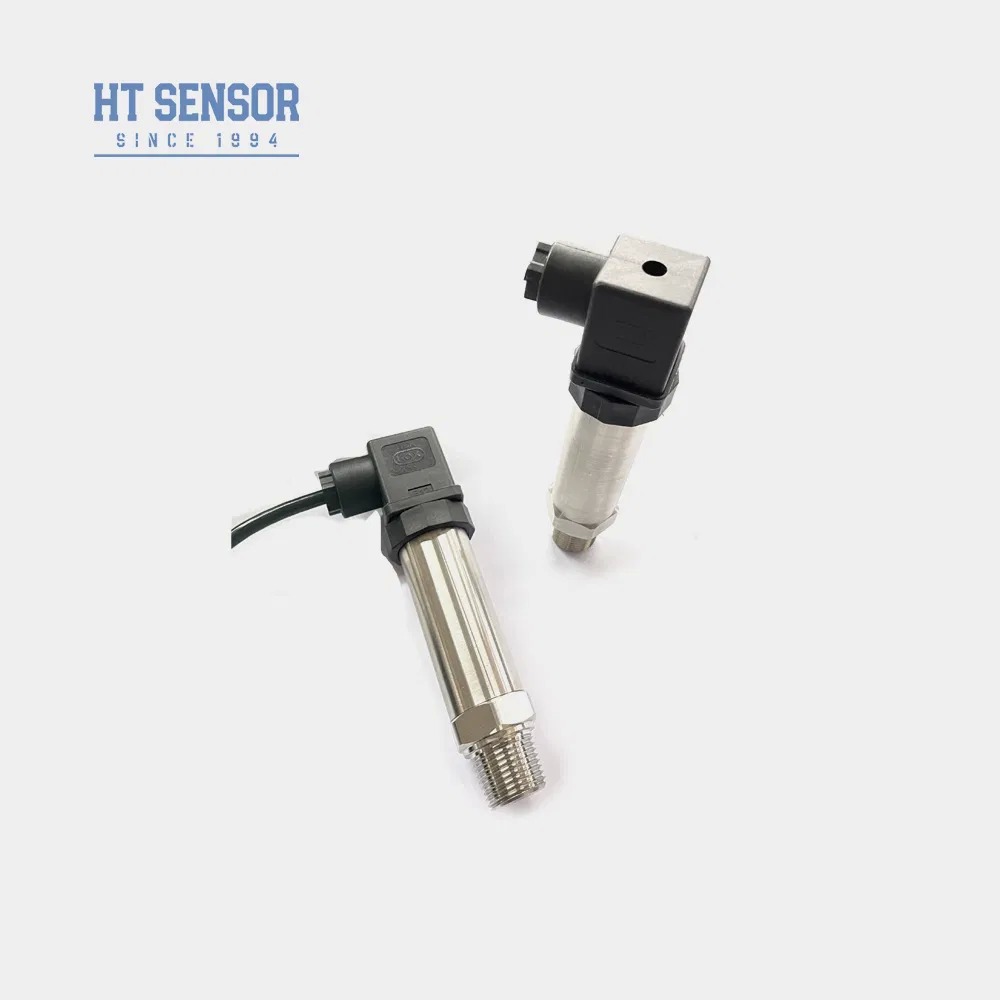

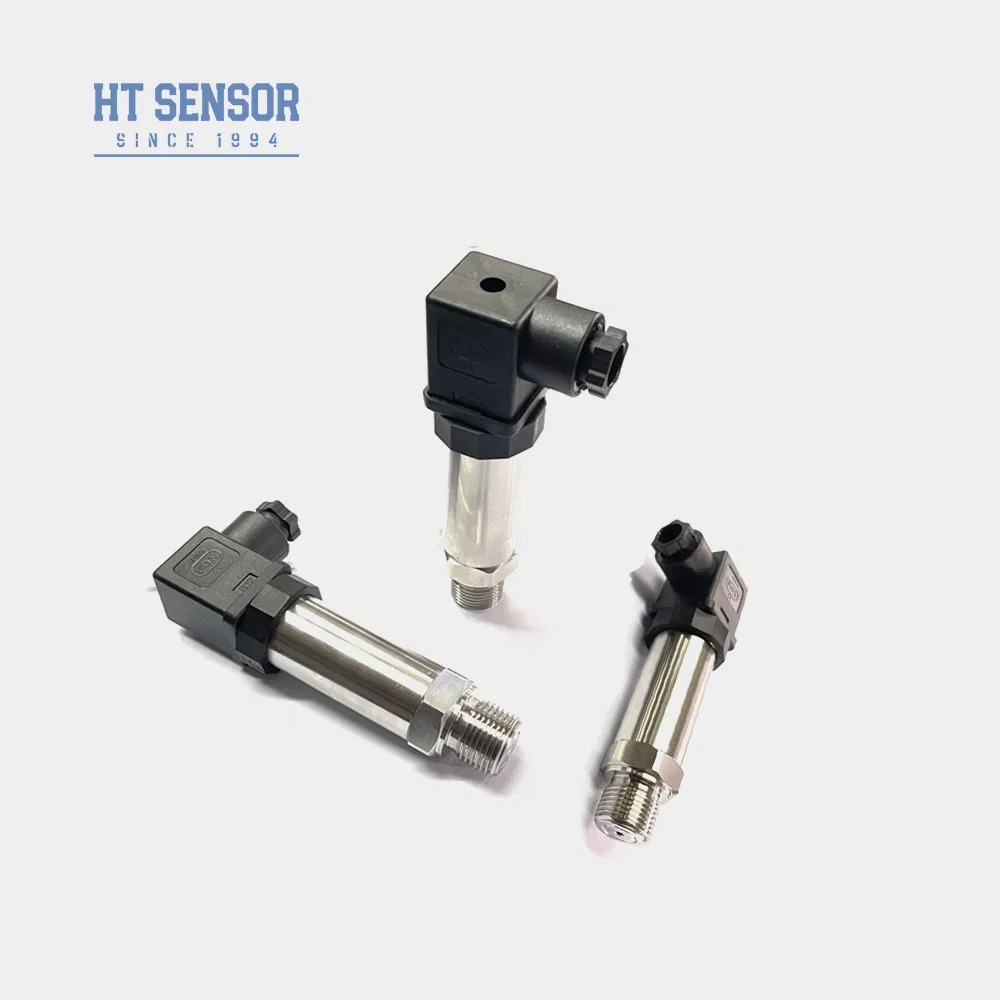

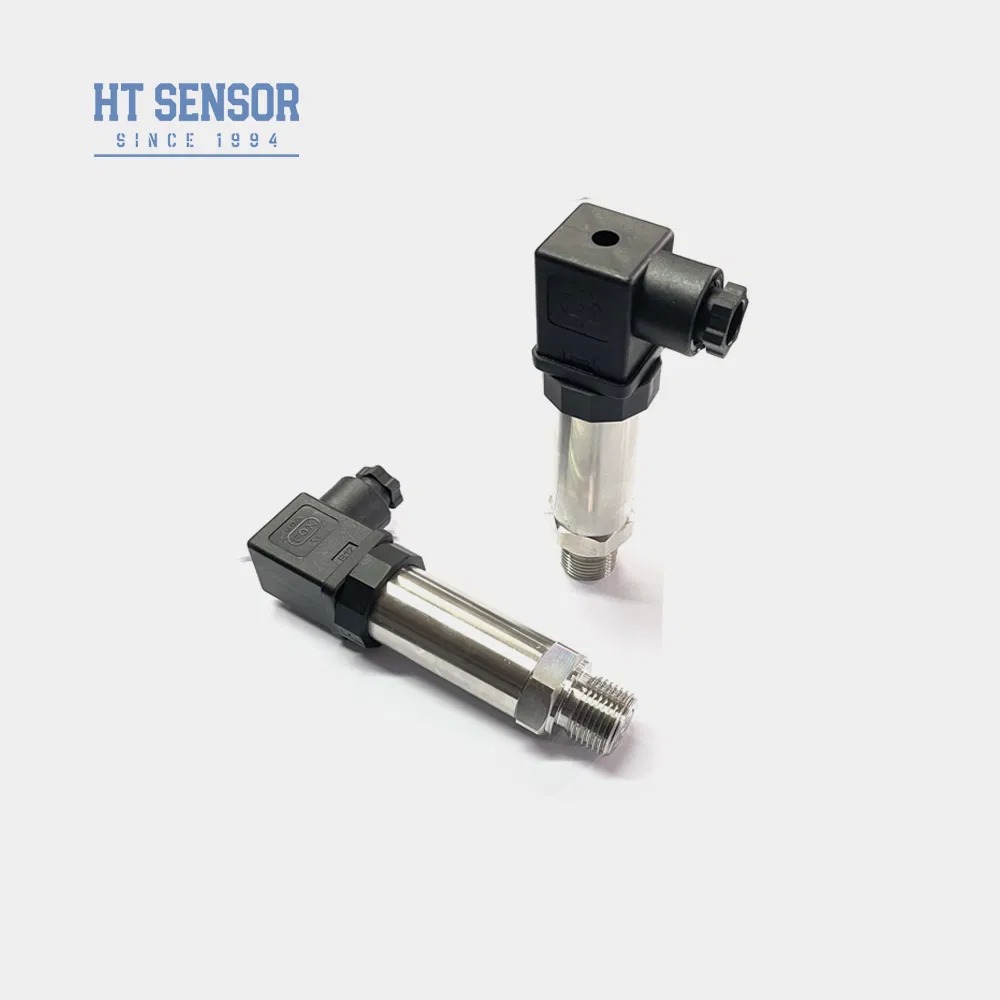

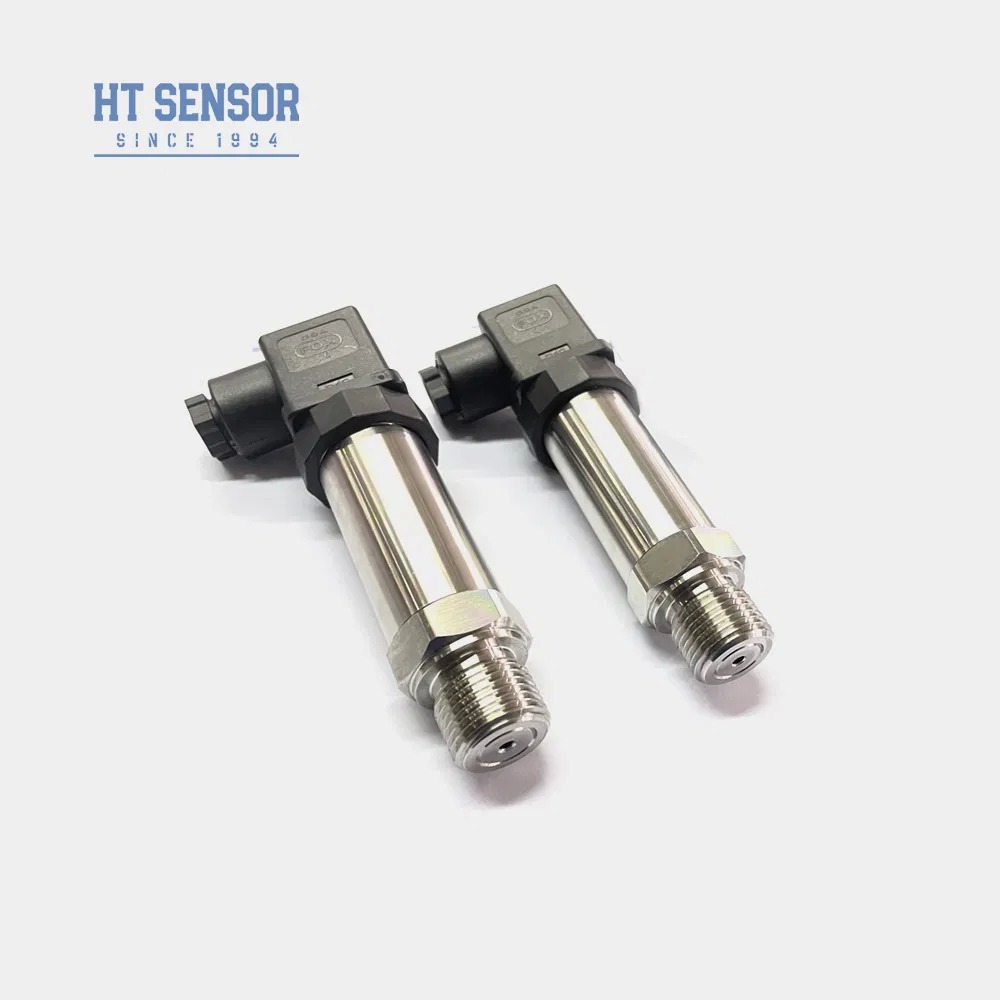

BP93420-IB 4-20mA RS485 Pressure Sensor

Professional pressure transmitter manufactured in China with RS485 communication and 4-20mA output signals.

Product Overview

The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening of components, semi-finished products, and finished products ensure stable and reliable performance.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface configurations available
Compact and lightweight design
Adjustable zero and full-scale calibration
High precision measurement capabilities
All stainless steel construction for durability

Applications

Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
Marine and aviation industry applications
Industrial process control in petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Performance Parameters

Measurement Range	-100kPa…0kPa ~ 10kPa…100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum)
Zero Point Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.15kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Ordering Guidelines

Important Ordering Considerations:

Ensure the measured medium is compatible with the product's contact materials
Explosion-proof type products do not include digital display heads
For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
Install lightning protection devices and ensure proper grounding for reliable operation
Fluoro rubber O-ring rated for -20ºC to 250ºC; for temperatures below -20ºC, select EPDM O-ring
Default cable length is 1.5m with polyethylene material; specify alternative materials if required
Notify us of special requirements including strong vibration, impact forces, or electromagnetic interference

Ordering Guide

Product Configuration Codes

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ1/IQ2	Large Diaphragm/High-temperature Pressure Transmitter

Additional Configuration Options

Parameter	Options
Measurement Range	-0.1...0~0.01...100MPa (0-X)Kpa or MPa (X indicates actual measuring range)
Power Supply	D1: 24VDC \| D2: 5VDC \| D3: Other
Output Signal	S1: 4~20mADC \| S2: 1~5VDC \| S3: 0~5VDC \| S4: 0~10mADC \| S5: 0~20mADC \| S6: 0~10VDC \| S7: 0.5~4.5VDC
Pressure Connection	J1: M20×1.5 \| J2: G1/2 \| J3: G1/4 \| J4: 7/16-20UNF \| J5: Other
Electrical Connection	B1: Hirschmann \| B2: PG7 Plug \| B3: Sealed Cable Output \| B4: 2088 Industrial Casing \| B5: 2088 Industrial Casing with Display \| B6: Other
Pressure Type	G: Gauge Pressure \| A: Absolute Pressure \| S: Sealed Reference Pressure

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	26
