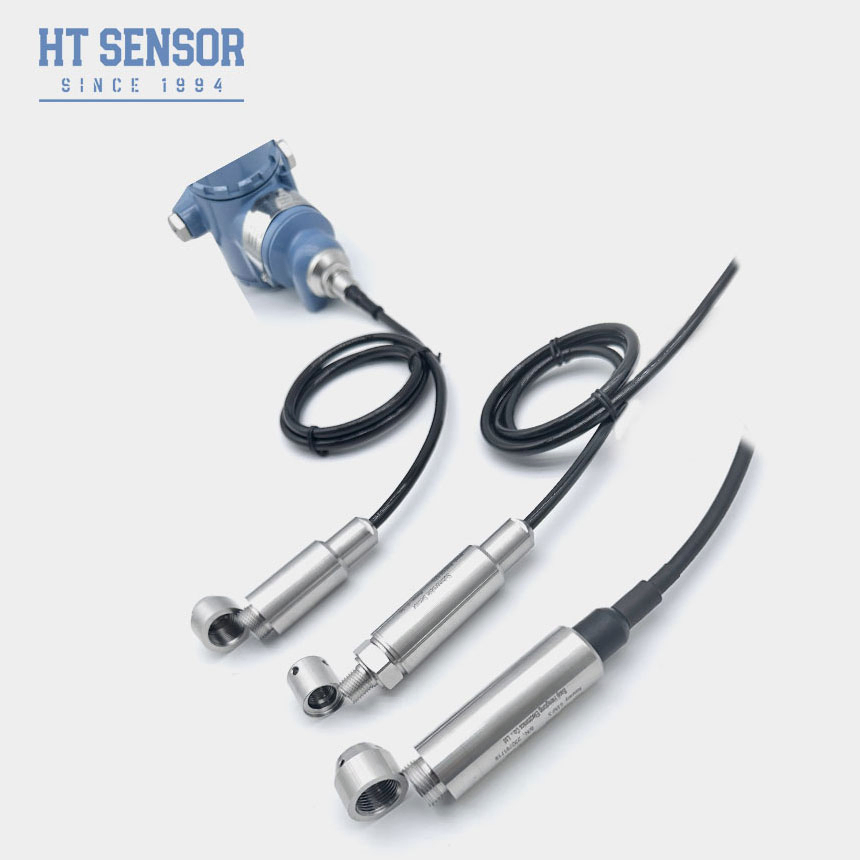

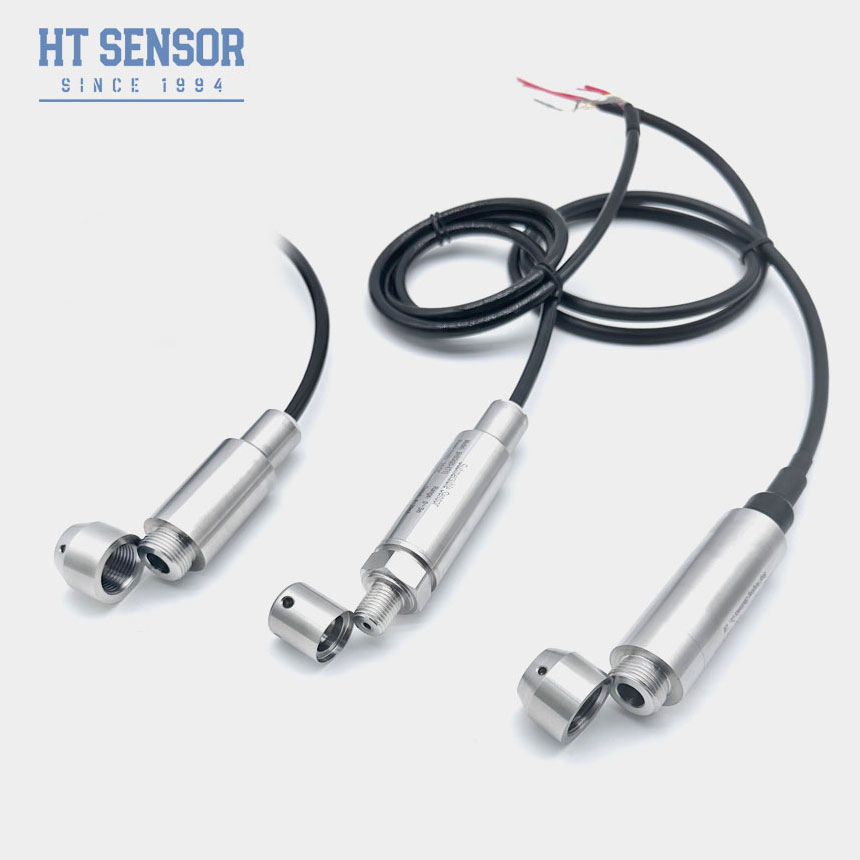

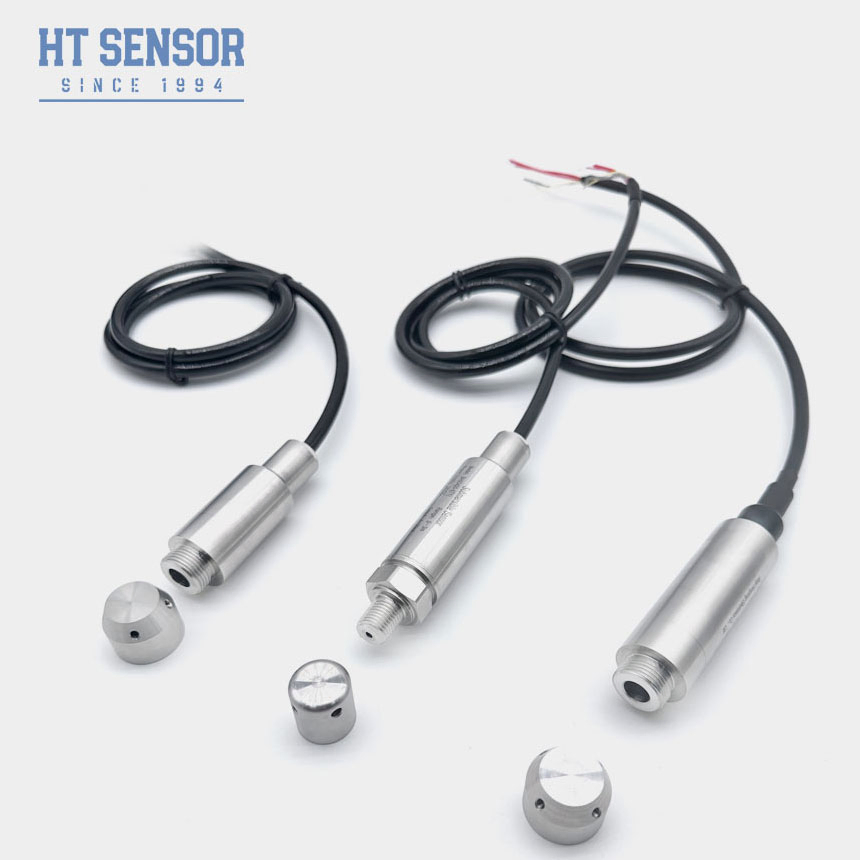

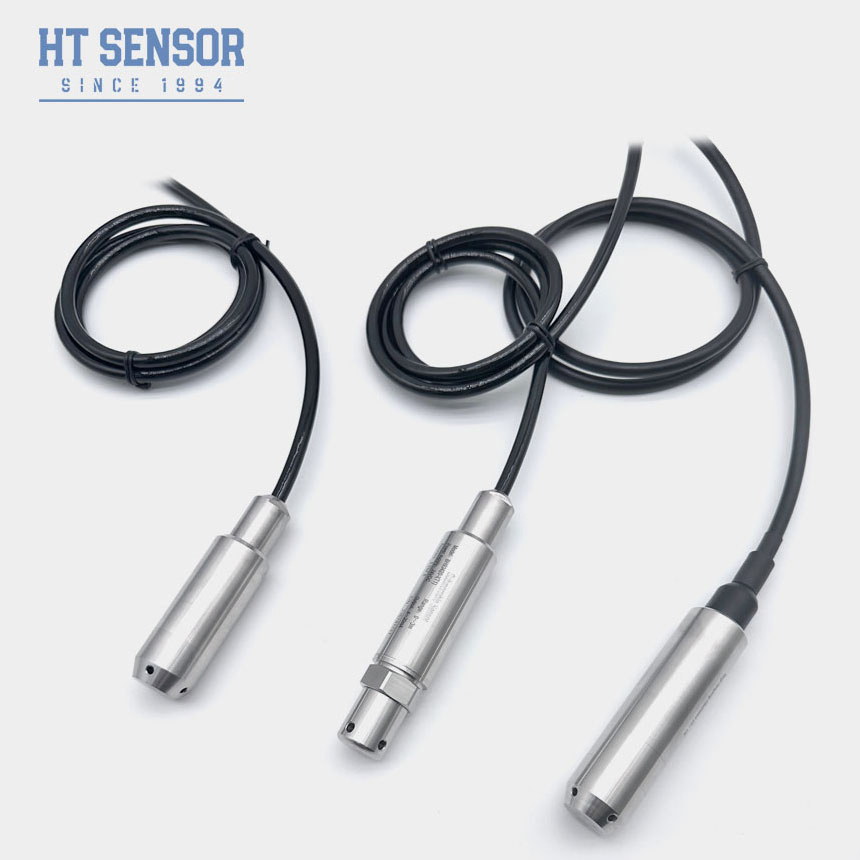

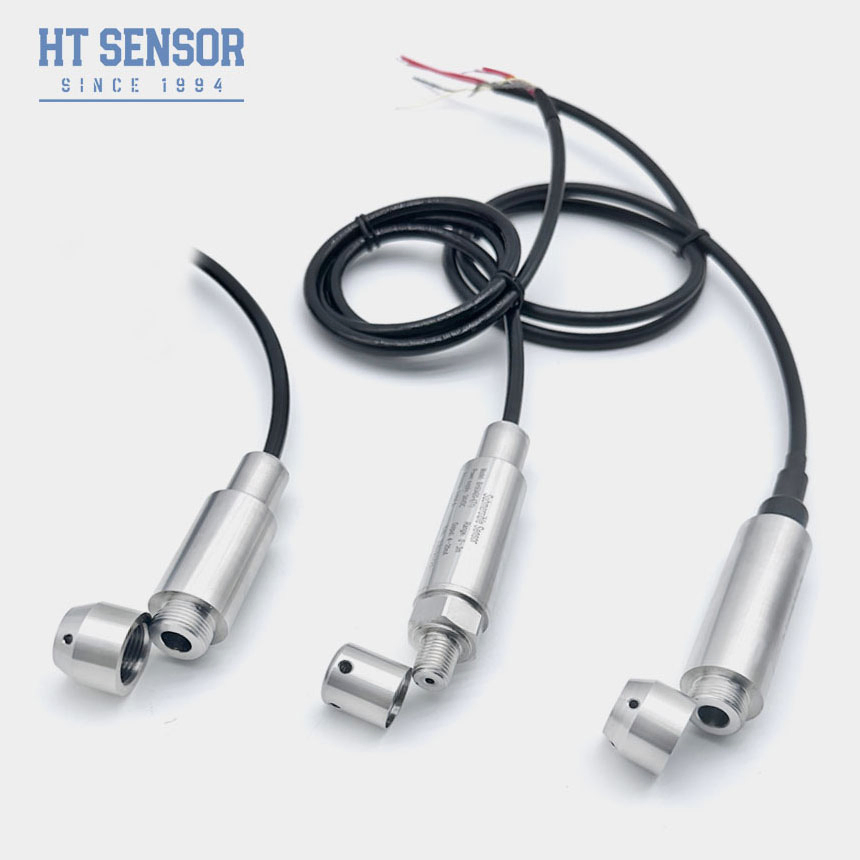

316L Stainless Steel 4-20mA Output IP68 Waterproof Liquid Level Transmitter Pressure Sensor for Industrial Applications
Product Details
| Model NO.: | BH93420-I | Pressure Range: | Gauge Pressure, Absolute Pressure |
|---|---|---|---|
| Accuracy Grade: | 0.25%,0.5% | IP Rating: | IP68 |
| Net Weight: | 0.3kg | Diaphragm Material: | 316L Stainless Steel |
| Cable Material: | PE, PU, PTFE | Measurement Range: | 0-1m~200m |
| Overload Capacity: | ≤ 2X Rated Range | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | 1Cr18Ni9Ti, 316L Stainless Steel |
| Insulation Resistance: | >=100MΩ@100VDC | Explosion-proof Rating: | ExiaIICT6 |
| Protection Rating: | IP67, IP68 | ||
| Highlight |
316L Stainless Steel Liquid Level Transmitter,4-20mA Output Pressure Sensor,IP68 Waterproof Pressure Transducer |
||
Product Description
- Fully welded design ensuring safety and reliability
- Dual options for probe insertion and threaded installation
- Rigorously tested for high and low temperature applications
- Explosion-proof rating: ExiaIICT6
- PTFT and PU cable options available
- Multiple output signal configurations
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti,316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
- Ensure measured medium compatibility with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details during ordering
- Install lightning protection devices and ensure proper grounding for reliable operation
| Component | Code | Description |
|---|---|---|
| Product Series | BH93420 | Pressure Transmitter |
| Measurement Range | 0~10m…400m | |
| Power Supply | D1 | 24VDC |
| D2 | 5VDC | |
| D3 | Other | |
| Output Signal | S1 | 4~20mADC |
| S2 | 1~5VDC | |
| S3 | 0~5VDC | |
| S4 | 0~10mADC | |
| S5 | 0~20mADC | |
| S6 | 0~10VDC | |
| S7 | 0.5~4.5VDC | |
| S8 | RS485 | |
| Pressure Type | G | Gauge Pressure |
| A | Absolute Pressure | |
| S | Sealed Reference Pressure | |
| Material | 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel | |
| Cable Material | C1 | PU |
| C2 | PTFE |
Product Highlights
IP68-rated 4-20mA pressure sensor with 316L stainless steel construction. High 0.25% accuracy, explosion-proof ExiaIICT6 certification, and customizable options for liquid level measurement in harsh industrial environments.
