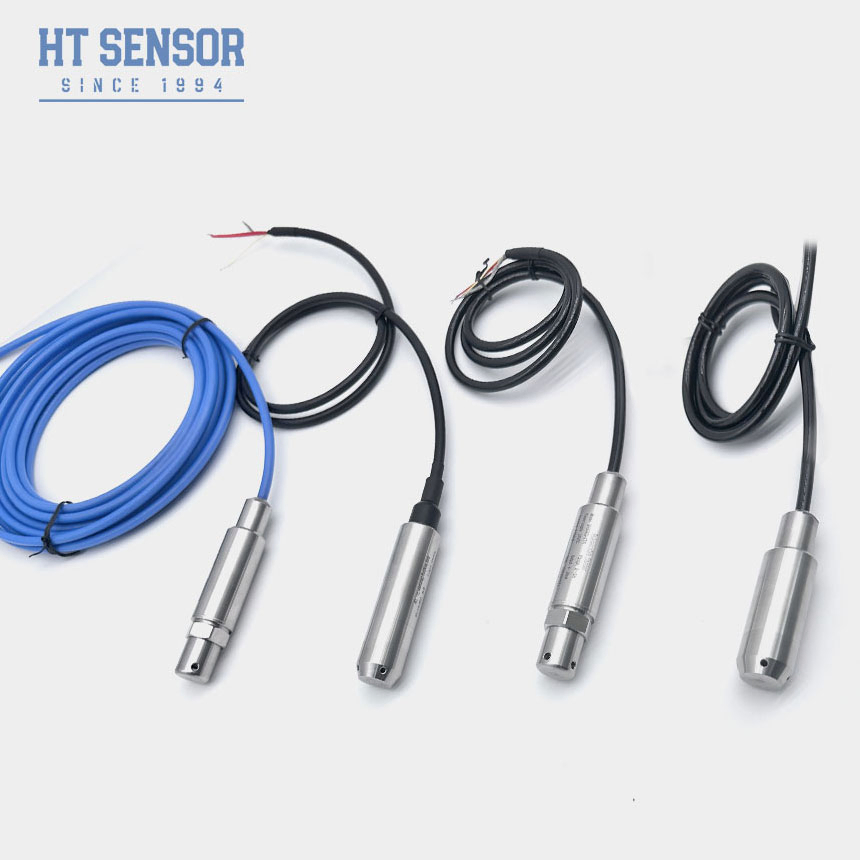

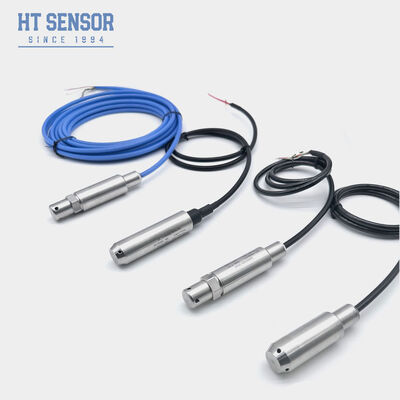

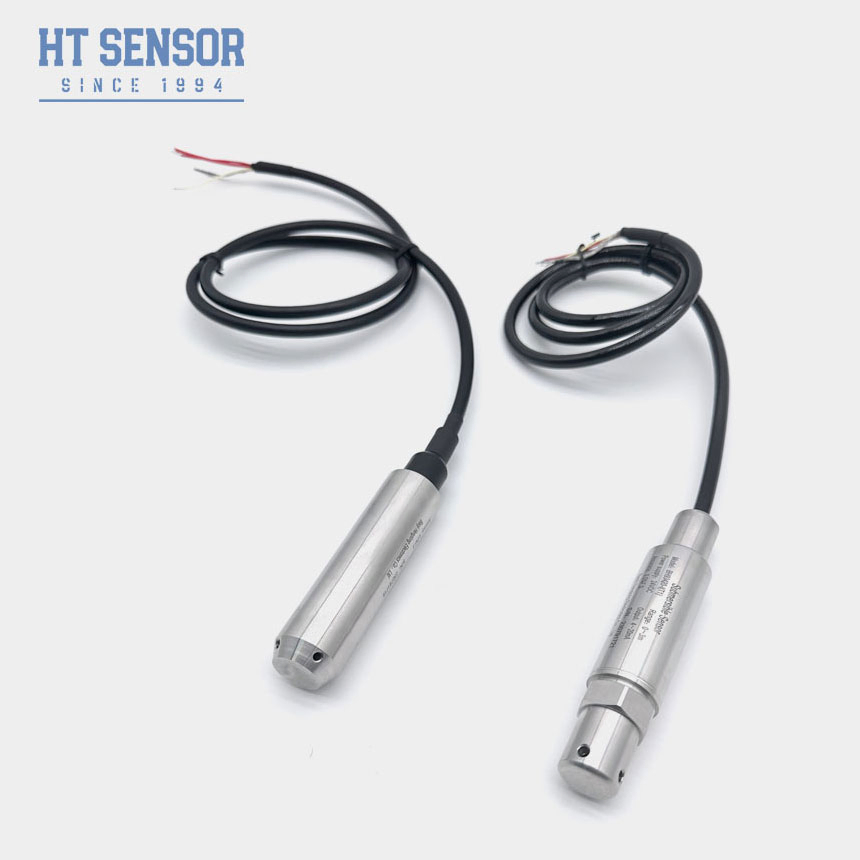

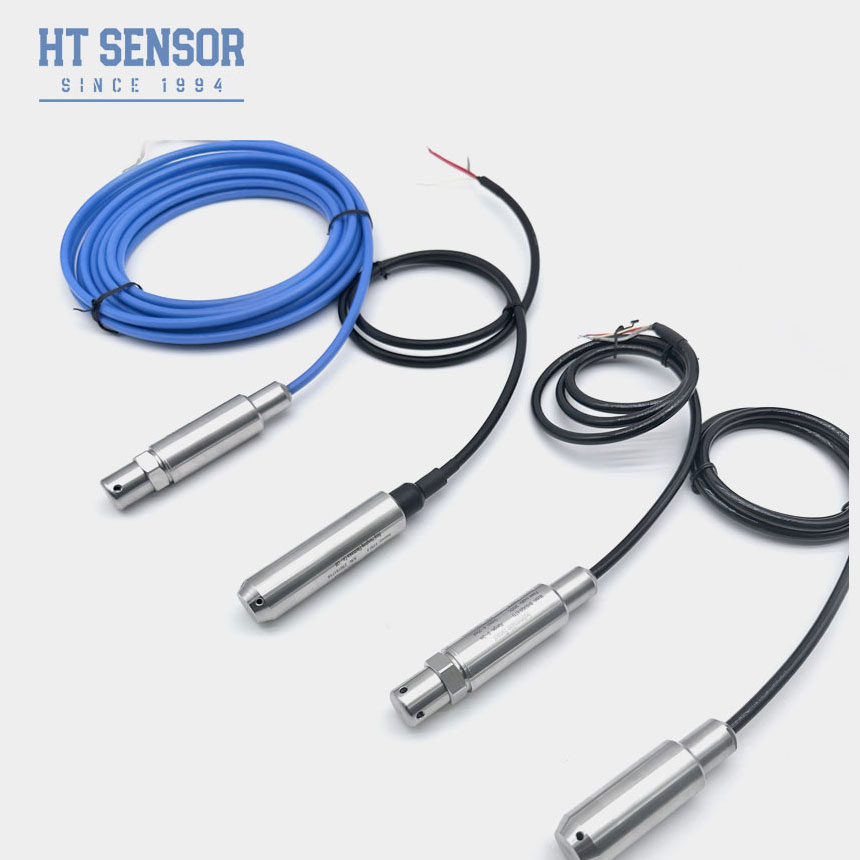

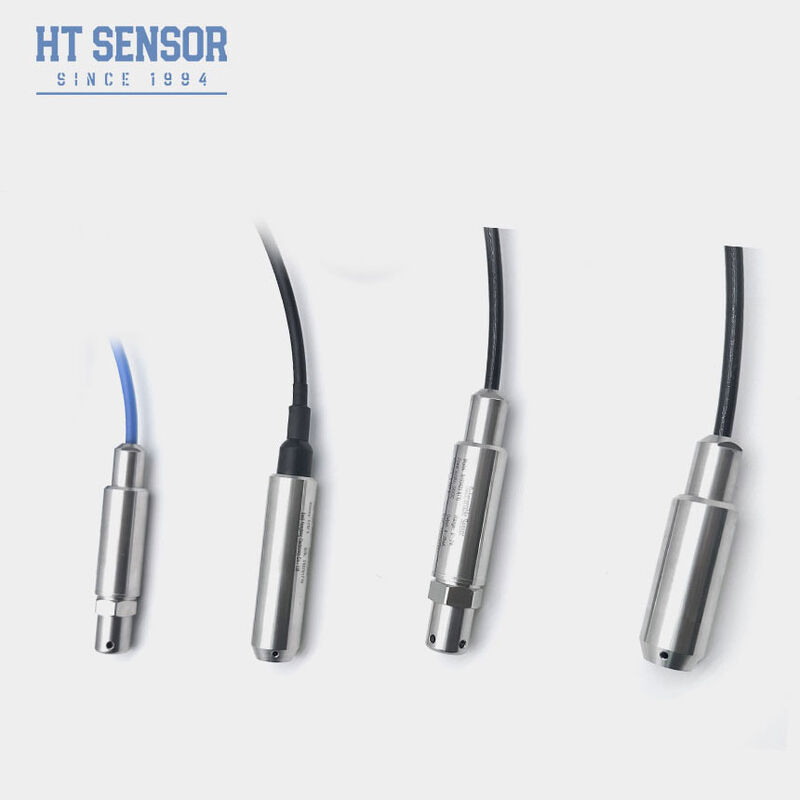

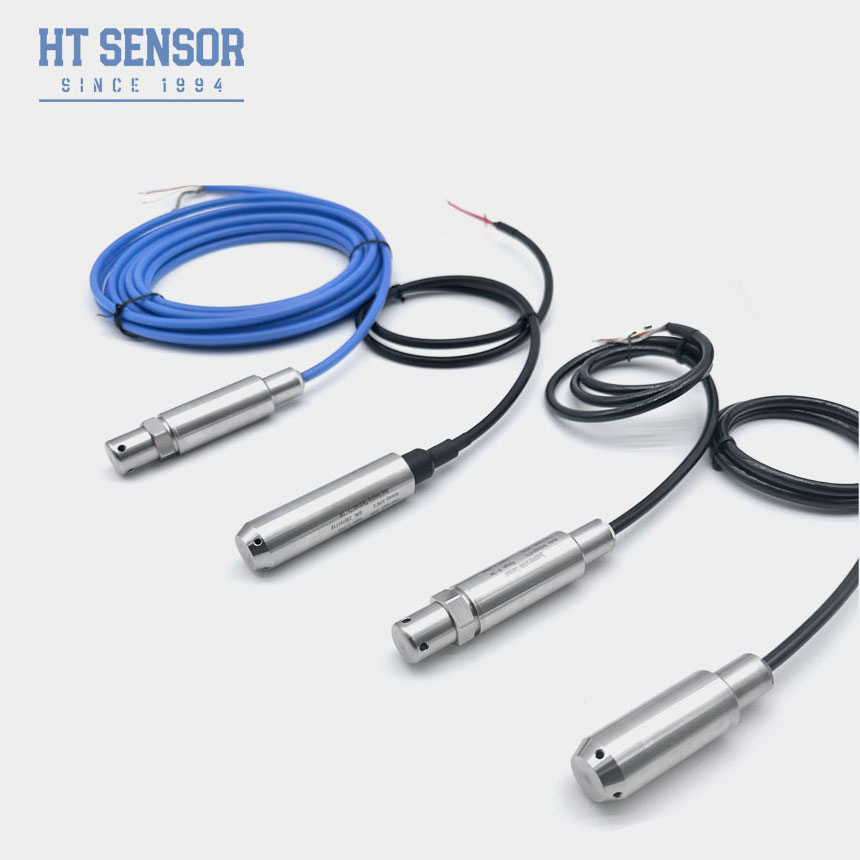

Stainless Steel 316L 4-20mA Output IP68 Waterproof Liquid Level Transmitter Pressure Sensor
Product Details
| Output Signal: | 4-20mA | Material: | Stainless Steel |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Long-Term Stability: | ±0.2%F.S/year |
| Operating Temperature: | -20~80ºC | Measurement Range: | 0~10m…400m |
| Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) | Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis: | ±0.03% (Typ.) ±0.05%FS (Max.) | Zero Point Drift: | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Drift: | ±1.5%F.S(Typ.) ±2%F.S (Max.) | Compensation Temperature: | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
| Explosion-proof Rating: | ExiaIICT6 | ||
| Highlight |
4-20mA Output Liquid Level Transmitter,Stainless Steel 316L Pressure Sensor,IP68 Waterproof Level Sensor |
||
Product Description
- Full stainless steel housing for diverse testing environments
- Immersion-type probe design for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Verify measured medium compatibility with product components
- Specify the density of the measured medium
- Disclose any strong electromagnetic or radio frequency interference
- Install lightning protection devices and ensure proper grounding
| Component | Code | Description |
|---|---|---|
| Base Model | BH93420 | Pressure Transmitter |
| Power Supply | D1 | 24VDC |
| Power Supply | D2 | 5VDC |
| Output Signal | S1 | 4~20mADC |
| Output Signal | S5 | 0~20mADC |
| Material | 01 | 304 Stainless Steel |
| Material | 02 | 316L Stainless Steel |
| Cable Material | C1 | PE |
| Cable Material | C2 | PU |
Product Highlights
IP68-rated 4-20mA liquid level sensor with 316L stainless steel construction, ±0.25% accuracy, and ExiaIICT6 explosion-proof certification. Customizable outputs for water, fuel, and industrial liquid monitoring applications.
