Detail Information

Model NO.:	BH93420-III	Output Signal:	Analog Type
Production Process:	Piezoresistive Diffused Silicon Pressure Sensor	Material:	Stainless Steel
IP Rating:	IP68	Net Weight:	1.5kg
Diaphragm Material:	316L Stainless Steel	Accuracy:	0.25%,0.3%,0.5%
Cable Material:	PE,PU,PTFE	Measurement Range:	0~1m…400mH2O
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Overload Capacity:	≤ 2X Rated Range
Operating Temperature:	-20~80ºC	Explosion-proof Rating:	ExiaIICT6
Housing Material:	Cast Aluminum, 1Cr18Ni9Ti
Highlight:	316L Stainless Steel Liquid Level Transmitter , IP68 Waterproof Pressure Transmitter , 0.25% Accuracy Level Sensor

Product Description

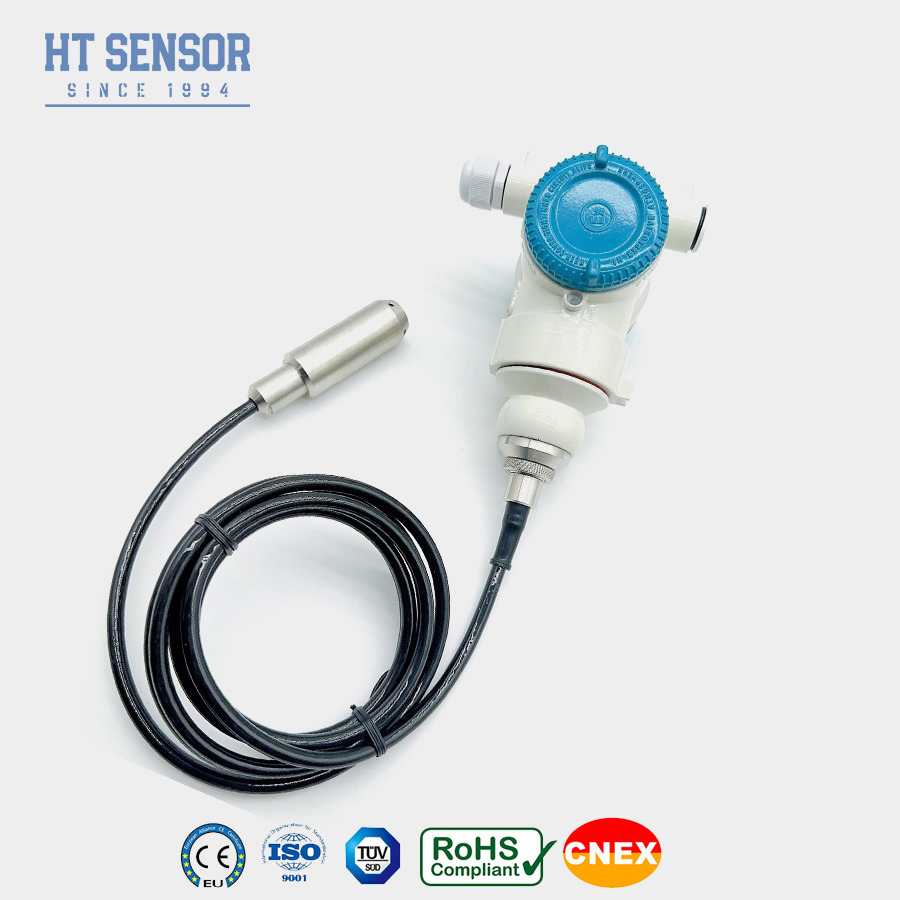

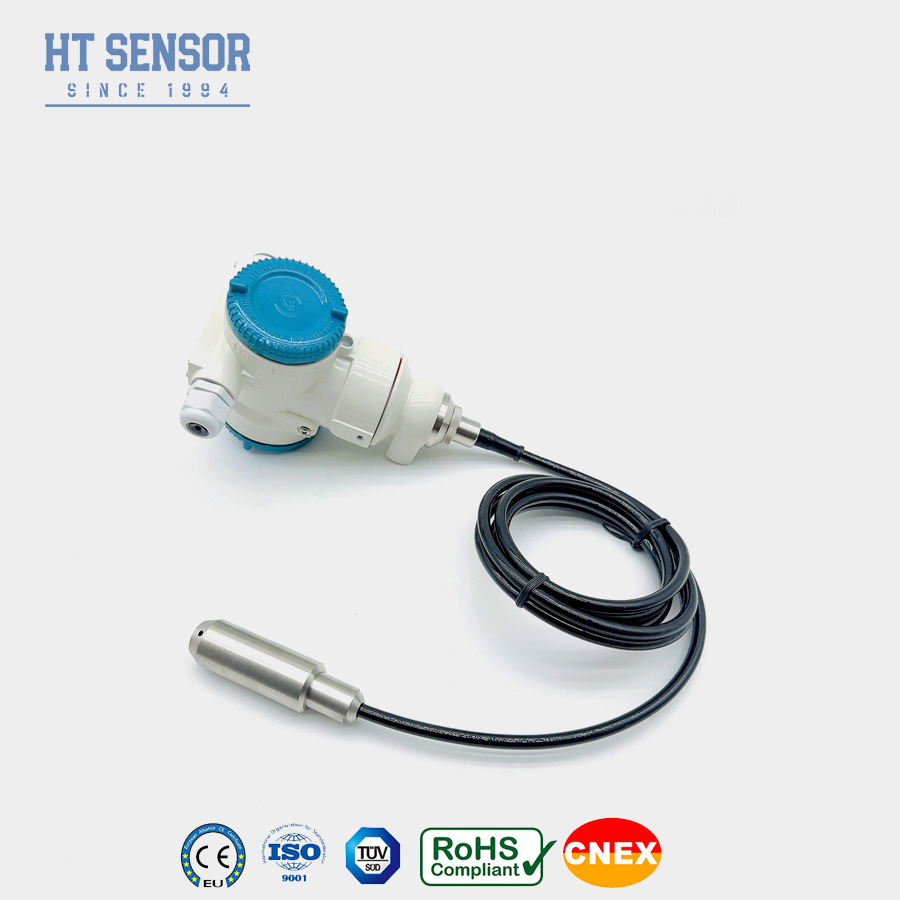

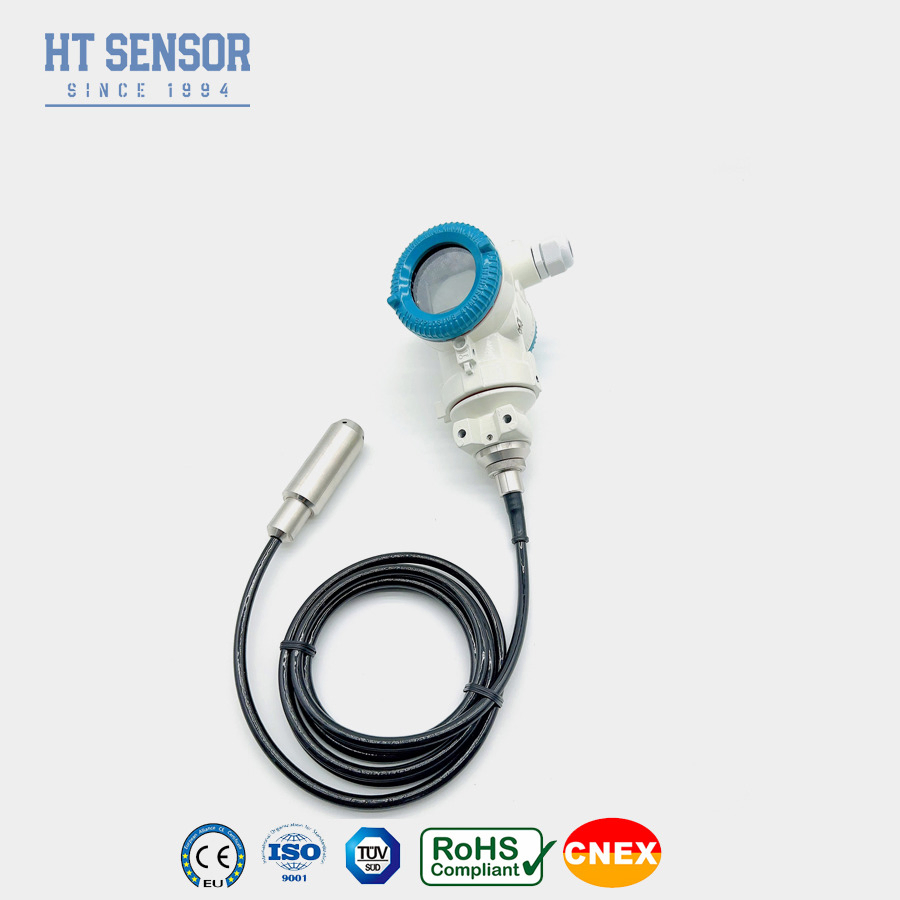

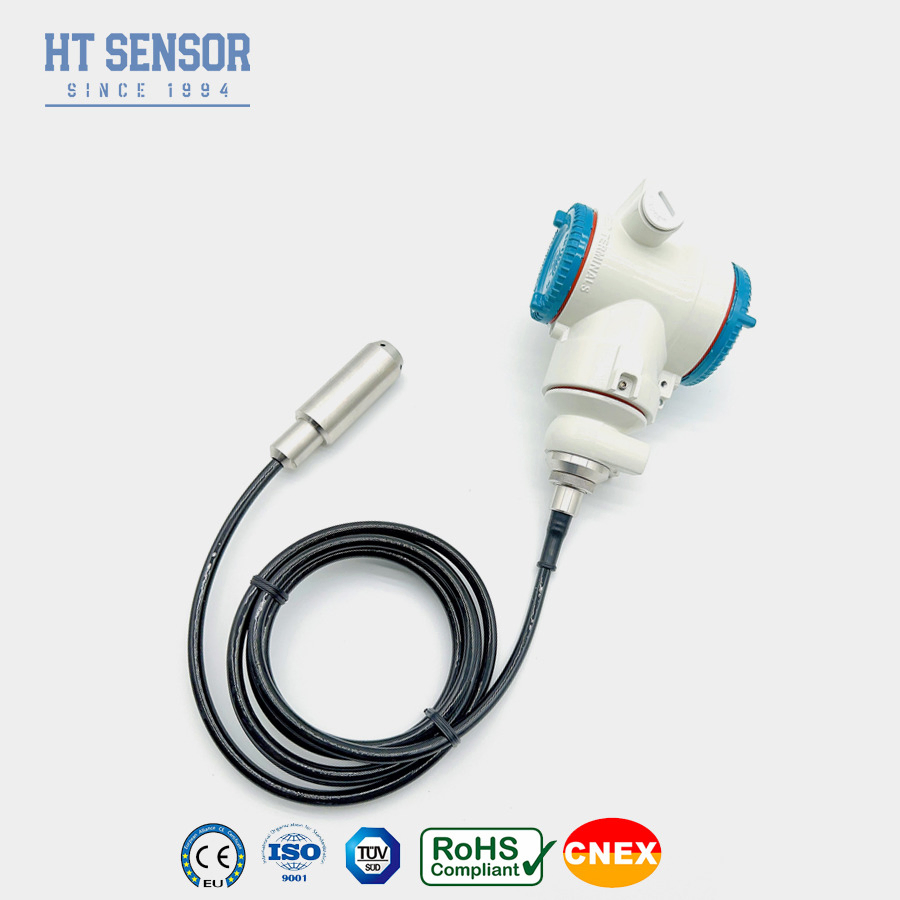

BH93420-III Water Level Transmitter

The BH93420-III water level transmitter utilizes a highly precise piezoresistive diffused silicon pressure sensor to measure static pressure directly related to water level. This pressure is converted into standard signal output through amplification circuitry, establishing a linear relationship between output signal and liquid level for precise and accurate water level measurement.

Product Features

Split-type design for easy on-site wiring and calibration
LED display for clear readings
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Cable options: PE, PU, PTFE

Applications

Compatible with 316LSS and non-corrosive liquids
Monitoring water levels in sewage, industrial and municipal water systems, water tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and other oil tank level monitoring

Performance Parameters

Parameter	Specification
Measurement Range	0~1m…400mH2O
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal	Supply Voltage	Output Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Ordering Tips

Ensure measured medium compatibility with product components
Specify density of measured medium
Provide details for strong electromagnetic or radio frequency interference applications
Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

Component	Code	Description
Product Series	BH93420	Pressure Transmitter
Measurement Range		0~10m…400m
Power Supply	D1	24VDC
Power Supply	D2	5VDC
Power Supply	D3	Other
Output Signal	S1	4~20mADC
Output Signal	S2	1~5VDC
Output Signal	S3	0~5VDC
Output Signal	S4	0~10mADC
Output Signal	S5	0~20mADC
Output Signal	S6	0~10VDC
Output Signal	S7	0.5~4.5VDC
Output Signal	S8	RS485
Pressure Type	G	Gauge Pressure
Pressure Type	A	Absolute Pressure
Pressure Type	S	Sealed Reference Pressure
Material	01	304 Stainless Steel
Material	02	316L Stainless Steel
Cable Material	C1	PE
Cable Material	C2	PU

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

Q: What's the typical delivery period?

A: 5~8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24hrs. Remote instruction by PC network is always available.

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	50
