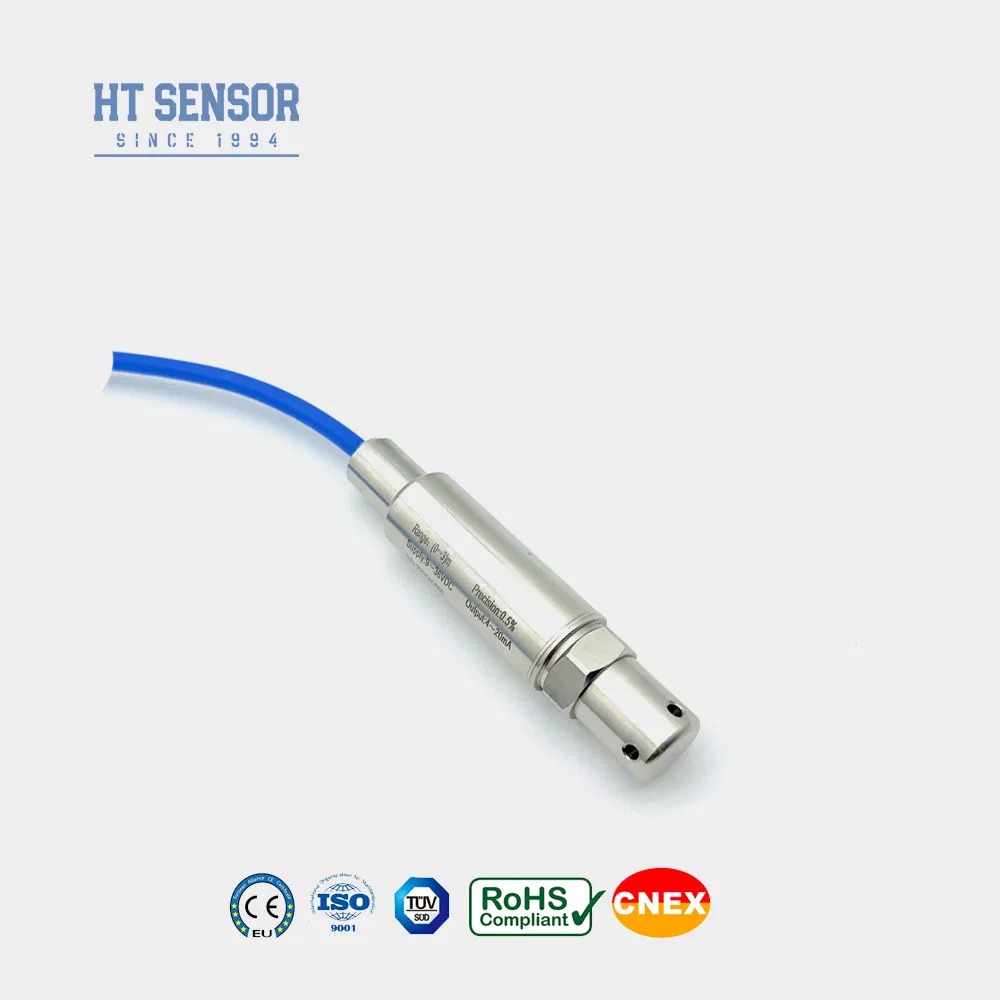

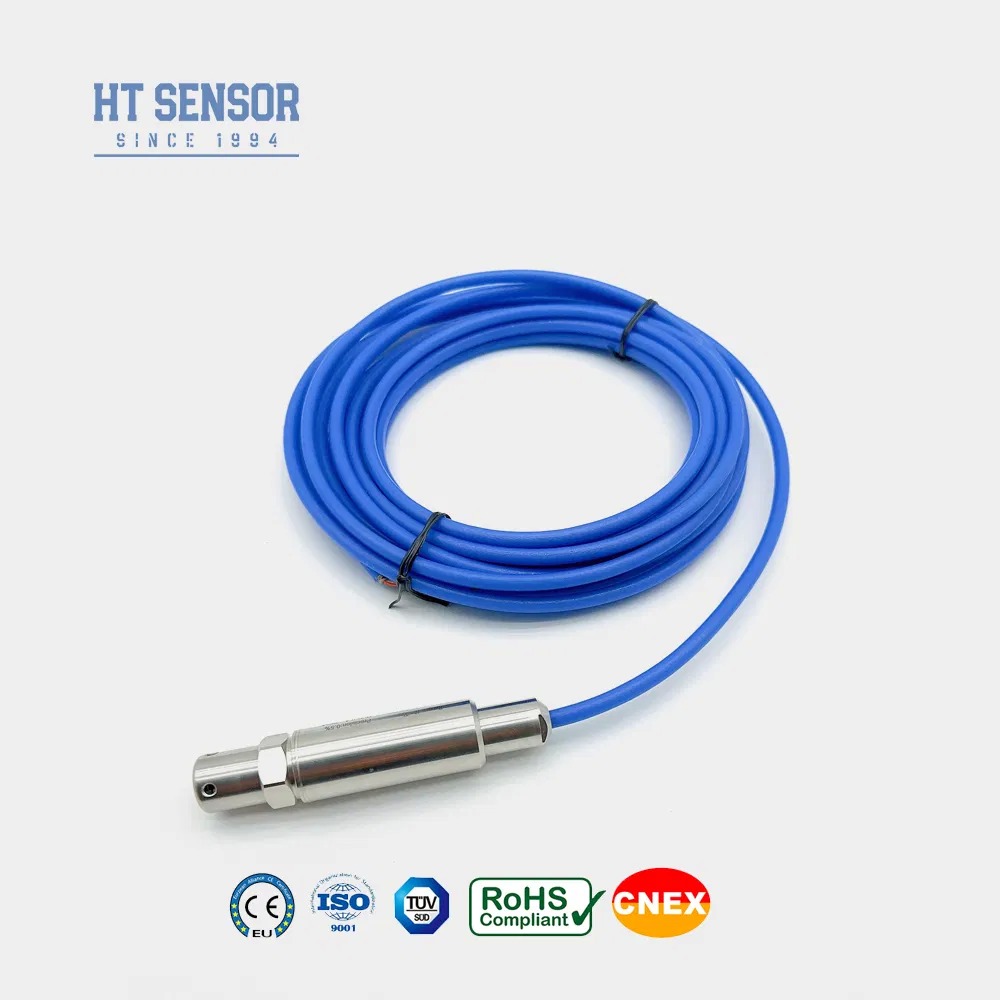

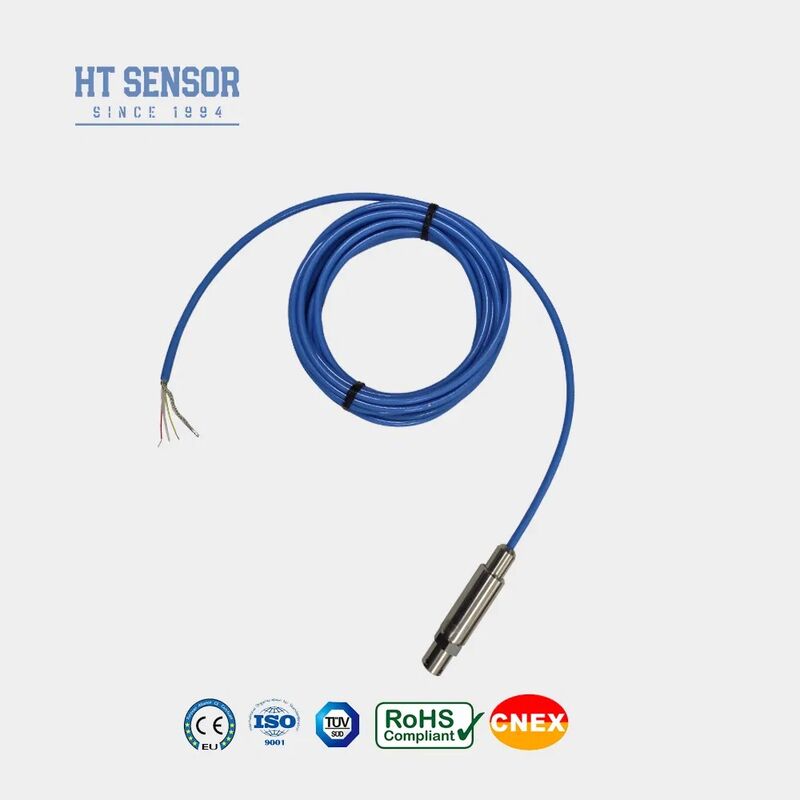

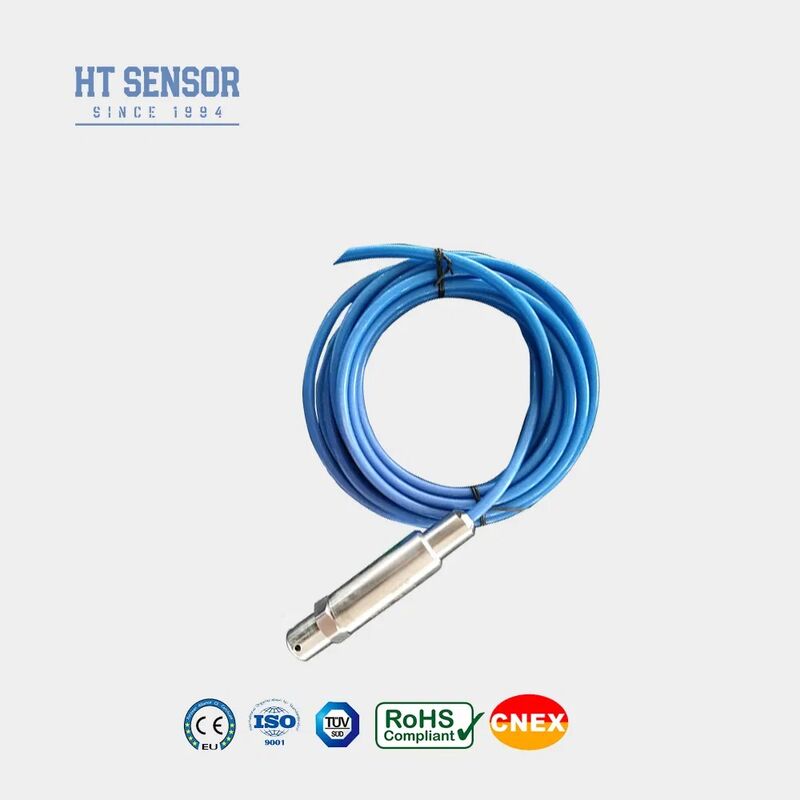

24Vdc Supply 4-20mA Output IP68 Waterproof Liquid Level Transmitter for Industrial Applications
Product Details
| Output Signal: | 4-20mA | Supply Voltage: | 12-30VDC |
|---|---|---|---|
| Measurement Range: | 0-400m | Overload Capacity: | ≤ 2 X Rated Range |
| Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) | Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability: | ±0.2%F.S/year (Max.) | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | 1Cr18Ni9Ti |
| Diaphragm Material: | 316L Stainless Steel | Insulation Resistance: | >=100MΩ@100VDC |
| Explosion-proof Rating: | ExiaIICT6 | Protection Rating: | IP68 |
| Weight: | 0.3kg | ||
| Highlight |
24Vdc Supply Liquid Level Transmitter,4-20mA Output Level Sensor,IP68 Waterproof Pressure Transducer |
||
Product Description
- Full stainless steel housing suitable for various testing environments
- Immersion-type probe measurement for easy installation
- Diverse output signal options
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316L stainless steel and non-corrosive liquids
- Monitoring water levels in sewage, industrial and municipal water systems, water tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol |
- Ensure the measured medium is compatible with product components during selection
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details and indicate in order
- Install lightning protection devices on-site and ensure reliable product and power supply grounding
| Component | Code | Description |
|---|---|---|
| Product Series | BH93420 | Pressure Transmitter |
| Measurement Range | 0~10m…400m | |
| Power Supply | D1 | 24VDC |
| Power Supply | D2 | 5VDC |
| Power Supply | D3 | Other |
| Output Signal | S1 | 4~20mADC |
| Output Signal | S2 | 1~5VDC |
| Output Signal | S3 | 0~5VDC |
| Output Signal | S4 | 0~10mADC |
| Output Signal | S5 | 0~20mADC |
| Output Signal | S6 | 0~10VDC |
| Output Signal | S7 | 0.5~4.5VDC |
| Output Signal | S8 | RS485 |
| Pressure Type | G | Gauge Pressure |
| Pressure Type | A | Absolute Pressure |
| Pressure Type | S | Sealed Reference Pressure |
| Material | 01 | 304 Stainless Steel |
| Material | 02 | 316L Stainless Steel |
| Cable Material | C1 | PE |
| Cable Material | C2 | PU |
Product Highlights
IP68-rated 24Vdc liquid level transmitter with 4-20mA output. Full stainless steel construction, corrosion-resistant, and explosion-proof (ExiaIICT6). High accuracy (±0.25%) and customizable options for diverse industrial applications.
