Detail Information

Output Signal:	4-20mA Or RS485	IP Rating:	IP68
Net Weight:	0.3kg	Diaphragm Material:	316L Stainless Steel
Accuracy:	0.25%, 0.5%	Cable Material:	PE, PU, PTFE
Measurement Range:	0~10m…400m	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity:	≤ 2X Rated Range	Operating Temperature:	-20~80ºC
Storage Temperature:	-30~100ºC	Housing Material:	Cast Aluminum, 1Cr18Ni9Ti
Insulation Resistance:	>=100MΩ@100VDC	Explosion-proof Rating:	ExiaIICT6
Supply Voltage:	15~30VDC
Highlight:	4-20mA Output Liquid Level Transmitter , 316L Stainless Steel Level Sensor , IP68 Waterproof Level Transducer

Product Description

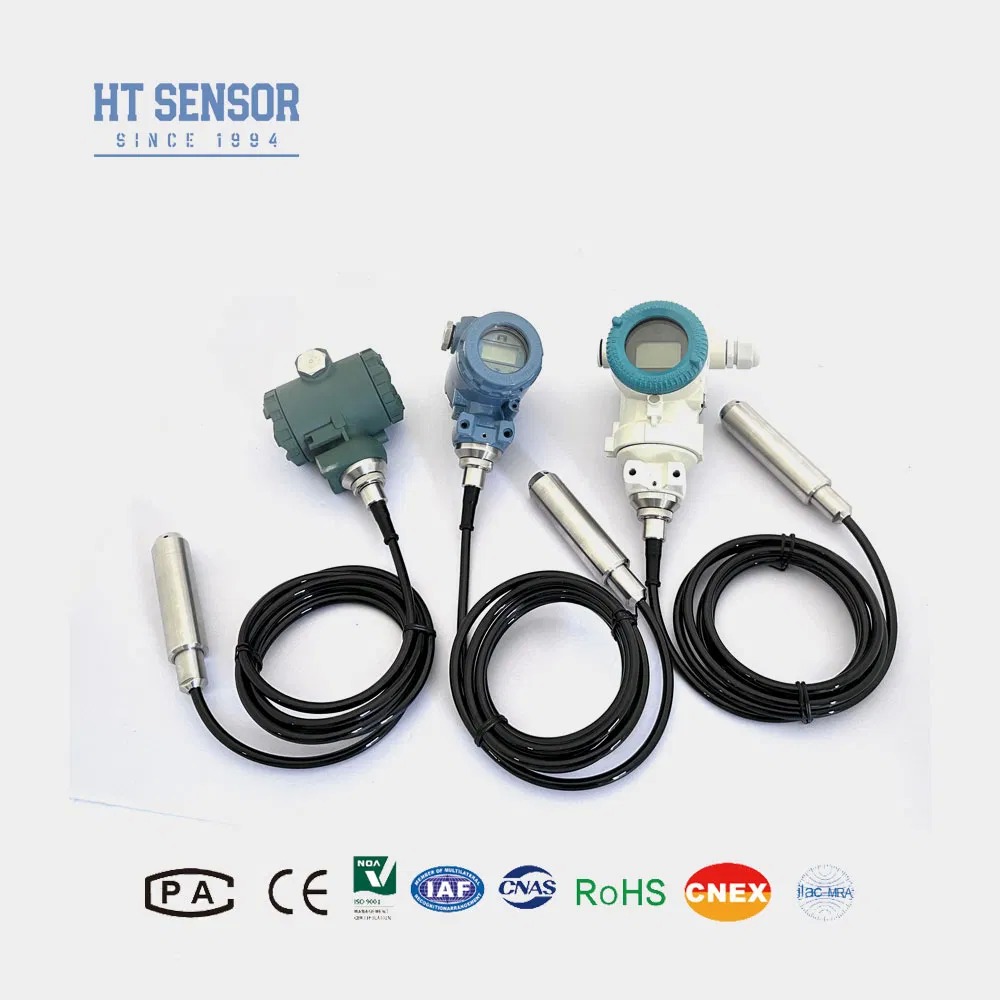

BH93420-III Oil Level Sensor with Display

The BH93420-III oil level sensor features a highly precise Piezoresistive diffused silicon pressure sensor for accurate liquid level measurement. It converts static pressure into standard 4-20mA output signals with linear relationship to liquid level.

Key Features

Split-type design for easy on-site wiring and calibration
Integrated LED display for real-time monitoring
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Multiple cable options: PE, PU, PTFE

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Parameters

Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Considerations:

• Ensure measured medium compatibility with product components

• Specify density of measured medium

• For strong electromagnetic or RF interference environments, provide details during ordering

• Install lightning protection devices and ensure proper grounding for reliable operation

Order Guide

BH93420 | Code | Outline Construction

| III | Liquid level transmitter with the 2088 housing

| | Measurement Range | 0~10m…400m

| | | Code | Power Supply

| | | D1 | 24VDC

| | | | S1 | 4~20mADC | S2 | RS485

| | | | | B5 | 2088 with display

| | | | | B6 | 3051A

| | | | | | G | Gauge Pressure

| | | | | | A | Absolute Pressure

| | | | | | S | Sealed Reference Pressure

| | | | | | | 01 | 304 Stainless Steel

| | | | | | | 02 | 316L Stainless Steel

| | | | | | | | C1 | PE

| | | | | | | | C2 | PU

| | | | | | | | C3 | PTFE

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: 24-month warranty after shipment. After-sales support responds within 24 hours with remote PC network instruction available.
