Detail Information

Model NO.:	BH93420-III	Output Signal:	4-20mA Or RS485
IP Rating:	IP68	Net Weight:	0.3kg
Diaphragm Material:	316L Stainless Steel	Accuracy:	0.25%, 0.5%
Cable Material:	PE, PU, PTFE	Measurement Range:	0~10m…400m
Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Overload Capacity:	≤ 2X Rated Range
Operating Temperature:	-20~80ºC	Storage Temperature:	-30~100ºC
Housing Material:	Cast Aluminum, 1Cr18Ni9Ti	Insulation Resistance:	>=100MΩ@100VDC
Explosion-proof Rating:	ExiaIICT6
Highlight:	316L Stainless Steel Liquid Level Transmitter , IP68 Waterproof Pressure Transducer , 4-20mA Output Level Sensor

Product Description

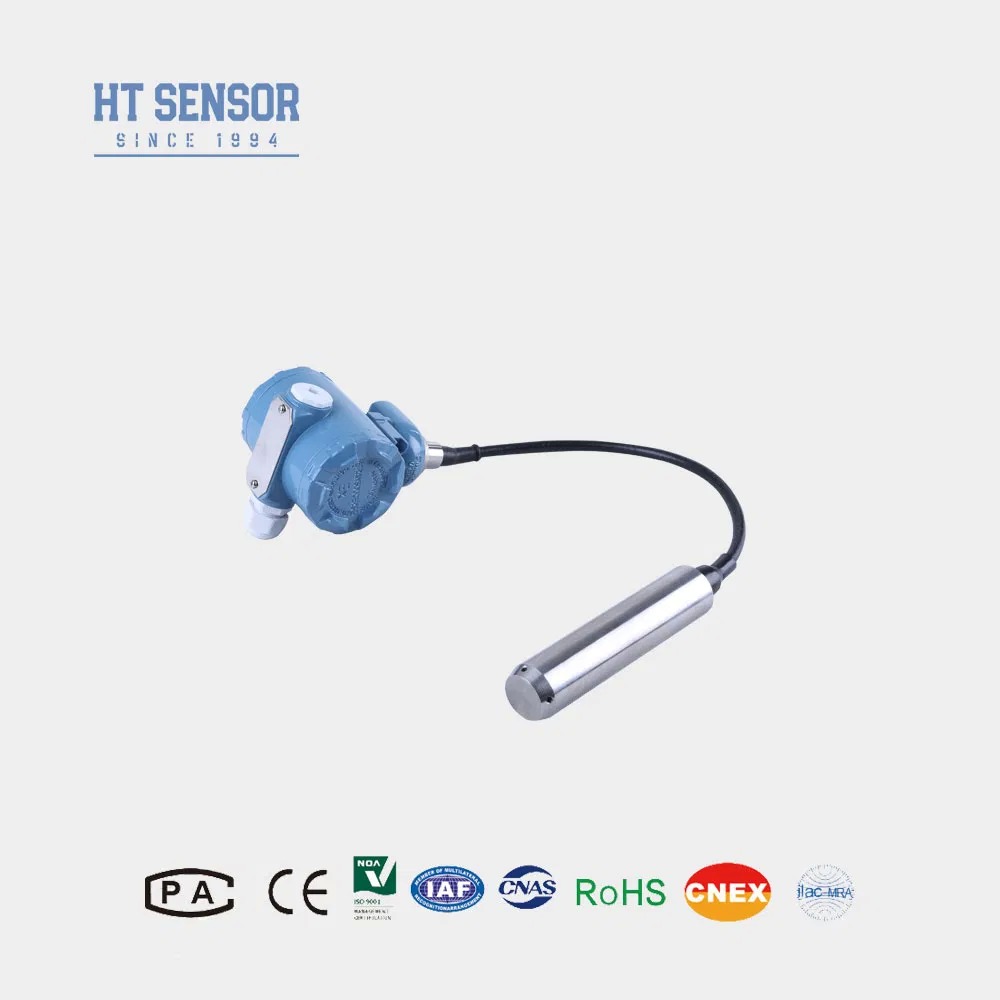

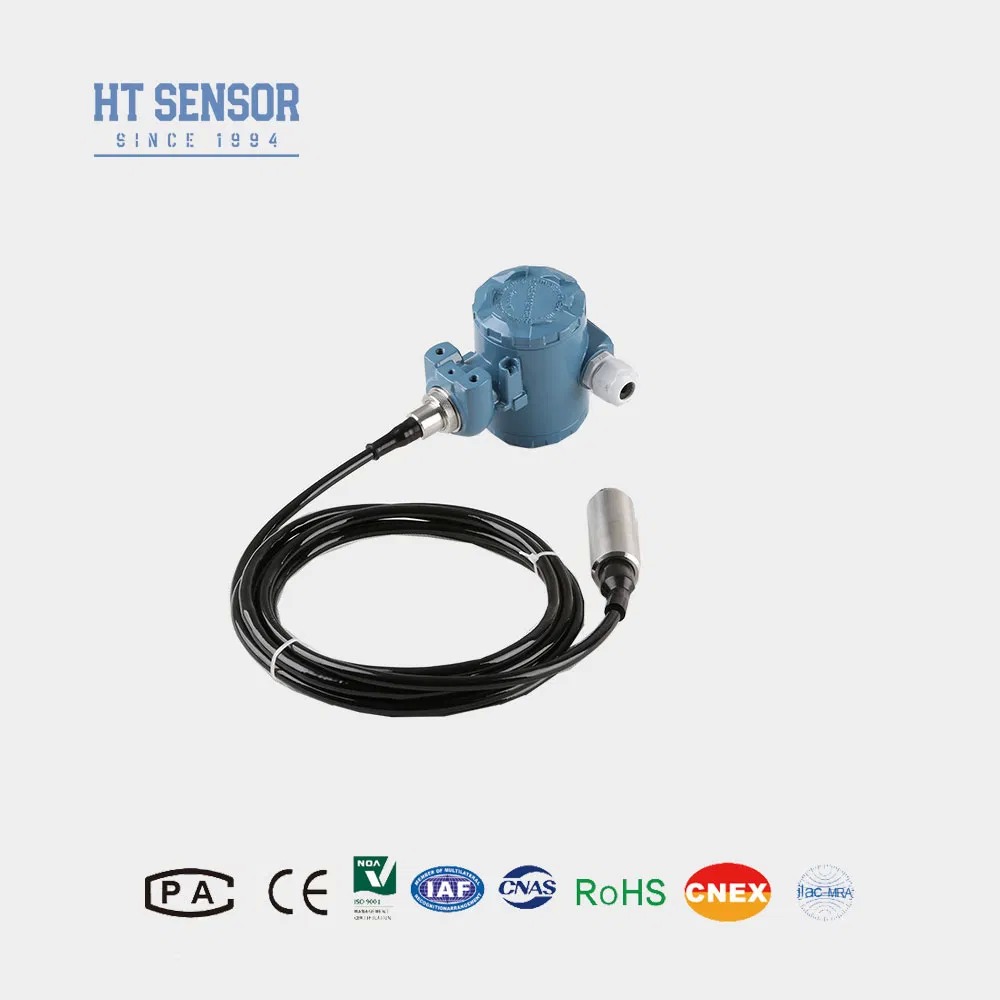

BH93420-III Pressure Transducer Level Sensor

The BH93420-III oil level sensor utilizes a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure directly related to water level and converts it into standard signal output using amplification circuitry, establishing a linear relationship between output signal and liquid level for precise measurement accuracy.

Product Features

Split-type design for easy on-site wiring and calibration

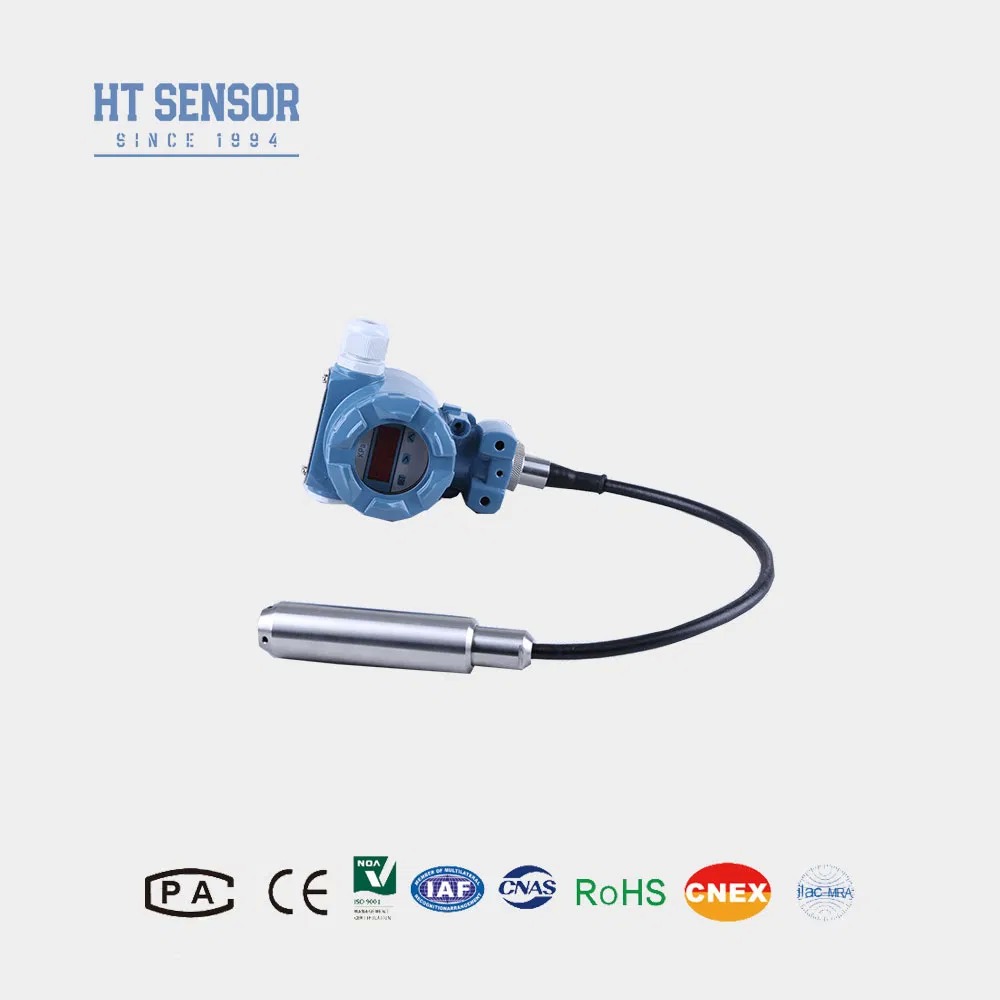

LED display for clear readings
Explosion-proof rating: ExiaIICT6
High protection rating: IP68
Cable options: PE, PU, PTFE

Applications

Compatible with 316LSS and noncorrosive liquids
Monitoring water levels in sewage, industrial and municipal water, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and other oil tank level monitoring

Performance Parameters

Measurement Range	0~10m…400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 2X rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC (0-1m . 0-2m); 0-70ºC
Operating Temperature	-20~80ºC
Storage Temperature	-30~100ºC
Vibration	10g,55Hz ~ 2kHz
Shock	100g
Housing Material	Cast aluminum, 1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68
O-Ring Seal	Fluoro rubber
Weight	~1.5Kg (without cable)
Cable Material	Polyethylene, Polyurethane, PTFE cable

Output Signal	Supply Voltage	Output Type
4~20mA	15~30VDC	2/3/4 wire
RS485 Communication Protocol		4 wire

Outline Construction

Electrical Connection

Selection Examples

Ordering Information

Important Considerations

Ensure measured medium compatibility with product components
Specify the density of the measured medium
For strong electromagnetic or radio frequency interference, provide details during ordering
Install lightning protection devices and ensure reliable grounding for optimal operation

Order Guide

BH93420	Base model code
III	Liquid level transmitter with 2088 housing
Measurement Range	0~10m…400m
D1	24VDC Power Supply
S1	4~20mADC Output Signal
S2	RS485 Output Signal
B5	2088 with display
B6	3051A Electrical Connection
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure
01	304 Stainless Steel Material
02	316L Stainless Steel Material
C1	PE Cable Material
C2	PU Cable Material
C3	PTFE Cable Material

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. After-sales responds within 24 hours, with remote PC network instruction available.

Tag:

Certification:	CE,RoHS

Minimum Order Quantity:	1
Price:	50

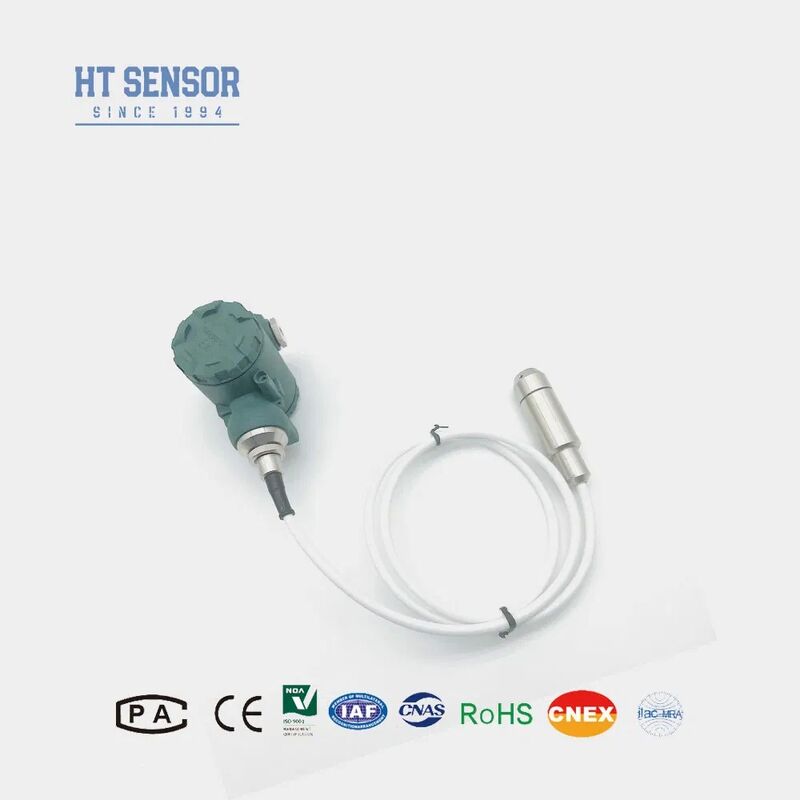

316L Stainless Steel IP68 Waterproof 4-20mA Output Liquid Level Transmitter Pressure Transducer for Fuel and Water
