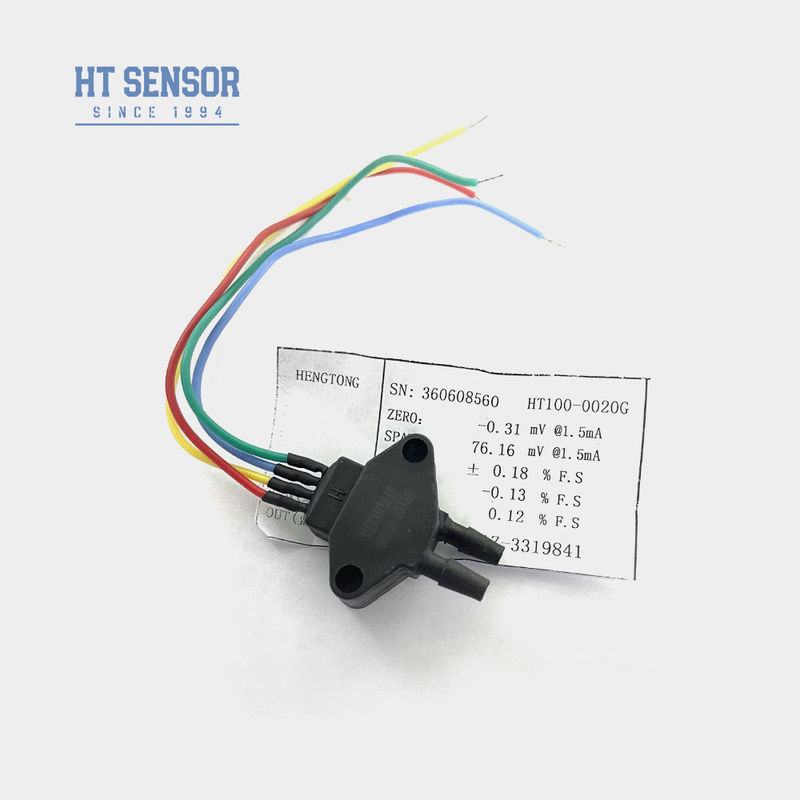

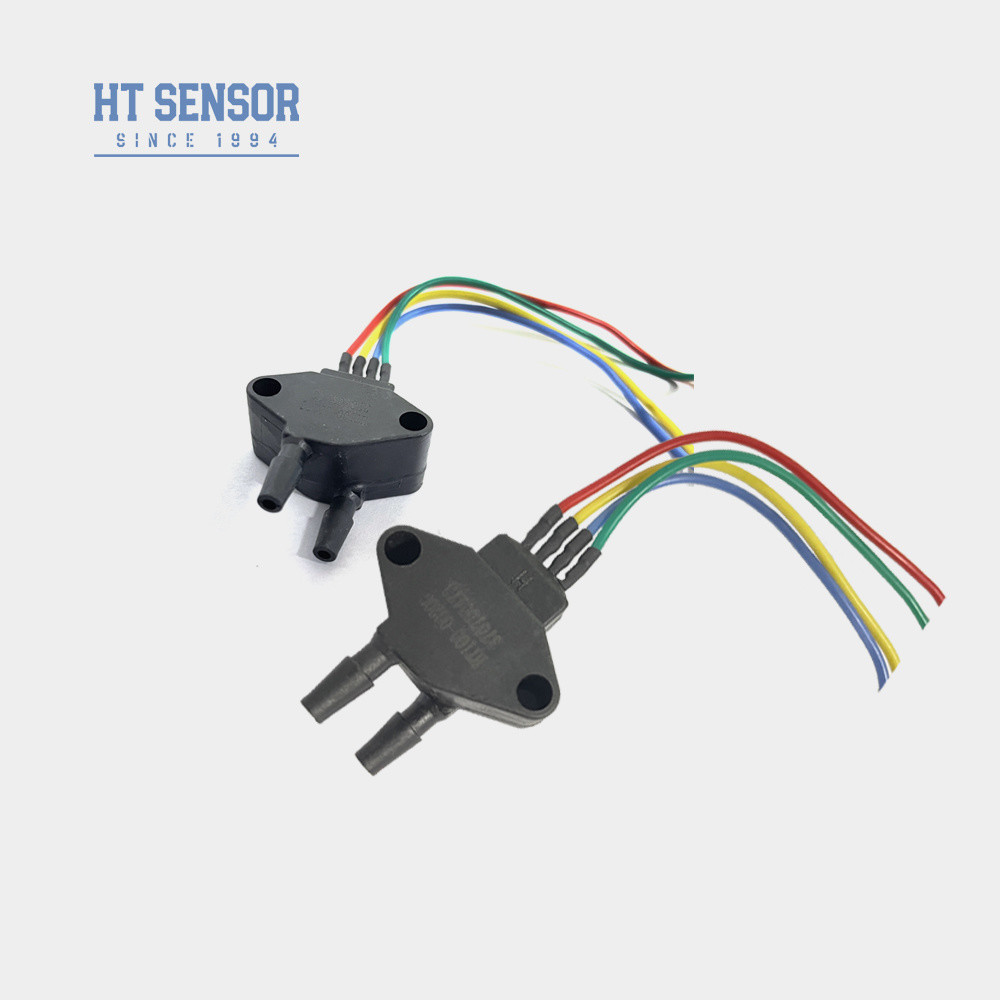

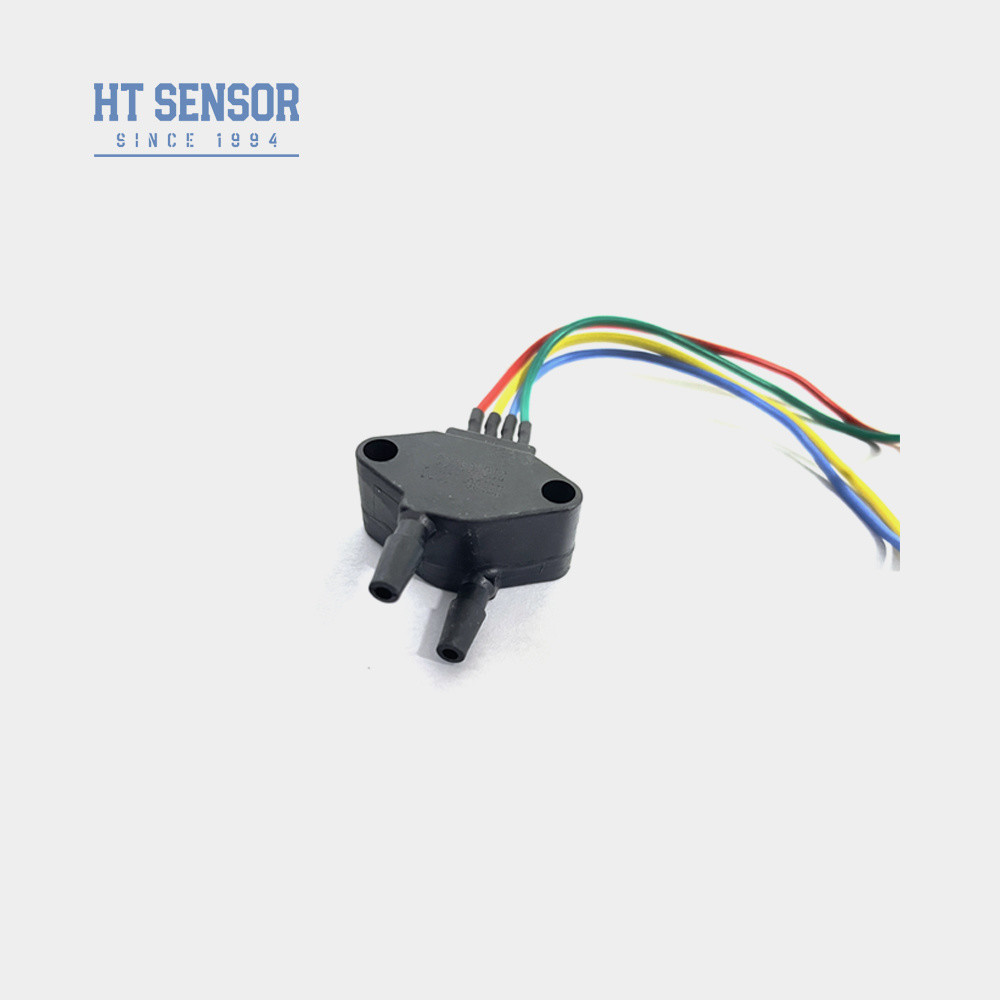

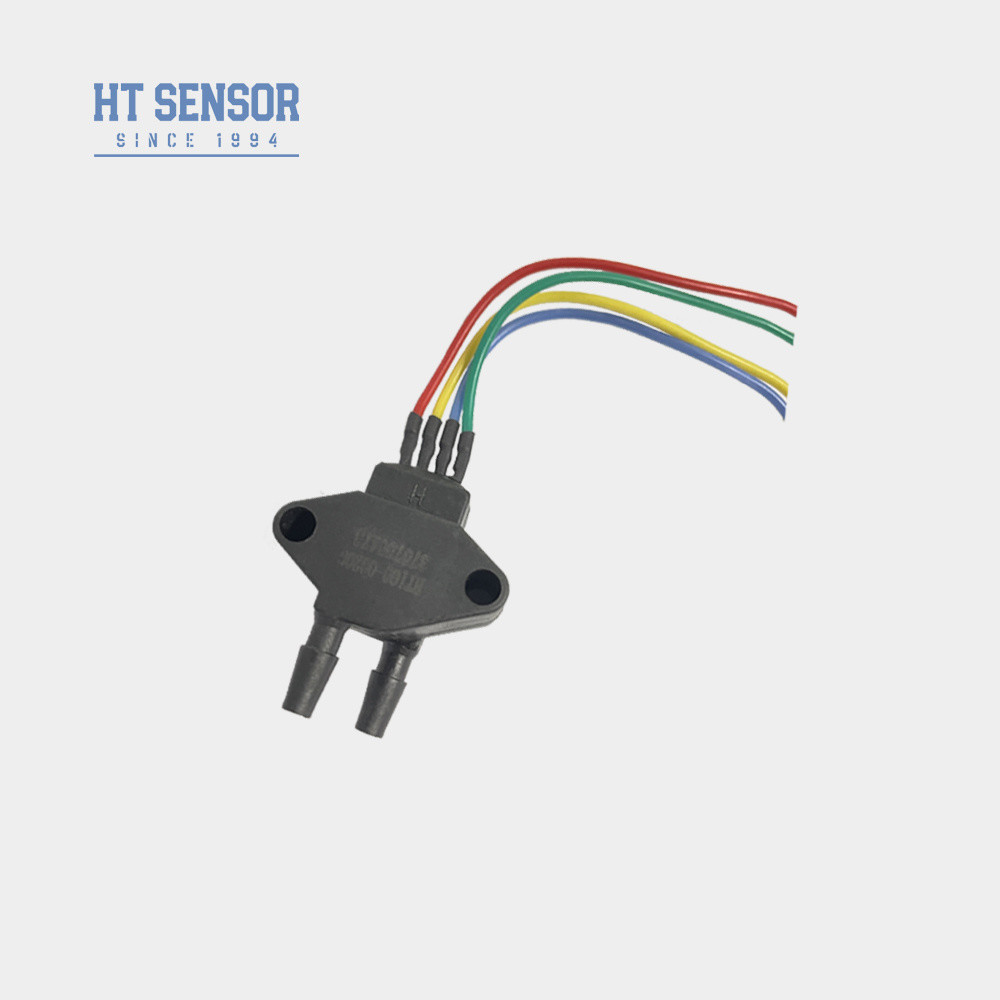

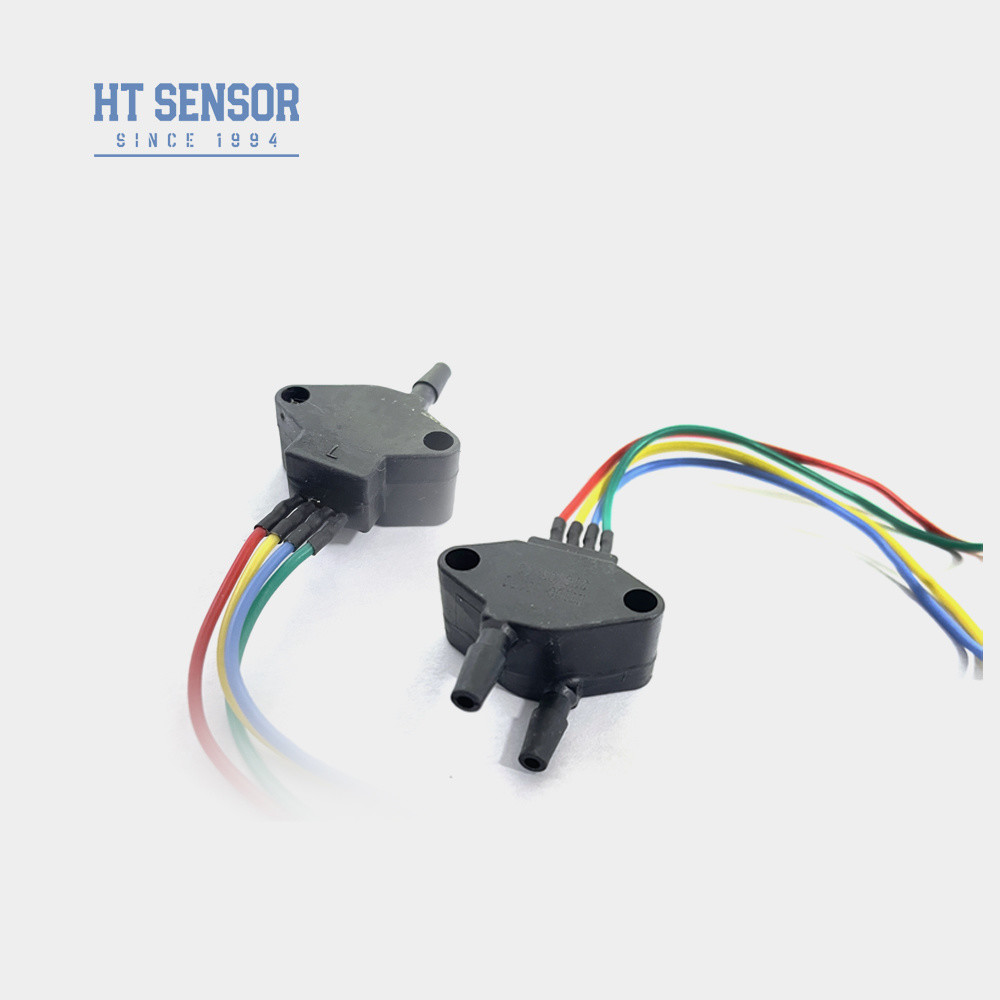

1.5mA Powered Plastic Differential Pressure Sensor Differential Level Sensor
Product Details
| Model NO.: | HT100 | Wiring Type: | Four-Wire |
|---|---|---|---|
| Measuring Medium: | Gas And Air | Cloure: | Black |
| Acc: | 0.2%FS | OUTPUT: | MV Signal |
| SUPPLY: | 1.5mA | Trademark: | HengTong |
| HS Code: | 9026209090 | Type: | Piezoresistive Pressure Sensor |
| Output Signal Type: | Analog Type | Material: | Stainless Steel |
| Highlight |
1.5mA plastic differential pressure sensor,differential level sensor with warranty,pressure transmitter sensor low power |
||
Product Description
Product Description
The HT100 is a high-performance pressure sensing device based on advanced diffused silicon technology, featuring a robust plastic encapsulation design. This sensor delivers outstanding measurement accuracy and long-term stability, specifically engineered for precise monitoring of dry, non-corrosive gases.
Product Features:
- Wide measurement range, 0~10KPa~2Mpa
- High reliability and excellent stability
- TO8 encapsulation technology
- Aerospace applications
Applications:
- Measurement of dry, non-corrosive gas pressures
- Pneumatic control systems
- Biomedical engineering for medical applications
- HVAC (Heating, Ventilation, and Air Conditioning) contro
- Aerospace testing for aviation-related purposes
- Power Supply: ≤2mA DC (Typical 1.5mA DC)
- Input Impedance:3KΩ~6KΩ
- Output Impedance:2.5KΩ~6KΩ
- Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires
| Performance Parameters: | ||||||
| Measurement Range | Gauge(G) | 10KPa,20KPa | ||||
| Typ | Max | Unit | ||||
| Linearity | ±0.15 | ±0.3 | %F.S | |||
| Repeatability | 0.05 | 0.1 | %F.S | |||
| Hysteresis | 0.05 | 0.1 | %F.S | |||
| Zero Offset Output | 0±1 | 0±2 | mV | |||
| Full Scale Output | ≤20KPa | 50±10 | 50±30 | mV | ||
| ≥35kPa | 100±10 | 100±30 | mV | |||
| Zero Offset Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Full Scale Temp. Drift | ≤20KPa | ±1 | ±2 | %F.S | ||
| ≥35kPa | ±0.5 | ±1 | %F.S | |||
| Compensated Temp. | ≤20KPa | 0~50 | ºC | |||
| ≥35kPa | 0~70 | ºC | ||||
| Operating Temperature | -20~80 | ºC | ||||
| Storage Temperature | -40~125 | ºC | ||||
| Allowable Overload | Take the smaller value between 3 times the full scale or 4MPa | |||||
| Burst Pressure | 5X the full scale | |||||
| Long-term Stability | 0.2 % | F.S/Year | ||||
| Diaphragm Material | 316L | |||||
| Insulation Resistance | ≥200MΩ 100VDC | |||||
| Vibration | No change under conditions of 10gRMS, 20Hz to 2000Hz | |||||
| Shock | 100g,11ms | |||||
| Response Time | ≤1ms | |||||
| Weight | ~12.5g | |||||
| The parameters are tested under the following conditions: Constant current of 1.5mA and ambient temperature of 25°C | ||||||
| Ordering tips |
- 1.When in use, pay attention to the sealing issue at the connection of the faucet joint.
- 2. The medium to be tested is a dry and non-corrosive gas and must not be used to test liquids.
- 3. If there are any changes to the pins, please refer to the labels on the actual core wires.
