| Model NO.: | BP156-P | Power Supply: | 10-36VDC |
|---|---|---|---|
| Output: | 4-20mA | Housing Material: | 304S.S. 316L S.S |
| HS Code: | 9026201090 | Type: | Normal Pressure Transmitter Sensor |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | Pressure Range: | -100Kpa -0kpa~10kpa...20MPa |
| IP Rating: | IP65 | Customization: | Available | Customized Request |
| Highlight: | Pressure Transmitter Sensor OEM,Pressure Transmitter Sensor High Accuracy,IP65 Gas Water Pressure Transmitter |
||

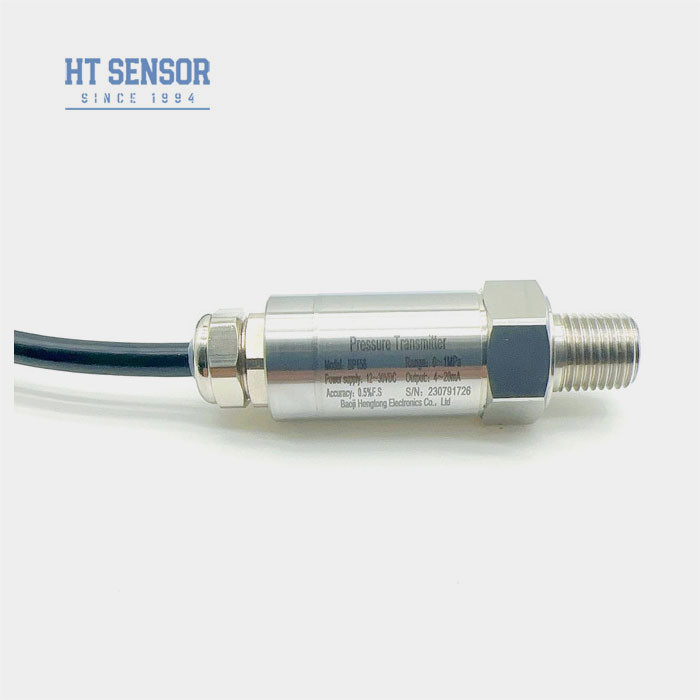

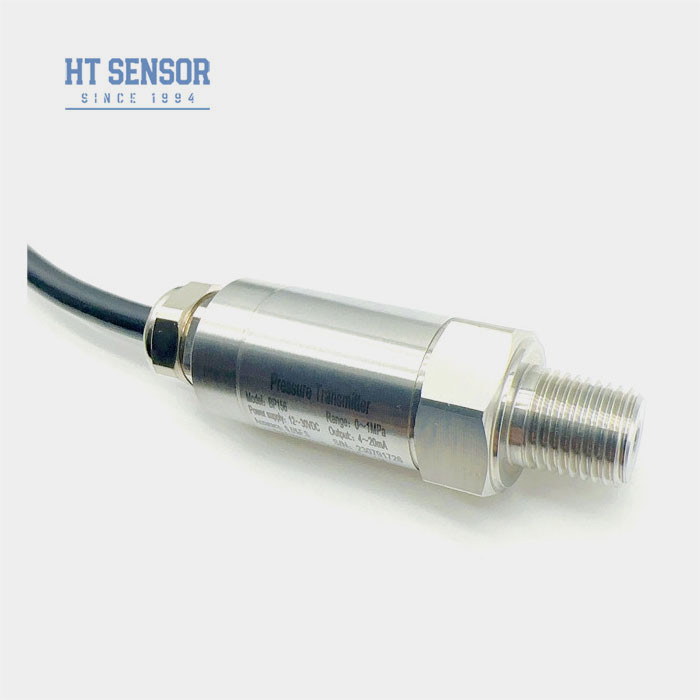

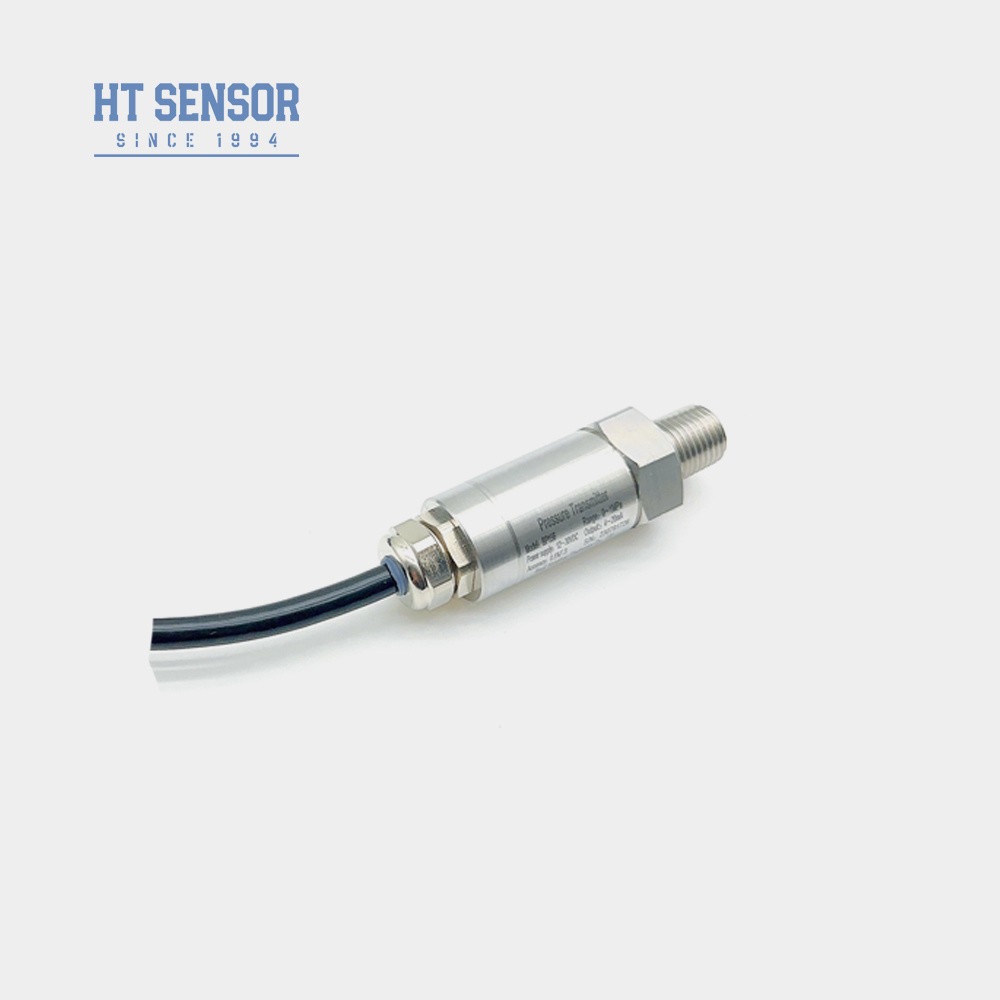

Introduction of pressure transmitter sensor:
The BP156 pressure transmitter sensor is a cost-effective product specially developed for air compressors and refrigeration equipment. It incorporates the latest technology and is equipped with high-performance transmission circuits developed by our company. The transmitter has the characteristics of small size, strong moisture resistance and excellent anti-electromagnetic interference ability. Products for parts, semi-finished products, finished products are strictly tested and aging selection, stable and reliable performance. The sensor is known for its high precision and accuracy, making it ideal for laboratory equipment and research applications.
Product Features of pressure transmitter sensor:
1. Wide measuring range,
2. Stainless steel structure,
3. Compact and lightweight design
4. High precision.
Applications of pressure transmitter sensor:
1. 316L stainless steel is used for pressure measurement of non-corrosive gases and liquids
2. Applications in the Marine and aviation industries
3. Used in industrial field processes, such as petroleum, chemical, metallurgy, power generation and hydrology
4. For hydraulic and pneumatic control systems
| Performance Parameters of pressure transmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |

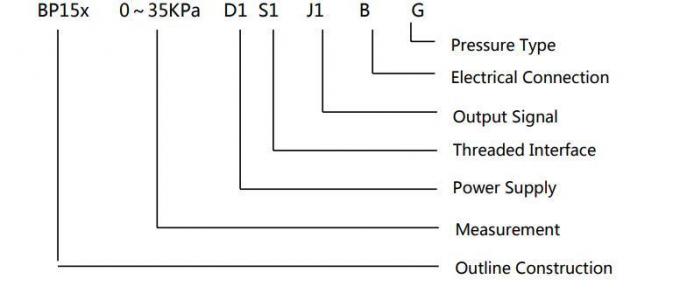

| Selection Examples |
| Ordering tips |
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||

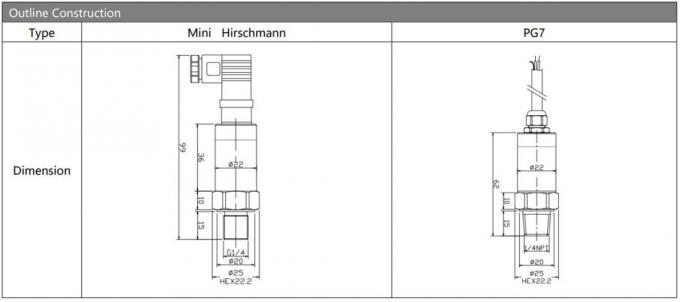

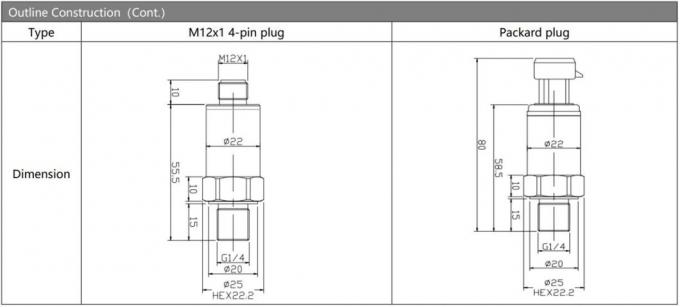

| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||

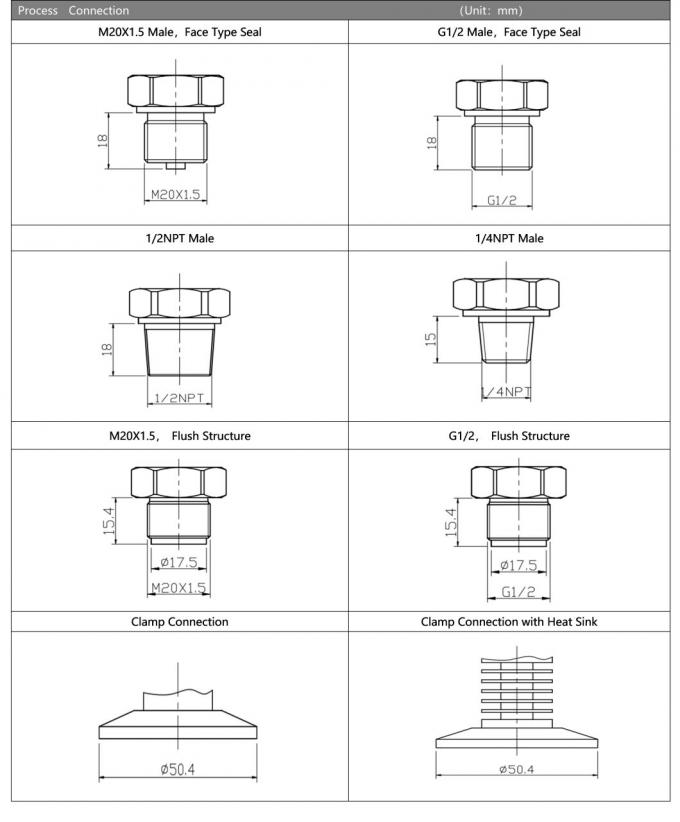

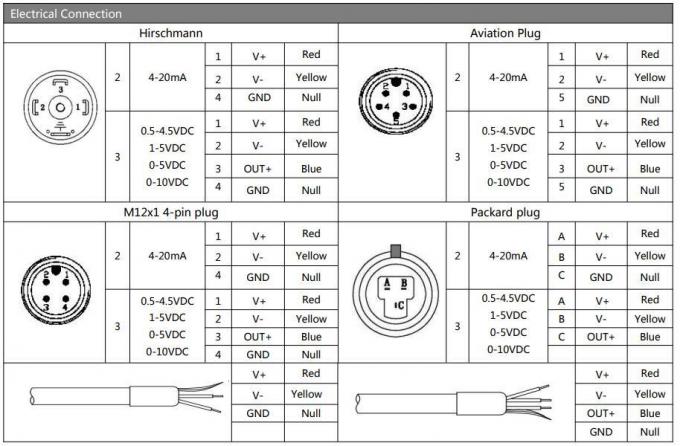

| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
