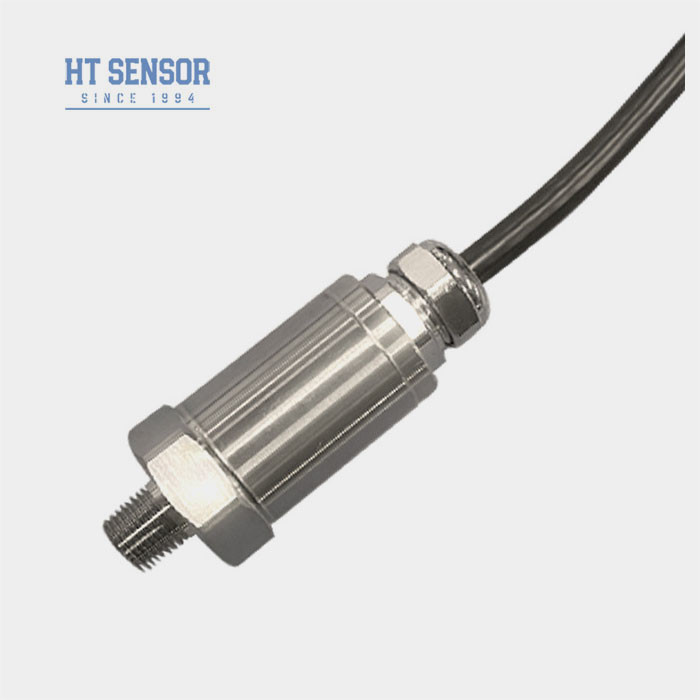

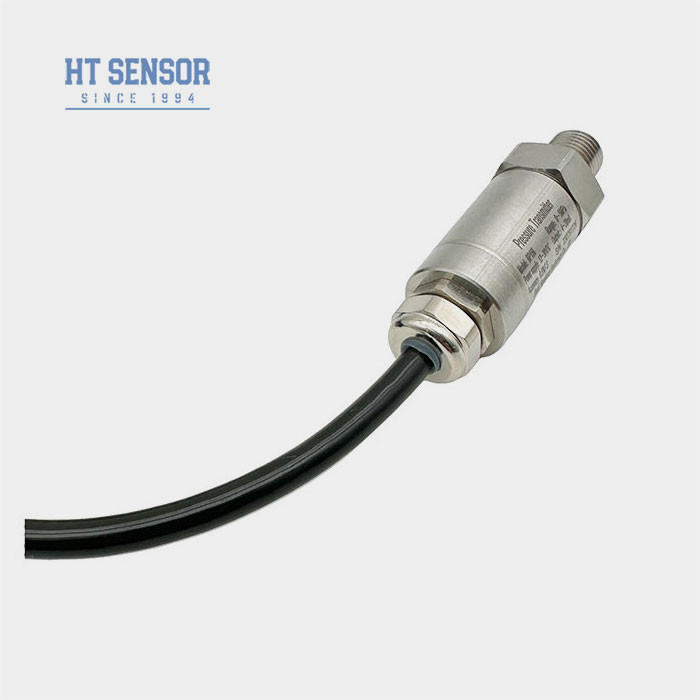

BP156 OEM 4-20mA High Stable Pressure Transmitter Sensor for Water Gas Liquid Measurement
Product Details
| Model NO.: | BP156 | Housing Material: | Stainless Steel |
|---|---|---|---|
| Trademark: | HTsensor | Origin: | China |
| Structure Type: | Diffused Silicon Pressure Transmitter Sensor | Accuracy Grade: | 0.5%F.S. |
| Pressure Range: | 0kpa~10kpa...20MPa | IP Rating: | IP65 |
| Customization: | OEM And ODM | Power: | 5VDC //24VDC |
| Highlight |
4-20mA pressure transmitter sensor,high stable pressure sensor for liquids,OEM pressure transmitter for gas measurement |
||
Product Description
BP156 OEM 4-20mA High Stable Pressure Transmitter Sensor for Water Gas Liquid Measurement
BP156 Pressure Transmitter
Introduction of pressure transmitter sensor:
BP156 pressure transmitter sensor utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products,and finished products to ensure stable and reliable performance.
Product Features of pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. IP65 protection rating stainless steel structure
3. High precision, all stainless steel structure
Applications of pressure transmitter sensor:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters of pressure transmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples |
| Ordering tips |
1. When selecting the product, please ensure that the tested medium is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from.If not specified, polyethylene cable material can be used.If you need different cable materials, please indicate in the order.7. In case of special requirements such as strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference, please inform us and indicate in the order.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
