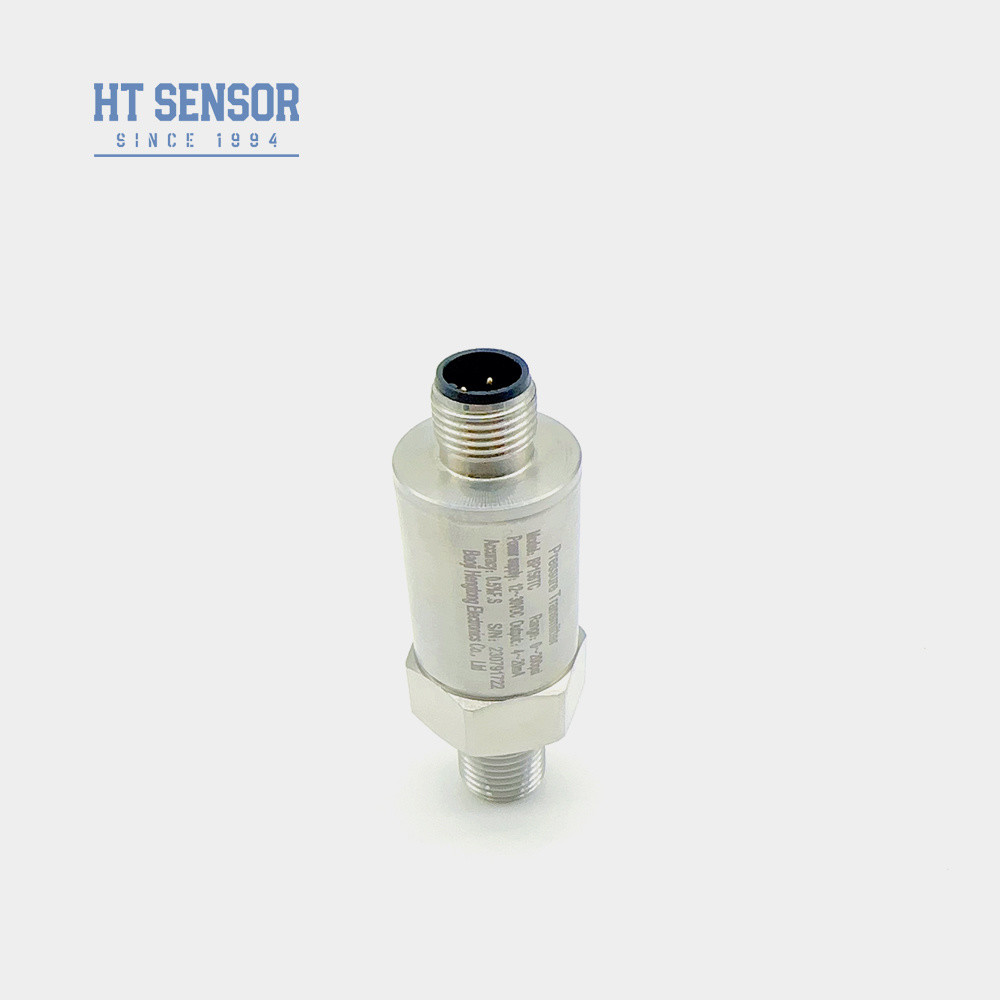

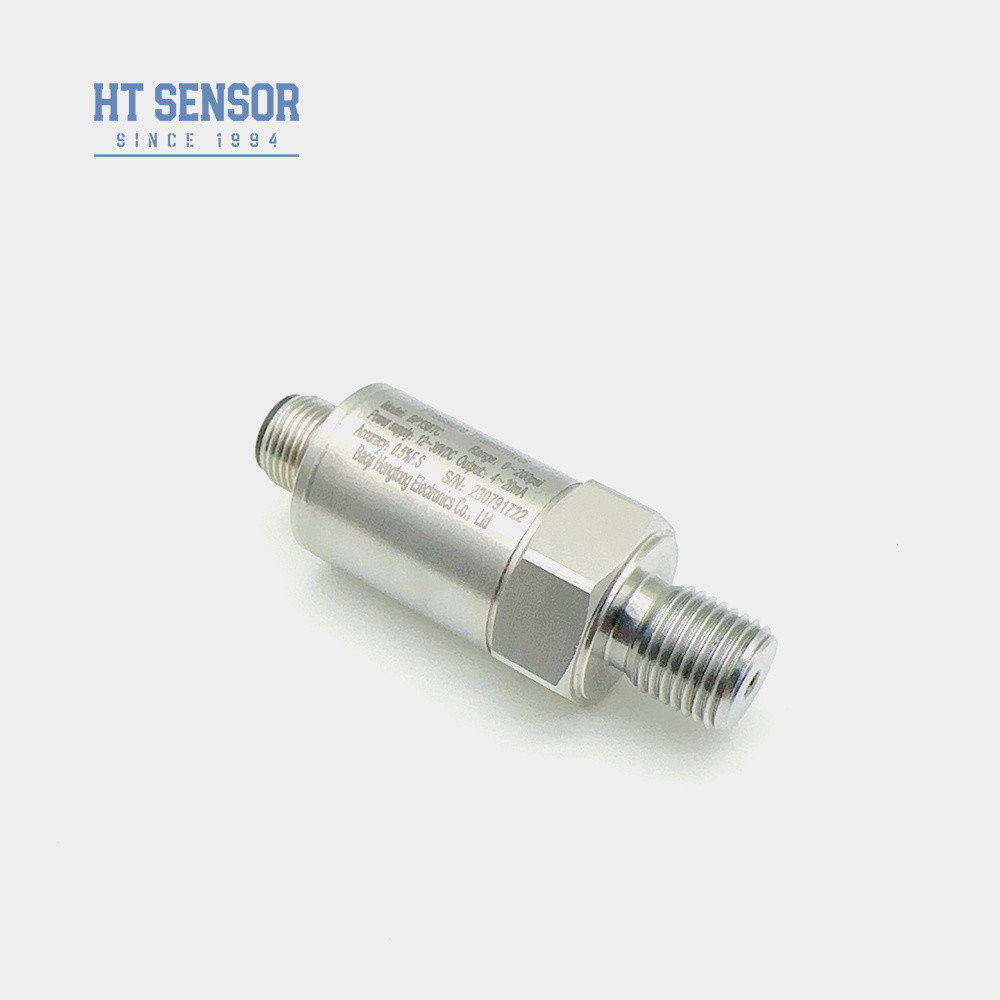

BP156 Pressure Transmitter
Introduction of pressure transmitter sensor :
BP156 pressure transmitter sensor utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products,and finished products to ensure stable and reliable performance.
The loose silicon pressure transmitter indirectly measures the measured pressure by measuring the deformation of the silicon diaphragm and converts it into the corresponding electrical signal output. Due to its lightweight nature, the lightweight pressure transmitter is suitable for mobile or temporary applications and is easy to install and use in different locations
Product Features:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. IP65 protection rating stainless steel structure
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure
Applications:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
|
Performance Parameters:
|
|
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
Selection Examples:
| Ordering tips: |
1. Measurement range: Determine the required pressure measurement range, i.e. the minimum and maximum pressure values to be measured. Ensure that the measurement range of the selected diffused silicon pressure transmitter meets the requirements of the application.
2. Output signal type: Determine the desired output signal type, such as an analog signal (such as 4-20mA or 0-10V) or a digital signal (such as RS485 or Modbus). Make sure the output signal type of the transmitter you choose is compatible with your control system or device.
3. Accuracy requirements: Determine the required pressure measurement accuracy. Different applications may have different accuracy requirements, choose the diffused silicon pressure transmitter that suits your application needs.
4. Temperature range: Consider the temperature range of the application environment to ensure that the selected transmitter can work properly in this temperature range.
5. Media compatibility: Understand the properties of the medium being measured, such as liquid or gas, and ensure that the selected diffused silicon pressure transmitter is compatible with that medium.
6. Mounting method: Determine the mounting method of the transmitter, such as flange mounting, thread mounting or other methods. Make sure the transmitter you choose matches your installation needs.
7. Protection: Consider the protection level requirements of the application environment, such as waterproof and explosion-proof levels. Select a diffused silicon pressure transmitter that meets the requirements.
8. Certification and standards: Find out if the selected transmitter complies with relevant certification and standard requirements, such as CE certification, RoHS directive, etc.
9. Supplier selection: Select a reliable supplier with a good reputation and reliable after-sales service to ensure product quality and after-sales support
| Order Guide: | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…20MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
