| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BP157 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP157 | DIE: | NOVA Sensor Die |
|---|---|---|---|
| Compensation Temperature: | -10~70℃ | Housing Material: | 304 S.S |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | HS Code: | 9026201090 |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.25%, 0.5% |
| Pressure Range: | 0kpa~10kpa...20MPa | IP Rating: | IP65 |
| Highlight: | High Accuracy Pressure Transmitter Sensor IP65,Pressure Transmitter Sensor Industrial RoHs,Air Water Pressure Sensor RoHs |
||

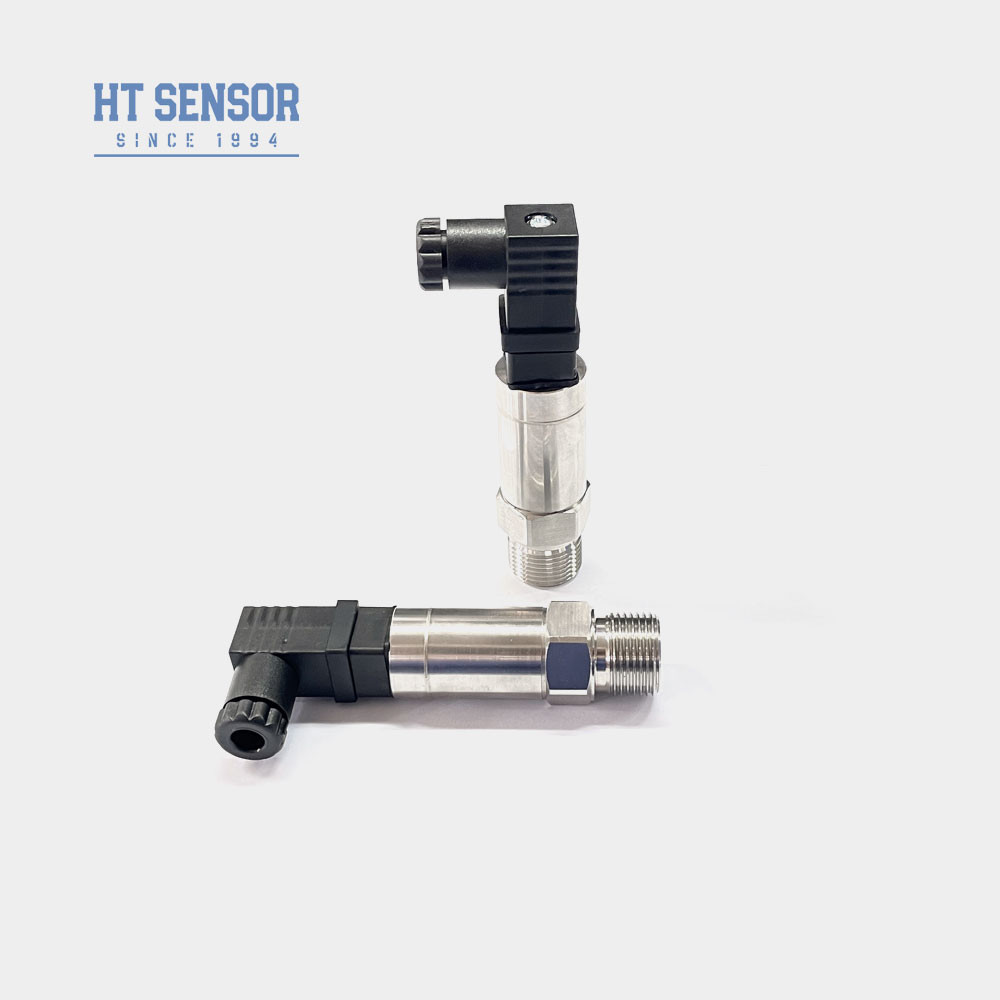

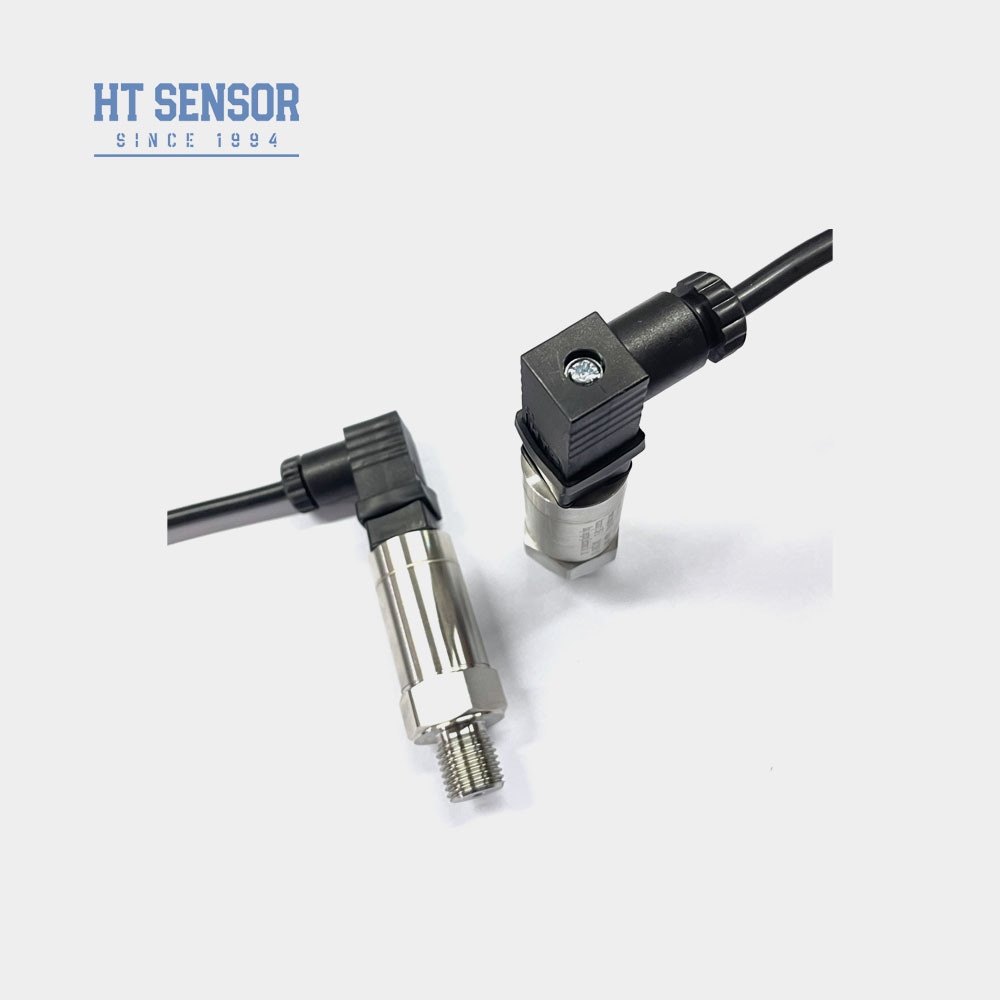

BP157 Pressure Transmitter
Introduction of pressure transmitter sensor :
The BP157 pressure transmitter sensor employs an HT series silicon pressure-resistant isolation membrane oil-filled core as its signal measuring element. Housed in stainless steel, the signal processing circuitry converts the sensor signal into a standard output signal. Through extensive testing and aging screening of components, semi-finished, and finished products, this product guarantees stable and dependable performance. It offers precise pressure measurements, ensuring the safety and efficiency of industrial operations. .It provides accurate pressure measurements, ensuring the safety and efficiency of industrial operations.
Product Features of pressure transmitter sensor :
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. IP65 protection rating stainless steel structure
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure
Applications of pressure transmitter sensor :
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters: | |
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples: |
| Ordering tips: |
| Order Guide: | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
