| Model No.: | BP157 | Accuracy: | ±0.5% |
|---|---|---|---|
| Connection Type: | G1/4,1/4NPT, 1/8NPT | Output Signal: | 4-20mA,0.5-4.5VDC |
| Power Supply: | 24VDC,5VDC | Pressure Type: | Gauge Pressure,Absolute Pressure, Sealed Pressure |
| Process Temperature: | -20℃~80℃ | Product Name: | Pressure Transmitter Sensor |
| Protection Grade: | IP65 | Weight: | 0.2kg |
| High Light: | 1/8NPT Silicon Pressure Transmitter,Silicon Pressure Transmitter For Pipeline,Water Level Pressure Sensor For Pipeline |
||
Silicon Pressure Transmitter Sensor Water Level Sensor For Pipeline Pressure Test

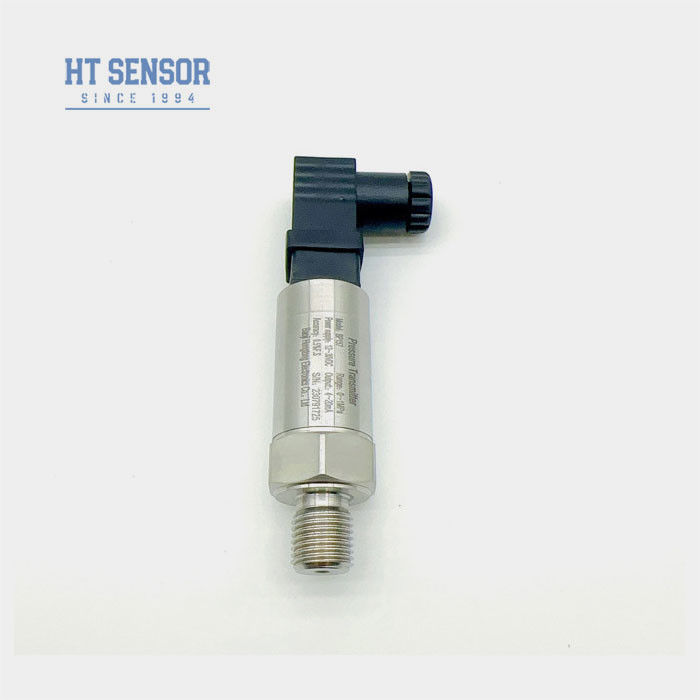

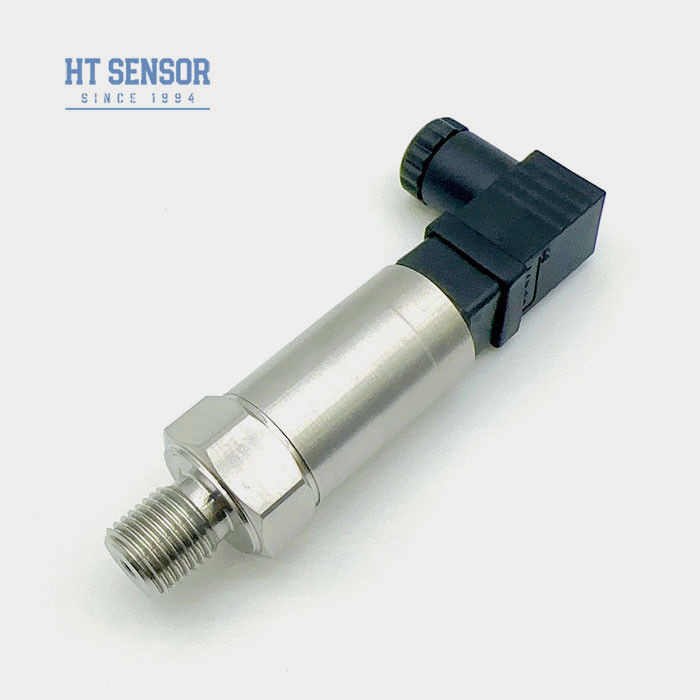

BP157 pressure transmitter
Introduction of pressure transmitter sensor:
BP15 series pressure transmitter utilizes the HT series silicon pressure-resistant isolation membrane oil-filled core as the signal measuring element.The signal processing circuit is located inside a stainless steel housing,converting the sensor signal into a standard output signal. The product has undergone rigorous testing and aging screening of components, semi-finished products, and finished products to ensure stable and reliable performance.
Product Features:
Applications:
Performance Parameters:
| Measurement Range | 0kPa ～ 10kPa…10MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Pressure | ≤ 1.5 times of the rated range |
| Accuracy @ 25℃ | ±0.25% (Typ.) , ±0.5% (Max.) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Temperature error -Zero | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Temperature error -Span | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Compensation Temperature | 0-50 ℃(<35KPa), 0-70℃(standard ) -10~70(customizable) |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~120℃ |
| Housing Material | 304 SS |
| Diaphragm Material | 316L SS |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| Sealing material | Fluoro rubber or full weld seal |
| Weigh | ~0.20kg |
| Output signal | Supply Voltage | Output Type |
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0/1～10V | ||
| 0.5～4.5V | 5VDC |
Order Guide:
| BP15X | Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.0 meter | ||||||
| 7 | Mini DIN Connector | 8 | Hirschmann Connector | ||||||
| Measurement Range | 0kPa ～ 10kPa…10MPa | ||||||||
|
(0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4～20mADC | S5 | 0～20mADC | ||||||
| S2 | 1～5VDC | S6 | 0～10VDC | ||||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | ||||||
| S4 | 0～10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | G1/4 | ||||||||
| J2 | G1/8 | ||||||||
| J3 | 1/4 NPT | ||||||||
| J4 | 1/8NPT | ||||||||
| J5 | 7/16-20UNF | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
