Place of Origin: | Baoji,China |
---|---|
Brand Name: | HT SENSOR |
Certification: | RoHs,ISO9001 |
Model Number: | BP93420-I |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Standard Export Package |
Delivery Time: | 5-8 work days |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 5000PCS/Month |
Model NO.: | BP93420-I | Power: | 5VDC /12-36VDC |
---|---|---|---|
Connector: | IP67 Liquid Level Cable | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
Housing Material: | 316LS.S. Or 304S.S. | Measuring Medium: | Air. Water .oil And So On |
Accuracy Grade: | 0.5%F.S 0.25%F.S | Pressure Range: | 0kpa~10kpa...20MPa |
Customization: | OEM And ODM | Thread: | G1/4 M20*1.5 Or OEM |

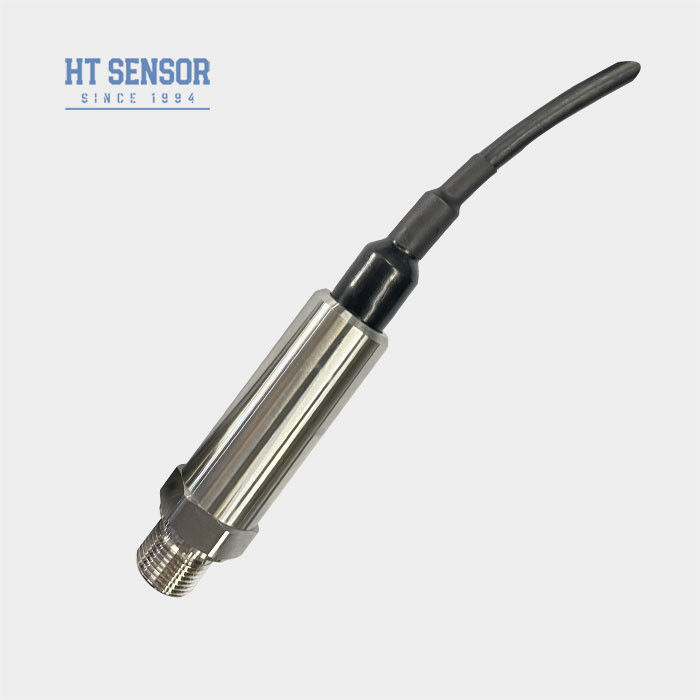

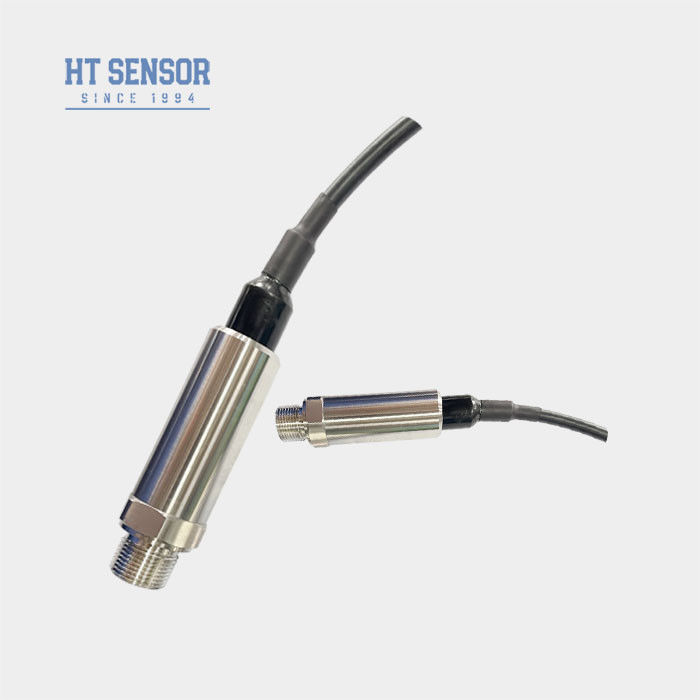

BP93420-I silicon Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP93420-I pressure transmitter sensor is a pressure transmitter specially designed to measure water level and oil level. IP68 package structure provides effective waterproof digital pressure measurement products. It adopts the latest application of digital technology in the field of sensor manufacturing. Combined with the world's most advanced pressure transmitter design and manufacturing technology, precision digital temperature compensation and nonlinear correction technology, integrated structural design and standardized signal output, small size, light weight, wide coverage, suitable for all industries requiring precise fluid pressure measurement.
Performance Parameters of pressure transmitter sensor | |
Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | 0.1%FS |
Hysteresis | 0.1%FS |
Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Explosion-proof Rating | Ex db IIC T6 Gb |
Protection Rating | IP65 |
O-Ring Seal | Fluoro rubber |
Weight | ~0.15kg |
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC |
Product Features of pressure transmitter sensor:
Applications of pressure transmitter sensor:
Ordering tips of pressure transmitter sensor |
Order Guide of pressure transmitter sensor | ||||||||
BP93420XX | Pressure Transmitter | |||||||
Code | Outline Construction | |||||||
IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
IC | High-temperature Pressure Transmitter | |||||||
IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
Code | Power Supply | |||||||
D1 | 24VDC | |||||||
D2 | 5VDC | |||||||
D3 | Other | |||||||
Code | Output Signal | |||||||
S1 | 4~20mADC | S5 | 0~20mADC | |||||
S2 | 1~5VDC | S6 | 0~10VDC | |||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
S4 | 0~10mADC | |||||||
Code | Pressure Connection | |||||||
J1 | M20×1.5 | |||||||
J2 | G1/2 | |||||||
J3 | G1/4 | |||||||
J4 | 7/16-20UNF | |||||||
J5 | Other | |||||||
Code | Electrical Connection | |||||||
B1 | Hirschmann | |||||||
B2 | PG7 Plug | |||||||
B3 | Sealed Cable Output | |||||||
B4 | 2088 Industrial Casing | |||||||
B5 | 2088 Industrial Casing with Display | |||||||
B6 | Other | |||||||
Code | Pressure Type | |||||||
G | Gauge Pressure | |||||||
A | Absolute Pressure | |||||||
S | Sealed Reference Pressure |
