1/2BSP Flush Diaphragm Pressure Sensor 2NPT 4-20mA Silicon Pressure Sensor
Product Details
| Model NO.: | BPHT24-IX | Customized: | Customized |
|---|---|---|---|
| Housing Material: | 304 S.S | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Specification: | Silicon Pressure Sensor | Measurement Pressure Range: | 0~35Kpa…~20MPa |
| Accuracy Grade: | 0.5% | ||
| Highlight |
1/2BSP Flush Diaphragm Pressure Sensor,Flush Diaphragm Pressure Sensor 2NPT,2NPT 4-20mA Silicon Pressure Sensor |
||
Product Description

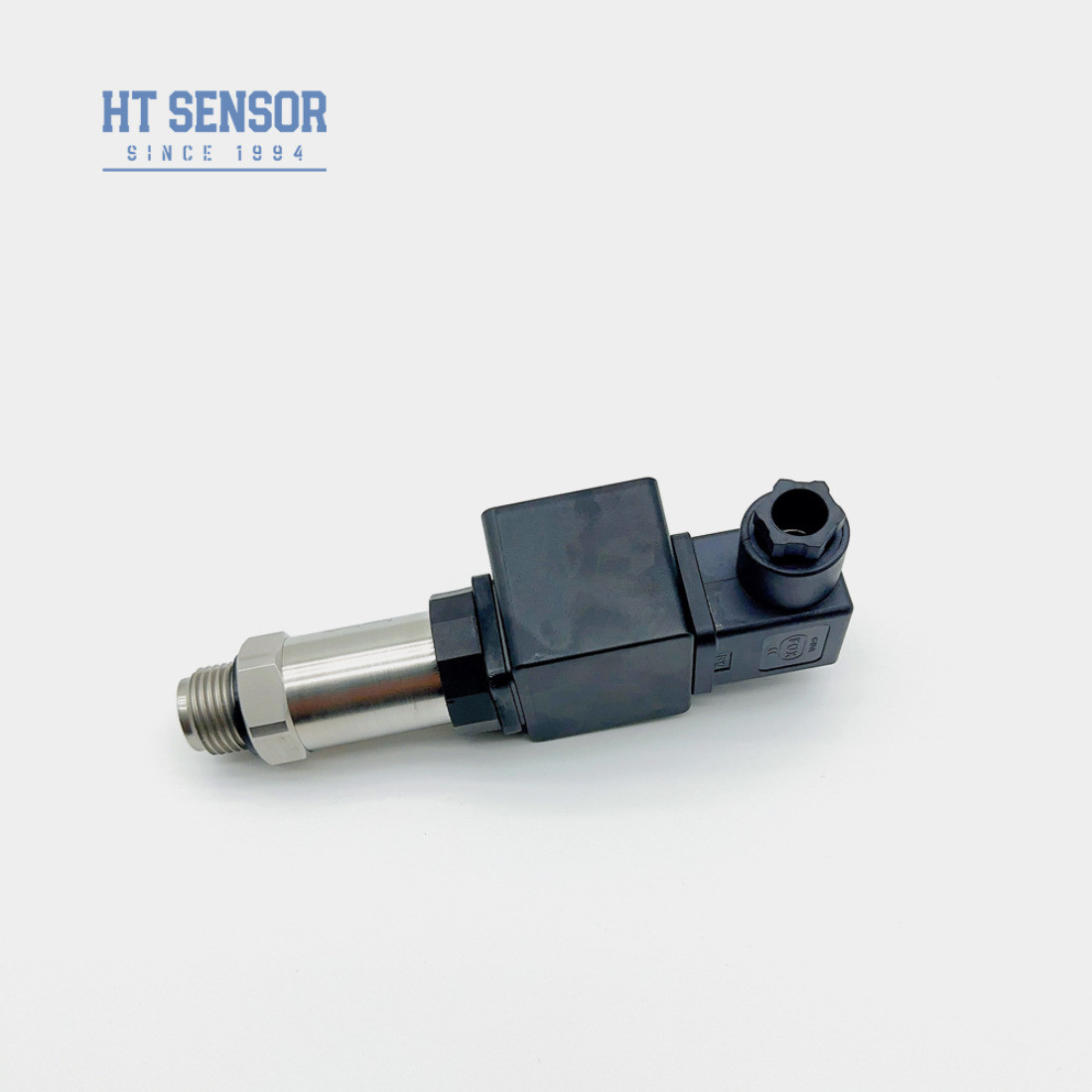

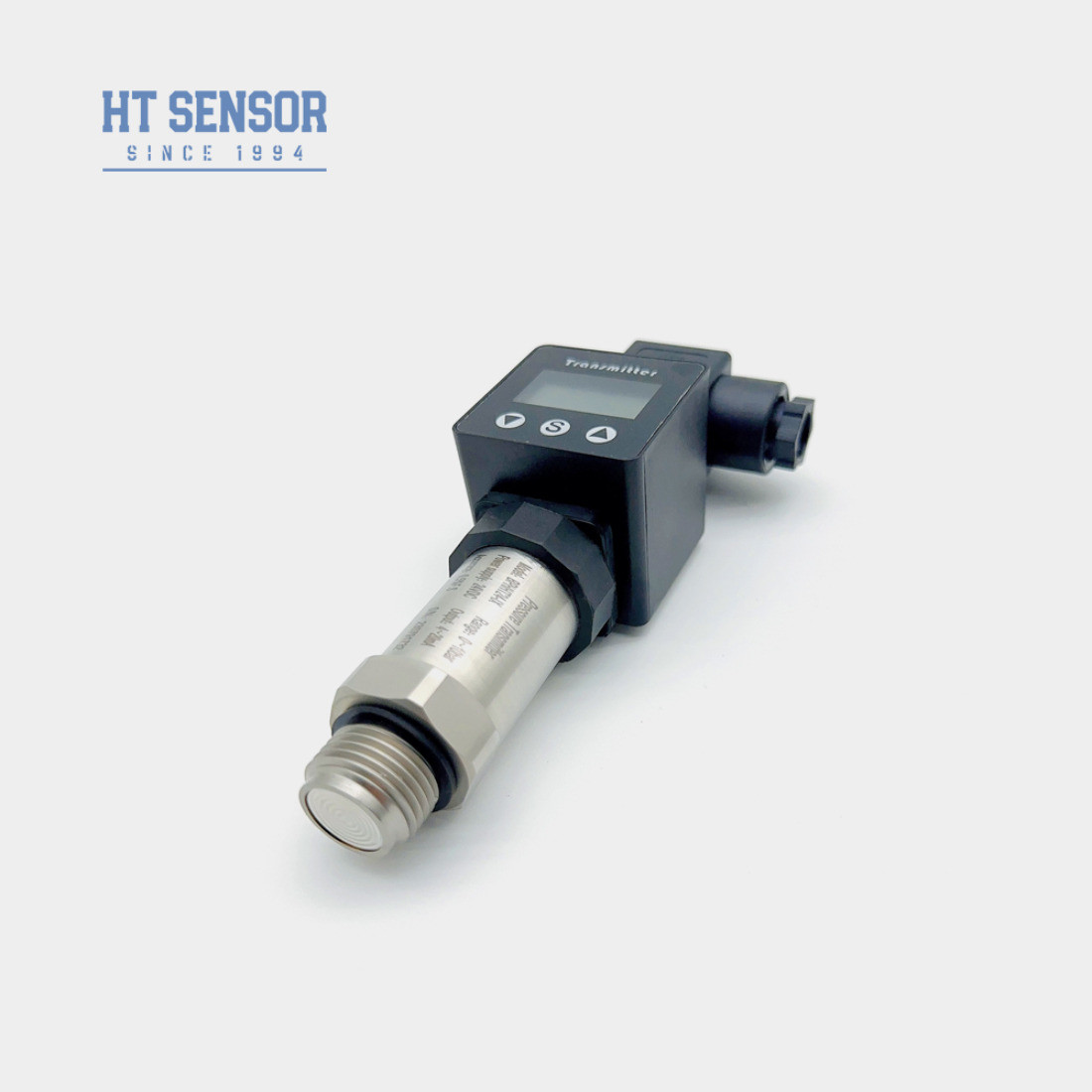

1/2BSP 4-20mA Flush Diaphragm Pressure Sensor with IX Display
BPHT24 Pressure Transmitter
Introduction of Flush Diaphragm Pressure Sensor:
BPHT24 Flush Diaphragm Pressure Sensor is that the medium pressure directly acts on the diaphragm of the sensor, so that the diaphragm generates a micro displacement proportional to the medium pressure, so that the resistance of the sensor changes, and the electronic circuit detects this change. It is a kind of pressure sensor commonly used in industrial practice, which is widely used in various industrial automatic control environments, involving oil pipelines, water conservancy and hydropower, railway traffic, intelligent buildings, production automatic control, aerospace, military, petrochemical, oil Wells, electric power, ships, machine tools, pipeline air supply, boiler negative pressure and many other industries
Product Features:
- Various pressure interface options
- Designed for hygienic applications to prevent medium scaling
- High accuracy with a fully stainless steel structure
- Easy to clean.
- Suitable for measuring non-corrosive gases and liquids with 316L
- Ideal for environmental protection and chemical industries
- Used in the marine and aviation industries
- Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
Perfomance Parameters:
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/℃(≤100KPa) ±0.01%F.S/℃(＞100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70℃(≤10mpa,customizable) |
| Operating Temperature | -20℃~80℃ |
| Storage Temperature | -40℃~120℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0/1～10V | ||
| 0.5～4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6～30V / Battery | 4 wire |
Selection Examples:
Ordering tips:
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| Measurement Range | 0~35Kpa…~35MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | 1/2NPT | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FQA:
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
