5VDC Pressure Transmitter Sensor 4-20mA Diffused Silicon Pressure Sensor
Product Details
| Model NO.: | BP93420-IB | Power: | 5VDC /12-36VDC |
|---|---|---|---|
| Thread: | G1/2, M20*1.5, 1/2NPT | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Housing Material: | 316L. Or 304SS | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Measuring Medium: | Liquid Air. Water Oil | Accuracy Grade: | 0.5%. 0.25% |
| Pressure Range: | 0kpa~5kpa...100MPa | ||
| Highlight |
BP93420-IB Pressure Transmitter Sensor,Pressure Transmitter Sensor 4-20mA RoHs,4-20mA Diffused Silicon Pressure Sensor |
||
Product Description

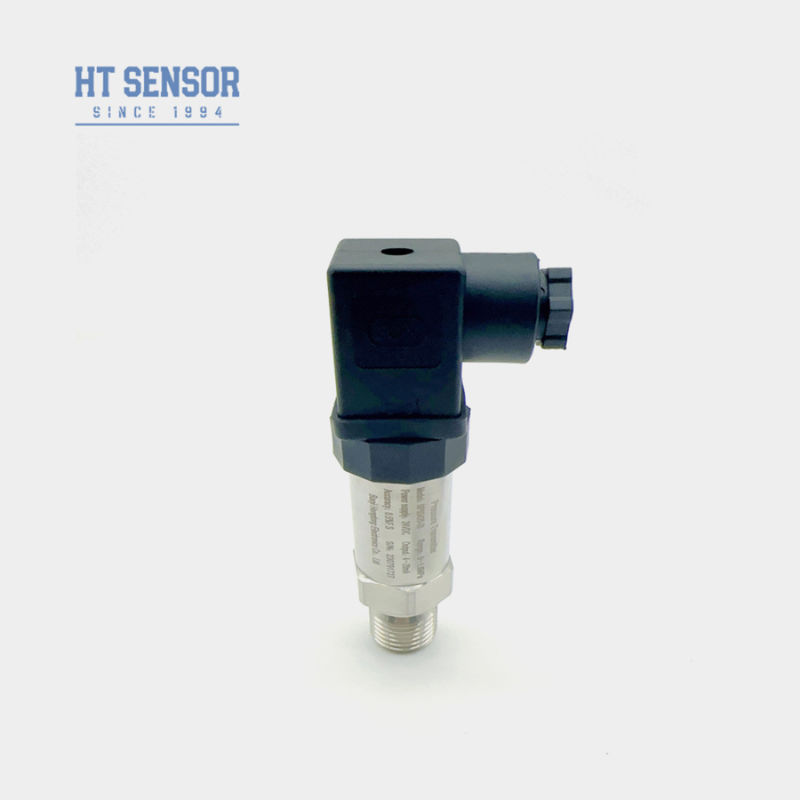

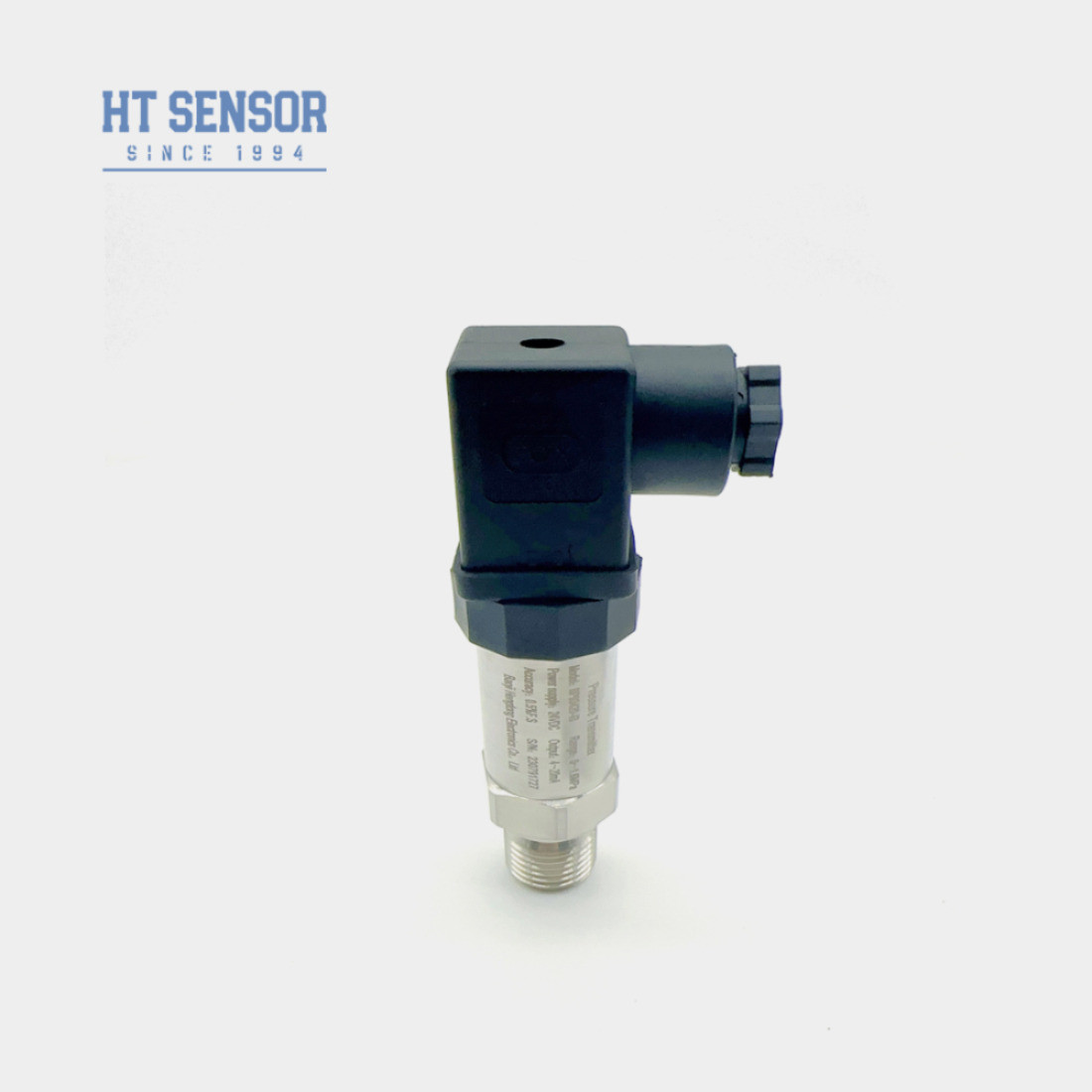

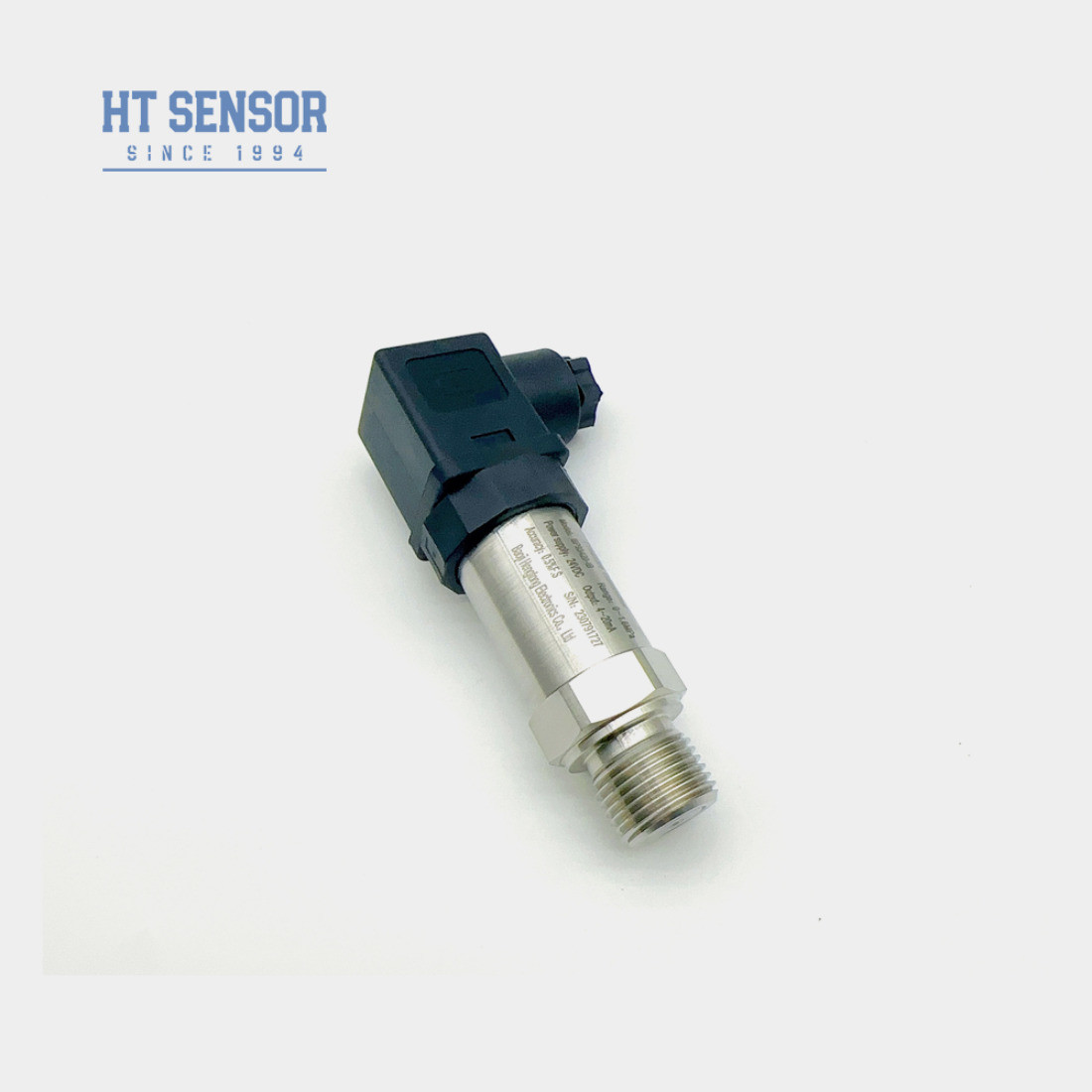

BP93420-IB 4-20mA Diffused Silicon Pressure Transmitter Sensor
BP93420IB Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP93420IB pressure transmitter sensor is the use of piezoresistive effect principle, the use of integrated technology through doping diffusion, along the characteristics of the crystal direction on the monocrystalline silicon sheet, made of strain resistance, constitute the bridge using the elastic mechanical properties of silicon materials, anisotropic micromachining on all silicon materials, made of a set of force sensitive and power conversion detection in one of the diffused silicon sensor.
Performance Parameters of pressure transmitter sensor:
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
Product Features of pressure transmitter sensor:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms
- 2. Compact and lightweight design
- 3. High precision, all stainless steel structure.
- 4.Can add LED or LCD watch head, on-site display
Applications of pressure transmitter sensor:
- 1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- 2. Applied in the marine and aviation industries
- 3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- 4. Utilized in hydraulic and pneumatic control systems
| Order Guide of pressure transmitter sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
