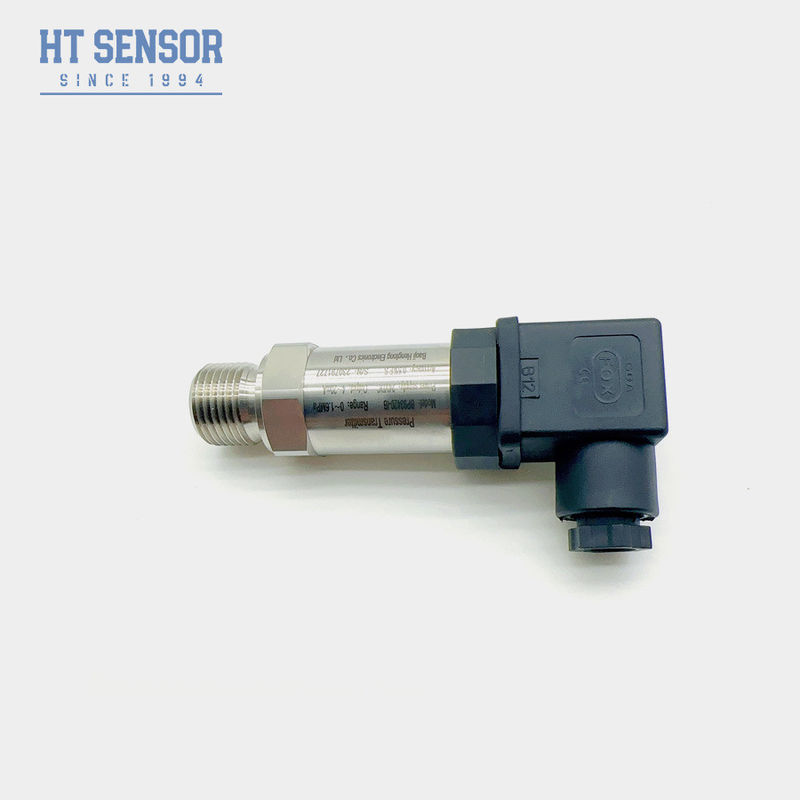

BP93420IB Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
BP93420IB pressure transmitter sensor incorporates the HT series diffused silicon isolated oil core as its primary signal measurement element. These diffused silicon pressure sensors are specifically engineered to deliver precise and consistent measurements for critical processes. With exceptional accuracy and stability, this diffused silicon pressure sensor is well-suited for a wide range of industrial applications, offering reliable performance and ensuring optimal process control.
| Performance Parameters of pressure transmitter sensor |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex db IIC T6 Gb |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.15kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
Product Features of pressure transmitter sensor:
- The pressure transmitter features a wide measuring range, a durable stainless steel structure, and various pressure interface options to accommodate different application needs.
- Its compact and lightweight design allows for easy installation and integration into space-constrained environments.
- With high precision and an all stainless steel structure, this pressure transmitter ensures accurate and reliable pressure measurements.
- Additionally, it offers the option to add an LED or LCD display head for convenient on-site pressure monitoring and display.
Applications of pressure transmitter sensor:
- This pressure transmitter is specifically designed for accurately measuring non-corrosive gases and liquids, utilizing 316L stainless steel material for enhanced durability and reliability.
- It finds extensive application in the marine and aviation industries, where precise pressure measurement is crucial for safety and performance.
- In addition to marine and aviation, this pressure transmitter is widely used in various industrial on-site processes, including petroleum, chemical, metallurgy, power generation, and hydrology.
- It is also commonly utilized in hydraulic and pneumatic control systems, providing accurate pressure sensing for efficient system operation.
| Ordering tips of pressure transmitter sensor |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering with LCD or LED display head of transducer, transmitter power should not be less than 20 VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, no cable or polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
7. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform our company and indicate in the order.
| Order Guide of pressure transmitter sensor |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ1/IQ2 |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
| |
Measurement Range |
-0.1. . .0~0.01...100MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
