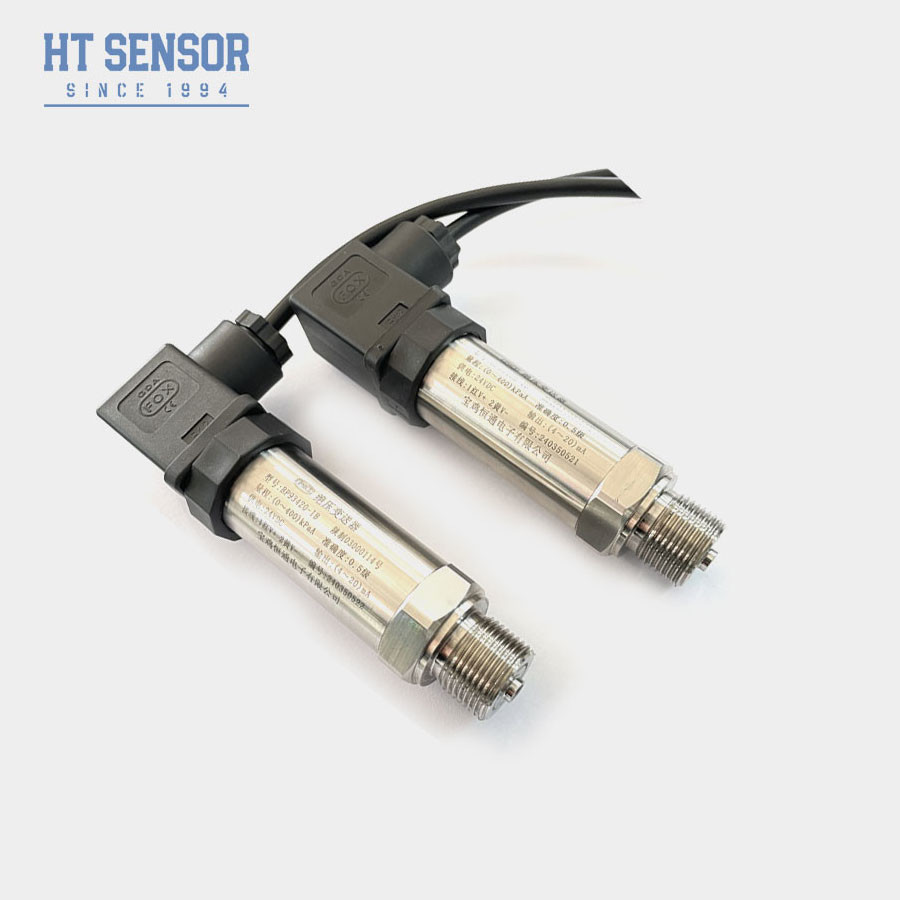

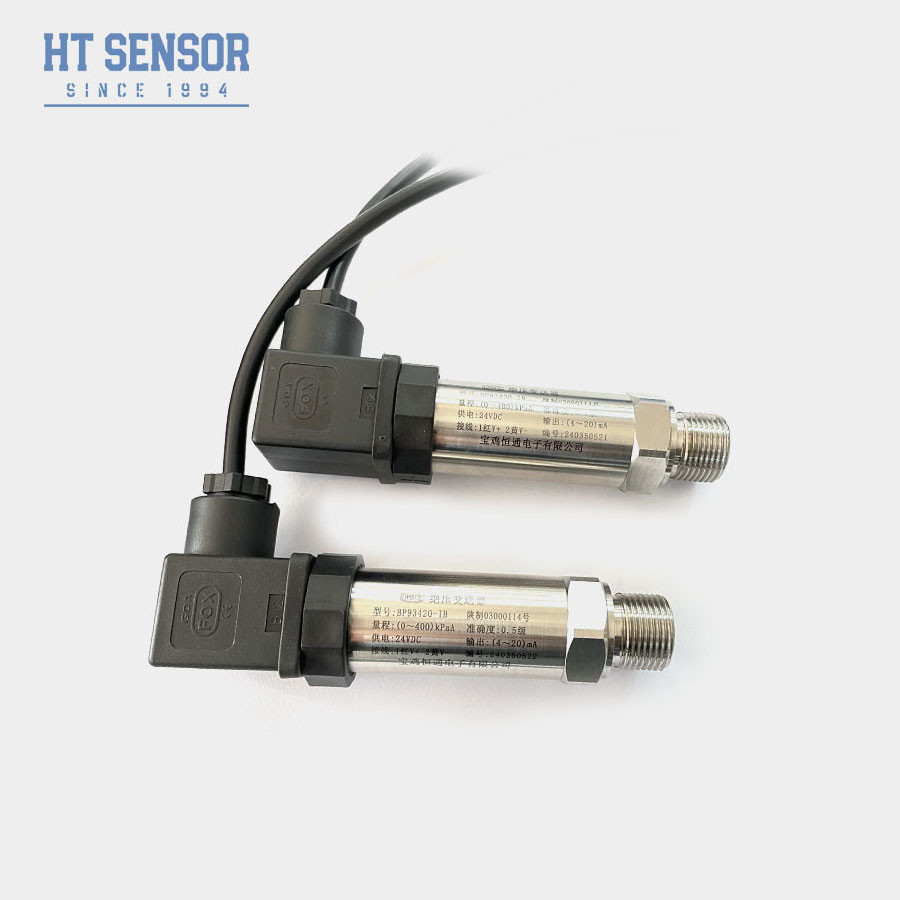

BP93420-IB Diffused Silicon Pressure Sensor High Precision And Wide Compatibility

BP93420IB Pressure Transmitter sensor


Introduction of pressure transmitter sensor:

      BP93420IB Diffused silicon pressure sensors are a type of pressure sensing device that utilizes diffused silicon technology to measure pressure changes. These sensors consist of a thin silicon diaphragm that deforms under pressure, causing a change in resistance. This change in resistance is then converted into an electrical signal, which can be processed and interpreted to determine the pressure applied.One of the key advantages of diffused silicon pressure sensors is their high sensitivity and accuracy in pressure measurement. They are capable of detecting subtle pressure changes with precision, making them suitable for a wide range of applications where precise pressure monitoring is essential.

      Diffused silicon pressure sensors offer excellent linearity, ensuring that the output signal is directly proportional to the applied pressure within a specified range. This linear relationship enables accurate calibration and consistent performance over time.

Product Features of pressure transmitter sensor:

1. High Precision: Diffused silicon pressure sensors offer high precision in pressure measurement, ensuring accurate and reliable results.

2. Wide Pressure Range: They are applicable across a wide range of pressures, making them suitable for various industrial and commercial applications.

3. Fast Response Time: These sensors have rapid response capabilities, enabling real-time capture of pressure variations and timely response to changes.

4. Compact Size: Diffused silicon pressure sensors typically have compact sizes, making them easy to integrate into different systems and applications.

5. Low Power Consumption: They have low power consumption, contributing to energy efficiency and prolonged battery life in portable devices.

6. Excellent Linearity: These sensors exhibit excellent linear characteristics, providing stable and consistent output across different pressure ranges.

Applications of pressure transmitter sensor:

1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel

2. Diffused silicon pressure sensors offer a reliable and cost-effective solution for measuring pressure in various industrial, automotive, aerospace, and medical applications, providing accurate and real-time pressure data for monitoring and control purposes.

Performance Parameters of pressure transmitter sensor:

1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering with LCD or LED display head of transducer, transmitter power should not be less than 20 VDC.

4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.

5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, no cable or polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
7. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform our company and indicate in the order.



Order Guide of pressure transmitter sensor
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter
	IC	High-temperature Pressure Transmitter
	IQ1/IQ2	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-0.1. . .0~0.01...100MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure



FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
