| Model NO.: | BP93420-IC | Pressure Range: | -100KPA-0-10kpa-40Mpa |
|---|---|---|---|
| Output: | 0.2-2.2V/0.5-4.5VDC/4-20mA /0-5VDC | Power: | 3.3-5.5VDC /12-36VDC |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Structure Type: | Diffused Silicon Pressure Transmitter Sensor |
| Measuring Medium: | Liquid And Gas | Accuracy Grade: | 0.5% |
| IP Rating: | IP65 | Customization: | OEM And ODM |
| Highlight: | Water And Oil Pressure Transmitter Sensor,BP93420-IC Pressure Transmitter Sensor,High Temperature Pressure Transmitter Sensor |
||

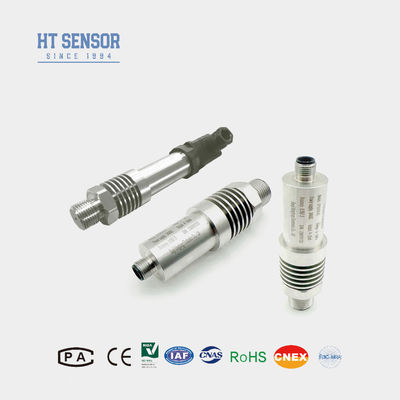

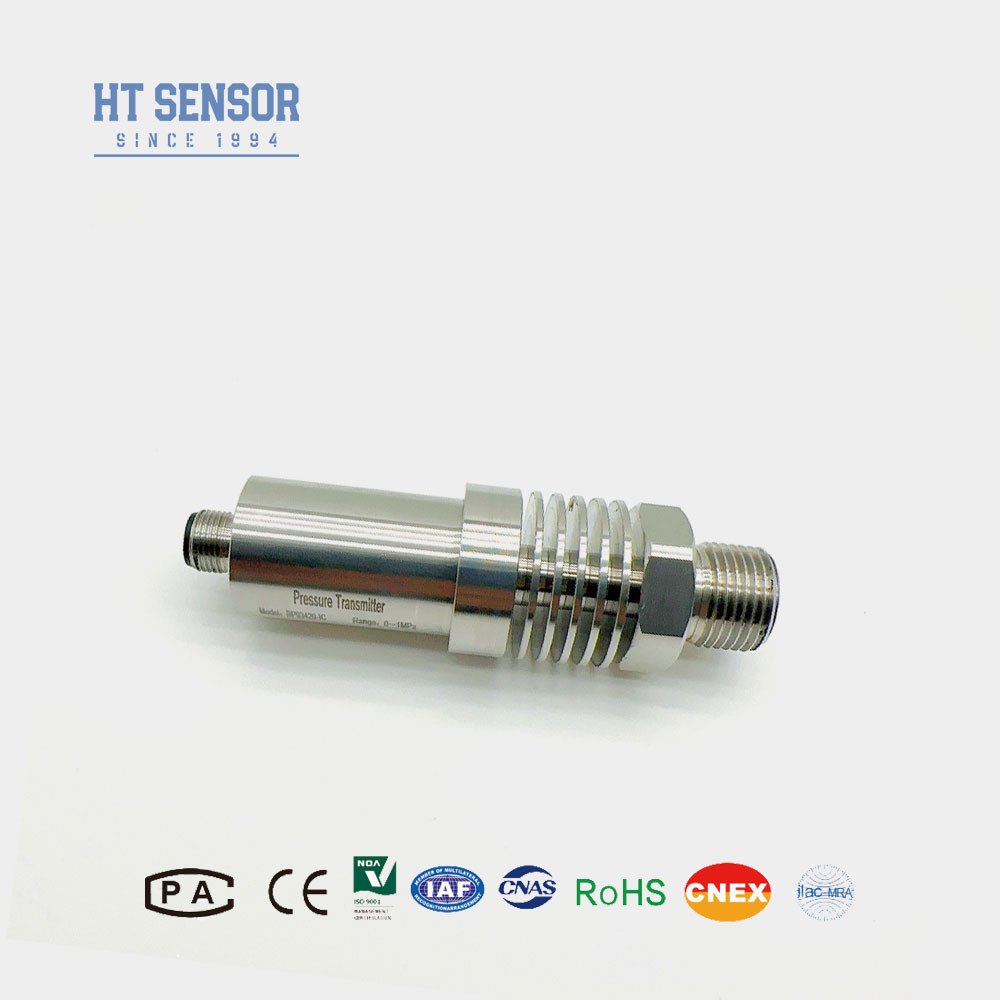

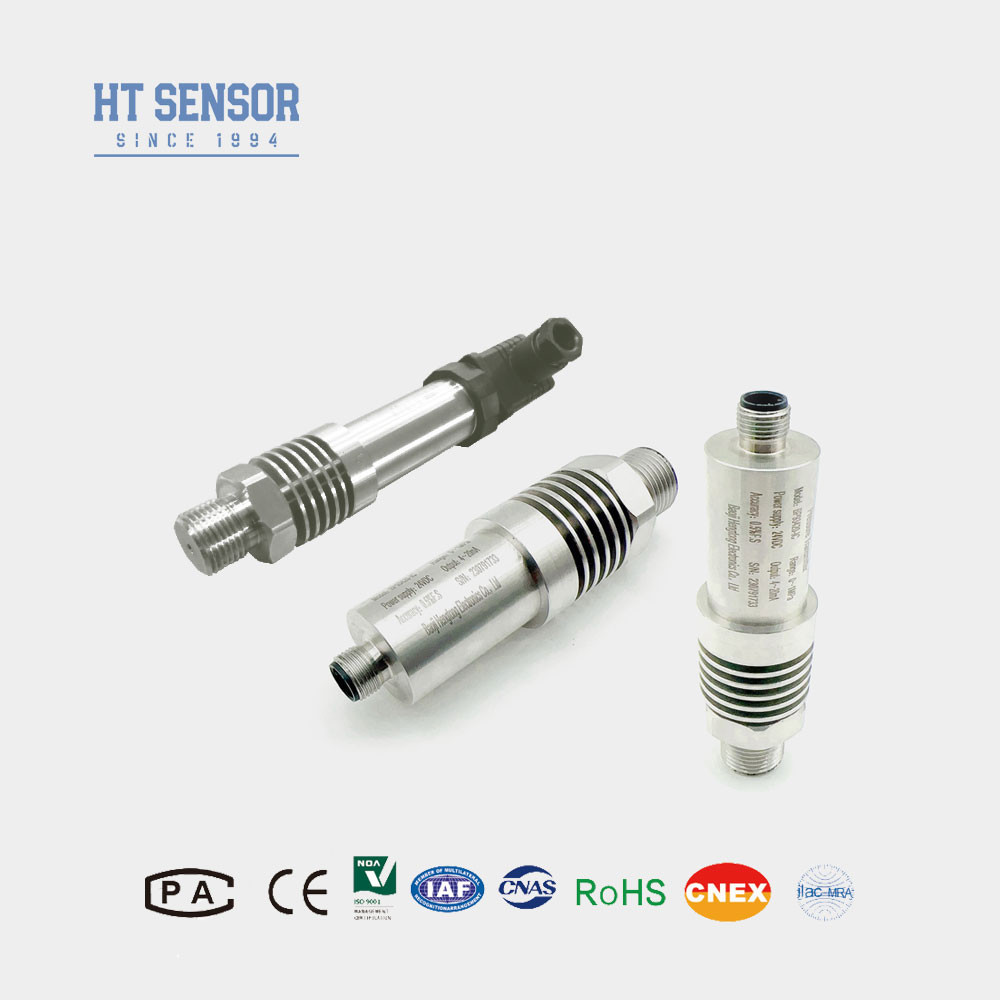

BP93420IC Pressure Transmitter Sensor
Introduction of pressure transmitter sensor:
BP93420-IC is a high temperature pressure transmitter sensor using advanced HT19 series silicon pressure isolation oil filled core as the core measurement element.A heat dissipation device is added to the front end to drastically cool the medium that comes into contact with the sensor.This particular design makes it well suited for high temperature demanding environments, making it ideal for applications involving temperature fluctuations or operating under higher conditions.It is widely used in industrial processes and systems where accurate and reliable pressure measurements are required even in challenging high temperature environments.
Product Features of pressure transmitter sensor:
Applications of pressure transmitter sensor:
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…40MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Ordering tips |
1. When choosing products, please make sure that medium compatible with contact part of the product being tested.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. The default without cable, such as the need to default to polyethylene cable material, if you need a different cable materials, please indicate in the order.
6. In case of special requirements such as strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference, please inform us and indicate in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
