HT Series Diffused Silicon Transducer BP93420IB Pressure Transmitter Sensor for Consistent Measurements
Product Details
| Model NO.: | BP93420-IB | Power: | 5VDC /12-32VDC |
|---|---|---|---|
| Output: | 0.5-4.5V 4-20mA 0-10v AND So On | Long-Term Stability: | +-0.15%F.S/Year(Typ.) |
| Housing Material: | 316L. Or 304SS | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Thread: | M20*1.5 / G1/2 Or OEM | Measuring Medium: | Air. Water Oil |
| Accuracy Grade: | 0.5%. 0.25% | Pressure Range: | -100kpa~0-10KPa...100MPa |
| Highlight |
Diffused Silicon Transducer Pressure Transmitter Sensor,BP93420IB Pressure Transmitter Sensor,Consistent Measurements Pressure Transmitter Sensor |
||
Product Description

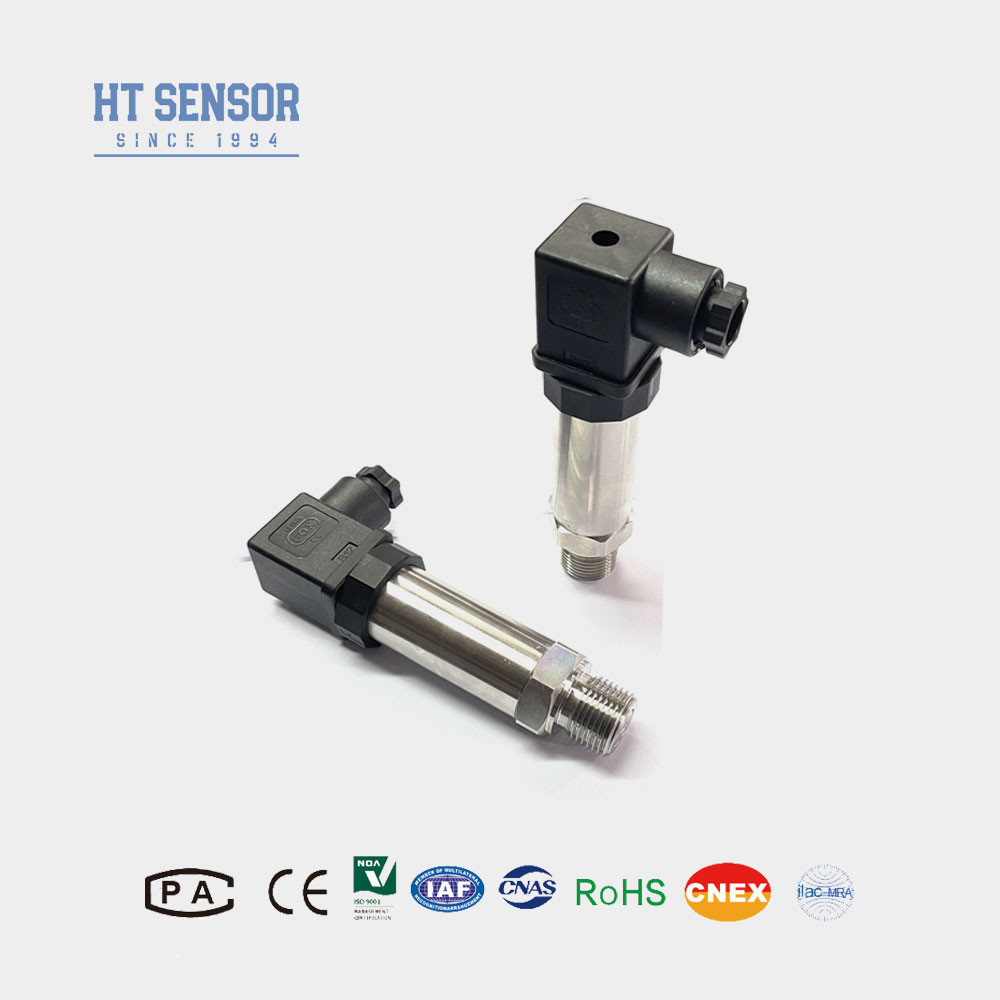

HT Series Diffused Silicon Transducer BP93420IB Pressure Transmitter Sensor for Consistent Measurements
BP93420IB Pressure Transmitter sensor
Introduction of pressure transmitter sensor:
The BP93420IB Pressure Transmitter sensor is a measuring device that detects the pressure of a liquid, gas or steam medium and converts it to a standard electrical output. It detects pressure changes through a built-in pressure sensor, converting the physical quantity of pressure into a corresponding electrical signal, such as 4-20mA, 0-5V or digital signals.
The pressure transmitter is composed of isolation film, sensor and electronic circuit. When the pressure medium acts on the isolation film, the isolation film will be slightly deformed. The deformation is detected by the sensor and converted into the corresponding electrical signal. The electronic circuit amplifies and corrects the electrical signal, and finally outputs the standard current/voltage/digital signal
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
Product Features of pressure transmitter sensor:
- The pressure transmitter features a wide measuring range, a durable stainless steel structure, and various pressure interface options to accommodate different application needs.
- Its compact and lightweight design allows for easy installation and integration into space-constrained environments.
- With high precision and an all stainless steel structure, this pressure transmitter ensures accurate and reliable pressure measurements.
- Additionally, it offers the option to add an LED or LCD display head for convenient on-site pressure monitoring and display.
Applications of pressure transmitter sensor:
- Pressure transmitters are widely used in various industries, such as petrochemical, metallurgy, electric power, aerospace, environmental protection and other fields.
- They are used to monitor the pressure of pipes, containers, storage tanks and other equipment to ensure a safe and reliable production process. In addition, pressure transmitters are also used in scientific research fields such as meteorology and hydrology
| Ordering tips of pressure transmitter sensor |
1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering with LCD or LED display head of transducer, transmitter power should not be less than 20 VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default product is without cable, if necessary, please communicate with the sales staff. There are three materials to choose from. Do not use cable or polyethylene cable material without special instructions.If you require a different cable material, please indicate it in the order.
7. In case of strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference and other special requirements, please inform our company and indicate in the order.
| Order Guide of pressure transmitter sensor | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||

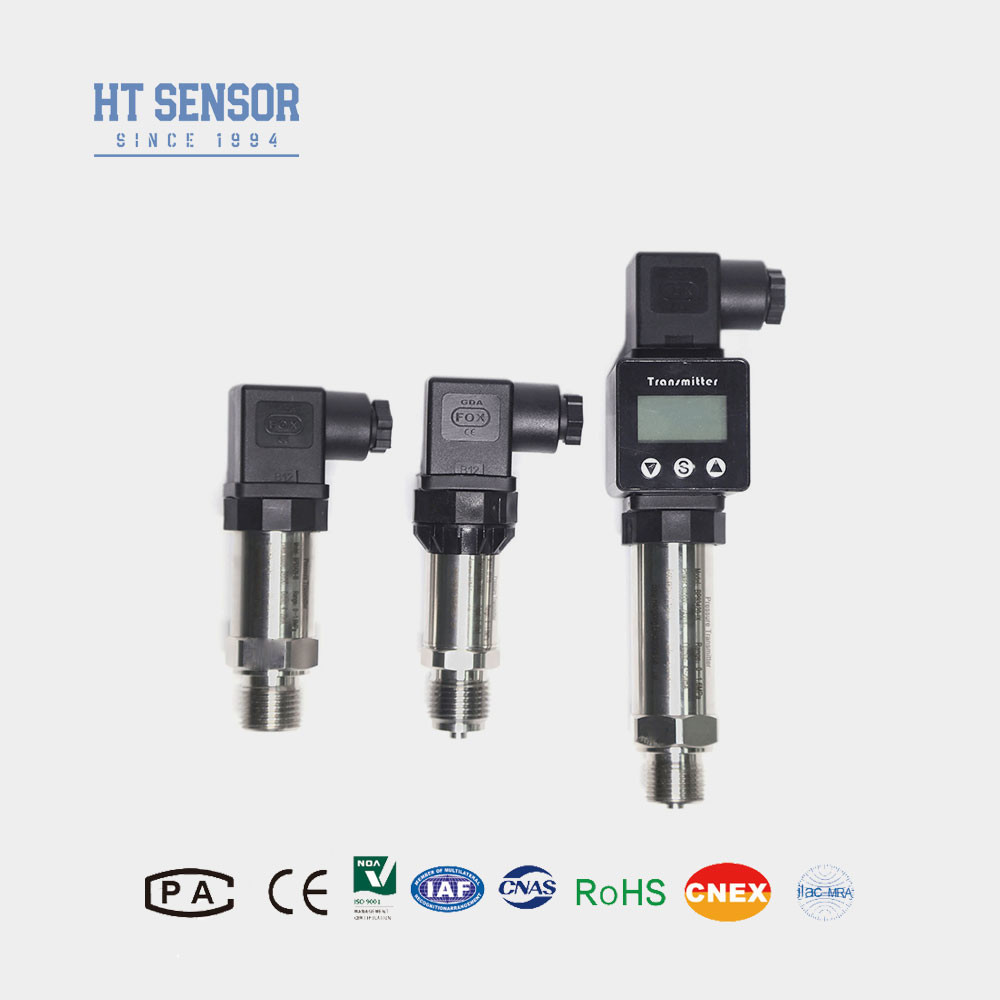

| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
