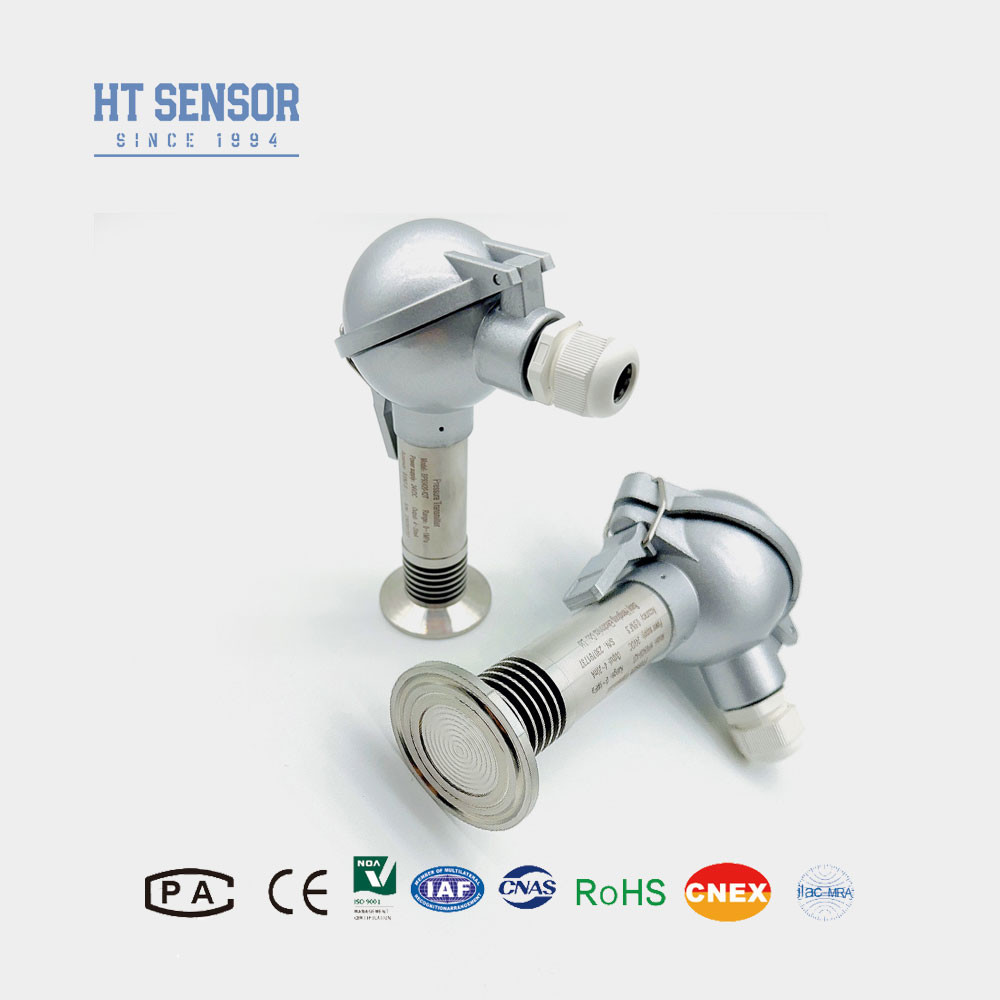

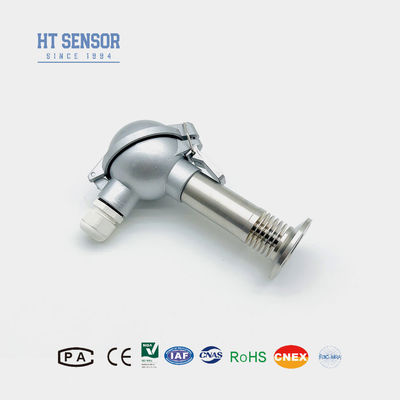

BP93420-IQT Pressure Transmitter sensor
Introduction of flush Diaphragm pressure transmitter sensor:
The BP93420-IQT compact flush diaphragm pressure transmitter sensor has undergone rigorous testing across various parameters, ensuring stable and reliable performance. Its exposed large diaphragm effectively prevents blockage of the pressure hole due to medium crystallization, making it suitable for clean and hygienic use in the food and healthcare industries. The flat membrane pressure sensor elastomer utilizes imported materials and diaphragm isolation technology, with no pressure sensing hole on the test head to prevent non-viscous medium blockage during measurement. This integrated structure design is ideal for pressure measurement and control in applications involving chemical coatings, paint, mud, asphalt, crude oil, and other viscous media.
| Performance Parameters of flush Diaphragm pressure transmitter sensor: |
| Measurement Range |
-100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
≤0.1%FS |
| Hysteresis |
≤0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| Weight |
~0.5kg |
Product Features of flush Diaphragm pressure transmitter sensor:
1. Wide measurement range,Various pressure interface options
2. Diverse output signal options
3. Adjustable zero and full-scale
4. High accuracy,multiple sterile process connections
Applications of flush Diaphragm pressure transmitter sensor:
1. Suitable for measuring non-corrosive gases and liquids with 316L
2. Medical, biopharmaceutical, and food hygiene industries for sterile processing
3. Used in the paper and chemical industries, as well as for sewage level and beverage can pressure measurements Suitable for hydraulic and pneumatic control systems
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2 wire |
1. When selecting a product, ensure that the media is compatible with the contact part of the product under test.
2. When placing an order, please note that explosion-proof products do not include digital displays.
3. To ensure reliable operation of the product, you are advised to install lightning protection devices onsite and ensure that the product and power supply are grounded reliably.
4. No cable by default, if necessary, there are three materials to choose from. Unless otherwise specified, polyethylene cable material can be used. If you need a different cable material, please specify it in the order form.
5. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.
| Order Guide of flush Diaphragm pressure sensor |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ1/IQ2 |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
| |
Measurement Range |
-100kPa…0kPa ~ 35kPa…3.5MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
