| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | ISO9001 |
| Model Number: | BP93420-IQ |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP93420-IQ | Protection Rating: | IP65 |
|---|---|---|---|
| Housing Material: | 316LS.S. Or 304S.S. | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Trademark: | HTsensor | Origin: | Baoji, China |
| HS Code: | 9026201090 | Type: | Industrial Pressure Sensor Transmitter |
| Structure Type: | Diffused Silicon Pressure Sensor | Pressure Range: | -100kpa...0kpa ~35kpa...3.5MPa |
| Highlight: | 4-20mA Industrial Pressure Sensor,BP93420-IQ Industrial Pressure Sensor,4-20mA Output Pressure Transducer |
||

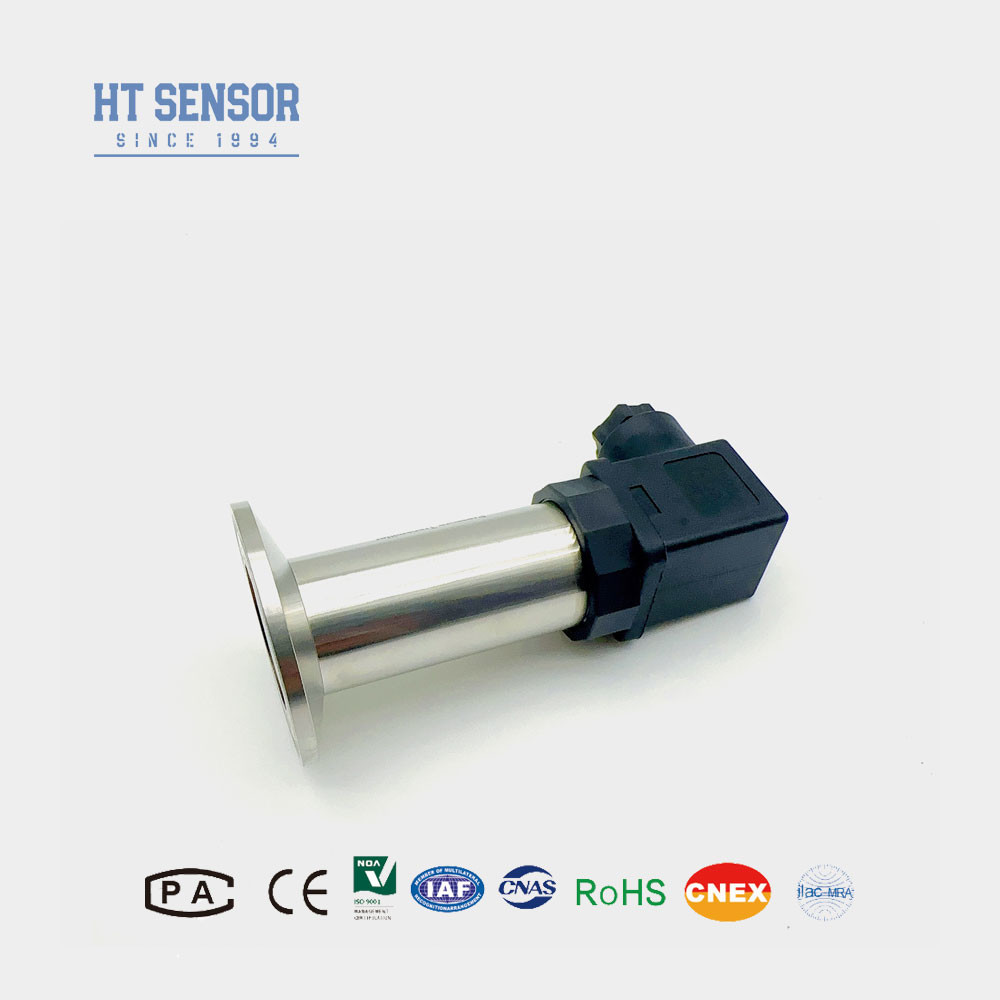

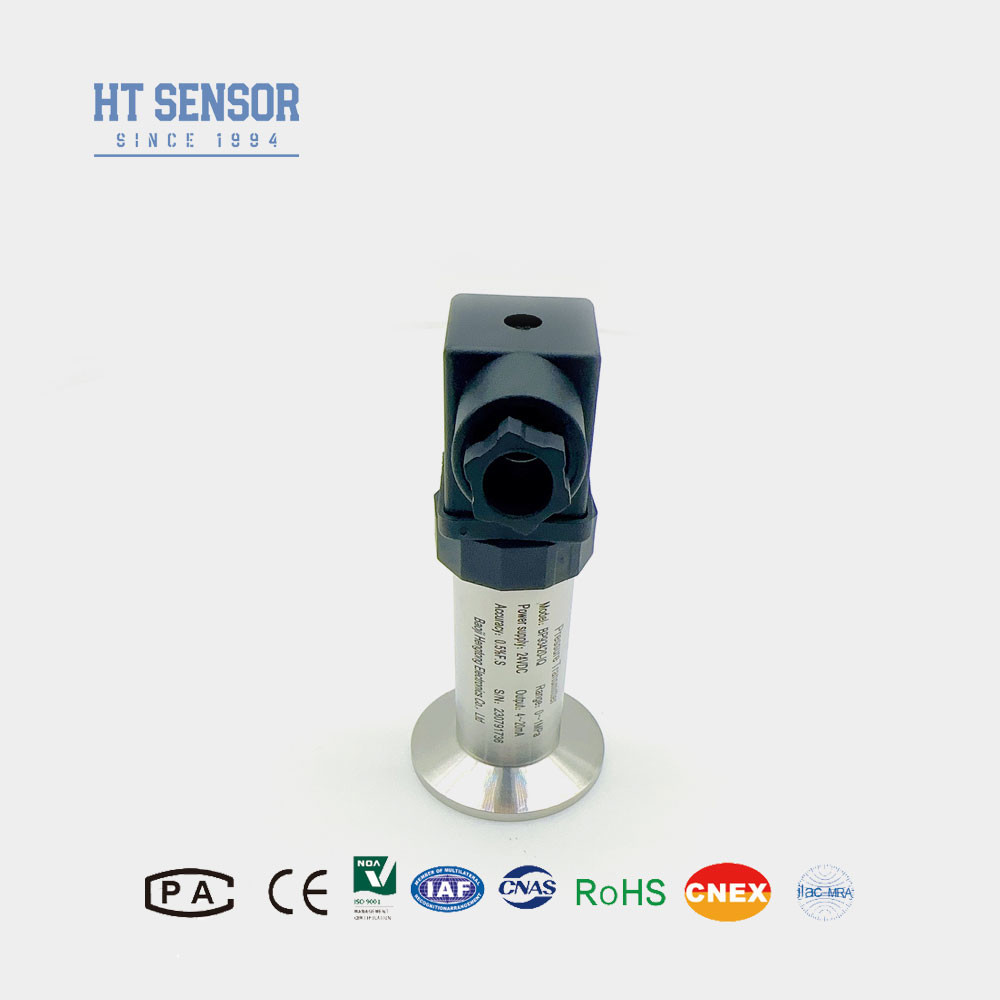

The BP93420-IQ flush diaphragm industrial pressure sensor transmitter utilizes a flat-film clamped pressure transmitter, offering a dependable method for measuring pressure in viscous media and specialized applications. The welded sealing isolation film device features various process connection structures and is suitable for high viscosity and crystalline media measurement. These products have found widespread application in the food, healthcare, paper, and other industries.
The B P93420-IQ product is primarily designed for measuring the pressure of viscous media. The sensor's flat film structure prevents clogging, scaling, and unsanitary conditions in viscous liquids. The clamp-type sensor connection interface makes installation easy, and the transmitter can be widely used in medicine, food, textile, and other fields for automatic gas and liquid pressure measurement and control.
Product Features of flush diaphragm Industrial pressure sensor:
1. Wide measuring range -100kpa～0～35kpa～3.5Mpa, 50.4mm clamp pressure interface.
2. Multiple output signal options.
3. High precision, multiple aseptic process connection.
Applications of flush diaphragm industrial pressure sensor:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Medical, biopharmaceutical, and food hygiene industries for sterile processing.
3. Used in the paper and chemical industries, as well as for sewage level and beverage can pressure measurements Suitable for hydraulic and pneumatic control systems.
| Performance Parameters of flush diaphragm industrial pressure sensor | |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤0.1%FS |
| Hysteresis | ≤0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.
6. The cable does not have cable. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by network is always available.
