Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor

Basic Information
Place of Origin: Baoji,China
Brand Name: HT SENSOR
Certification: ISO9001
Model Number: BH93420-IT
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 5-8 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000PCS/Month
Detail Information
Model NO.: BH93420-IT Output Form: 4-20mA 0.5-4.5V
Power: 12-23Vdc (24VDC) / 3.3-5.5VDC Diaphragm Material: 316L Stainess Steel
Net Weignt: 0.3kg Without Cable Transport Package: Carton
Cable: PU/PE/PTFE House Material: 304S.S Or 316L S.S
Contact: Input Into The Liquid Customization: ODM
Highlight:

Industrial Grade Liquid Level Transmitter

,

Accurate Measurement Liquid Level Transmitter

,

Monitoring Sensor Liquid Level Transmitter


Product Description

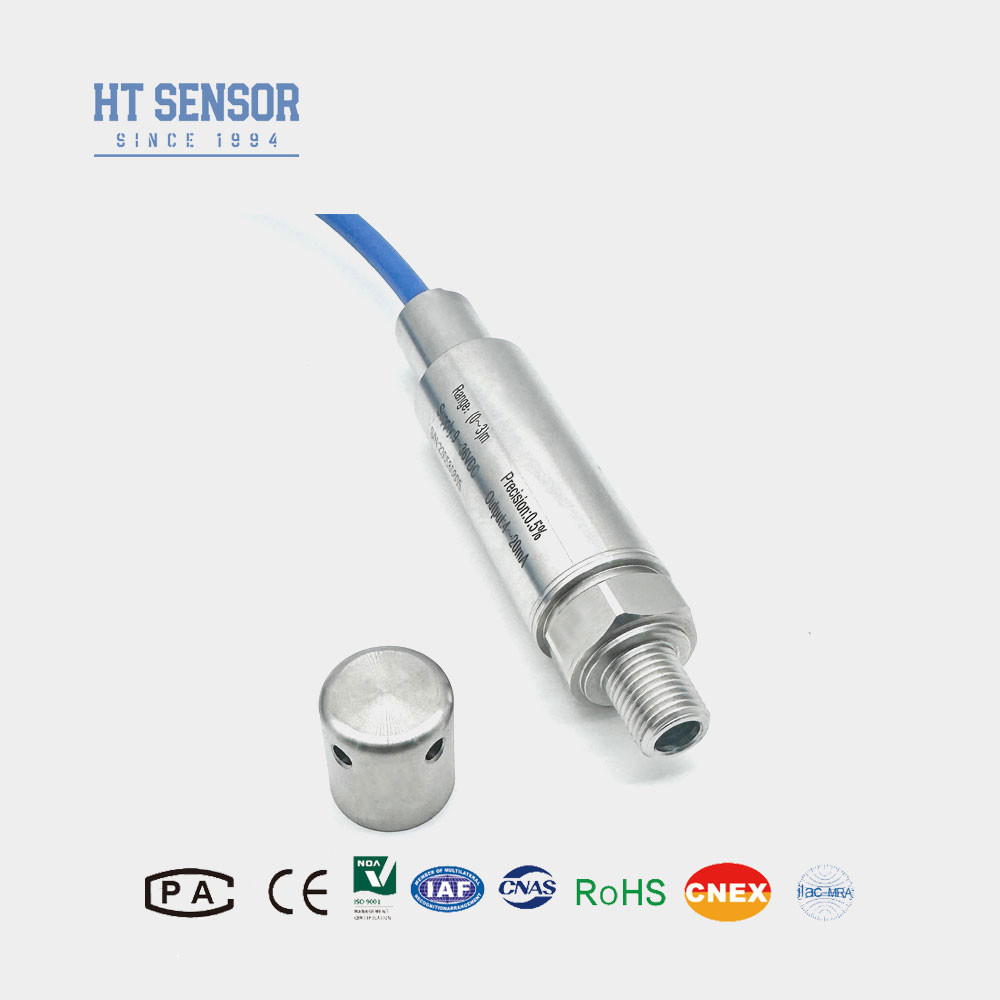

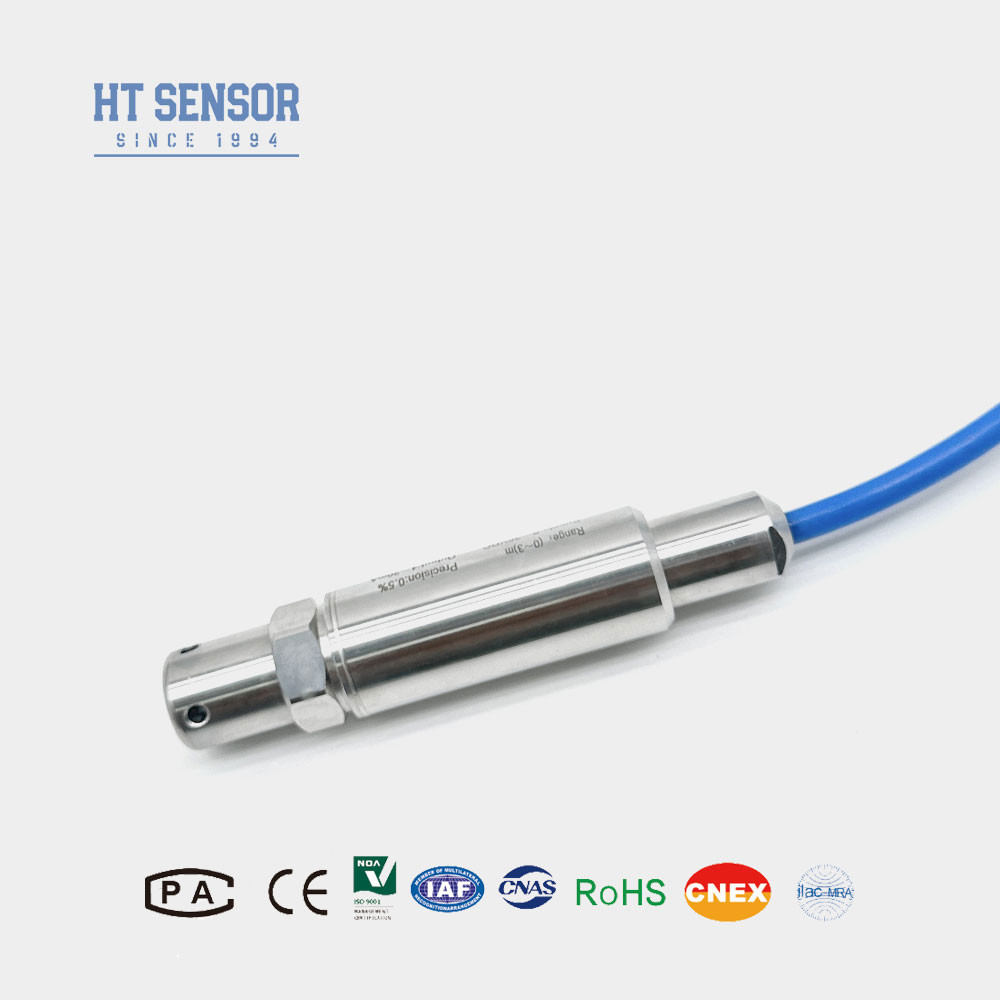

Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor

BH93420 I Water level sensor

Introduction of liquid level transmitter sensor:



The BH934520-IT is an exceptional liquid level transmitter engineered to excel in the measurement of liquid or gas height, even in the most demanding conditions. Its all-welded construction and PTFE cable provide unparalleled protection against the rigors of high temperatures, corrosive media, and highly permeable substances. This remarkable resilience positions the BH934520-IT as a reliable choice for the monitoring and control of liquid or gas levels in a wide array of industrial applications, from tanks and containers to pipelines and beyond. Its versatility makes it a suitable solution across diverse industries, including industrial, chemical, pharmaceutical, and environmental protection sectors.
Product  Features of liquid level transmitter sensor:

Key features:

  • All-welded structure for enhanced durability and protection
  • PTFE cable for superior resistance to high temperatures and corrosive media
  • Suitable for measuring liquid or gas height in challenging environments
  • Reliable monitoring and control of levels in tanks, containers, pipelines, and more
  • Versatile application across various industrial sectors, including industrial, chemical, pharmaceutical, and environmental protection


Applications of liquid level transmitter sensor:

  • Material Compatibility with 316L Stainless Steel and Noncorrosive Liquids:
  • The BH934520-IT water level transmitter is constructed with 316L stainless steel, making it compatible with a wide range of noncorrosive liquids. This material selection ensures the transmitter can reliably operate in diverse industrial applications without risk of corrosion or degradation.
  • Monitoring Water Levels in Various Applications:
  • The BH934520-IT is well-suited for monitoring water levels in a variety of applications, including sewage treatment, industrial and municipal water systems, water tanks, wells, rivers, seawater, lakes, and other aquatic environments. Its robust design and versatility make it a dependable choice for these critical water level measurement tasks.
  • Measuring Fuel Levels in Diesel and Fuel Tanks:
  • In addition to water level applications, the BH934520-IT can also be used to accurately measure fuel levels in diesel and other fuel storage tanks. This expanded functionality allows the transmitter to be deployed across a broader range of industrial and commercial settings where reliable level monitoring is essential.
Performance Parameters of liquid level transmitter sensor
Measurement Range 0~10m…400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.)   ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.)  ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Zero  Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa),   ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC  (0-1m. 0-2m );    0-70ºC
Operating Temperature -20~80ºC
Storage Temperature -30~100ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L Stainless Steel
Insulation Resistance >=100MΩ@100VDC
Explosion-proof Rating ExiaIICT6
Protection Rating IP67, IP68
O-Ring Seal Fluoro rubber
Weight ~0.3Kg (without cable)
Cable Material Polyethylene, Polyurethane

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire





Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 0Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 1Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 2Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 3Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 4

BH93420-I Water Level Transmitter and Oil Level Transmitter

BH93420-I Water Level Transmitter and Oil Level Transmitter
Ordering tips



Here are the tips regarding product selection and ordering:

1. When selecting a product, please ensure that the wetted part of the product is compatible with the medium under test.

2. When placing an order, please note that explosion-proof products do not include a digital display.

3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.

4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and the power supply are reliably grounded.

5. Fluorine rubber O-rings have a rated operating temperature range of -20°C to 250°C. When operating temperatures fall below -20°C, EPDM O-rings should be selected.

6. The cable is not provided by default. If a cable is required, there are three material options to choose from. If no specific instructions are given, polyethylene cable material will be used by default. If a different cable material is required, please indicate it in your order form.

7. In case of special requirements such as strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference, please inform us and indicate it in your order.



Order Guide
BH93420 Code Outline Construction
  I Pressure Transmitter
  Measurement Range 0~10m…400m
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC  S8 RS485
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
  S Sealed Reference Pressure
  Code Material
01 304 Stainless Steel
02  316L Stainless Steel
  Code  Cable Material
C1 PE
C2 PU
 Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 7Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 8Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 9Industrial-Grade Liquid Level Transmitter For Accurate Measurement And Monitoring Sensor 10

FAQ:



1. Q: What are the features of your pressure sensor transmitters?

A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.



2. Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.



3. Q: What is your production capacity?

A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.



4. Q: What's the typical delivery period?

A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.



5. Q: How are the products priced? Any discounts?

A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.



6. Q: What is the warranty of your products? And after-sales service?

A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
