OEM Industrial Pressure Sensor For Accurate And Measurement And Monitoring Level Sensor

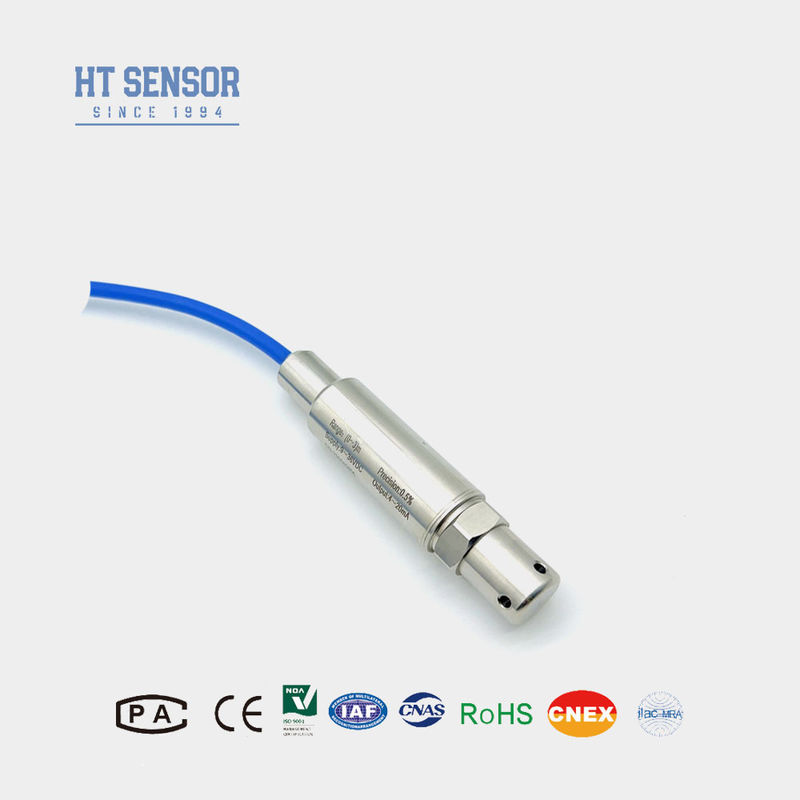

BH93420 I Water level sensor

Introduction of industrial pressure sensor:

The BH934520-IT is an excellent level transmitter that measures the height of a liquid or gas, even under the most demanding conditions. Its all-welded construction and teflon cables provide unparalleled protection against high temperatures, corrosive media and highly permeable substances with rigor. This superior flexibility makes the BH934520-IT a reliable choice for monitoring and controlling liquid or gas levels in a variety of industrial applications, from storage tanks and containers to pipelines and more. Its versatility makes it a suitable solution for a variety of industries, including the industrial, chemical, pharmaceutical and environmental sectors.
The BH934520-IT's superior performance and adaptability make it a valuable asset to industries that require accurate and reliable liquid or gas level measurement, even under the most demanding operating conditions.
Product  Features of industrial pressure sensor:

• All-welded structure for enhanced durability and protection.
• PTFE cable for superior resistance to high temperatures and corrosive media.
• Suitable for measuring liquid or gas height in challenging environments.
• Reliable monitoring and control of levels in tanks, containers, pipelines, and more.
• Versatile application across various industrial sectors, including industrial, chemical, pharmaceutical, and environmental protection.

Applications of industrial pressure sensor:

• Material compatibility with 316L stainless steel and non-corrosive liquids:
• The BH934520-IT water level sensor is manufactured in 316L stainless steel and is compatible with a wide range of non-corrosive liquids. This material choice ensures that the sensors operate reliably in a wide range of industrial applications without worrying about corrosion or degradation.
• Monitor water levels in various applications:
• The BH934520-IT is ideal for monitoring water levels in a variety of applications, including wastewater treatment, industrial and municipal water systems, tanks, wells, rivers, seawater, lakes, and other aquatic environments. Its rugged design and versatility make it a reliable choice for these critical water level measurement tasks.
• Measure the oil level in diesel and fuel tanks:
• In addition to water level applications, the BH934520-IT can be used to accurately measure oil levels in diesel and other fuel storage tanks. This extended capability allows the sensor to be deployed in a wider range of industrial and commercial environments where reliable level monitoring is required.

Here are the tips regarding product selection and ordering:

1. When selecting a product, please ensure that the wetted part of the product is compatible with the medium under test.

2. When placing an order, please note that explosion-proof products do not include a digital display.

3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.

4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and the power supply are reliably grounded.

5. Fluorine rubber O-rings have a rated operating temperature range of -20°C to 250°C. When operating temperatures fall below -20°C, EPDM O-rings should be selected.

6. The cable is not provided by default. If a cable is required, there are three material options to choose from. If no specific instructions are given, polyethylene cable material will be used by default. If a different cable material is required, please indicate it in your order form.

7. In case of special requirements such as strong vibration, instantaneous impact, strong electromagnetic or radio frequency interference, please inform us and indicate it in your order.

FAQ:

1. Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2. Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

3. Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

4. Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5. Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

6. Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
